4-4
4 Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter mode “TRIP” in the following order:
ODO → TRIP → ODO
To reset the tripmeter, select it by pushing the “SE-
LECT” button, and then push the “SELECT” button
for at least three seconds. The tripmeter can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.
TIPPushing in the “SELECT” button, then turning the
key to “ON”, and keeping them in this position for
at least two seconds switches the display between“mph” and “km/h”.

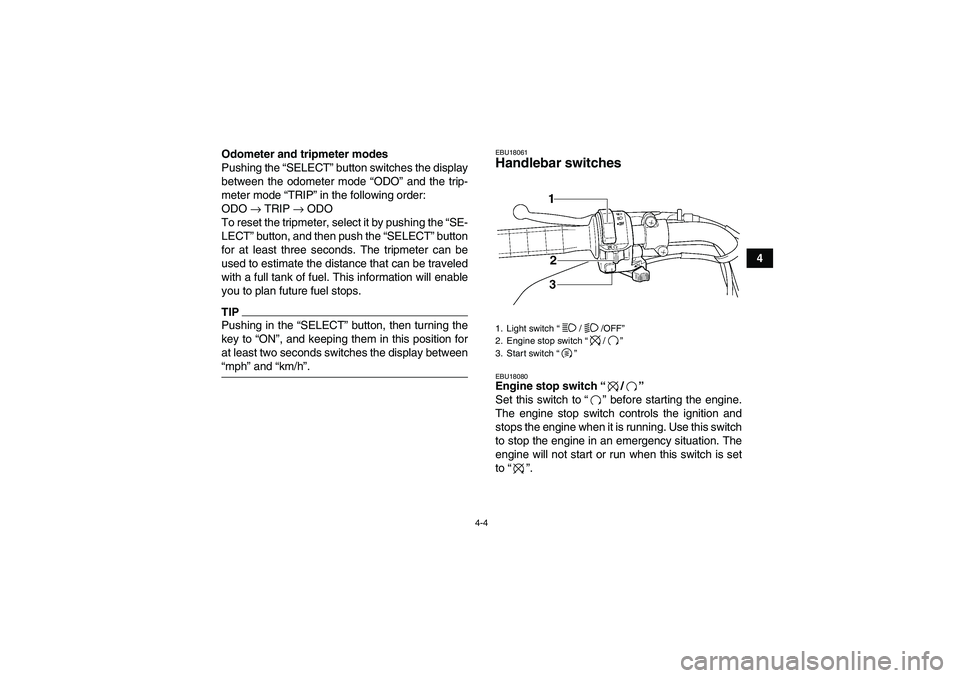

EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.1. Light switch“//OFF”
2. Engine stop switch“/”
3. Start switch“”
U3C263E0.book Page 4 Thursday, May 15, 2008 10:44 AM
