YAMAHA WR 125R 2009 User Guide

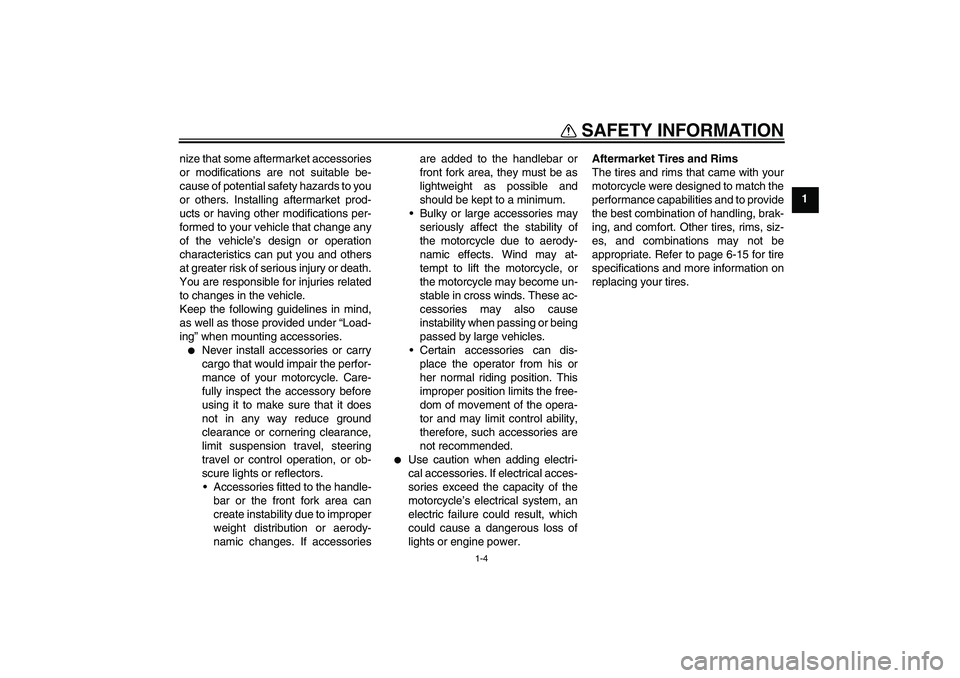

SAFETY INFORMATION
1-4
1 nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessoriesare added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-15 for tire
specifications and more information on
replacing your tires.
U22BE0E0.book Page 4 Wednesday, December 17, 2008 11:00 AM

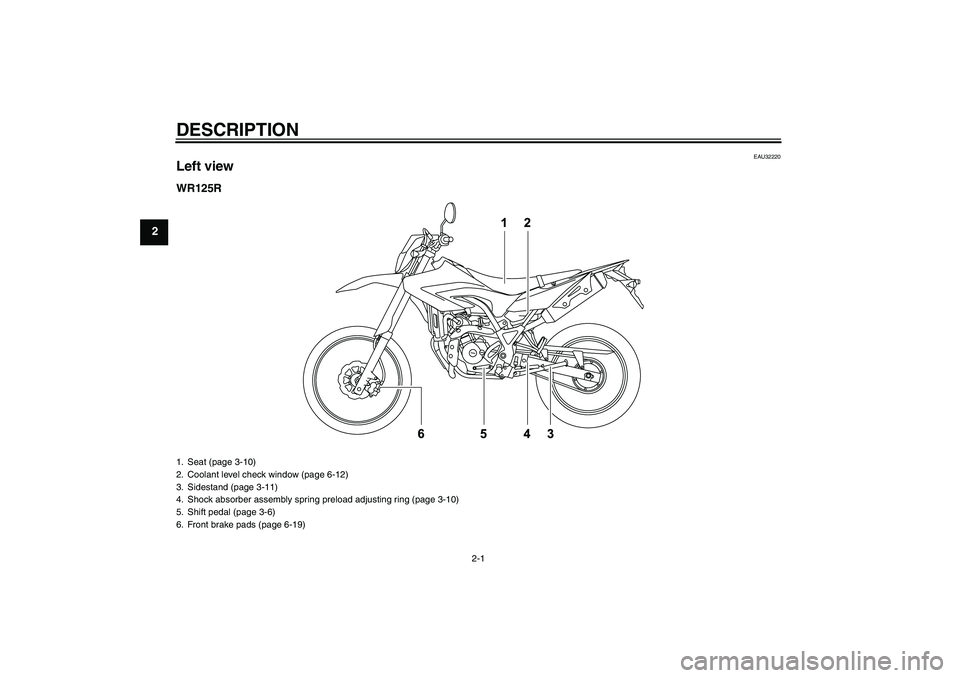

DESCRIPTION
2-1
2
EAU32220
Left viewWR125R1. Seat (page 3-10)
2. Coolant level check window (page 6-12)
3. Sidestand (page 3-11)
4. Shock absorber assembly spring preload adjusting ring (page 3-10)
5. Shift pedal (page 3-6)
6. Front brake pads (page 6-19)U22BE0E0.book Page 1 Wednesday, December 17, 2008 11:00 AM

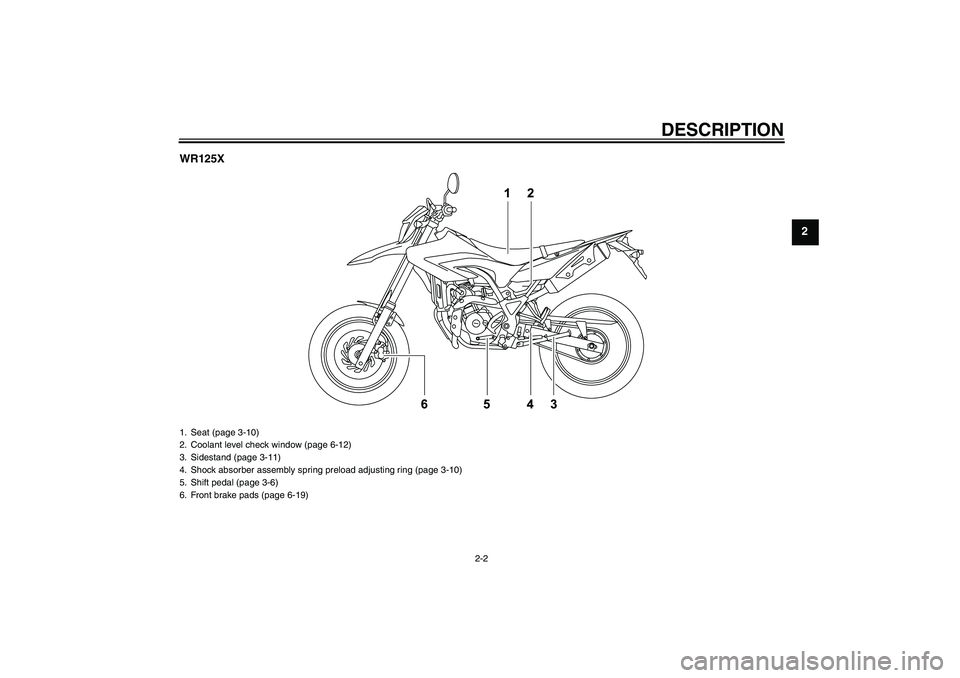

DESCRIPTION
2-2
2 WR125X
1. Seat (page 3-10)
2. Coolant level check window (page 6-12)
3. Sidestand (page 3-11)
4. Shock absorber assembly spring preload adjusting ring (page 3-10)
5. Shift pedal (page 3-6)
6. Front brake pads (page 6-19)
U22BE0E0.book Page 2 Wednesday, December 17, 2008 11:00 AM

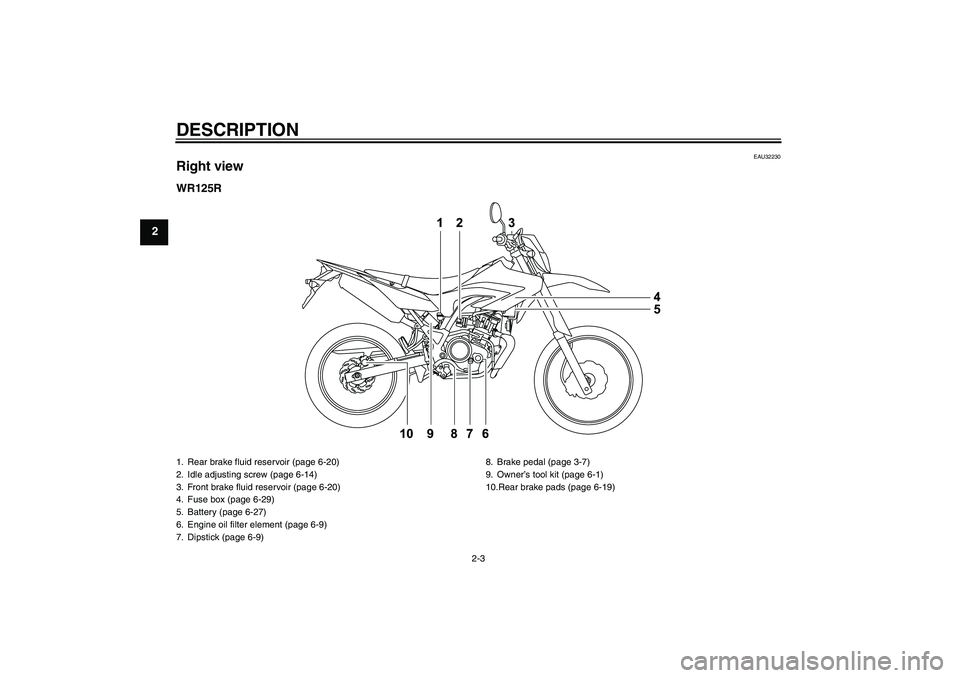

DESCRIPTION
2-3
2
EAU32230
Right viewWR125R1. Rear brake fluid reservoir (page 6-20)
2. Idle adjusting screw (page 6-14)
3. Front brake fluid reservoir (page 6-20)
4. Fuse box (page 6-29)
5. Battery (page 6-27)
6. Engine oil filter element (page 6-9)
7. Dipstick (page 6-9)8. Brake pedal (page 3-7)
9. Owner’s tool kit (page 6-1)
10.Rear brake pads (page 6-19)U22BE0E0.book Page 3 Wednesday, December 17, 2008 11:00 AM

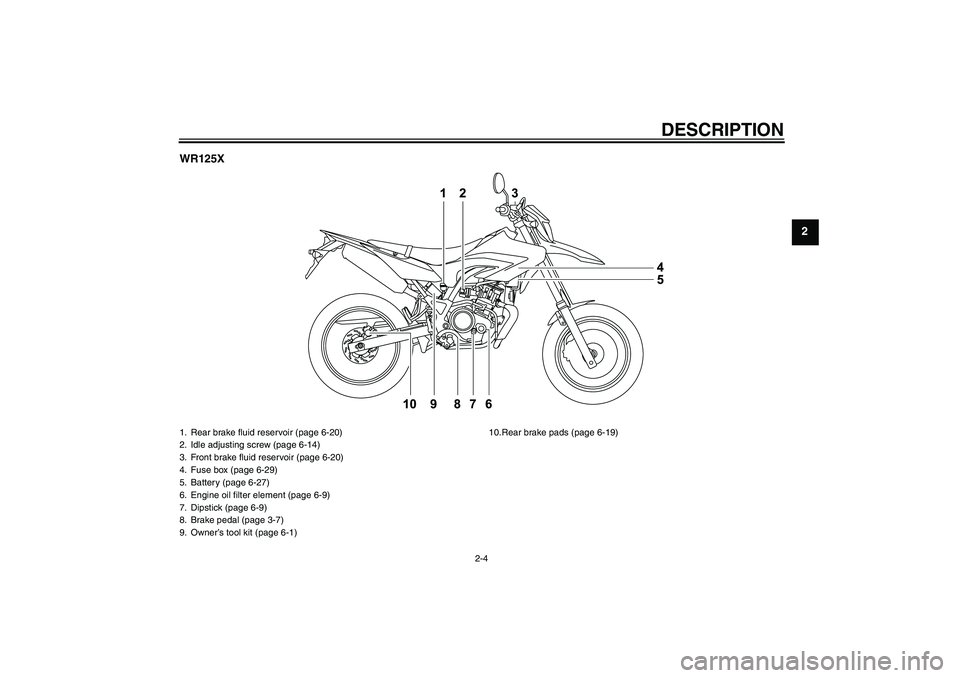

DESCRIPTION
2-4
2 WR125X
1. Rear brake fluid reservoir (page 6-20)
2. Idle adjusting screw (page 6-14)
3. Front brake fluid reservoir (page 6-20)
4. Fuse box (page 6-29)
5. Battery (page 6-27)
6. Engine oil filter element (page 6-9)
7. Dipstick (page 6-9)
8. Brake pedal (page 3-7)
9. Owner’s tool kit (page 6-1)10.Rear brake pads (page 6-19)
U22BE0E0.book Page 4 Wednesday, December 17, 2008 11:00 AM

DESCRIPTION
2-5
2
EAU10430

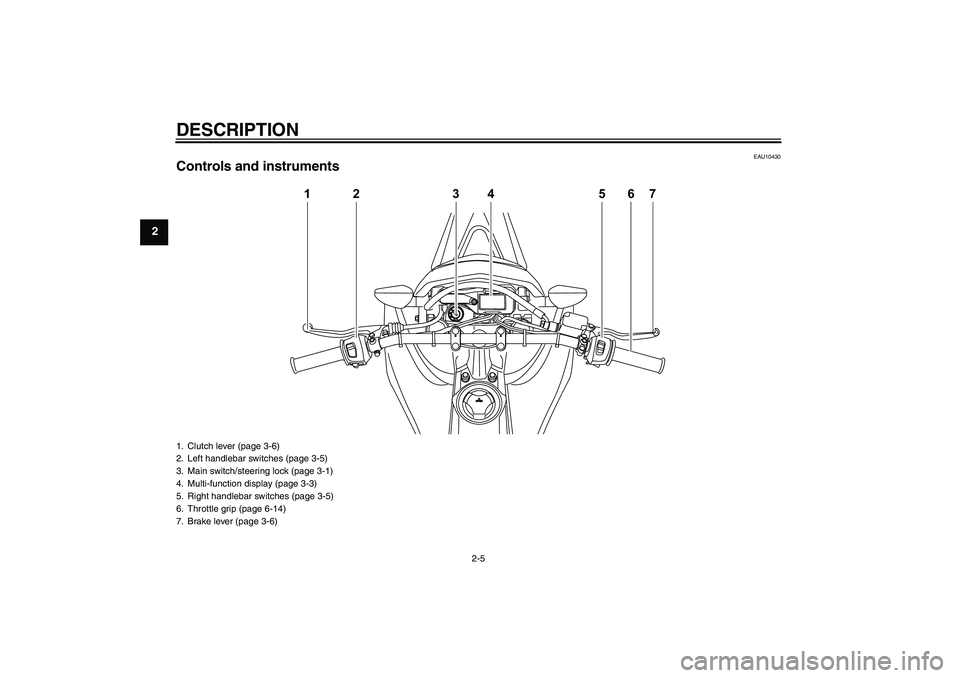

Controls and instruments
12 34 567
1. Clutch lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Main switch/steering lock (page 3-1)
4. Multi-function display (page 3-3)
5. Right handlebar switches (page 3-5)
6. Throttle grip (page 6-14)
7. Brake lever (page 3-6)U22BE0E0.book Page 5 Wednesday, December 17, 2008 11:00 AM

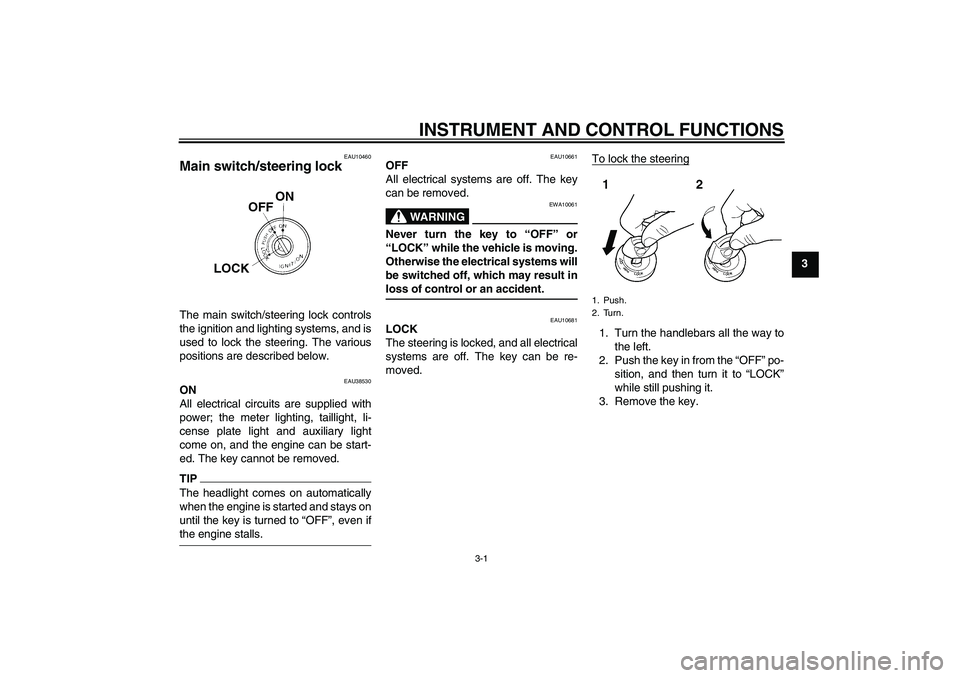

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38530
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10681
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.
U22BE0E0.book Page 1 Wednesday, December 17, 2008 11:00 AM

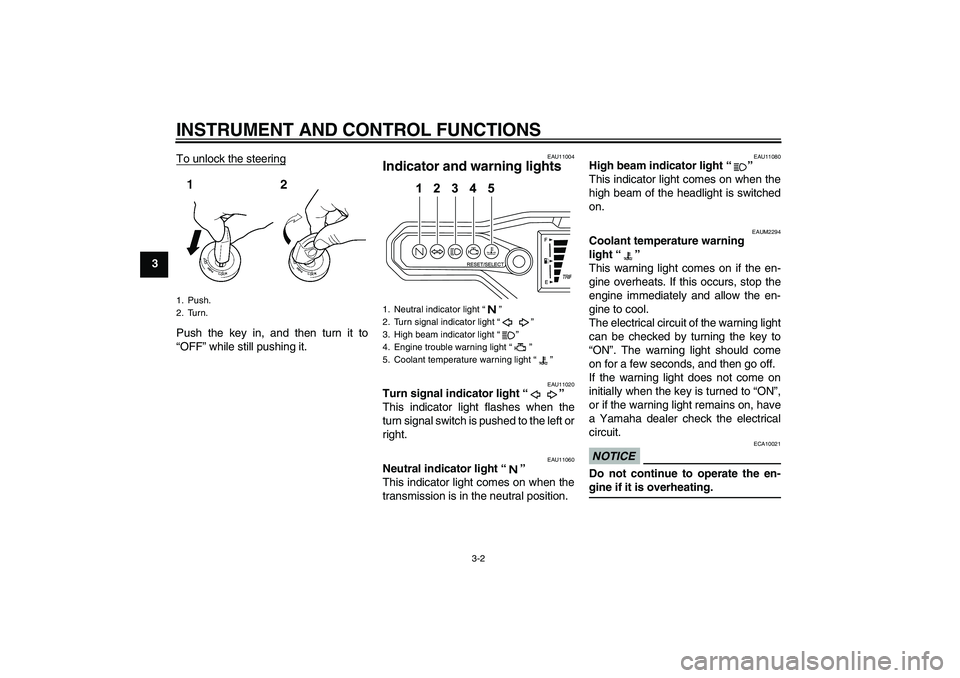

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU11004
Indicator and warning lights
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
t u r n s i g n a l s w i t c h i s p u s h e d t o t h e l e f t o r
right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUM2294
Coolant temperature warning
light“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.
1. Push.
2. Turn.
1. Neutral indicator light“”
2. Turn signal indicator light“”
3. High beam indicator light“”
4. Engine trouble warning light“”
5. Coolant temperature warning light“”
U22BE0E0.book Page 2 Wednesday, December 17, 2008 11:00 AM

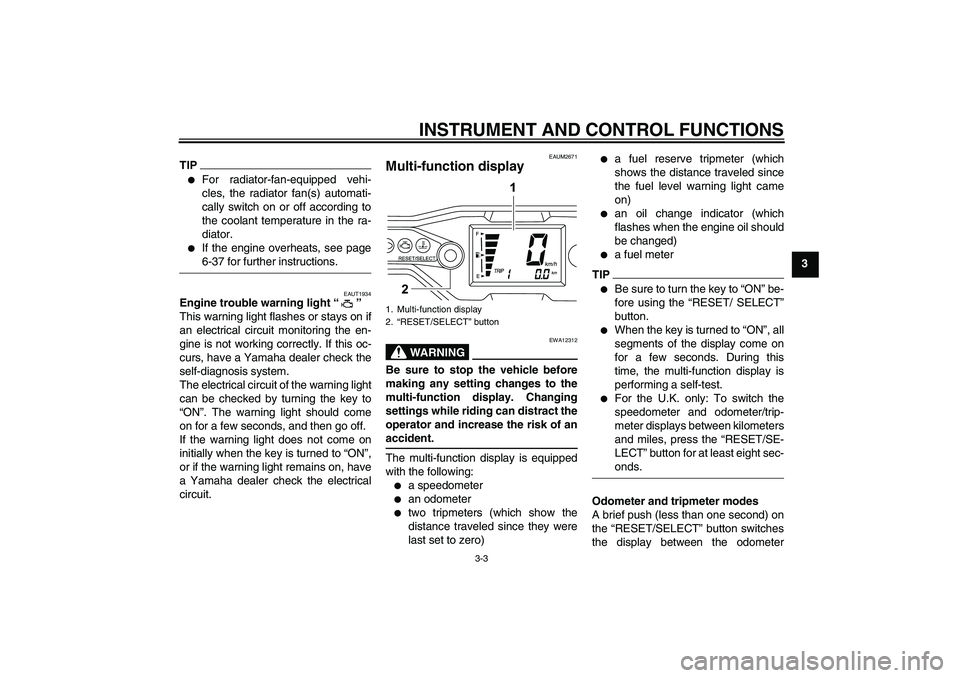

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
TIP

For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.


If the engine overheats, see page6-37 for further instructions.
EAUT1934
Engine trouble warning light“”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAUM2671
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function display is equipped
with the following:

a speedometer


an odometer


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


an oil change indicator (which
flashes when the engine oil should
be changed)


a fuel meter
TIP

Be sure to turn the key to “ON” be-
fore using the “RESET/ SELECT”
button.


When the key is turned to “ON”, all
segments of the display come on
for a few seconds. During this
time, the multi-function display is
performing a self-test.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “RESET/SE-
LECT” button for at least eight sec-onds.
Odometer and tripmeter modes
A brief push (less than one second) on
the “RESET/SELECT” button switches
the display between the odometer
1. Multi-function display
2.“RESET/SELECT” button
U22BE0E0.book Page 3 Wednesday, December 17, 2008 11:00 AM

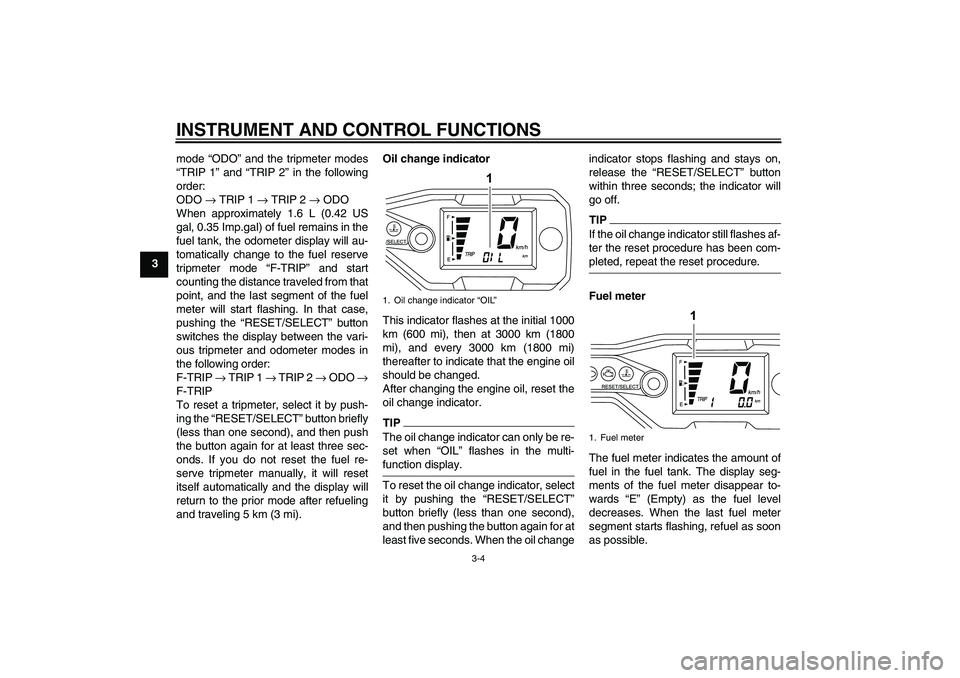

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
When approximately 1.6 L (0.42 US
gal, 0.35 Imp.gal) of fuel remains in the
fuel tank, the odometer display will au-
tomatically change to the fuel reserve
tripmeter mode “F-TRIP” and start
counting the distance traveled from that
point, and the last segment of the fuel
meter will start flashing. In that case,
pushing the “RESET/SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → TRIP 1 → TRIP 2 → ODO →
F-TRIP
To reset a tripmeter, select it by push-
ing the “RESET/SELECT” button briefly
(less than one second), and then push
the button again for at least three sec-
onds. If you do not reset the fuel re-
serve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).Oil change indicator
This indicator flashes at the initial 1000
km (600 mi), then at 3000 km (1800
mi), and every 3000 km (1800 mi)
thereafter to indicate that the engine oil
should be changed.
After changing the engine oil, reset the
oil change indicator.
TIPThe oil change indicator can only be re-
set when “OIL” flashes in the multi-function display.
To reset the oil change indicator, select
it by pushing the “RESET/SELECT”
button briefly (less than one second),
and then pushing the button again for at
least five seconds. When the oil changeindicator stops flashing and stays on,
release the “RESET/SELECT” button
within three seconds; the indicator will
go off.
TIPIf the oil change indicator still flashes af-
ter the reset procedure has been com-pleted, repeat the reset procedure.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last fuel meter
segment starts flashing, refuel as soon
as possible.
1. Oil change indicator “OIL”
1. Fuel meter
U22BE0E0.book Page 4 Wednesday, December 17, 2008 11:00 AM
