Page 21 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12348
Handlebar switches Left
Right
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch

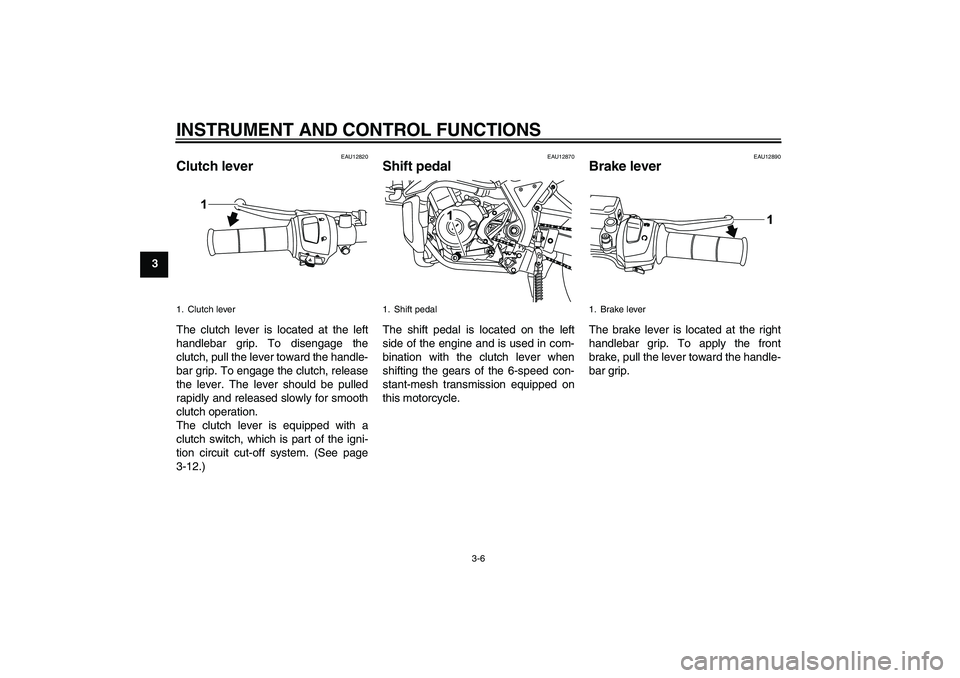

Page 22 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the

Page 24 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU13212
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explo

Page 25 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU13445
Catalytic converters This vehicle is equipped with catalytic
conve

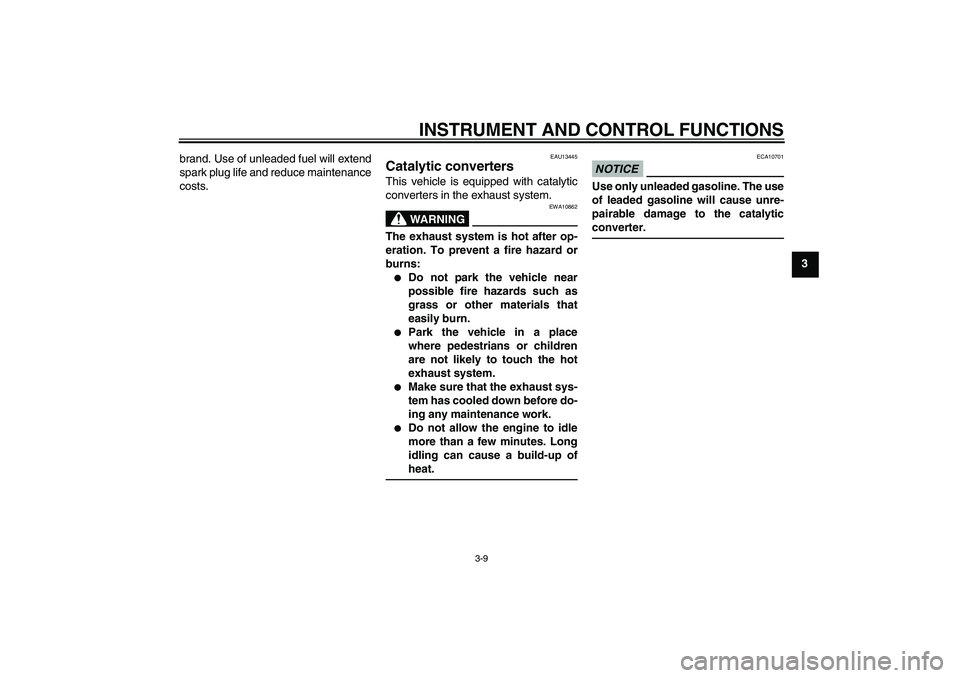

Page 28 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-12
3below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU44892
Ignition circuit cut-off system The ignition circuit cut-off system (com-

Page 29 of 86

YAMAHA WR 125R 2010 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission in

Page 30 of 86

YAMAHA WR 125R 2010 User Guide FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance

Page 33 of 86

YAMAHA WR 125R 2010 User Guide OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha

Page 34 of 86

YAMAHA WR 125R 2010 User Guide OPERATION AND IMPORTANT RIDING POINTS
5-2
5dicator light remains on, see page
3-2 for the corresponding warning
and indicator light circuit check.
2. Shift the transmission into the neu-
tral position

Page 35 of 86

YAMAHA WR 125R 2010 User Guide OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
