engine YAMAHA WR 125R 2010 Service Manual

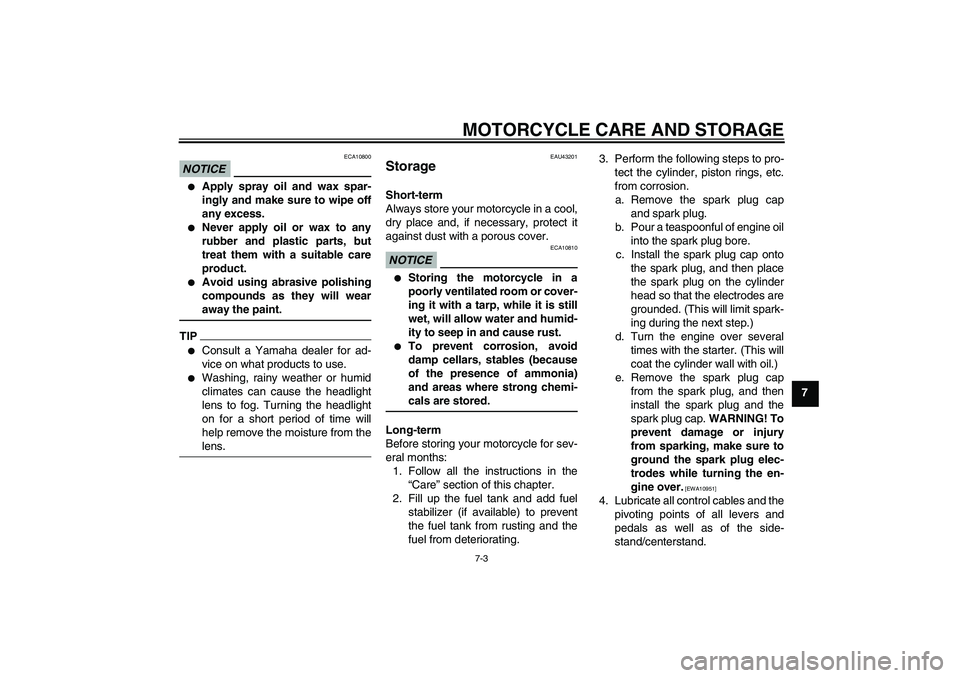

MOTORCYCLE CARE AND STORAGE
7-3
7
NOTICE
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP

Consult a Yamaha dealer for ad-
vice on what products to use.


Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU43201
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.NOTICE
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
U22BE1E0.book Page 3 Wednesday, September 16, 2009 1:46 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
WR125R 2125 mm (83.7 in)
WR125X 2090 mm (82.3 in)
Overall width:
835 mm (32.9 in)
Overall height:
WR125R 1285 mm (50.6 in)
WR125X 1260 mm (49.6 in)
Seat height:
WR125R 930 mm (36.6 in)
WR125X 920 mm (36.2 in)
Wheelbase:
1430 mm (56.3 in)
Ground clearance:
WR125R 265 mm (10.43 in)
WR125X 255 mm (10.04 in)
Minimum turning radius:
2200 mm (86.6 in)Weight:With oil and fuel:
WR125R 133 kg (293 lb)
WR125X 137 kg (302 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124 cm³
Bore × stroke:
52.0 × 58.6 mm (2.05 × 2.31 in)
Compression ratio:
11.20 :1Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter element replacement:
0.95 L (1.00 US qt, 0.84 Imp.qt)
With oil filter element replacement:
1.00 L (1.06 US qt, 0.88 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.10 L (1.16 US qt, 0.97 Imp.qt)
Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
8.5 L (2.25 US gal, 1.87 Imp.gal)
Fuel reserve amount:
1.6 L (0.42 US gal, 0.35 Imp.gal)Fuel injection:Throttle body:
ID mark:
5D71 00Spark plug (s):Manufacturer/model:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
73/24 (3.042)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
53/14 (3.786)
Transmission type:
Constant mesh 6-speed
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U22BE1E0.book Page 1 Wednesday, September 16, 2009 1:46 PM

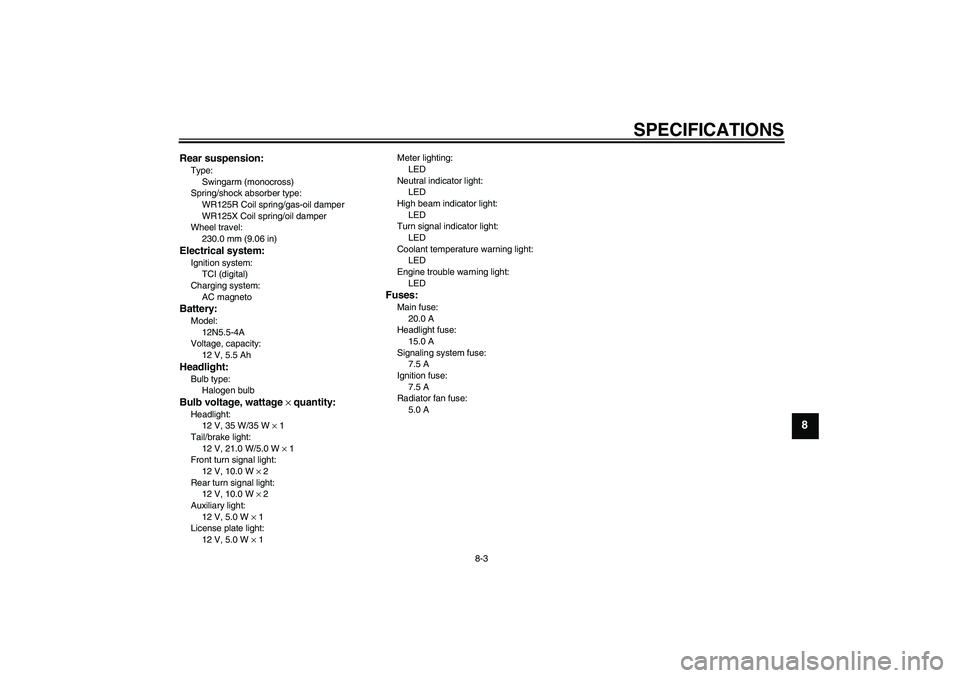

SPECIFICATIONS
8-3
8
Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
WR125R Coil spring/gas-oil damper
WR125X Coil spring/oil damper
Wheel travel:
230.0 mm (9.06 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
12N5.5-4A
Voltage, capacity:
12 V, 5.5 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Fuses:Main fuse:
20.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
7.5 A
Radiator fan fuse:
5.0 A
U22BE1E0.book Page 3 Wednesday, September 16, 2009 1:46 PM

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-27
Brake and clutch levers, checking and
lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever ............................................. 3-6
Brake pedal ............................................ 3-7
Brake pedal, checking and
lubricating ........................................... 6-25
Brake pedal free play, adjusting ........... 6-19CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters ................................ 3-9
Clutch lever............................................. 3-6
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-2DDimmer switch ........................................ 3-5
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack .................................. 6-22EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-14
Engine oil and oil filter element............... 6-9
Engine stop switch.................................. 3-5
Engine trouble warning light ................... 3-3
FFront and rear brake pads, checking .... 6-20
Front brake lever free play, checking .... 6-19
Front fork, checking...............................6-26
Fuel ......................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel tank cap........................................... 3-7
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-5
Headlight bulb, replacing....................... 6-30
High beam indicator light......................... 3-2
Horn switch ............................................. 3-5IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-12
Indicator and warning lights .................... 3-2LLicense plate light bulb, replacing ......... 6-32MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Model label .............................................. 9-1
Multi-function display...............................3-3NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-7
Parking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-5SSafety information ...................................1-1Seat ...................................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................... 3-6
Shock absorber assembly, adjusting .... 3-10
Sidestand .............................................. 3-11
Sidestand, checking and lubricating ..... 6-25
Spark plug, checking .............................. 6-8
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-5
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-26
TTail/brake light bulb, replacing .............. 6-31
Throttle cable free play, adjusting ......... 6-14
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-15
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-5VValve clearance .................................... 6-15
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-27
Wheel (front) ......................................... 6-33
Wheel (rear) .......................................... 6-34
Wheels .................................................. 6-17
