PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAU23182

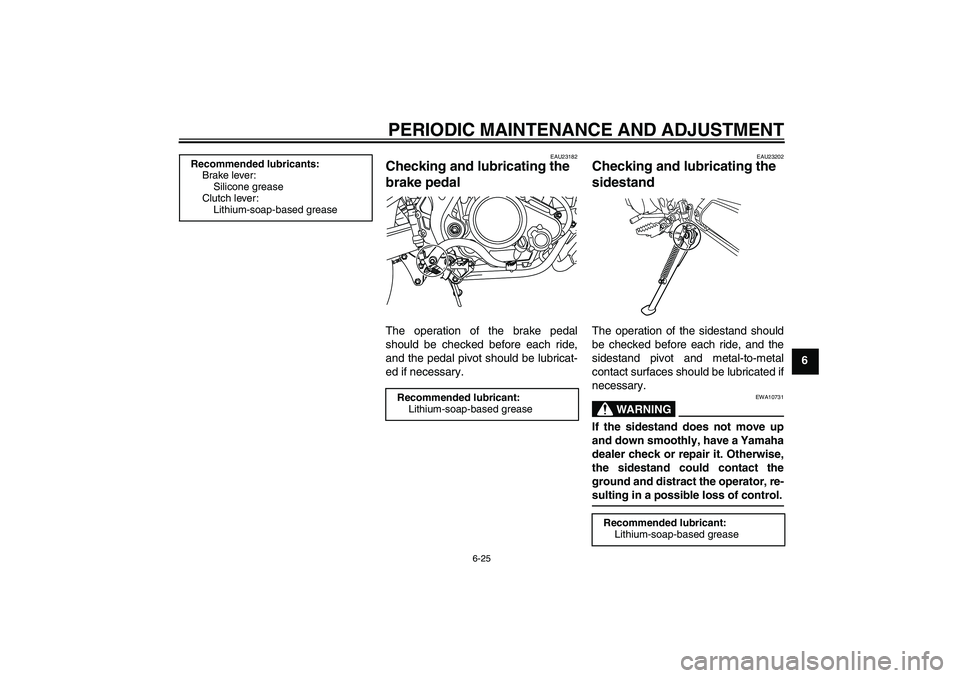

Checking and lubricating the
brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU23202
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10731
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U22BE1E0.book Page 25 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
EAUM2700
Lubricating the swingarm piv-
ots The swingarm pivots must be lubricat-
ed at the intervals specified in the peri-
odic maintenance and lubrication chart.
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
Recommended lubricant:
Molybdenum disulfide grease
U22BE1E0.book Page 26 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
EAU23283
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 6-32 for more
information.) WARNING! To
avoid injury, securely support
the vehicle so there is no danger
of it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23291
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU23324
Battery A poorly maintained battery will corrode
and discharge quickly. The electrolyte
level, battery lead connections and
breather hose routing should be
checked before each ride and at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
WARNING
EWA10770


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
U22BE1E0.book Page 27 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


Take care not to spill electrolyte
on the drive chain, as this may
weaken it, shorten chain life and
possibly result in an accident.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To check the electrolyte level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIPMake sure that the vehicle is positioned
straight up when checking the electro-
lyte level.2. Remove panel A. (See page 6-7.)
3. Check the electrolyte level in the
battery.
TIPThe electrolyte should be between the
minimum and maximum level marks.4. If the electrolyte is at or below the
minimum level mark, add distilled
water to raise it to the maximum
level mark. NOTICE: Use only
distilled water, as tap water con-
tains minerals that are harmful
to the battery.
[ECA10611]
5. Check and, if necessary, tighten
the battery lead connections and
correct the breather hose routing.
6. Install the panel.To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check the specif-
ic gravity of the electrolyte at least
once a month and fully charge the
battery whenever necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals and
that the breather hose is properly
routed, in good condition, and not
obstructed. NOTICE: If the
breather hose is positioned in
such a way that the frame is ex-
posed to electrolyte or gas ex-
1. Maximum level mark
2. Minimum level mark1
2
+
UPPER
LOWER
ZAUM0106
U22BE1E0.book Page 28 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6 pelled from the battery, the
frame could suffer structural
and external damages.
[ECA10601]EAUM2600
Replacing the fuses The fuse box is located behind panel A.
(See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended toavoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Spare fuse
3. Main fuse
4. Headlight fuse
5. Signaling system fuse
6. Ignition fuse
7. Radiator fan fuse
Specified fuses:
Main fuse:
20.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
7.5 A
Headlight fuse:
15.0 A
Radiator fan fuse:
5.0 A
U22BE1E0.book Page 29 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU45213
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight cowling to-
gether with the headlight unit by
removing the bolts and pulling up-
ward as shown.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.1. Do not touch the glass part of the bulb.
1. Bolt
1
1
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder
U22BE1E0.book Page 30 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6 5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight cowling (to-
gether with the headlight unit) by
placing it in the original position,
and then installing the bolts.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUM2610
Replacing a tail/brake light
bulb 1. Remove panel B. (See page 6-7.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the panel.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]
1. Tail/brake light bulb socket
1. Screw
2. Turn signal light lens
U22BE1E0.book Page 31 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAUM2620
Replacing the license plate
light bulb 1. Remove panel B. (See page 6-7.)
2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the panel.
EAU45222
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-30.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. License plate light bulb
1. Auxiliary light bulb
U22BE1E0.book Page 32 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6 a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360
Front wheel
EAUM2632
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the front wheel axle pinch
bolts, then the wheel axle and the
brake caliper bolts.
2. Lift the front wheel off the ground
according to the procedure on
page 6-32.
3. Remove the speed sensor lead
holder by removing the screw
(WR125R only).
4. Remove the brake caliper by re-
moving the bolts.
5. Pull the wheel axle out, remove the
speed sensor by pulling it out, and
then remove the wheel. NOTICE:
Do not apply the brake after the
brake calipers have been re-
moved, otherwise the brake
pads will be forced shut.
[ECA11051]
1. Front wheel axle pinch bolt
2. Wheel axle
3. Speed sensor cable holder
1. Brake caliper
2. Brake caliper bolt
U22BE1E0.book Page 33 Wednesday, September 16, 2009 1:46 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
EAUM2640
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Install the speed sensor at the
wheel hub.TIPMake sure that the projections on the
speed sensor rotor are aligned with the
notches in the wheel hub and that the
slot in the speed sensor fits over the re-
tainer on the fork leg.3. Insert the wheel axle.
4. Lower the front wheel so that it is
on the ground.5. Push down hard on the handlebar
several times to check for proper
fork operation.
6. Install the brake caliper by install-
ing the bolts.
TIPMake sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brake
disc.7. Install the speed sensor lead hold-
er by installing the screw
(WR125R only).
8. Tighten the wheel axle, front wheel
axle pinch bolts and brake caliper
bolts to their specified torques.
EAU25080
Rear wheel
EAUM2661
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the locknut and drive chain
slack adjusting nut on each side of
the swingarm.
2. Loosen the axle nut.
1. Speed sensor
Tightening torques:
Wheel axle:
58 Nm (5.8 m·kgf, 42 ft·lbf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Brake caliper bolt:
30 Nm (3.0 m·kgf, 22 ft·lbf)
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
U22BE1E0.book Page 34 Wednesday, September 16, 2009 1:46 PM
