SPECIFICATIONS
8-3
8
Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
WR125R Coil spring/gas-oil damper
WR125X Coil spring/oil damper
Wheel travel:
230.0 mm (9.06 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
12N5.5-4A
Voltage, capacity:
12 V, 5.5 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Fuses:Main fuse:
20.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
7.5 A
Radiator fan fuse:
5.0 A
U22BE1E0.book Page 3 Wednesday, September 16, 2009 1:46 PM

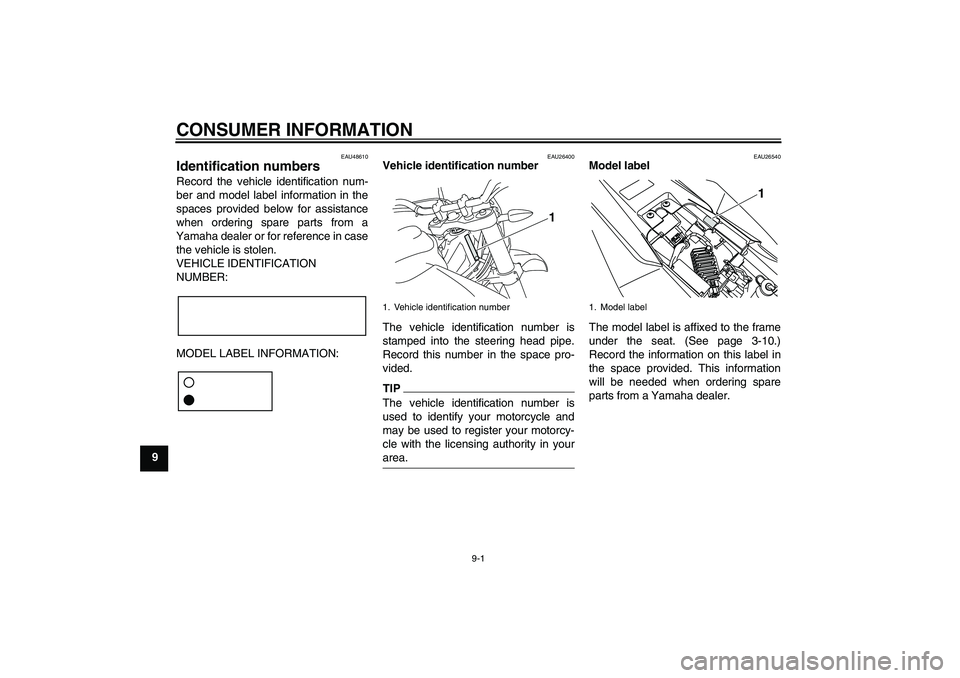

CONSUMER INFORMATION
9-1
9
EAU48610
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-10.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
U22BE1E0.book Page 1 Wednesday, September 16, 2009 1:46 PM

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-27
Brake and clutch levers, checking and
lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever ............................................. 3-6
Brake pedal ............................................ 3-7
Brake pedal, checking and
lubricating ........................................... 6-25
Brake pedal free play, adjusting ........... 6-19CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters ................................ 3-9
Clutch lever............................................. 3-6
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-2DDimmer switch ........................................ 3-5
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack .................................. 6-22EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-14
Engine oil and oil filter element............... 6-9
Engine stop switch.................................. 3-5
Engine trouble warning light ................... 3-3
FFront and rear brake pads, checking .... 6-20
Front brake lever free play, checking .... 6-19
Front fork, checking...............................6-26
Fuel ......................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel tank cap........................................... 3-7
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-5
Headlight bulb, replacing....................... 6-30
High beam indicator light......................... 3-2
Horn switch ............................................. 3-5IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-12
Indicator and warning lights .................... 3-2LLicense plate light bulb, replacing ......... 6-32MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Model label .............................................. 9-1
Multi-function display...............................3-3NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-7
Parking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-5SSafety information ...................................1-1Seat ...................................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................... 3-6
Shock absorber assembly, adjusting .... 3-10
Sidestand .............................................. 3-11
Sidestand, checking and lubricating ..... 6-25
Spark plug, checking .............................. 6-8
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-5
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-26
TTail/brake light bulb, replacing .............. 6-31
Throttle cable free play, adjusting ......... 6-14
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-15
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-5VValve clearance .................................... 6-15
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-27
Wheel (front) ......................................... 6-33
Wheel (rear) .......................................... 6-34
Wheels .................................................. 6-17
U22BE1E0.book Page 1 Wednesday, September 16, 2009 1:46 PM
