KICK SHAFT AND SHIFT SHAFT

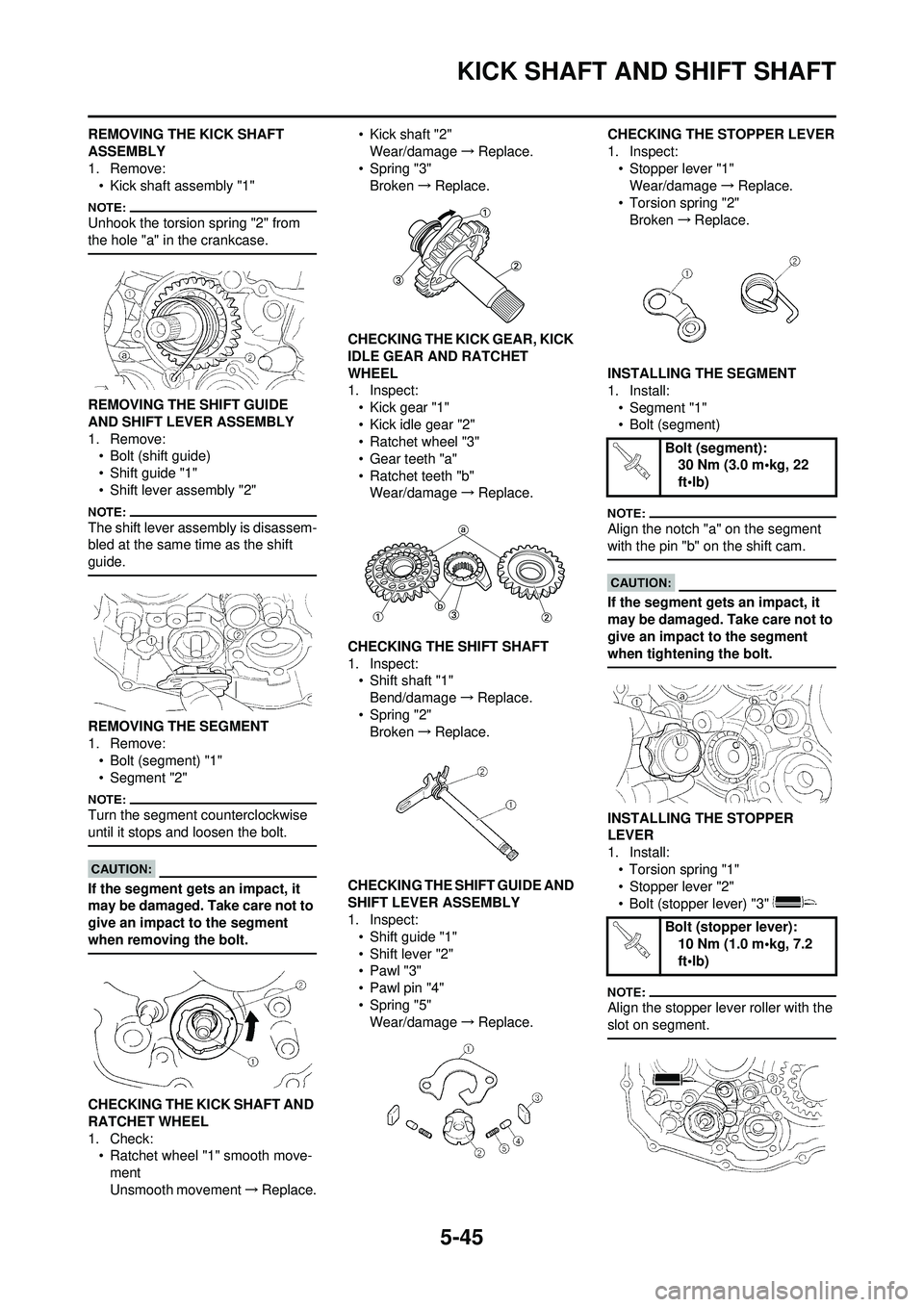

REMOVING THE KICK SHAFT
ASSEMBLY
1. Remove:• Kick shaft assembly "1"
Unhook the torsion spring "2" from
the hole "a" in the crankcase.
REMOVING THE SHIFT GUIDE
AND SHIFT LEVER ASSEMBLY
1. Remove:• Bolt (shift guide)
• Shift guide "1"
• Shift lever assembly "2"
The shift lever assembly is disassem-
bled at the same time as the shift
guide.
REMOVING THE SEGMENT
1. Remove:
• Bolt (segment) "1"
• Segment "2"
Turn the segment counterclockwise
until it stops and loosen the bolt.
If the segment gets an impact, it
may be damaged. Take care not to
give an impact to the segment
when removing the bolt.
CHECKING THE KICK SHAFT AND
RATCHET WHEEL
1. Check:• Ratchet wheel "1" smooth move-
ment
Unsmooth movement →Replace. • Kick shaft "2"
Wear/damage →Replace.
• Spring "3" Broken →Replace.
CHECKING THE KICK GEAR, KICK
IDLE GEAR AND RATCHET
WHEEL
1. Inspect: • Kick gear "1"
• Kick idle gear "2"
• Ratchet wheel "3"
• Gear teeth "a"
• Ratchet teeth "b"Wear/damage →Replace.
CHECKING THE SHIFT SHAFT
1. Inspect: • Shift shaft "1"
Bend/damage →Replace.
• Spring "2" Broken →Replace.
CHECKING THE SHIFT GUIDE AND
SHIFT LEVER ASSEMBLY
1. Inspect: • Shift guide "1"
• Shift lever "2"
• Pawl "3"
• Pawl pin "4"
• Spring "5"Wear/damage →Replace. CHECKING THE STOPPER LEVER
1. Inspect:
• Stopper lever "1"Wear/damage →Replace.
• Torsion spring "2" Broken →Replace.
INSTALLING THE SEGMENT
1. Install: • Segment "1"
• Bolt (segment)
Align the notch "a" on the segment
with the pin "b" on the shift cam.
If the segment gets an impact, it
may be damaged. Take care not to
give an impact to the segment
when tightening the bolt.
INSTALLING THE STOPPER
LEVER
1. Install:• Torsion spring "1"
• Stopper lever "2"
• Bolt (stopper lever) "3"
Align the stopper lever roller with the
slot on segment.
Bolt (segment): 30 Nm (3.0 m•kg, 22
ft•lb)
Bolt (stopper lever): 10 Nm (1.0 m•kg, 7.2
ft•lb)

5-46
KICK SHAFT AND SHIFT SHAFT

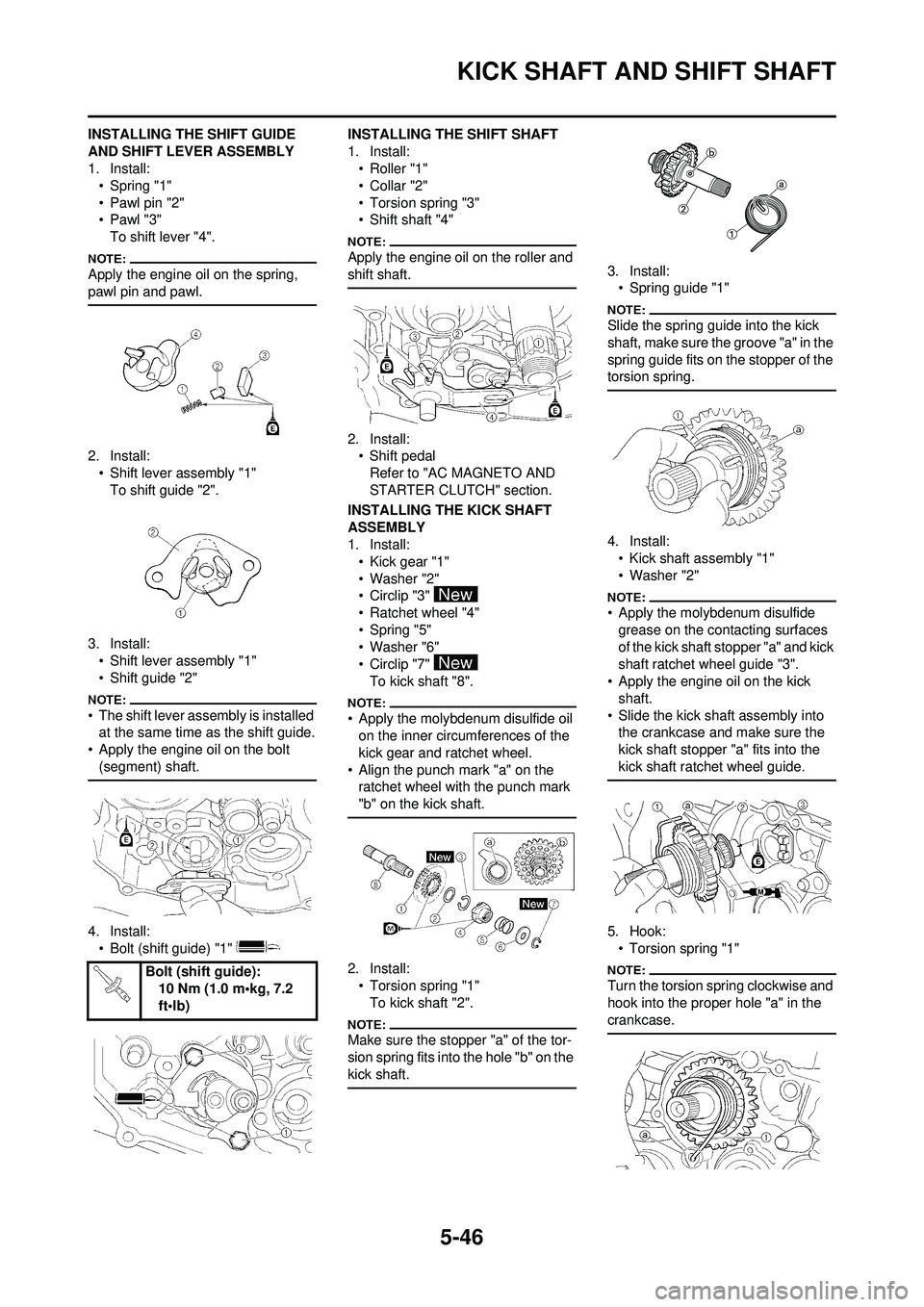

INSTALLING THE SHIFT GUIDE
AND SHIFT LEVER ASSEMBLY
1. Install:• Spring "1"
• Pawl pin "2"
•Pawl "3"To shift lever "4".
Apply the engine oil on the spring,
pawl pin and pawl.
2. Install:• Shift lever assembly "1"
To shift guide "2".
3. Install: • Shift lever assembly "1"
• Shift guide "2"
• The shift lever assembly is installed at the same time as the shift guide.
• Apply the engine oil on the bolt
(segment) shaft.
4. Install:• Bolt (shift guide) "1" INSTALLING TH
E SHIFT SHAFT
1. Install: • Roller "1"
• Collar "2"
• Torsion spring "3"
• Shift shaft "4"
Apply the engine oil on the roller and
shift shaft.
2. Install:• Shift pedalRefer to "AC MAGNETO AND
STARTER CLUTCH" section.
INSTALLING THE KICK SHAFT
ASSEMBLY
1. Install: • Kick gear "1"
• Washer "2"
• Circlip "3"
• Ratchet wheel "4"
• Spring "5"
• Washer "6"
• Circlip "7" To kick shaft "8".
• Apply the molybdenum disulfide oil on the inner circumferences of the
kick gear and ratchet wheel.
• Align the punch mark "a" on the ratchet wheel with the punch mark
"b" on the kick shaft.
2. Install:• Torsion spring "1"
To kick shaft "2".
Make sure the stopper "a" of the tor-
sion spring fits into the hole "b" on the
kick shaft.
3. Install:• Spring guide "1"
Slide the spring guide into the kick
shaft, make sure the groove "a" in the
spring guide fits on the stopper of the
torsion spring.
4. Install:• Kick shaft assembly "1"
• Washer "2"
• Apply the molybdenum disulfide
grease on the contacting surfaces
of the kick shaft stopper "a" and kick
shaft ratchet wheel guide "3".
• Apply the engine oil on the kick shaft.
• Slide the kick shaft assembly into the crankcase and make sure the
kick shaft stopper "a" fits into the
kick shaft ratchet wheel guide.
5. Hook:• Torsion spring "1"
Turn the torsion spring clockwise and
hook into the proper hole "a" in the
crankcase.Bolt (shift guide):
10 Nm (1.0 m•kg, 7.2
ft•lb)

5-47
KICK SHAFT AND SHIFT SHAFT

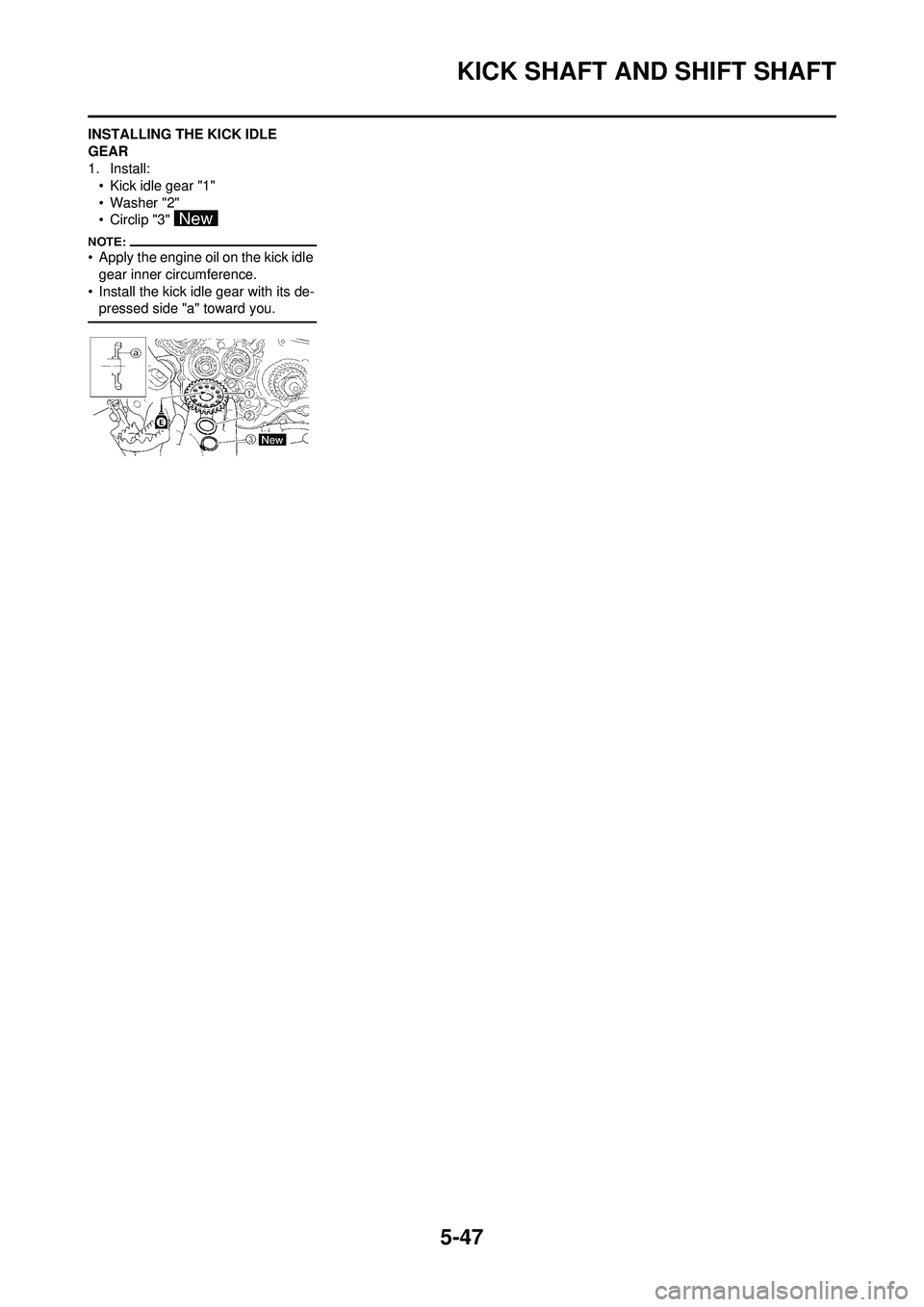

INSTALLING THE KICK IDLE
GEAR
1. Install:• Kick idle gear "1"
• Washer "2"
• Circlip "3"
• Apply the engine oil on the kick idle gear inner circumference.
• Install the kick idle gear with its de- pressed side "a " toward you.

5-48
AC MAGNETO AND STARTER CLUTCH
AC MAGNETO AND STARTER CLUTCH

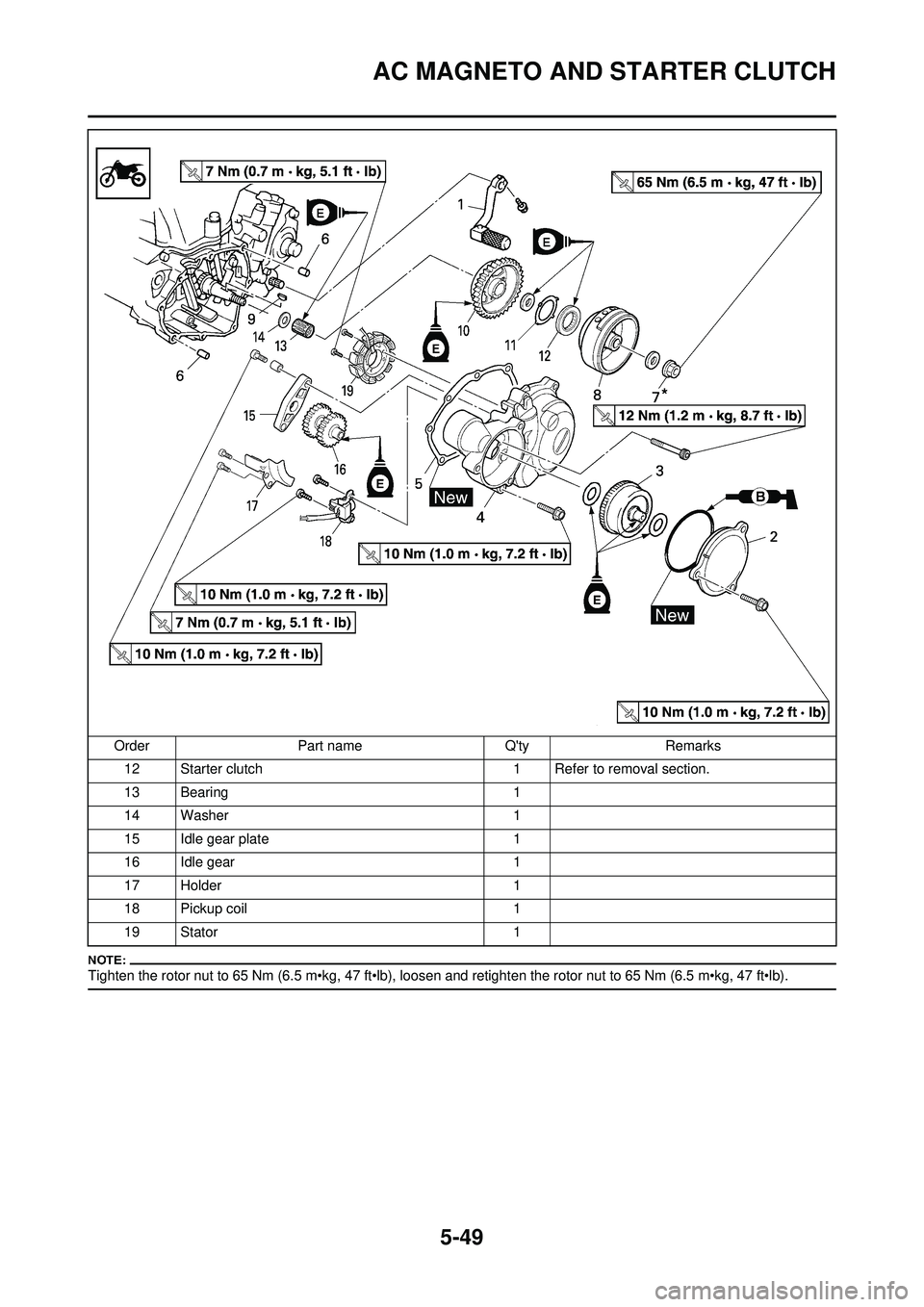

REMOVING THE AC MAGNETO AND STARTER CLUTCHOrder Part name Q'ty Remarks Drain the engine oil. Refer to "CHANGING THE ENGINE OIL"
section in the CHAPTER 3.
Seat and fuel tank Refer to "REMOVING THE SEAT, FUEL
TANK AND SIDE COVERS" section in the
CHAPTER 3.
Disconnect the AC magneto lead.
1 Shift pedal 1
2 Cover (torque limiter) 1
3 Torque limiter 1 Do not disassemble.
4 Crankcase cover (left) 1
5 Gasket 1
6 Dowel pin 2
7* Nut (rotor) 1 Refer to NOTE.
8 Rotor 1 Refer to removal section.
9 Woodruff key 1
10 Starter clutch drive gear 1
11 Starter clutch assembly cover 1

5-49
AC MAGNETO AND STARTER CLUTCH
Tighten the rotor nut to 65 Nm (6.5 m•kg, 47 ft•lb), loosen and retighten the rotor nut to 65 Nm (6.5 m•kg, 47 ft•lb).
12 Starter clutch1 Refer to removal section.
13 Bearing 1
14 Washer 1
15 Idle gear plate 1
16 Idle gear 1
17 Holder 1
18 Pickup coil 1
19 Stator 1
Order
Part name Q'tyRemarks

5-50
AC MAGNETO AND STARTER CLUTCH

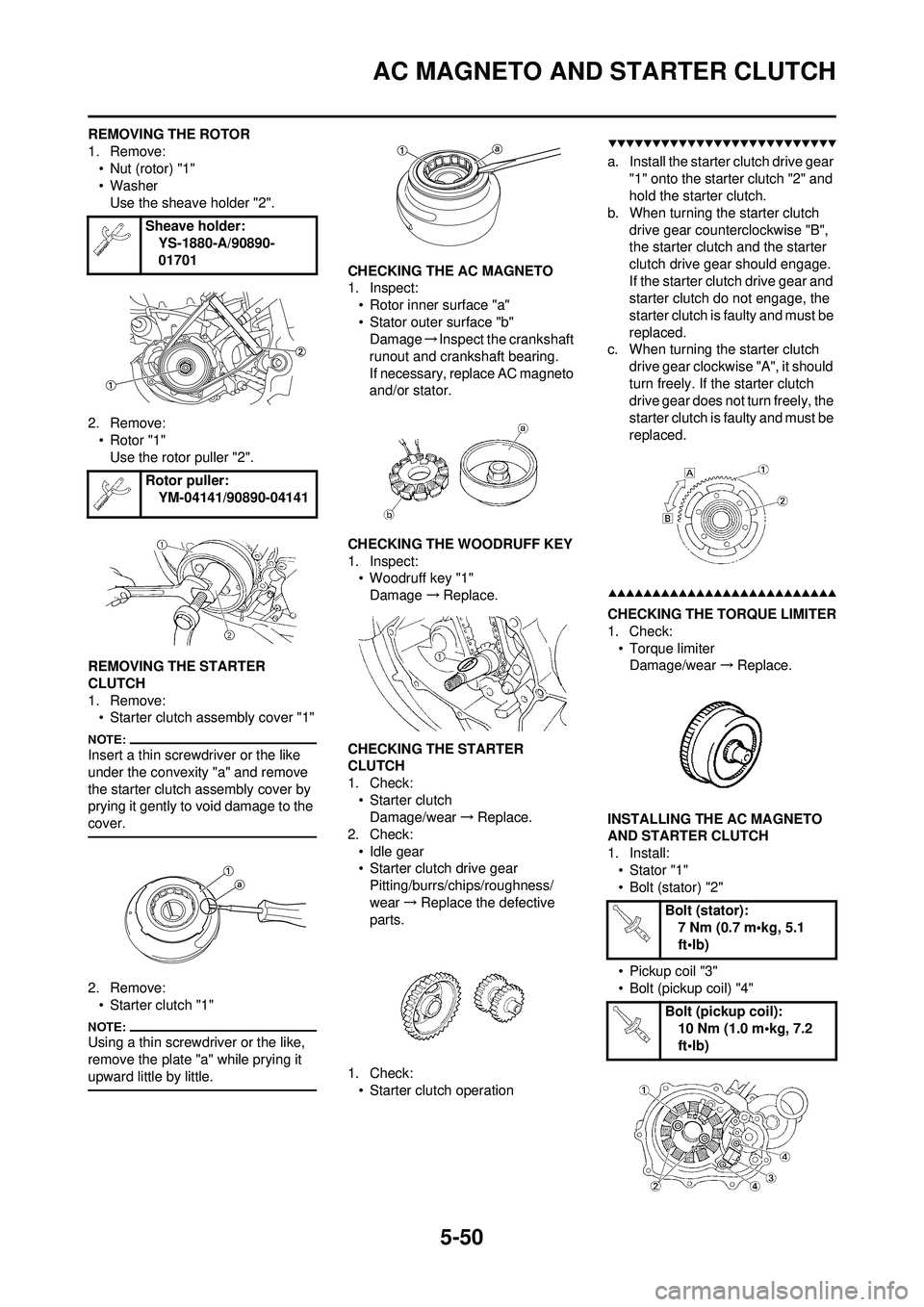

REMOVING THE ROTOR
1. Remove:• Nut (rotor) "1"
• Washer
Use the sheave holder "2".
2. Remove: • Rotor "1"Use the rotor puller "2".
REMOVING THE STARTER
CLUTCH
1. Remove: • Starter clutch a ssembly cover "1"
Insert a thin screwdriver or the like
under the convexity "a" and remove
the starter clutch assembly cover by
prying it gently to void damage to the
cover.
2. Remove:
• Starter clutch "1"
Using a thin screwdriver or the like,
remove the plate "a" while prying it
upward little by little.
CHECKING THE AC MAGNETO
1. Inspect:
• Rotor inner surface "a"
• Stator outer surface "b"Damage →Inspect the crankshaft
runout and crankshaft bearing.
If necessary, replace AC magneto
and/or stator.
CHECKING THE WOODRUFF KEY
1. Inspect: • Woodruff key "1"
Damage →Replace.
CHECKING THE STARTER
CLUTCH
1. Check: • Starter clutchDamage/wear →Replace.
2. Check:
• Idle gear
• Starter clutch drive gearPitting/burrs/chips/roughness/
wear →Replace the defective
parts.
1. Check: • Starter clutch operation
a. Install the starter clutch drive gear "1" onto the starter clutch "2" and
hold the starter clutch.
b. When turning the starter clutch drive gear counterclockwise "B",
the starter clutch and the starter
clutch drive gear should engage.
If the starter clutch drive gear and
starter clutch do not engage, the
starter clutch is faulty and must be
replaced.
c. When turning the starter clutch
drive gear clockwise "A", it should
turn freely. If the starter clutch
drive gear does not turn freely, the
starter clutch is faulty and must be
replaced.
CHECKING THE TORQUE LIMITER
1. Check:• Torque limiterDamage/wear →Replace.
INSTALLING THE AC MAGNETO
AND STARTER CLUTCH
1. Install: • Stator "1"
• Bolt (stator) "2"
• Pickup coil "3"
• Bolt (pickup coil) "4"
Sheave holder:
YS-1880-A/90890-
01701
Rotor puller: YM-04141/90890-04141
Bolt (stator):
7 Nm (0.7 m•kg, 5.1
ft•lb)
Bolt (pickup coil): 10 Nm (1.0 m•kg, 7.2
ft•lb)

5-51
AC MAGNETO AND STARTER CLUTCH

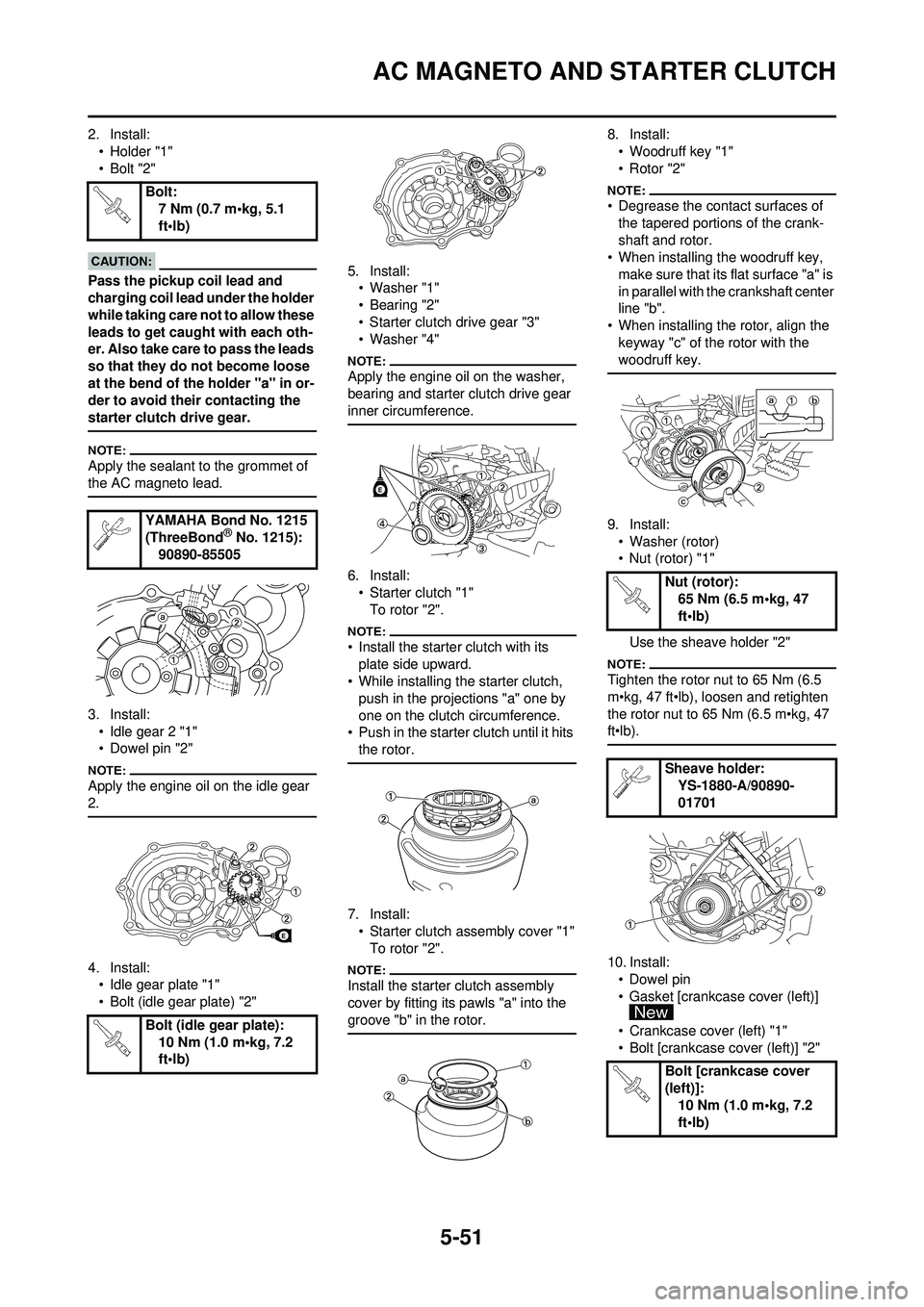

2. Install:• Holder "1"
•Bolt "2"
Pass the pickup coil lead and
charging coil lead under the holder
while taking care not to allow these
leads to get caught with each oth-
er. Also take care to pass the leads
so that they do not become loose
at the bend of the holder "a" in or-
der to avoid their contacting the
starter clutch drive gear.
Apply the sealant to the grommet of
the AC magneto lead.
3. Install:• Idle gear 2 "1"
• Dowel pin "2"
Apply the engine oil on the idle gear
2.
4. Install:• Idle gear plate "1"
• Bolt (idle gear plate) "2" 5. Install:
• Washer "1"
•Bearing "2"
• Starter clutch drive gear "3"
• Washer "4"
Apply the engine oil on the washer,
bearing and starter clutch drive gear
inner circumference.
6. Install:• Starter clutch "1"To rotor "2".
• Install the starte r clutch with its
plate side upward.
• While installing the starter clutch, push in the projections "a" one by
one on the clutch circumference.
• Push in the starter clutch until it hits the rotor.
7. Install:• Starter clutch assembly cover "1"To rotor "2".
Install the starter clutch assembly
cover by fitting its pawls "a" into the
groove "b" in the rotor.
8. Install:
• Woodruff key "1"
• Rotor "2"
• Degrease the contact surfaces of the tapered portions of the crank-
shaft and rotor.
• When installing the woodruff key, make sure that its flat surface "a" is
in parallel with the crankshaft center
line "b".
• When installing the rotor, align the
keyway "c" of the rotor with the
woodruff key.
9. Install:• Washer (rotor)
• Nut (rotor) "1"
Use the sheave holder "2"
Tighten the rotor nut to 65 Nm (6.5
m•kg, 47 ft•lb), loosen and retighten
the rotor nut to 65 Nm (6.5 m•kg, 47
ft•lb).
10. Install:• Dowel pin
• Gasket [crankcase cover (left)]
• Crankcase cover (left) "1"
• Bolt [crankcase cover (left)] "2"
Bolt:
7 Nm (0.7 m•kg, 5.1
ft•lb)
YAMAHA Bond No. 1215
(ThreeBond
® No. 1215):
90890-85505
Bolt (idle gear plate): 10 Nm (1.0 m•kg, 7.2
ft•lb)
E
E
Nut (rotor):65 Nm (6.5 m•kg, 47
ft•lb)
Sheave holder: YS-1880-A/90890-
01701
Bolt [crankcase cover
(left)]: 10 Nm (1.0 m•kg, 7.2
ft•lb)

5-52
AC MAGNETO AND STARTER CLUTCH
• Bolt [crankcase cover (left)] "3"
Tighten the bolts in stage, using a
crisscross pattern.
11. Install:• Washer "1"
• Torque limiter "2"
• Washer "3"
Apply the engine oil to the shaft and
washers.
12. Install:• O-ring
• Cover (idle gear 1) "1"
•Bolt "2"
• Apply the lithium soap base grease on the O-ring.
• Install the cover (idle gear 1) with its
mark "a" facing upward.
13. Connect:• AC magneto leadRefer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER
2.
14. Install: • Shift pedal "1"
• Bolt (shift pedal)
When installing the shift pedal onto
the shift shaft, be sure that the center
of the shift pedal is about 1.4 mm
(0.06 in) "a" above the top of the foot-
rest.
Bolt [crankcase cover
(left)]: 12 Nm (1.2 m•kg, 8.7
ft•lb)
Bolt: 10 Nm (1.0 m•kg, 7.2
ft•lb)
E
Bolt (shift pedal):
12 Nm (1.2 m•kg, 8.7
ft•lb)

5-53
ENGINE REMOVAL
ENGINE REMOVAL

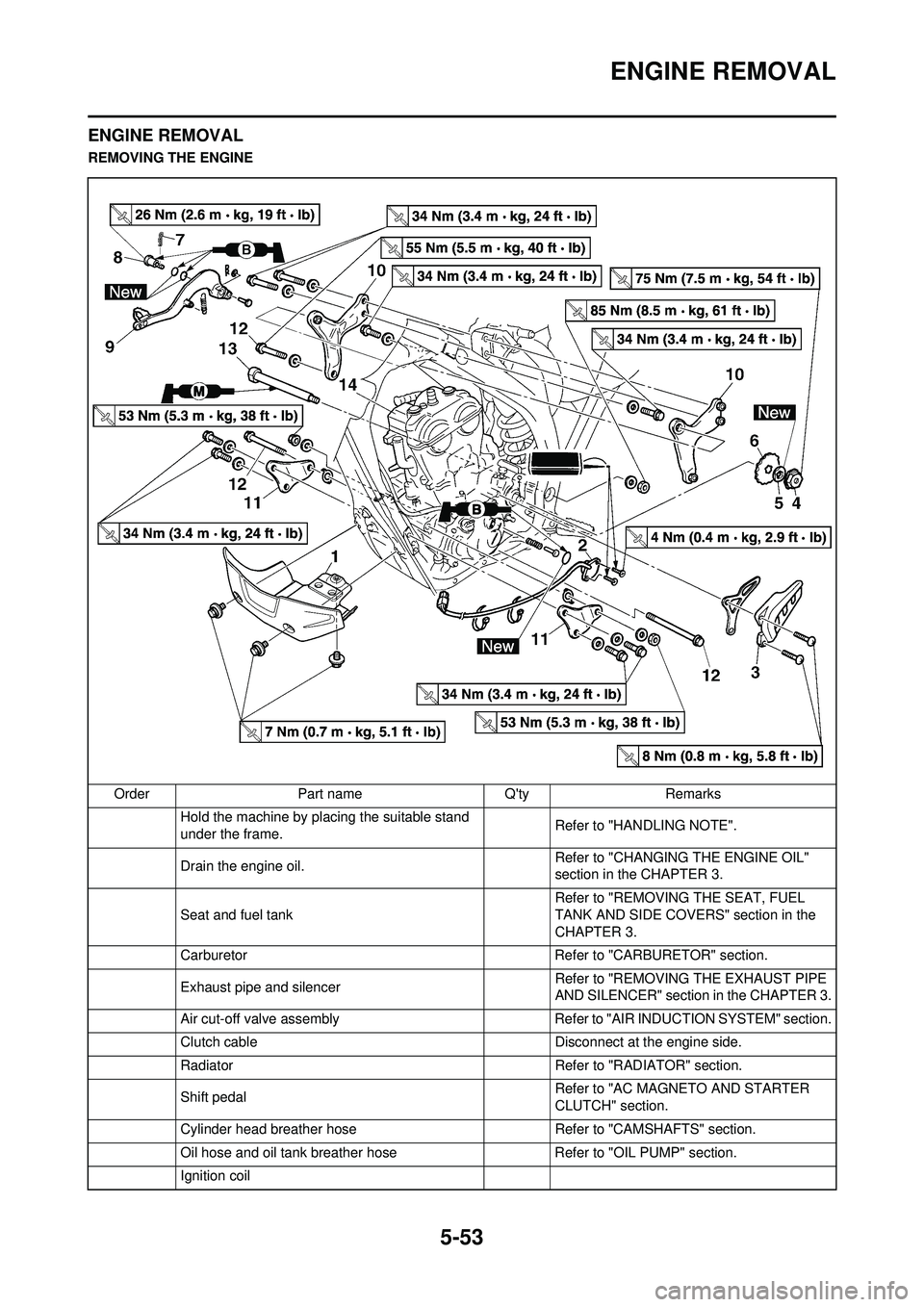

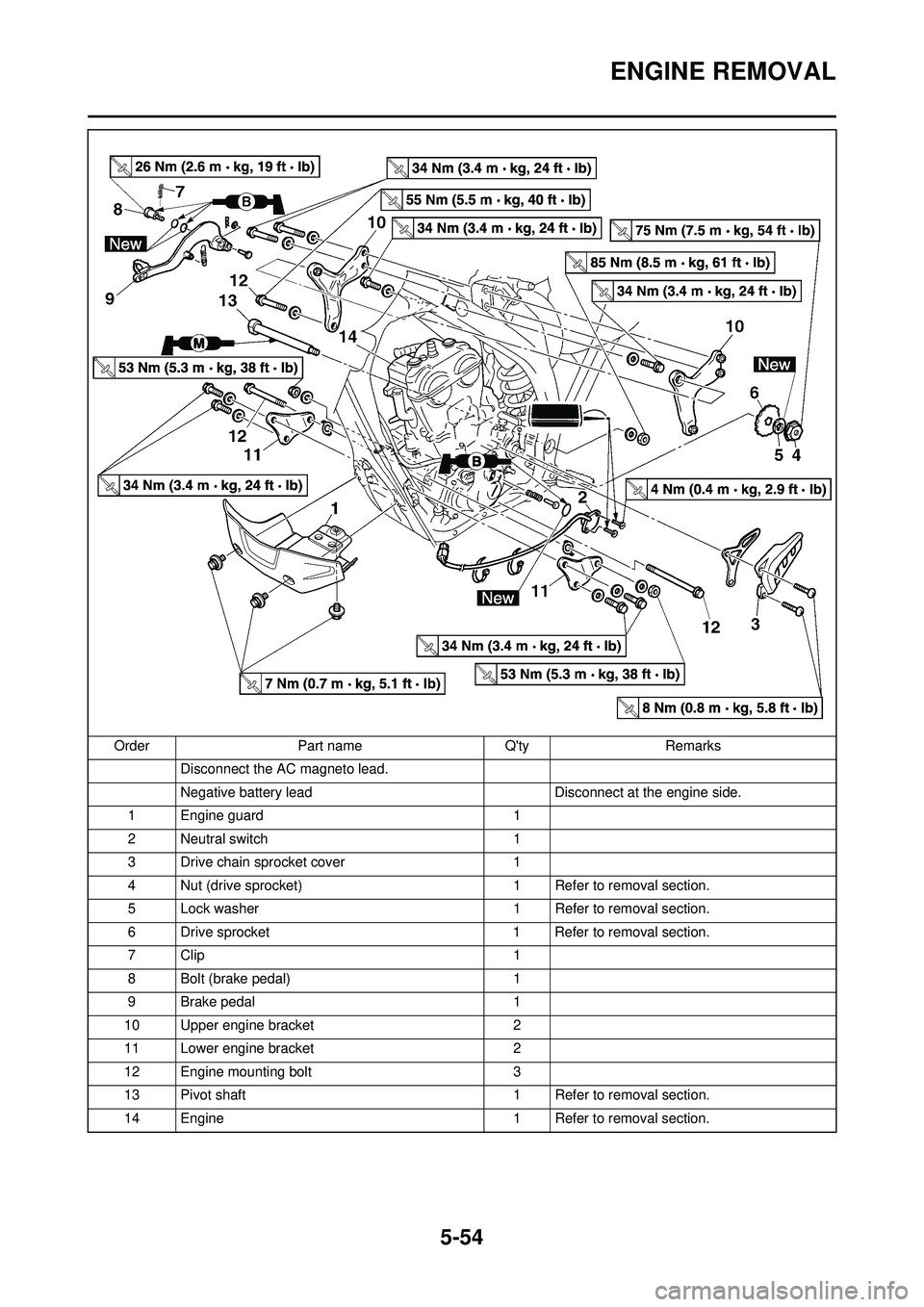

REMOVING THE ENGINEOrder Part name Q'ty Remarks Hold the machine by placing the suitable stand
under the frame. Refer to "HANDLING NOTE".
Drain the engine oil. Refer to "CHANGING THE ENGINE OIL"
section in the CHAPTER 3.
Seat and fuel tank Refer to "REMOVING THE SEAT, FUEL
TANK AND SIDE COVERS" section in the
CHAPTER 3.
Carburetor Refer to "CARBURETOR" section.
Exhaust pipe and silencer Refer to "REMOVING THE EXHAUST PIPE
AND SILENCER" section in the CHAPTER 3.
Air cut-off valve assembly Refer to "AIR INDUCTION SYSTEM" section.
Clutch cable Disconnect at the engine side.
Radiator Refer to "RADIATOR" section.
Shift pedal Refer to "AC MAGNETO AND STARTER
CLUTCH" section.
Cylinder head breather hose Refer to "CAMSHAFTS" section.
Oil hose and oil tank breather ho seRefer to "OIL PUMP" section.
Ignition coil

5-54
ENGINE REMOVAL
Disconnect the AC magneto lead.
Negative battery lead Disconnect at the engine side.
1 Engine guard 1
2 Neutral switch 1
3 Drive chain sprocket cover 1
4 Nut (drive sprocket) 1 Refer to removal section.
5 Lock washer 1 Refer to removal section.
6 Drive sprocket 1 Refer to removal section.
7Clip 1
8 Bolt (brake pedal) 1
9 Brake pedal 1
10 Upper engine bracket 2
11 Lower engine bracket 2
12 Engine mounting bolt 3
13 Pivot shaft 1 Refer to removal section.
14 Engine 1 Refer to removal section.
Order
Part name Q'tyRemarks
