YAMAHA WR 250F 2013 Service Manual

2-10
MAINTENANCE SPECIFICATIONS
ELECTRICALDrive chain:
Type/manufacturer DID520VM2/DAIDO ----
Number of links 113 links + joint ----
Chain slack 48–58 mm (1.9–2.3 in) ----
Chain length (15 links) ---- 239.3 mm
(9.42 in)
Front disc brake:
Disc outside dia.×Thickness 250 × 3.0 mm (9.84 × 0.12 in) 250 × 2.5 mm
(9.84 × 0.10 in)
Pad thickness 4.4 mm (0.17 in) 1.0 mm (0.04
in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia.×Thickness 245 × 4.0 mm (9.65 × 0.16 in) 245 × 3.5 mm
(9.65 × 0.14 in)
Deflection limit ---- 0.15 mm
(0.006 in)
Pad thickness 6.4 mm (0.25 in) 1.0 mm (0.04
in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 25.4 mm (1.000 in) × 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 95 mm (3.74 in) ----
Brake pedal height (vertical height above footrest
top)10 mm (0.39 in) ----
Clutch lever free play (lever end) 8–13 mm (0.31–0.51 in) ----
Throttle grip free play3–5 mm (0.12–0.20 in) ---- Item Standard Limit
Item Standard Limit
Ignition system:
Advancer type Electrical ----
CDI: USA, CDN AUS, NZ, ZA EUROPE
Pickup coil resistance (color) 248–372 Ωat
20 °C (68 °F)
(White–Red)←←----
CDI unit-model/manufacturer 5UM-E0/
YAMAHA5UM-F1/
YAMAHA5UM-L1/
YAMAHA----
Ignition coil:
Model/manufacturer 5UL-10/DENSO ----
Minimum spark gap 6 mm (0.24 in) ----
Primary coil resistance 0.08–0.10 Ωat 20 °C (68 °F) ----
Secondary coil resistance 4.6–6.8 kΩat 20 °C (68 °F) ----

2-11
MAINTENANCE SPECIFICATIONS
Charging system:
System type AC magneto ----
Model (stator)/manufacturer 5UM 30/YAMAHA ----
Normal output 14 V/120 W at 5,000 r/min ----
Charging coil resistance (color) 0.288–0.432 Ω at 20 °C (68 °F) (White–Ground) ----
Lighting coil resistance (color) 0.224–0.336 Ω at 20 °C (68 °F) (Yellow–Ground) ----
Rectifier/regulator:
Regulator type Semiconductor short circuit ----
Model/manufacture SH770AA/SHINDENGEN ----
Regulated voltage (AC) 12.5–13.5 V ----
Regulated voltage (DC) 14.0–15.0 V ----
Rectifier capacity (AC) 12 A ----
Rectifier capacity (DC) 8 A ----
Electric starting system:
Type Constant mesh ----
Starter motor:
Model/manufacturer 5UM01/YAMAHA ----
Operation voltage 12 V ----
Output 0.35 kW ----
Armature coil resistance 0.0189–0.0231 Ω at 20 °C (68 °F) ----
Brush overall length 7 mm (0.28 in) 3.5 mm (0.14
in)
Brush quantity 2 pcs. ----
Spring force 3.92–5.88 N (400–600 g, 14.1–21.2 oz) ----
Commutator diameter 17.6 mm (0.69 in) 16.6 mm (0.65
in)
Mica undercut (depth) 1.5 mm (0.06 in) ----
Starter relay:
Model/manufacturerRC19-042/MITSUBA ----
Amperage rating 180 A ----
Coil winding resistance 4.2–4.6 Ω at 20 °C (68 °F) ----
Starting circuit cut-off relay:
Model/manufacturer ACM33221 M38/MATSUSHITA ----
Coil winding resistance 75.69–92.51 Ω at 20 °C (68 °F) ----
Fuse (amperage×quantity):
Main fuse 10 A × 1 ----
Reserve fuse 10 A × 1 ----Item Standard Limit

2-12
TIGHTENING TORQUES
TIGHTENING TORQUES
ENGINE
△- marked portion shall be checked for torque tightening after break-in or before each race.
ItemThread
sizeQ'ty Tightening torque Remarks
Spark plug M10S 1 13 Nm (1.3 m•kg, 9.4 ft•lb)
Camshaft cap M6 10 10 Nm (1.0 m•kg, 7.2 ft•lb)
Cylinder head blind plug screw M12 1 28 Nm (2.8 m•kg, 20 ft•lb)
Cylinder head (stud bolt) M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Cylinder head (stud bolt) M8 1 15 Nm (1.5 m•kg, 11 ft•lb)
Cylinder head (bolt) M9 4 38 Nm (3.8 m•kg, 27 ft•lb)
Cylinder head (nut) M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Cylinder head cover M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Cylinder M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Balancer weight M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Balancer shaft driven gear M14 1 50 Nm (5.0 m•kg, 36 ft•lb) Lock washer
Timing chain guide (intake side) M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Timing chain tensioner M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Timing chain tensioner cap bolt M6 1 7 Nm (0.7 m•kg, 5.1 ft•lb)
Impeller M8 1 14 Nm (1.4 m•kg, 10 ft•lb)
Radiator hose clamp M6 10 2 Nm (0.2 m•kg, 1.4 ft•lb)
Coolant drain bolt M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)Copper
washer
Water pump housing M6 4 10 Nm (1.0 m•kg, 7.2 ft•lb)
Radiator stay M6 6 10 Nm (1.0 m•kg, 7.2 ft•lb)
Radiator M6 4 10 Nm (1.0 m•kg, 7.2 ft•lb)
Radiator pipe M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Oil pump cover M4 1 1.7 Nm (0.17 m•kg, 1.2 ft•lb)
Oil pump M6 3 10 Nm (1.0 m•kg, 7.2 ft•lb)
Oil filter element drain bolt M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Oil filter element cover M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Oil strainer (crankcase) M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Oil delivery pipe 1 (M10) M10 1 20 Nm (2.0 m•kg, 14 ft•lb)Copper
washer
Oil delivery pipe 1 (M8) M8 2 18 Nm (1.8 m•kg, 13 ft•lb)Copper
washer
△Oil hose M6 3 8 Nm (0.8 m•kg, 5.8 ft•lb)
Oil hose clamp — 2 2 Nm (0.2 m•kg, 1.4 ft•lb)
Oil strainer (oil tank) M6 1 9 Nm (0.9 m•kg, 6.5 ft•lb)
Oil tank drain bolt M8 1 18 Nm (1.8 m•kg, 13 ft•lb)
Oil tank (upper) M6 1 7 Nm (0.7 m•kg, 5.1 ft•lb)
Oil tank and frame M6 3 9 Nm (0.9 m•kg, 6.5 ft•lb)
Oil pressure check bolt M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Carburetor joint M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Carburetor joint clamp M4 2 3 Nm (0.3 m•kg, 2.2 ft•lb)
Air filter joint clamp M6 1 3 Nm (0.3 m•kg, 2.2 ft•lb)

2-13
TIGHTENING TORQUES
Throttle cable adjust bolt and locknut M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Throttle cable (pull) M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Throttle cable (return) M12 1 11 Nm (1.1 m•kg, 8.0 ft•lb)
Throttle cable cover M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Hot starter plunger M12 1 2 Nm (0.2 m•kg, 1.4 ft•lb)
Hot starter cable adjust bolt and locknut M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
△Air filter case M6 2 8 Nm (0.8 m•kg, 5.8 ft•lb)
Air filter joint and air filter case M5 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Exhaust pipe M8 2 20 Nm (2.0 m•kg, 14 ft•lb)
△Exhaust pipe protector M6 3 10 Nm (1.0 m•kg, 7.2 ft•lb)
△Silencer M8 2 30 Nm (3.0 m•kg, 22 ft•lb)
Silencer clamp M8 1 16 Nm (1.6 m•kg, 11 ft•lb)
Spark arrester M5 4 7 Nm (0.7 m•kg, 5.1 ft•lb)
Silencer cap M5 6 5 Nm (0.5 m•kg, 3.6 ft•lb)
Air induction pipe M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Air induction pipe clamp M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Air cut-off valve assembly and bracket M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Bracket (air cut-off valve) and frame M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Crankcase M6 11 12 Nm (1.2 m•kg, 8.7 ft•lb)
Crankcase bearing stopper M6 11 10 Nm (1.0 m•kg, 7.2 ft•lb)
Crankcase bearing stopper (crankshaft) M6 4 14 Nm (1.4 m•kg, 10 ft•lb) Stake.
Left crankcase cover M6 8 10 Nm (1.0 m•kg, 7.2 ft•lb)
Idle gear cover (starter motor)M6 3 10 Nm (1.0 m•kg, 7.2 ft•lb)
Idle gear plate M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Right crankcase cover M6 6 10 Nm (1.0 m•kg, 7.2 ft•lb)
Clutch cover M6 7 10 Nm (1.0 m•kg, 7.2 ft•lb)
Crankcase oil drain bolt M10 1 20 Nm (2.0 m•kg, 14 ft•lb)Copper
washer
△Crankshaft end accessing screw M32 1 —
△Timing mark accessing screw M14 1 —
Drive chain sprocket cover M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Kick shaft ratchet wheel guide M6 2 12 Nm (1.2 m•kg, 8.7 ft•lb) Lock washer
Kickstarter crank M8 1 33 Nm (3.3 m•kg, 24 ft•lb)
Primary drive gear M18 1 75 Nm (7.5 m•kg, 54 ft•lb) Lock washer
Clutch spring M6 5 10 Nm (1.0 m•kg, 7.2 ft•lb)
Clutch boss M16 1 75 Nm (7.5 m•kg, 54 ft•lb) Lock washer
Clutch cable locknut M8 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Push lever shaft M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Drive sprocket M18 1 75 Nm (7.5 m•kg, 54 ft•lb) Lock washer
Drive axle oil seal stopper M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Segment M8 1 30 Nm (3.0 m•kg, 22 ft•lb)
Shift guide M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Stopper lever M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Shift pedal M6 1 12 Nm (1.2 m•kg, 8.7 ft•lb)ItemThread
sizeQ'ty Tightening torque Remarks

2-14
TIGHTENING TORQUES
CHASSIS
△- marked portion shall be checked for torque tightening after break-in or before each race.
ItemThread
sizeQ'ty Tightening torque Remarks
△Upper bracket and outer tube M84 21 Nm (2.1 m•kg, 15 ft•lb)
△Lower bracket and outer tube M8 4 21 Nm (2.1 m•kg, 15 ft•lb)
△Upper bracket and steering stem M24 1 145 Nm (14.5 m•kg, 105 ft•lb)
△Handlebar upper holder and handlebar
lower holderM8 4 28 Nm (2.8 m•kg, 20 ft•lb)
△Handlebar lower holder and upper brack-
etM10 2 34 Nm (3.4 m•kg, 24 ft•lb)
△Steering stem and steering ring nut M28 1 Refer to TIP.
Front fork and front fork cap bolt M51 2 30 Nm (3.0 m•kg, 22 ft•lb)
Front fork and base valve M30 2 55 Nm (5.5 m•kg, 40 ft•lb)Copper
washer
Front fork cap bolt and damper rod M12 2 29 Nm (2.9 m•kg, 21 ft•lb)
Front fork bleed screw and front fork cap
boltM5 2 1 Nm (0.1 m•kg, 0.7 ft•lb)
△Front fork and front fork protector M6 6 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Front fork protector and brake hose hold-
erM6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Throttle grip cap M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
△Front brake master cylinder M6 29 Nm (0.9 m•kg, 6.5 ft•lb)
Brake lever mounting bolt M6 1 6 Nm (0.6 m•kg, 4.3 ft•lb)
Brake lever mounting nut M6 1 6 Nm (0.6 m•kg, 4.3 ft•lb)
Brake lever position locknut M6 1 5 Nm (0.5 m•kg, 3.6 ft•lb)
△Front brake hose guide and front brake
hose guide bracketM5 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
△Front brake hose guide and lower bracket M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Clutch lever holder M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Clutch lever mounting nut M6 1 4 Nm (0.4 m•kg, 2.9 ft•lb)
Hot starter lever holder M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Hot starter lever mounting nut M5 1 2 Nm (0.2 m•kg, 1.4 ft•lb)
Front brake master cylinder cap M4 2 2 Nm (0.2 m•kg, 1.4 ft•lb)
△
Front brake hose union bolt M10 2 30 Nm (3.0 m•kg, 22 ft•lb)Copper
washer
△Front brake caliper M8 2 23 Nm (2.3 m•kg, 17 ft•lb)
△Front brake caliper and brake hose holder M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Pad pin plug M10 2 3 Nm (0.3 m•kg, 2.2 ft•lb)
△Front brake caliper and pad pin M10 1 18 Nm (1.8 m•kg, 13 ft•lb)
△Rear brake caliper and pad pin M10 1 18 Nm (1.8 m•kg, 13 ft•lb)
△Brake caliper and bleed screw M8 2 6 Nm (0.6 m•kg, 4.3 ft•lb)
△Front wheel axle and axle nut M16 1 90 Nm (9.0 m•kg, 65 ft•lb)
△Front wheel axle holder M8 4 21 Nm (2.1 m•kg, 15 ft•lb)
△Front brake disc M6 6 12 Nm (1.2 m•kg, 8.7 ft•lb)
△Rear brake disc M6 6 14 Nm (1.4 m•kg, 10 ft•lb)

2-15
TIGHTENING TORQUES
△Brake pedal M8 1 26 Nm (2.6 m•kg, 19 ft•lb)
△Rear brake master cylinder M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Rear brake master cylinder cap M4 2 2 Nm (0.2 m•kg, 1.4 ft•lb)
△
Rear brake hose union bolt M10 2 30 Nm (3.0 m•kg, 22 ft•lb)Copper
washer
△Rear wheel axle and axle nut M20 1 125 Nm (12.5 m•kg, 90 ft•lb)
△Nipple (spoke) — 72 3 Nm (0.3 m•kg, 2.2 ft•lb)
△Rear wheel sprocket M8 6 50 Nm (5.0 m•kg, 36 ft•lb)
△Rear brake disc cover M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
△Rear brake caliper protector M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Drive chain puller adjust bolt and locknut M8 2 19 Nm (1.9 m•kg, 13 ft•lb)
Engine mounting:
△Engine and engine bracket (front) M10 1 53 Nm (5.3 m•kg, 38 ft•lb)
△Engine and frame (lower) M10 1 53 Nm (5.3 m•kg, 38 ft•lb)
△Upper engine bracket and frame M8 4 34 Nm (3.4 m•kg, 24 ft•lb)
△Lower engine bracket and frame M8 4 34 Nm (3.4 m•kg, 24 ft•lb)
△Engine and engine bracket (upper) M10 1 55 Nm (5.5 m•kg, 40 ft•lb)
△Engine guard M6 3 7 Nm (0.7 m•kg, 5.1 ft•lb)
Regulator M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Pivot shaft and nut M16 1 85 Nm (8.5 m•kg, 61 ft•lb)
△Relay arm and swingarm M14 1 70 Nm (7.0 m•kg, 50 ft•lb)
△Relay arm and connecting rod M14 1 80 Nm (8.0 m•kg, 58 ft•lb)
△Connecting rod and frame M14 1 80 Nm (8.0 m•kg, 58 ft•lb)
△Rear shock absorber and frame M10 1 56 Nm (5.6 m•kg, 40 ft•lb)
△Rear shock absorber and relay arm M10 1 53 Nm (5.3 m•kg, 38 ft•lb)
△Rear frame (upper) M8 1 38 Nm (3.8 m•kg, 27 ft•lb)
△Rear frame (lower) M8 2 32 Nm (3.2 m•kg, 23 ft•lb)
△Swingarm and brake hose holder M54 3 Nm (0.3 m•kg, 2.2 ft•lb)
Swingarm and patch M4 4 2 Nm (0.2 m•kg, 1.4 ft•lb)
Upper drive chain tensioner M8 1 16 Nm (1.6 m•kg, 11 ft•lb)
Lower drive chain tensioner M8 1 16 Nm (1.6 m•kg, 11 ft•lb)
Drive chain support M6 3 7 Nm (0.7 m•kg, 5.1 ft•lb)
Seal guard and swingarm M5 4 6 Nm (0.6 m•kg, 4.3 ft•lb)
△Fuel tank M6 2 9 Nm (0.9 m•kg, 6.5 ft•lb)
△Fuel cock M6 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Seat set bracket and fuel tankM6 1 7 Nm (0.7 m•kg, 5.1 ft•lb)
Fuel tank bracket and fuel tank M6 4 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Air scoop and fuel tank M6 6 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Air scoop and radiator guard (lower) M6 2 6 Nm (0.6 m•kg, 4.3 ft•lb)
△Front fender M6 4 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Rear fender (front) M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
△Rear fender (rear) M6 2 11 Nm (1.1 m•kg, 8.0 ft•lb)
△Side cover M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Seat M8 2 22 Nm (2.2 m•kg, 16 ft•lb)ItemThread
sizeQ'ty Tightening torque Remarks

2-16
TIGHTENING TORQUES
1. First, tighten the steering ring nut approximately 38 Nm (3.8 m•kg, 27 ft•lb) by using the steering nut wrench, then loosen
the steering ring nut one turn.
2. Retighten the steering ring nut 7 Nm (0.7 m•kg, 5.1 ft•lb).
ELECTRICAL
Tighten the rotor nut to 65 Nm (6.5 m•kg, 47 ft•lb), loosen and retighten the rotor nut to 65 Nm (6.5 m •kg, 47 ft•lb).
Multi-function display bracket and upper
bracketM6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Multi-function display M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Plate 1 and front fork protector M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Plate 2 and front fork protector — 2 0.5 Nm (0.05 m•kg, 0.36 ft•lb)
Speed sensor lead holder and lower
bracketM6 1 13 Nm (1.3 m•kg, 9.4 ft•lb)
Speed sensor lead holder and clamp M6 1 7 Nm (0.7 m•kg, 5.1 ft•lb)
Headlight body and headlight unit — 2 1 Nm (0.1 m•kg, 0.7 ft•lb)
△Headlight M6 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Taillight — 3 1 Nm (0.1 m•kg, 0.7 ft•lb)
Taillight lead clamp and rear fender— 3 0.5 Nm (0.05 m•kg, 0.36 ft•lb)
△Catch tank (upper) M6 1 16 Nm (1.6 m•kg, 11 ft•lb)
△Catch tank (lower) M6 1 7 Nm (0.7 m•kg, 5.1 ft•lb)
Footrest bracket and frame M10 4 55 Nm (5.5 m•kg, 40 ft•lb)TORX
Sidestand M10 1 25 Nm (2.5 m•kg, 18 ft•lb)
Front reflector (For CDN) M6 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Rear reflector (For CDN) M5 3 2 Nm (0.2 m•kg, 1.4 ft•lb) ItemThread
sizeQ'ty Tightening torque Remarks
ItemThread
sizeQ'ty Tightening torque Remarks
Stator M5 2 7 Nm (0.7 m•kg, 5.1 ft•lb)
Holder (AC magneto lead) M5 27 Nm (0.7 m•kg, 5.1 ft•lb)
Rotor M12 1 Refer to TIP.
Neutral switch M5 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Starter motor M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)
Starter relay terminal M6 2 4 Nm (0.4 m•kg, 2.9 ft•lb)
Negative lead and cylinder head M6 1 10 Nm (1.0 m•kg, 7.2 ft•lb)
Pickup coil M6 2 10 Nm (1.0 m•kg, 7.2 ft•lb)

2-17
TIGHTENING TORQUES
GENERAL TORQUE
SPECIFICATIONS
This chart specifies torque for stan-
dard fasteners with standard I.S.O.
pitch threads. Torque specifications
for special components or assem-
blies are included in the applicable
sections of this book. To avoid warp-
age, tighten multi-fastener assem-
blies in a crisscross fashion, in
progressive stages, until full torque is
reached. Unless otherwise specified,
torque specifications call for clean,
dry threads. Components should be
at room temperature.A. Distance between flats
B. Outside thread diameter
DEFINITION OF UNITS
A
(Nut)B
(Bolt
)TORQUE SPECIFI-
CATION
Nm m•kg ft•lb
10
mm6 mm 6 0.6 4.3
12
mm8 mm 15 1.5 11
14
mm10
mm30 3.0 22
17
mm12
mm55 5.5 40
19
mm14
mm85 8.5 61
22
mm16
mm130 13 94
Unit Read Definition Measure
mm
millimeter 10-3 meter Length
cmcentimeter 10-2 meter Length
kgkilogram 103 gram Weight
NNewton 1 kg × m/sec2Force
NmNewton meter N × m Torque
m•kgMeter kilogram m × kg Torque
PaPascal N/m2Pressure
N/mmNewton per millimeter N/mm Spring rate
LLiter — Volume or capacity
cm3Cubic centimeter — Volume or capacity
r/minRevolution per minute — Engine speed

2-18
TIGHTENING TORQUES

2-19

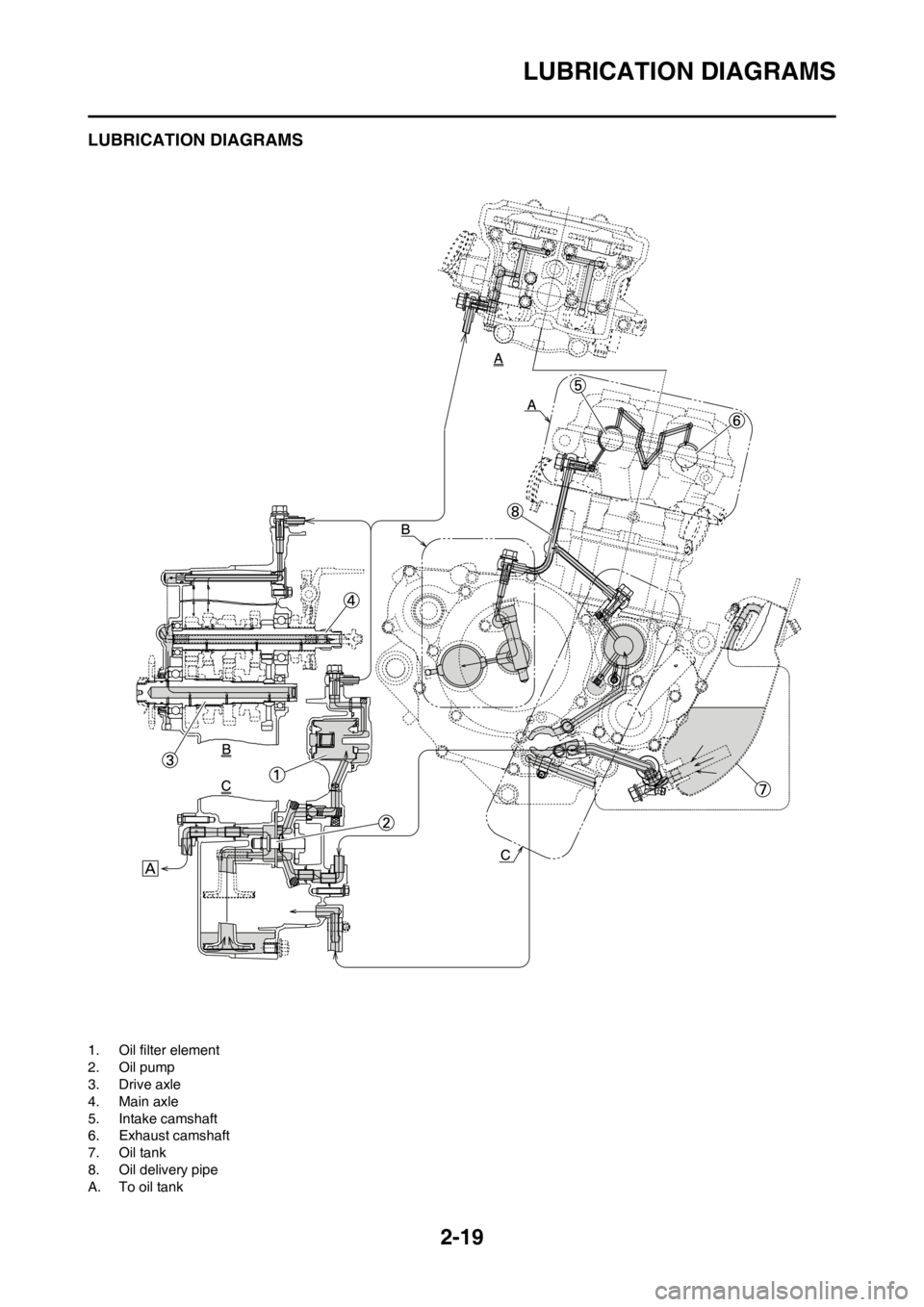

LUBRICATION DIAGRAMS
LUBRICATION DIAGRAMS
1. Oil filter element
2. Oil pump
3. Drive axle
4. Main axle
5. Intake camshaft
6. Exhaust camshaft
7. Oil tank
8. Oil delivery pipe
A. To oil tank
