INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
TIP

The stopwatch will continue counting
when the vehicle is stopped. To stop
and/or resume counting, repeat steps 2
and 3.
Auto start
1. Push the “SELECT 1” button for at
least two seconds to set the auto
start.TIP

When the stopwatch is set to auto start,
the stopwatch indicator “ ” and the
distance-compensation tripmeter indi-
cator “ ” will start flashing, and the
digits in the display will start scrolling
from left to right.2. When the vehicle starts moving,
the stopwatch will start counting.
3. Push the “SELECT 1” button and
“SELECT 2” button together to
stop the stopwatch.
4. To resume counting, push the
“SELECT 1” button and “SELECT
2” button together again.
TIP

The stopwatch will continue counting
when the vehicle is stopped. To stop
and/or resume counting, repeat steps 3
and 4.
Measurement mode (for calibrating
the distance-compensation tripme-
ter’s reading)
The distance-compensation tripmeter
is a feature intended to provide a more
accurate tripmeter reading for enduro
riding. Calibrating this meter in accor-
dance with the distances specified on
the enduro course map will help famil-
iarize the rider with the course. In addi-
tion, calibrating the meter may also be
necessary when using tire, wheel,
chain sprocket sizes, etc. other than
specified. For further information con-cerning the use of this meter, please
consult your nearby Yamaha dealer.
Calibrate the distance-compensation
tripmeter as follows.
To increase the reading, push the
“SELECT 1” button. To decrease the
reading, push the “SELECT 2” button.
Pushing and holding either button will
increase or decrease the reading con-
tinuously until the button is released.
TIP

Calibrating the reading of the dis-
tance-compensation tripmeter is possi-
ble regardless of the stopwatch
operation.
Resetting the distance-compensa-
tion tripmeter or the distance-com-
pensation tripmeter in combination
with the stopwatch
TIP

Resetting can be made only to the dis-
tance-compensation tripmeter or to the
distance-compensation tripmeter in
combination with the stopwatch.

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
Resetting the distance-compensation
tripmeter1. Check that the stopwatch mea-
surement is in operation.
2. Reset the distance-compensation
tripmeter to zero by pushing the
“RESET” button for at least two
seconds.
Resetting the distance-compensationtripmeter in combination with the stop-watch1. Stop the stopwatch.
2. Reset the distance-compensation
tripmeter and the stopwatch to
zero by pushing the “RESET” but-
ton for at least two seconds.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the display will indi-
cate an error code.
If the display indicates any error codes,
note the code number, and then have aYamaha dealer check the vehicle.
NOTICE

ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
EAU12347
Handlebar switches
Left
1. Error code display1
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1
2
3

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9 Right

EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-19.)
1. Engine stop switch “ / ”
2. Start switch “ ”
1
2

1. Clutch lever
1

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9

EAU12870

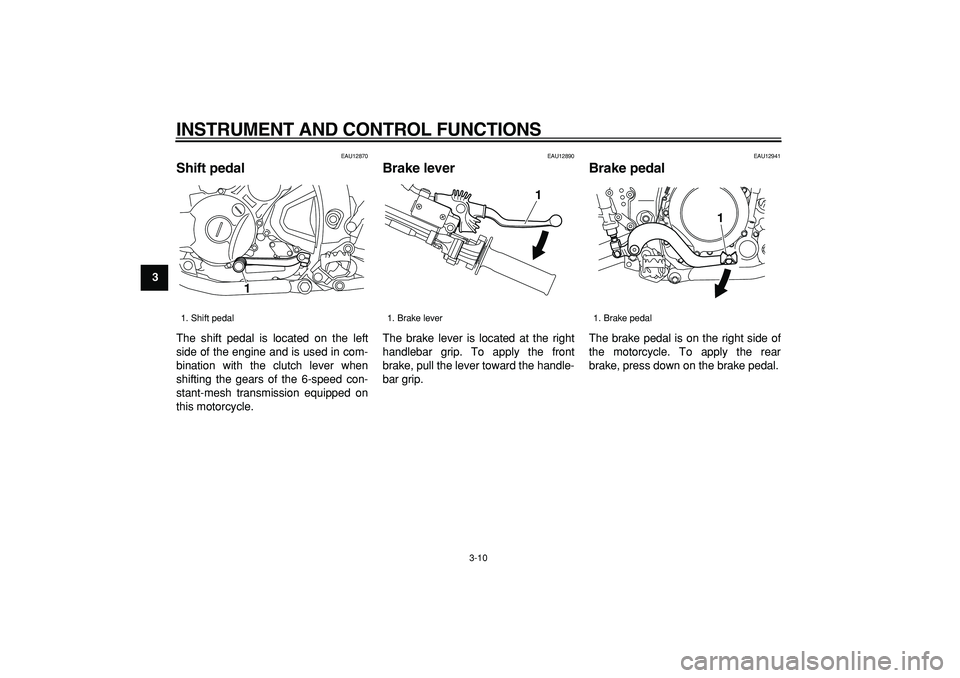

Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Shift pedal
1

1. Brake lever
1

1. Brake pedal
1

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9

EAU44363
Fuel tank cap
To remove the fuel tank cap
1. Insert the key into the lock and turn
it counterclockwise as shown.
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock, and then turn the cap
clockwise.
2. Turn the key clockwise, and then
remove it.
TIP

The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING

EWA10121
Make sure that the fuel tank cap is
properly closed and locked before
riding. Leaking fuel is a fire hazard.
EAU13212
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING

EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.
1. Key
2. Fuel tank cap
1
2

1. Key
2. Fuel tank cap1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
3. Wipe up any spilled fuel immedi-
ately.
NOTICE:
Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.

[ECA10071]

4. Be sure to securely close the fuel
tank cap.
WARNING

EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline inyour eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU13390
NOTICE

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a differentbrand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
1. Fuel level
2. Fuel tank filler tube
2
1

Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
7.6 L (2.01 US gal, 1.67 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
2.1 L (0.55 US gal, 0.46 Imp.gal)

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9

EAU13433
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING

EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE

ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-pairable damage to the catalytic
converter.
EAU13970

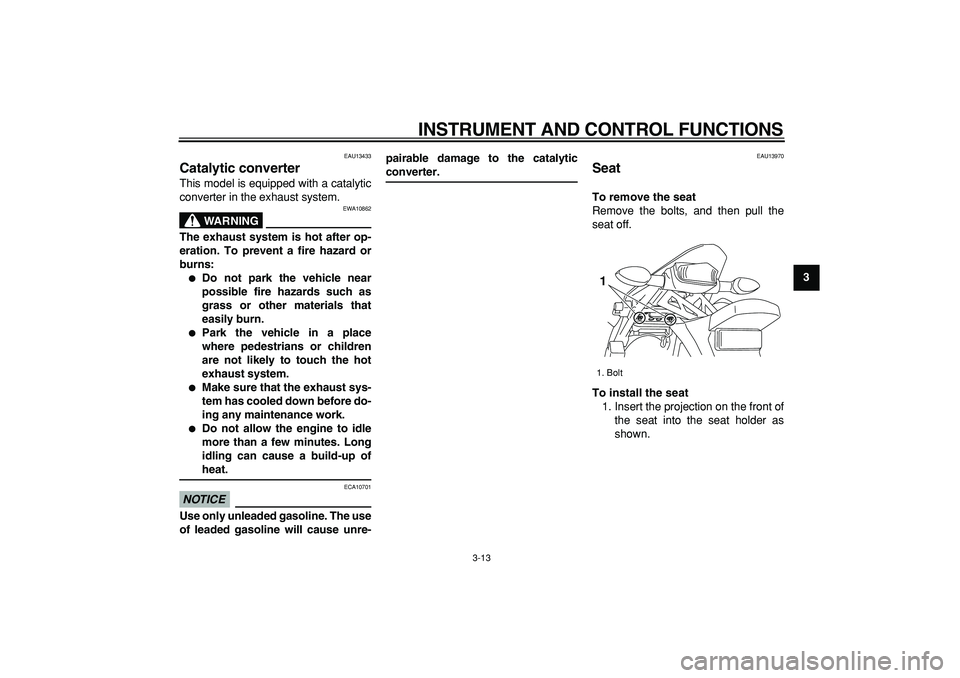

Seat
To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.

1. Bolt
1

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9
2. Place the seat in the original posi-
tion, and then tighten the bolts.
TIP

Make sure that the seat is properly se-
cured before riding.
EAU14282
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key.
WARNING! Never ride with a
helmet attached to the helmet hold-
er, since the helmet may hit objects,
causing loss of control and possibly
an accident.
[EWA10161]

EAU45201
Adjusting the front fork
WARNING

EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
This front fork is equipped with rebound
damping force adjusting screws and
compression damping force adjusting
screws.
NOTICE

ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
1. Projection
2. Seat holder
1
2

1. Helmet holder
2. Open.
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8

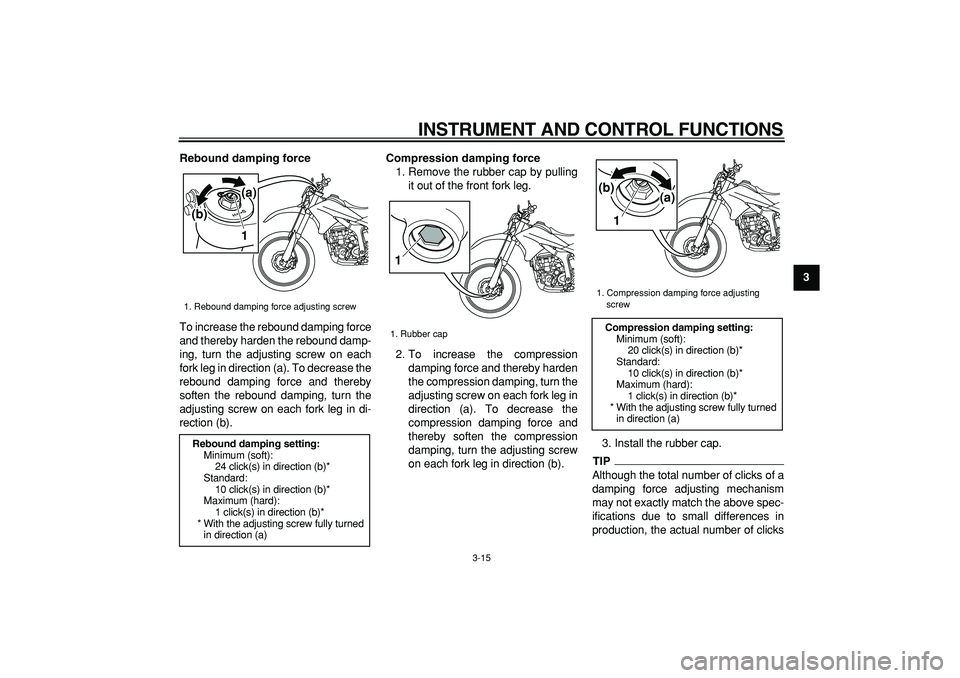

9 Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and thereby
soften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).
Compression damping force
1. Remove the rubber cap by pulling
it out of the front fork leg.
2. To increase the compression
damping force and thereby harden
the compression damping, turn the
adjusting screw on each fork leg in
direction (a). To decrease the
compression damping force and
thereby soften the compression
damping, turn the adjusting screw
on each fork leg in direction (b).3. Install the rubber cap.
TIP

Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
24 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1
(b)
(a)

1. Rubber cap
1

1. Compression damping force adjusting
screw
Compression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1(a) (b)

INSTRUMENT AND CONTROL FUNCTIONS
3-16
1
2
3
4
5
6
7
8
9
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the

specifications as necessary.
EAU14791

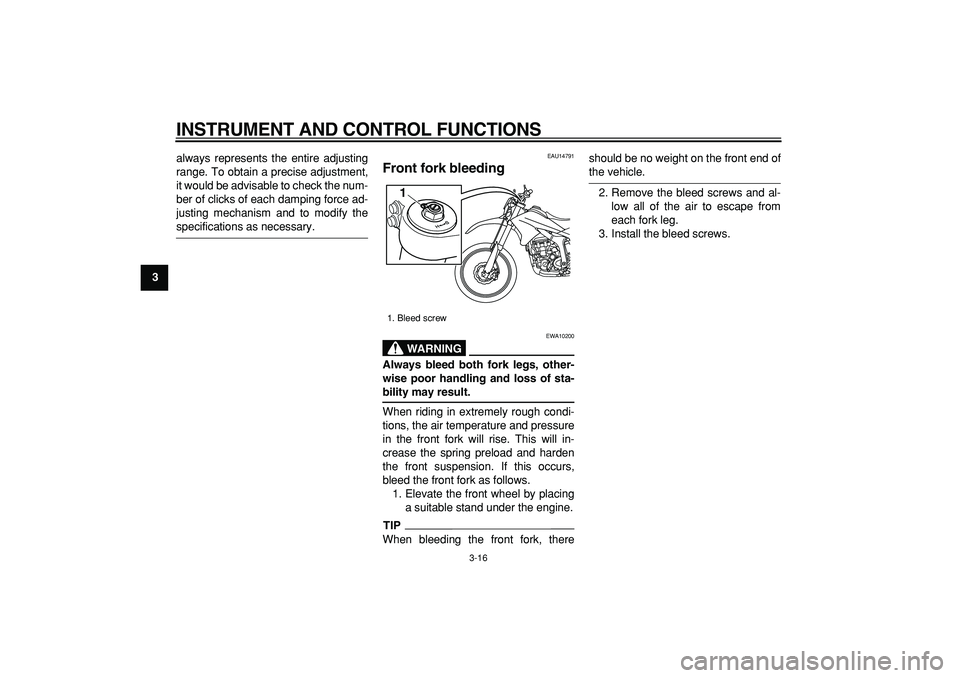

Front fork bleeding
WARNING

EWA10200
Always bleed both fork legs, other-
wise poor handling and loss of sta-
bility may result.
When riding in extremely rough condi-
tions, the air temperature and pressure
in the front fork will rise. This will in-
crease the spring preload and harden
the front suspension. If this occurs,
bleed the front fork as follows.
1. Elevate the front wheel by placing
a suitable stand under the engine.
TIP

When bleeding the front fork, thereshould be no weight on the front end of
the vehicle.
2. Remove the bleed screws and al-
low all of the air to escape from
each fork leg.
3. Install the bleed screws.
1. Bleed screw
1
