Specifications
EAU69993
Dimensions:Overall length: 2180 mm (85.8 in)
Overall width: 810 mm (31.9 in)
Overall height: 1230 mm (48.4 in)
Seat height:
930 mm (36.6 in)
Wheelbase: 1420 mm (55.9 in)
Ground clearance: 300 mm (11.81 in)
Minimum turning radius:
2.3 m (7.55 ft)Weight:Curb weight:134 kg (295 lb)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train:
DOHC
Number of cylinders: Single cylinder
Displacement: 250 cm
3
Bore  stroke:
77.0  53.6 mm (3.03  2.11 in)
Compression ratio: 11.8 : 1 Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:YAMALUBE
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter removal: 1.40 L (1.48 US qt, 1.23 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
0.65 L (0.69 US qt, 0.57 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:Premium unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity: 7.6 L (2.0 US gal, 1.7 Imp.gal)
Fuel reserve amount: 2.1 L (0.55 US gal, 0.46 Imp.gal)
Fuel injection:Throttle body:ID mark:3D71 10Spark plug(s):Manufacturer/model: NGK/CR9EK
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-discDrivetrain:Primary reduction ratio:
3.120 (78/25)
Final drive: Chain
Secondary reduction ratio: 3.308 (43/13)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.643 (37/14)
2nd: 1.813 (29/16)
3rd: 1.318 (29/22)
4th:
1.040 (26/25)
5th: 0.889 (24/27)
6th: 0.786 (22/28)
BN3-9-E0.book 1 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Specifications
8-2
1
2
3
4
5
6
78
9
10
11
12
Chassis:Frame type: Semi double cradle
Caster angle: 26.67 
Trail: 111 mm (4.4 in)Front tire:Type:With tube
Size: 80/100-21M/C 51P
Manufacturer/model:
BRIDGESTONE/TW-301FRear tire:Type:With tube
Size:
120/80-18M/C 62P
Manufacturer/model: BRIDGESTONE/TW-302FLoading:Maximum load:
185 kg (408 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):Up to 90 kg (198 lb) load:Front:
125 kPa (1.25 kgf/cm
2, 18 psi)
Rear: 175 kPa (1.75 kgf/cm2, 25 psi) 90 kg (198 lb) load - maximum load:
Front: 150 kPa (1.50 kgf/cm
2, 22 psi)
Rear: 200 kPa (2.00 kgf/cm2, 29 psi)
Front wheel:Wheel type:Spoke wheel
Rim size: 21x1.60Rear wheel:Wheel type:Spoke wheel
Rim size: 18x2.15Front brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4Rear brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 270 mm (10.6 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring: Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel:
270 mm (10.6 in)Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
YTZ7S
Voltage, capacity: 12 V, 6.0 Ah (10 HR)Headlight:Bulb type:
Halogen bulbBulb wattage  quantity:Headlight:
H4, 60.0 W/55.0 W x 1
Brake/tail light:
LED
Front turn signal light: 10.0 W
Rear turn signal light: 10.0 W  2
BN3-9-E0.book 2 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Specifications
8-3
1
2
3
4
5
6
789
10
11
12
License plate light: 5.0 W  1
Meter lighting:
LED
Meter lighting (fuel meter): LED
Turn signal indicator light: LED
Fuel level warning light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LEDFuse(s):Main fuse:30.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 7.5 A
Radiator fan motor fuse: 7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse: 7.5 A
BN3-9-E0.book 3 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

9-1
1
2
3
4
5
6
7
89
10
11
12
Consumer information
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION
NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401

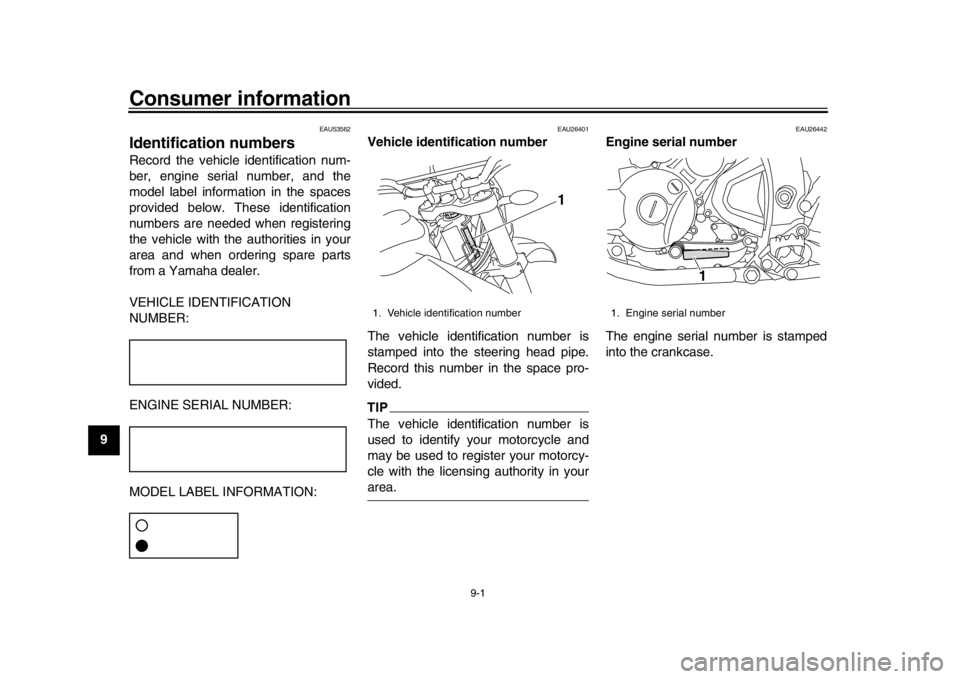

Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
1
1. Engine serial number
1
BN3-9-E0.book 1 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Consumer information
9-2
1
2
3
4
5
6
7
8910
11
12
EAU26461
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.1. Model label
1
BN3-9-E0.book 2 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

10-1
1
2
3
4
5
6
7
8
910
11
12
IndexAAir filter element and check hose, cleaning .................................................6-17
Auxiliary light bulb, replacing ...................6-36BBattery......................................................6-33
Brake and clutch levers, checking and lubricating ..............................................6-30
Brake fluid, changing ...............................6-27
Brake fluid level, checking .......................6-26
Brake lever ...............................................3-10
Brake lever free play, adjusting................6-23
Brake light switches .................................6-25
Brake pedal ..............................................3-10
Brake pedal, checking and lubricating .....6-30CCables, checking and lubricating .............6-29
Care ...........................................................7-1
Catalytic converter ...................................3-13
Clutch lever ................................................3-9
Clutch lever free play, adjusting ...............6-22
Coolant.....................................................6-14
Coolant temperature warning light .............3-2DDimmer switch ...........................................3-9
Drive chain, cleaning and lubricating .......6-28
Drive chain slack ......................................6-27EEngine break-in ..........................................5-3
Engine idling speed..................................6-19
Engine oil and oil filter element ................6-12
Engine serial number .................................9-1
Engine stop switch .....................................3-9
Engine trouble warning light.......................3-3 EXUP system .......................................... 3-18
FFront and rear brake
pads, checking ....... 6-25
Front fork, adjusting ................................. 3-14
Front fork, bleeding.................................. 3-16
Front fork, checking ................................. 6-31
Fuel.......................................................... 3-11
Fuel consumption, tips for reducing........... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-34HHandlebar switches ................................... 3-8
Headlight bulb, replacing ......................... 6-35
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ................................................ 3-9IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator lights and warning lights ............. 3-2LLicense plate light bulb, replacing ........... 6-37MMain switch/steering lock........................... 3-1
Maintenance and lubrication, periodic ....... 6-4
Maintenance, emission control system...... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-3NNeutral indicator light ................................. 3-2PPanels, removing and installing ................. 6-8 Parking ...................................................... 5-4
Part locations ............................................ 2-1
SSafety information ..................................... 1-1
Seat ......................................................... 3-13
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shift pedal, checking ............................... 6-24
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking an
d lubricating........ 6-31
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-32
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-38
Swingarm pivots, lubricating ................... 6-31TTail/brake light ......................................... 6-36
Throttle grip and cable, checking and lubricating ............................................. 6-29
Throttle grip free play, checking .............. 6-19
Tires ........................................................ 6-20
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-42
Troubleshooting charts............................ 6-43
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-37
Turn signal switch ..................................... 3-9VValve clearance....................................... 6-20
Vehicle identification number .................... 9-1
