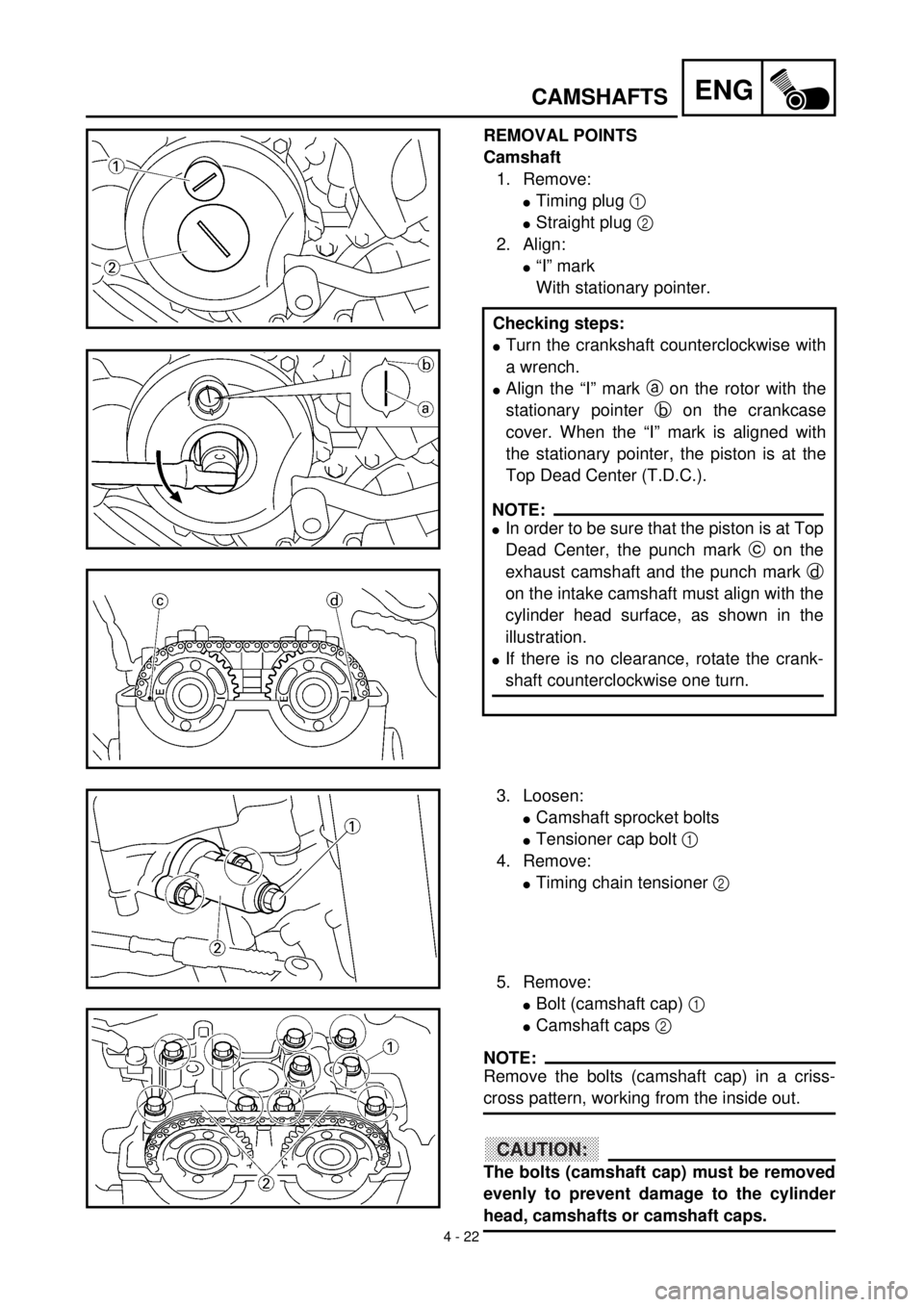

ENGCAMSHAFTS
REMOVAL POINTS
Camshaft
1. Remove:
lTiming plug 1
lStraight plug 2
2. Align:
l“I” mark
With stationary pointer.
Checking steps:
lTurn the crankshaft counterclockwise with
a wrench.
lAlign the “I” mark a on the rotor with the
stationary pointer b on the crankcase
cover. When the “I” mark is aligned with
the stationary pointer, the piston is at the
Top Dead Center (T.D.C.).
NOTE:
lIn order to be sure that the piston is at Top
Dead Center, the punch mark c on the
exhaust camshaft and the punch mark d
on the intake camshaft must align with the
cylinder head surface, as shown in the
illustration.
lIf there is no clearance, rotate the crank-
shaft counterclockwise one turn.
3. Loosen:
lCamshaft sprocket bolts
lTensioner cap bolt 1
4. Remove:
lTiming chain tensioner 2
5. Remove:
lBolt (camshaft cap) 1
lCamshaft caps 2
NOTE:
Remove the bolts (camshaft cap) in a criss-
cross pattern, working from the inside out.
CAUTION:
The bolts (camshaft cap) must be removed
evenly to prevent damage to the cylinder
head, camshafts or camshaft caps.

4 - 29
ENGCYLINDER HEAD
INSPECTION
Cylinder head
1. Eliminate:
lCarbon deposits (from the combustion
chambers)
Use a rounded scraper.
NOTE:
Do not use a sharp instrument to avoid dam-
aging or scratching:
lSpark plug threads
lValve seats
2. Inspect:
lCylinder head
Scratches/damage ® Replace.
3. Measure:
lCylinder head warpage
Out of specification ® Resurface.
ASSEMBLY AND INSTALLATION
1. Install:
lCylinder head
lBolts (1 ~ 4)
lBolt (5)
lNuts (6, 7)
lNuts (8, 9)
NOTE:
Follow the numerical order shown in the illus-
tration. Tighten the bolts and nuts in two
stages.
Cylinder head warpage:
Less than 0.05 mm (0.002 in)
Warpage measurement and resurface-
ment steps:
lPlace a straightedge and a feeler gauge
across the cylinder head.
lUse a feeler gauge to measure the
warpage.
lIf the warpage is out of specification,
resurface the cylinder head.
lPlace a 400 ~ 600 grit wet sandpaper on
the surface plate, and resurface the head
using a figure-eight sanding pattern.
NOTE:
To ensure an even surface rotate the cylin-
der head several times.
T R..44 Nm (4.4 m · kg, 32 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..20 Nm (2.0 m · kg, 14 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
