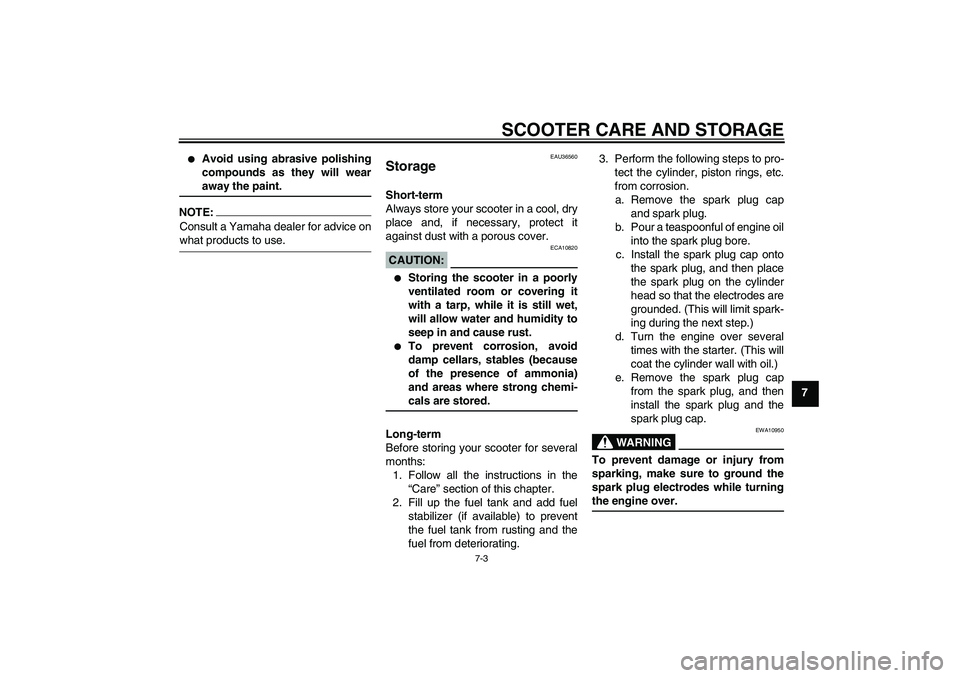

SCOOTER CARE AND STORAGE
7-3
7


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU36560
Storage Short-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10820


Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your scooter for several
months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
U16PE0E0.book Page 3 Tuesday, May 8, 2007 10:26 AM

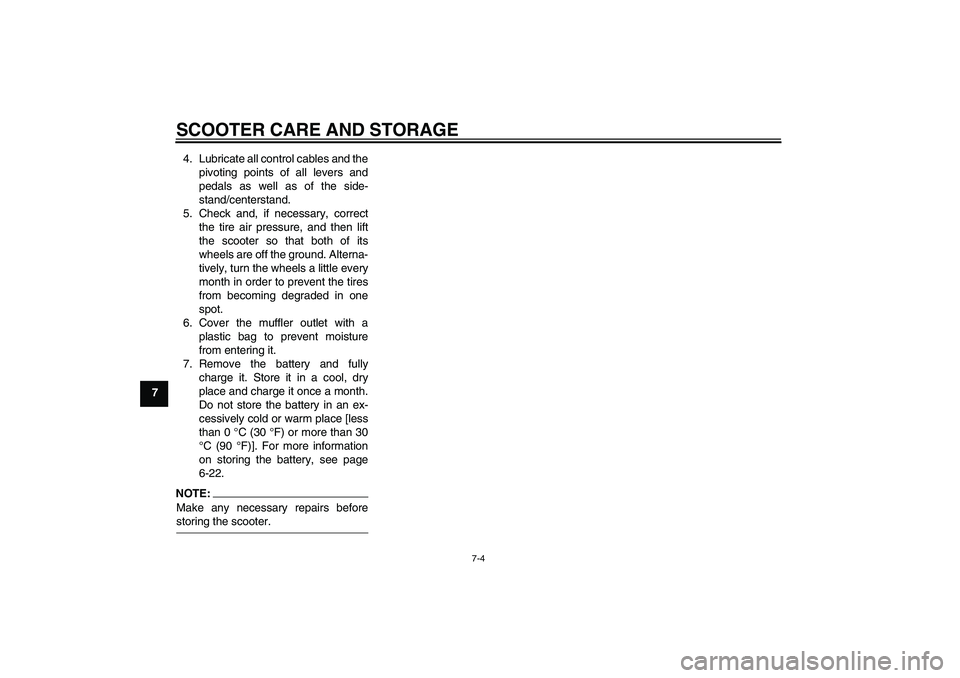

SCOOTER CARE AND STORAGE
7-4
74. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-22.
NOTE:Make any necessary repairs beforestoring the scooter.U16PE0E0.book Page 4 Tuesday, May 8, 2007 10:26 AM

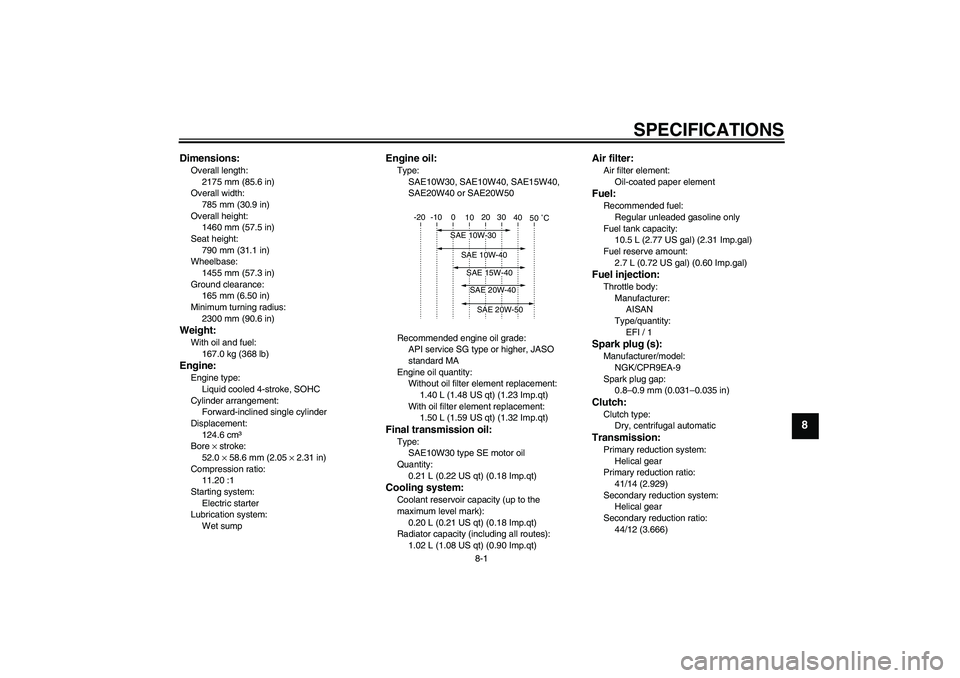

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2175 mm (85.6 in)
Overall width:
785 mm (30.9 in)
Overall height:
1460 mm (57.5 in)
Seat height:
790 mm (31.1 in)
Wheelbase:
1455 mm (57.3 in)
Ground clearance:
165 mm (6.50 in)
Minimum turning radius:
2300 mm (90.6 in)Weight:With oil and fuel:
167.0 kg (368 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.6 cm³
Bore × stroke:
52.0 × 58.6 mm (2.05 × 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter element replacement:
1.40 L (1.48 US qt) (1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt) (1.32 Imp.qt)Final transmission oil:Type:
SAE10W30 type SE motor oil
Quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.20 L (0.21 US qt) (0.18 Imp.qt)
Radiator capacity (including all routes):
1.02 L (1.08 US qt) (0.90 Imp.qt)
Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
10.5 L (2.77 US gal) (2.31 Imp.gal)
Fuel reserve amount:
2.7 L (0.72 US gal) (0.60 Imp.gal)Fuel injection:Throttle body:
Manufacturer:
AISAN
Type/quantity:
EFI / 1Spark plug (s):Manufacturer/model:
NGK/CPR9EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/12 (3.666)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
U16PE0E0.book Page 1 Tuesday, May 8, 2007 10:26 AM

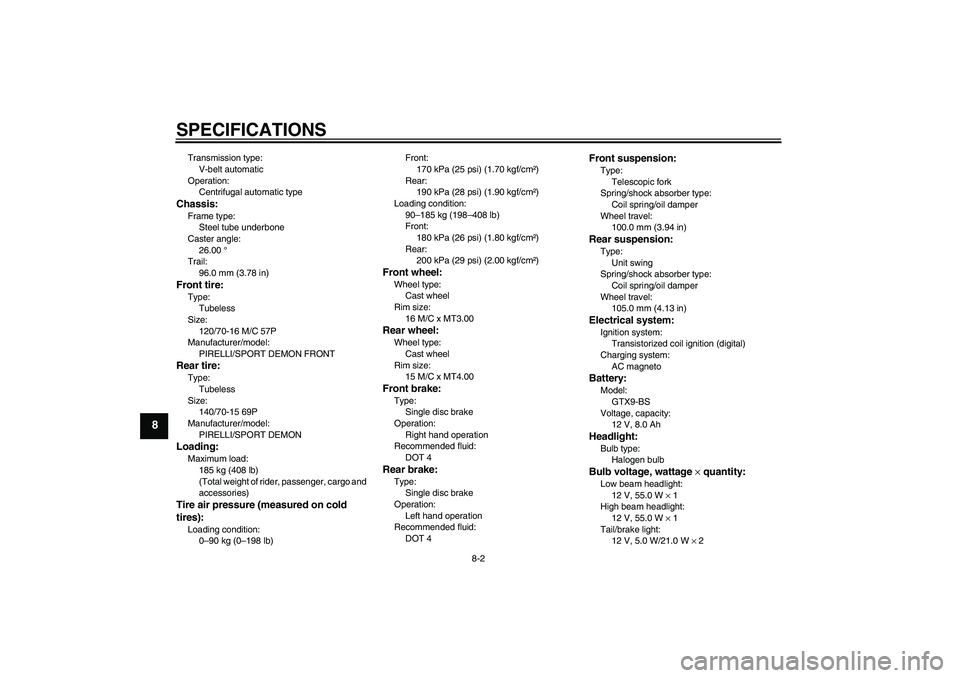

SPECIFICATIONS
8-2
8
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
96.0 mm (3.78 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
170 kPa (25 psi) (1.70 kgf/cm²)
Rear:
190 kPa (28 psi) (1.90 kgf/cm²)
Loading condition:
90–185 kg (198–408 lb)
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
200 kPa (29 psi) (2.00 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
5.0 A
ECU fuse:
5.0 ABackup fuse:
5.0 A
U16PE0E0.book Page 3 Tuesday, May 8, 2007 10:26 AM

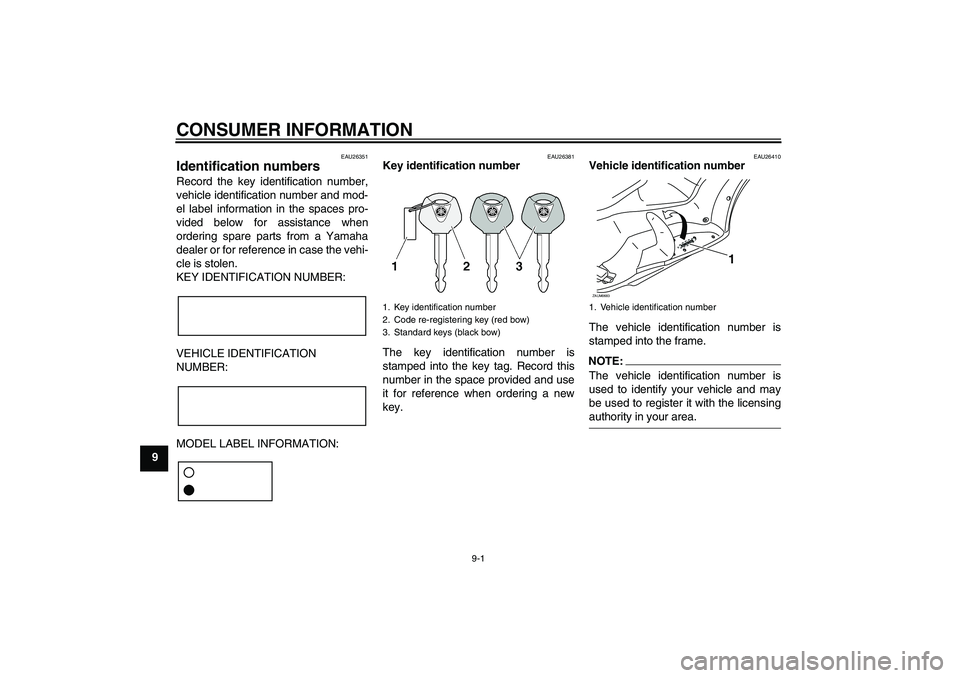

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification numberZAUM0683
1
U16PE0E0.book Page 1 Tuesday, May 8, 2007 10:26 AM

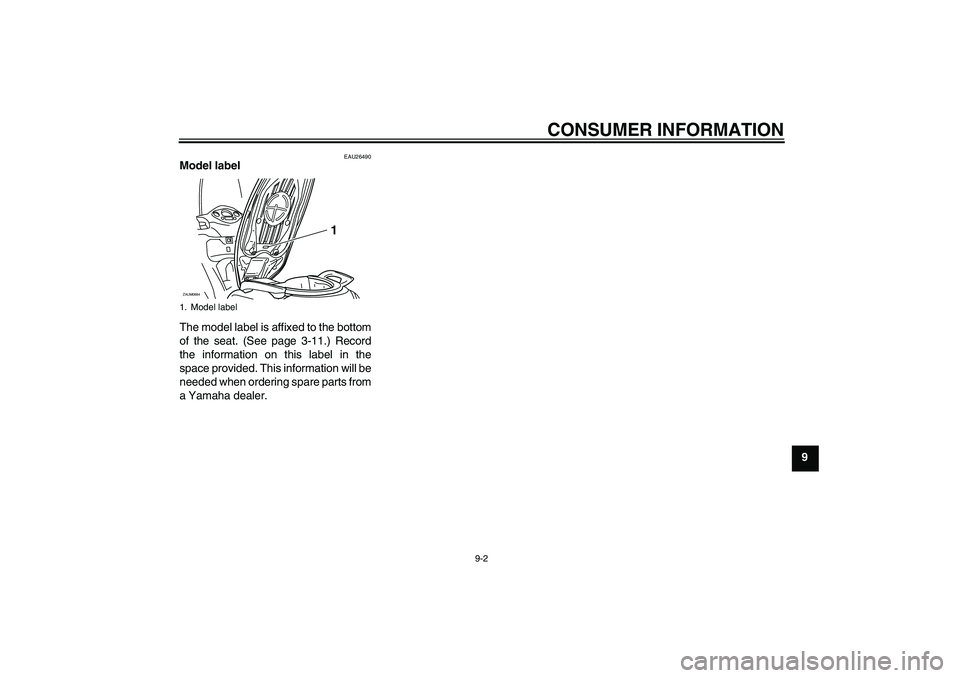

CONSUMER INFORMATION
9-2
9
EAU26490
Model label
The model label is affixed to the bottom
of the seat. (See page 3-11.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model labelZAUM0684
1
U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM

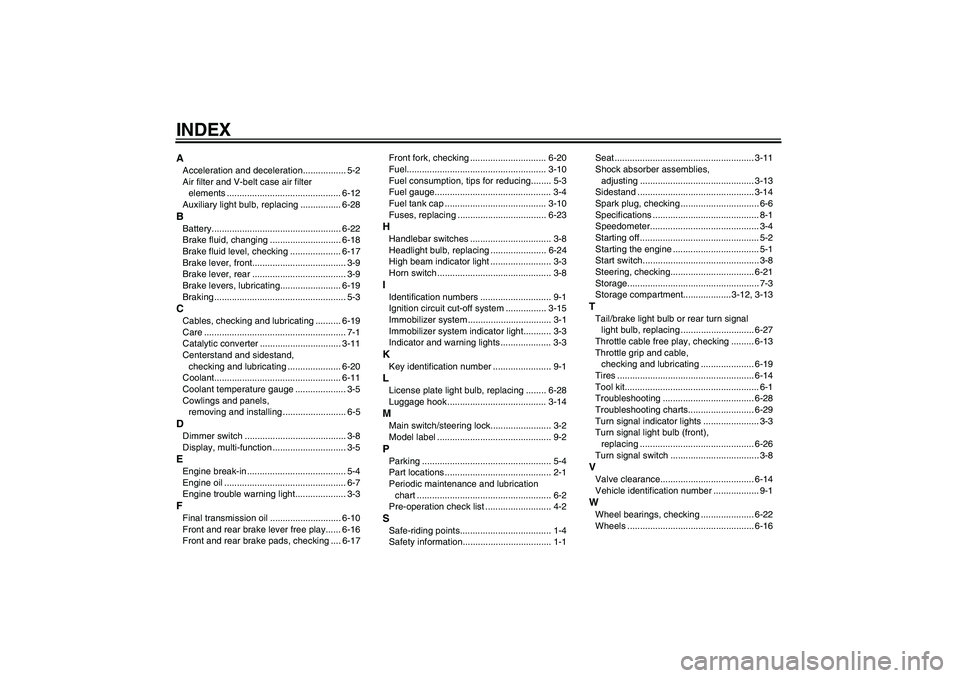

INDEXAAcceleration and deceleration................. 5-2
Air filter and V-belt case air filter
elements ............................................. 6-12
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-22
Brake fluid, changing ............................ 6-18
Brake fluid level, checking .................... 6-17
Brake lever, front..................................... 3-9
Brake lever, rear ..................................... 3-9
Brake levers, lubricating........................ 6-19
Braking .................................................... 5-3CCables, checking and lubricating .......... 6-19
Care ........................................................ 7-1
Catalytic converter ................................ 3-11
Centerstand and sidestand,
checking and lubricating ..................... 6-20
Coolant.................................................. 6-11
Coolant temperature gauge .................... 3-5
Cowlings and panels,
removing and installing ......................... 6-5DDimmer switch ........................................ 3-8
Display, multi-function ............................. 3-5EEngine break-in ....................................... 5-4
Engine oil ................................................ 6-7
Engine trouble warning light.................... 3-3FFinal transmission oil ............................ 6-10
Front and rear brake lever free play...... 6-16
Front and rear brake pads, checking .... 6-17Front fork, checking .............................. 6-20
Fuel....................................................... 3-10
Fuel consumption, tips for reducing........ 5-3
Fuel gauge.............................................. 3-4
Fuel tank cap ........................................ 3-10
Fuses, replacing ................................... 6-23
HHandlebar switches ................................ 3-8
Headlight bulb, replacing ...................... 6-24
High beam indicator light ........................ 3-3
Horn switch ............................................. 3-8IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-15
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-3
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-28
Luggage hook ....................................... 3-14MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2
Pre-operation check list .......................... 4-2SSafe-riding points.................................... 1-4
Safety information................................... 1-1Seat ....................................................... 3-11
Shock absorber assemblies,
adjusting ............................................. 3-13
Sidestand .............................................. 3-14
Spark plug, checking ............................... 6-6
Specifications .......................................... 8-1
Speedometer........................................... 3-4
Starting off ............................................... 5-2
Starting the engine .................................. 5-1
Start switch.............................................. 3-8
Steering, checking................................. 6-21
Storage.................................................... 7-3
Storage compartment................... 3-12, 3-13
TTail/brake light bulb or rear turn signal
light bulb, replacing ............................. 6-27
Throttle cable free play, checking ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-19
Tires ...................................................... 6-14
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-28
Troubleshooting charts.......................... 6-29
Turn signal indicator lights ...................... 3-3
Turn signal light bulb (front),
replacing ............................................. 6-26
Turn signal switch ................................... 3-8VValve clearance..................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-22
Wheels .................................................. 6-16
U16PE0E0.book Page 1 Tuesday, May 8, 2007 10:26 AM

U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM

YAMAHA MOTOR CO., LTD.
PRINTED IN FRANCE
2007.05 (E)
