PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
EAU20070

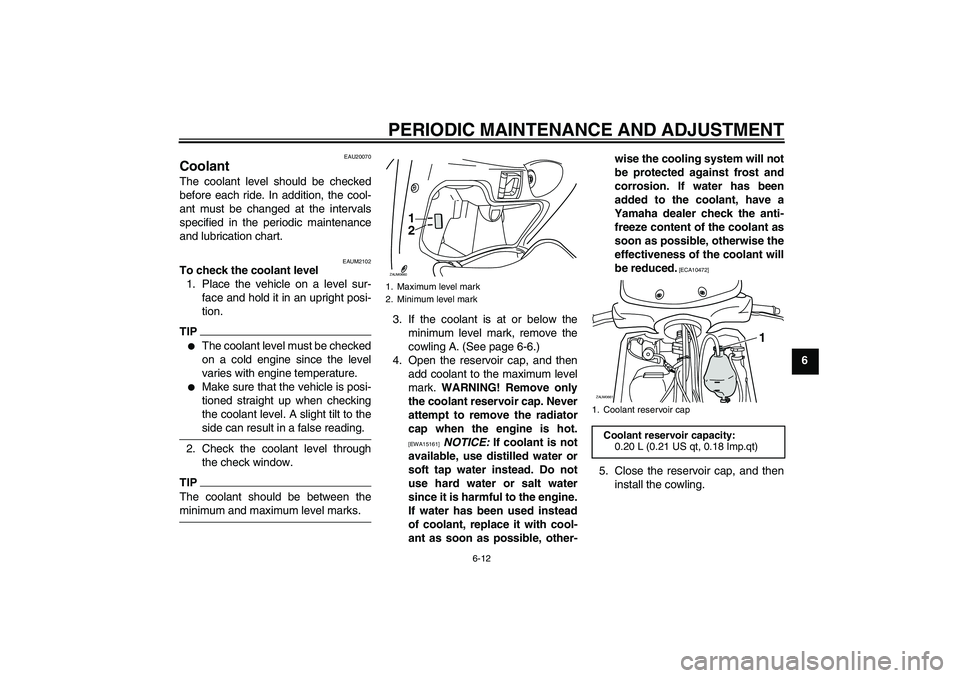

Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM2102
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level through
the check window.
TIPThe coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
cowling A. (See page 6-6.)
4. Open the reservoir cap, and then
add coolant to the maximum level
mark. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
5. Close the reservoir cap, and then
install the cowling.
1. Maximum level mark
2. Minimum level mark
1
2
ZAUM0660
1. Coolant reservoir cap
Coolant reservoir capacity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
1
ZAUM0661
U16PE1E0.book Page 12 Monday, July 28, 2008 9:57 AM
Page 52 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
EAU33031

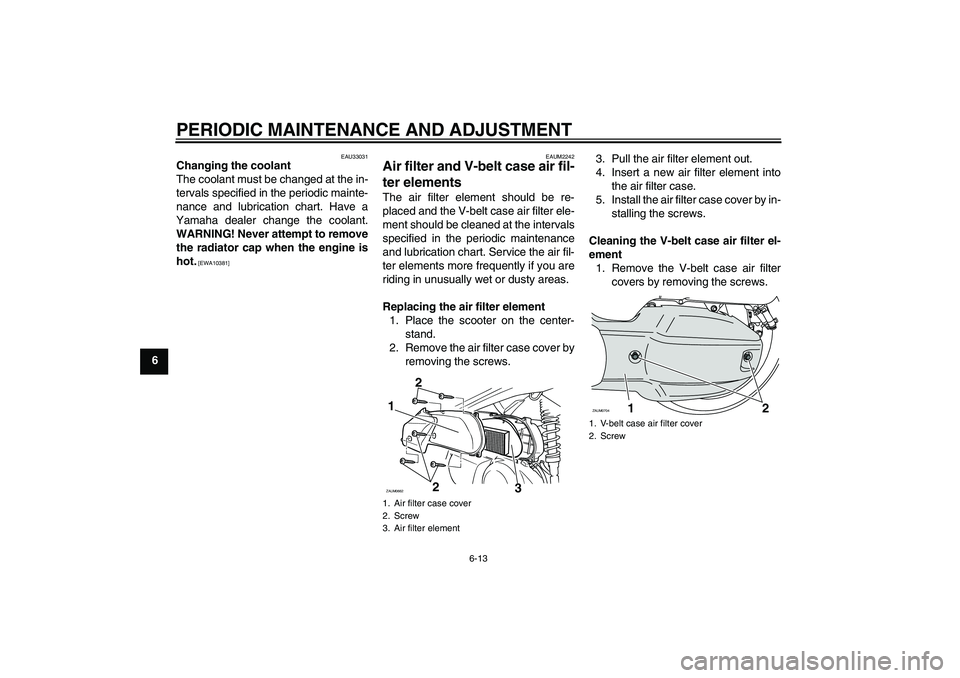

Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10381]EAUM2242
Air filter and V-belt case air fil-
ter elements The air filter element should be re-
placed and the V-belt case air filter ele-
ment should be cleaned at the intervals
specified in the periodic maintenance
and lubrication chart. Service the air fil-
ter elements more frequently if you are
riding in unusually wet or dusty areas.
Replacing the air filter element
1. Place the scooter on the center-
stand.
2. Remove the air filter case cover by
removing the screws.3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.
5. Install the air filter case cover by in-
stalling the screws.
Cleaning the V-belt case air filter el-
ement
1. Remove the V-belt case air filter
covers by removing the screws.1. Air filter case cover
2. Screw
3. Air filter element1
2 2ZAUM0662
3
1. V-belt case air filter cover
2. Screw
2 1
ZAUM0704
U16PE1E0.book Page 13 Monday, July 28, 2008 9:57 AM

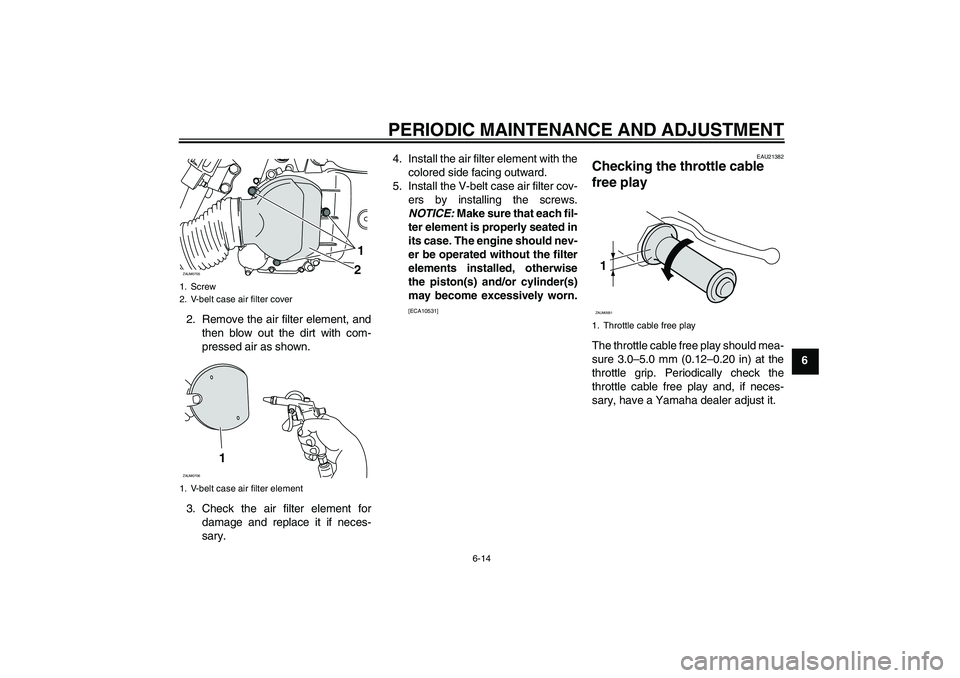

Page 53 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 2. Remove the air filter element, and
then blow out the dirt with com-
pressed air as shown.
3. Check the air filter element for
damage and replace it if neces-
sary.4. Install the air filter element with the
colored side facing outward.
5. Install the V-belt case air filter cov-
ers by installing the screws.
NOTICE: Make sure that each fil-
ter element is properly seated in
its case. The engine should nev-
er be operated without the filter
elements installed, otherwise
the piston(s) and/or cylinder(s)
may become excessively worn.
[ECA10531]EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Screw
2. V-belt case air filter cover
1. V-belt case air filter element
1
2
ZAUM0705
1
ZAUM0706
1. Throttle cable free play1ZAUM0051
U16PE1E0.book Page 14 Monday, July 28, 2008 9:57 AM
Page 54 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
EAU21401

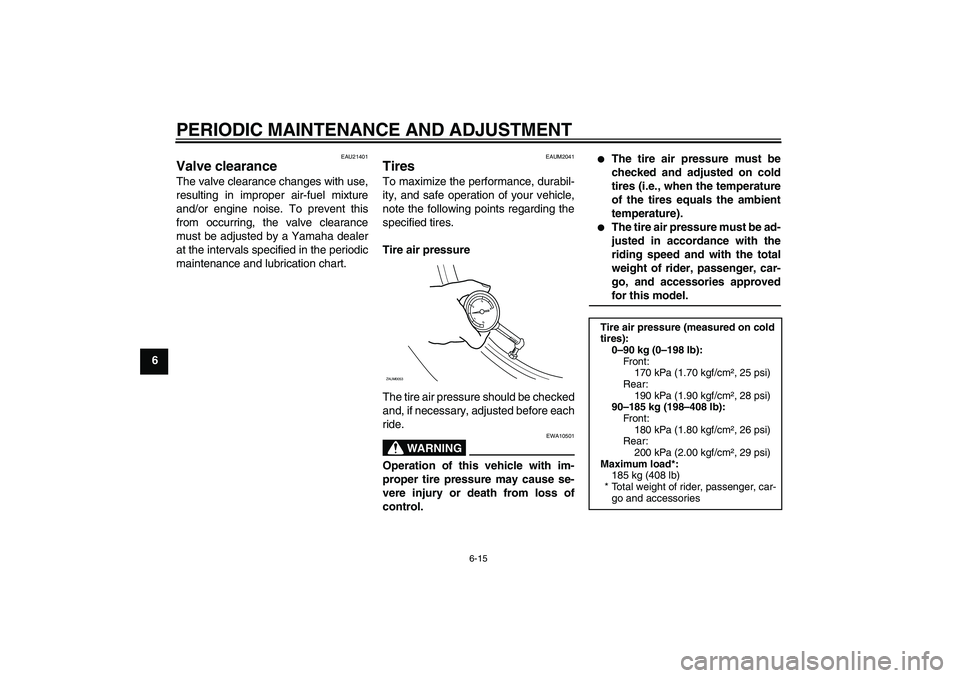

Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAUM2041
Tires To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10501
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
ZAUM0053
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
170 kPa (1.70 kgf/cm², 25 psi)
Rear:
190 kPa (1.90 kgf/cm², 28 psi)
90–185 kg (198–408 lb):
Front:
180 kPa (1.80 kgf/cm², 26 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Maximum load*:
185 kg (408 lb)
* Total weight of rider, passenger, car-
go and accessories
U16PE1E0.book Page 15 Monday, July 28, 2008 9:57 AM
Page 55 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
WARNING
EWA10511

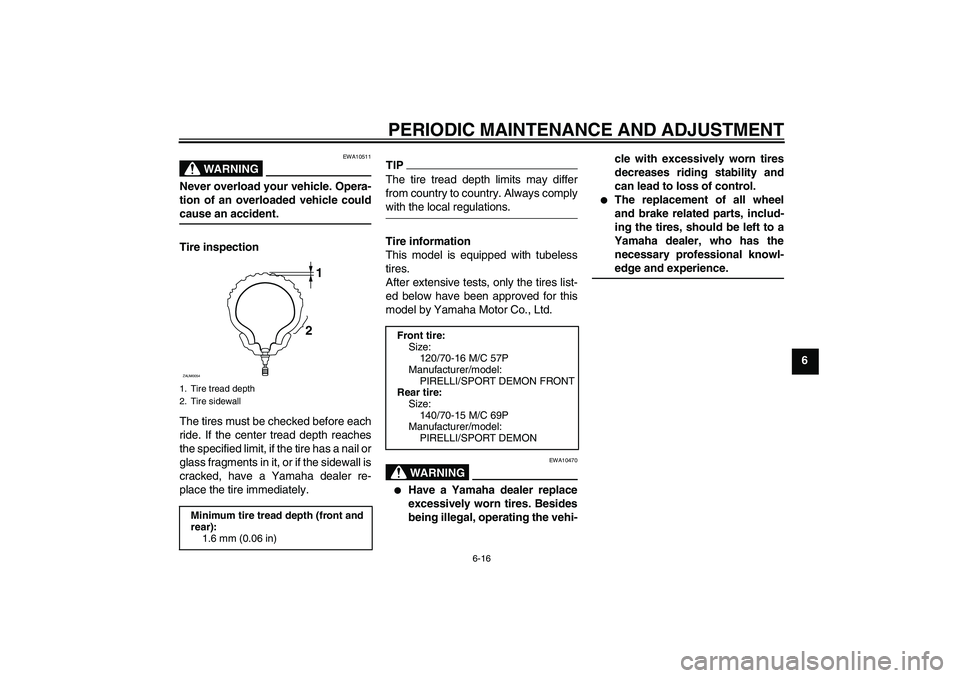

Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations.
Tire information
This model is equipped with tubeless
tires.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
1. Tire tread depth
2. Tire sidewallMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
Front tire:
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONT
Rear tire:
Size:
140/70-15 M/C 69P
Manufacturer/model:
PIRELLI/SPORT DEMON
U16PE1E0.book Page 16 Monday, July 28, 2008 9:57 AM
Page 56 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
EAU21960

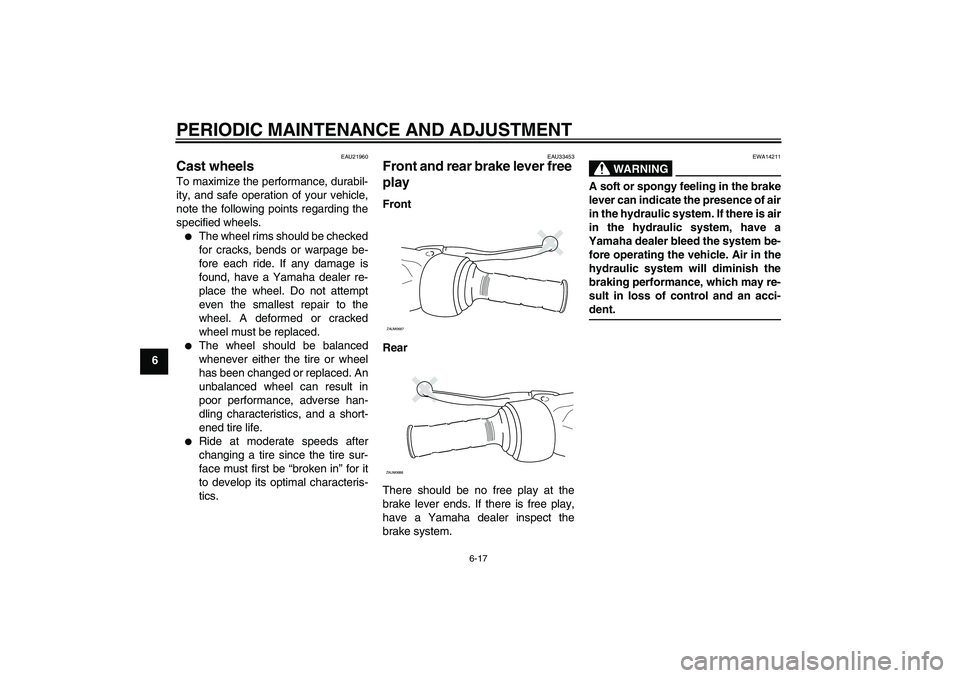

Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU33453
Front and rear brake lever free
play Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-dent.
ZAUM0687ZAUM0688
U16PE1E0.book Page 17 Monday, July 28, 2008 9:57 AM

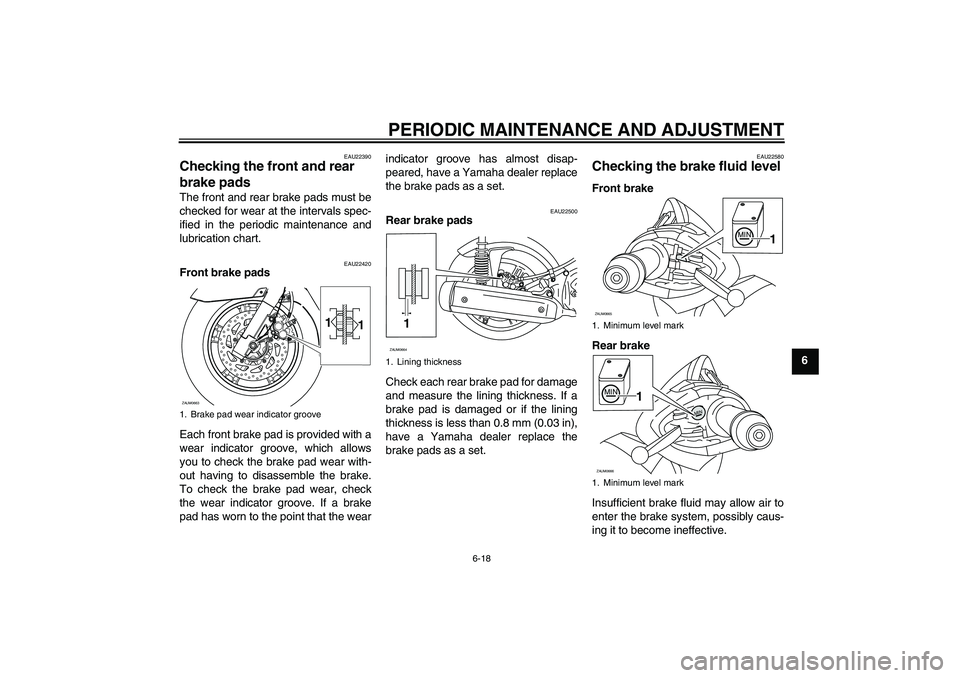

Page 57 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wearindicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22580
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
1. Brake pad wear indicator grooveZAUM0663
1
1
1. Lining thicknessZAUM0664
1
1. Minimum level mark
1. Minimum level markZAUM0665
MIN
1
ZAUM0666MIN
1
MIN
U16PE1E0.book Page 18 Monday, July 28, 2008 9:57 AM
Page 58 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19

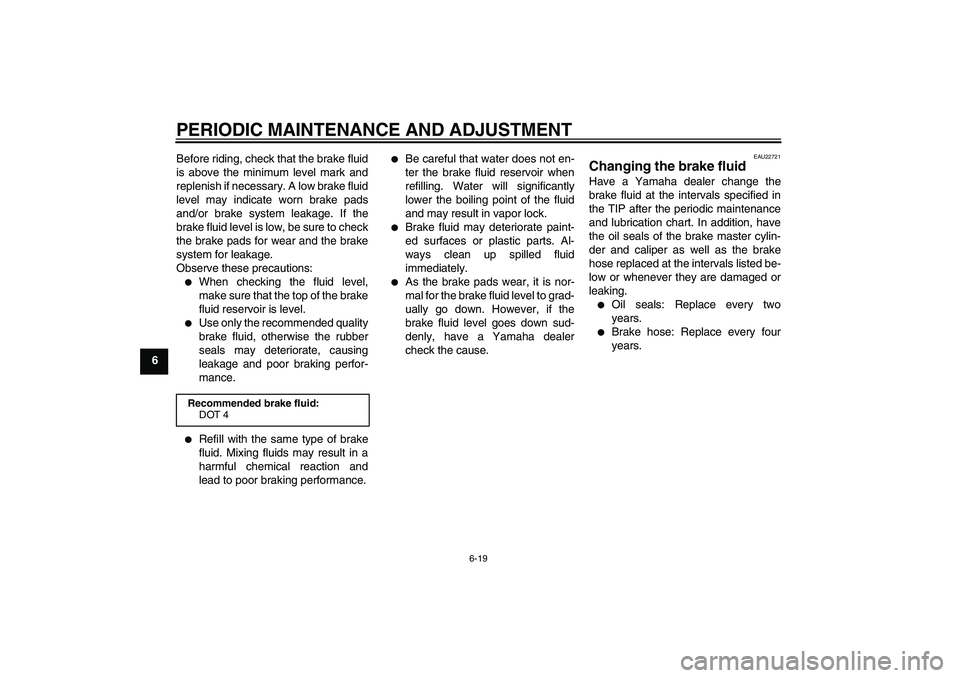

6Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22721
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the brake master cylin-
der and caliper as well as the brake
hose replaced at the intervals listed be-
low or whenever they are damaged or
leaking.
Oil seals: Replace every two
years.
Brake hose: Replace every four
years.
Recommended brake fluid:
DOT 4
U16PE1E0.book Page 19 Monday, July 28, 2008 9:57 AM
Page 59 of 82

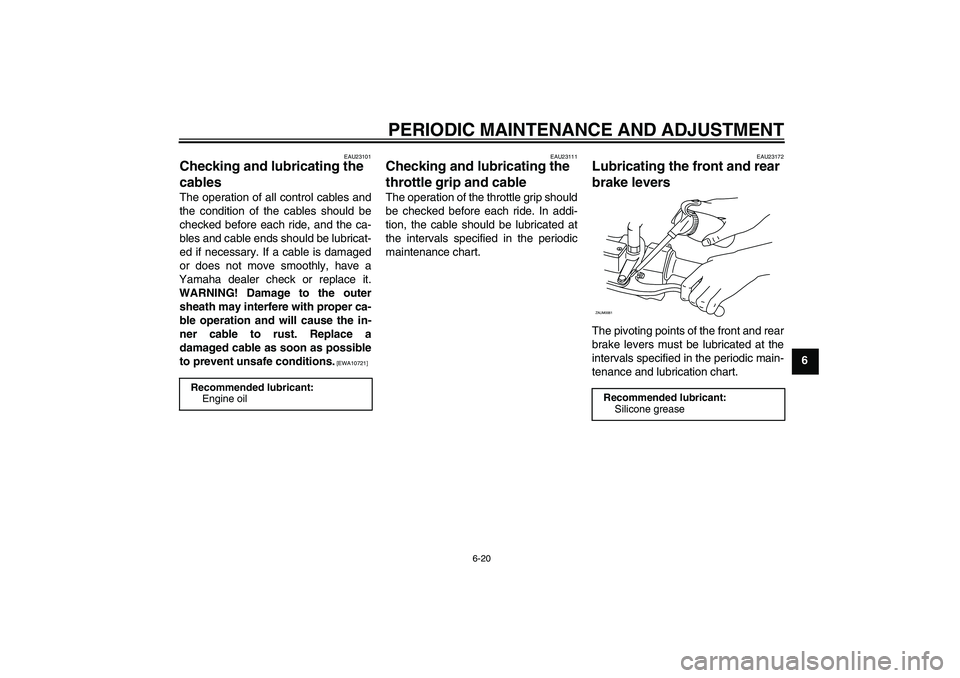

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
EAU23101
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
sheath may interfere with proper ca-
ble operation and will cause the in-
ner cable to rust. Replace a
damaged cable as soon as possible
to prevent unsafe conditions.
[EWA10721]EAU23111
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
EAU23172
Lubricating the front and rear
brake levers The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
Recommended lubricant:
Engine oil
Recommended lubricant:
Silicone greaseZAUM0061
U16PE1E0.book Page 20 Monday, July 28, 2008 9:57 AM
Page 60 of 82

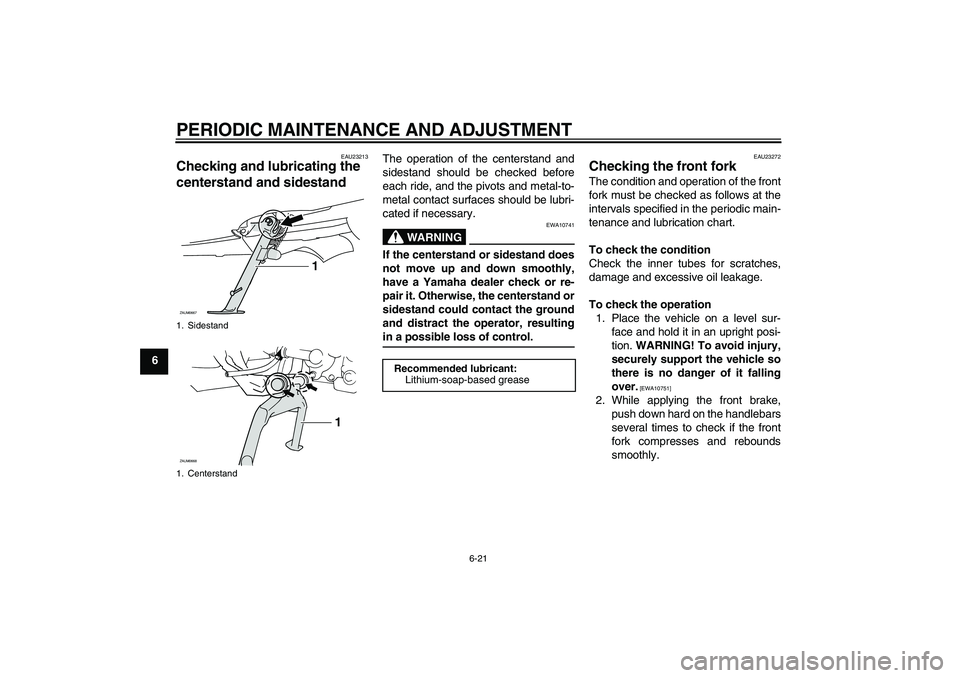

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
EAU23213
Checking and lubricating the
centerstand and sidestand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10741
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. Otherwise, the centerstand or
sidestand could contact the ground
and distract the operator, resultingin a possible loss of control.
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
1. Sidestand
1. CenterstandZAUM0667
1
1
ZAUM0668
Recommended lubricant:
Lithium-soap-based grease
U16PE1E0.book Page 21 Monday, July 28, 2008 9:57 AM
