Page 11 of 80
SAFETY INFORMATION
1-4
1 Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus-pension travel, steering travel or
control operation, or obscure lights
or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-tor and may limit control ability,
therefore, such accessories are
not recommended.
Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
scooter’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-14 for tire
specifications and more information on
replacing your tires.
U5B2E1E0.book Page 4 Tuesday, July 22, 2008 2:49 PM

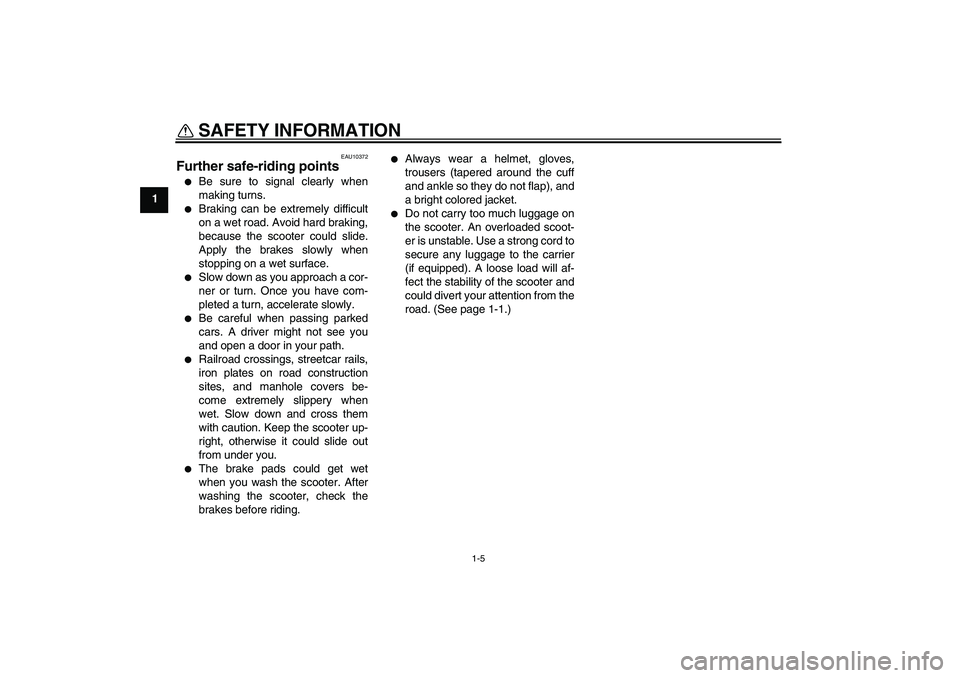

Page 12 of 80
SAFETY INFORMATION
1-5
1
EAU10372
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.
Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a bright colored jacket.
Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable. Use a strong cord to
secure any luggage to the carrier
(if equipped). A loose load will af-
fect the stability of the scooter and
could divert your attention from the
road. (See page 1-1.)
U5B2E1E0.book Page 5 Tuesday, July 22, 2008 2:49 PM

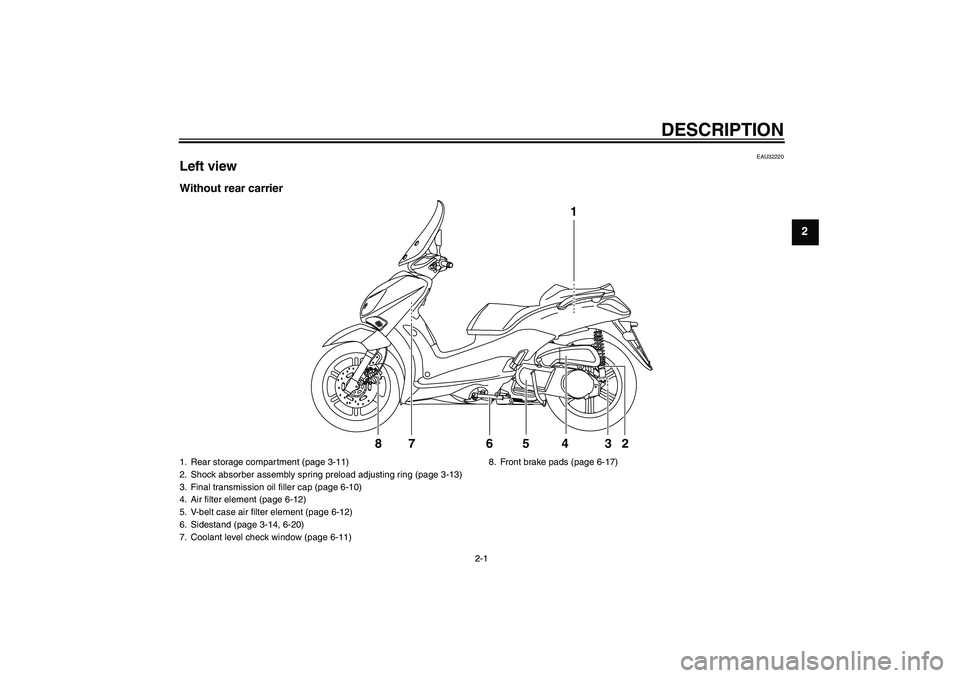

Page 13 of 80
DESCRIPTION
2-1
2
EAU32220
Left viewWithout rear carrier
1
2 3 4 5 76 8
1. Rear storage compartment (page 3-11)
2. Shock absorber assembly spring preload adjusting ring (page 3-13)
3. Final transmission oil filler cap (page 6-10)
4. Air filter element (page 6-12)
5. V-belt case air filter element (page 6-12)
6. Sidestand (page 3-14, 6-20)
7. Coolant level check window (page 6-11)8. Front brake pads (page 6-17)
U5B2E1E0.book Page 1 Tuesday, July 22, 2008 2:49 PM

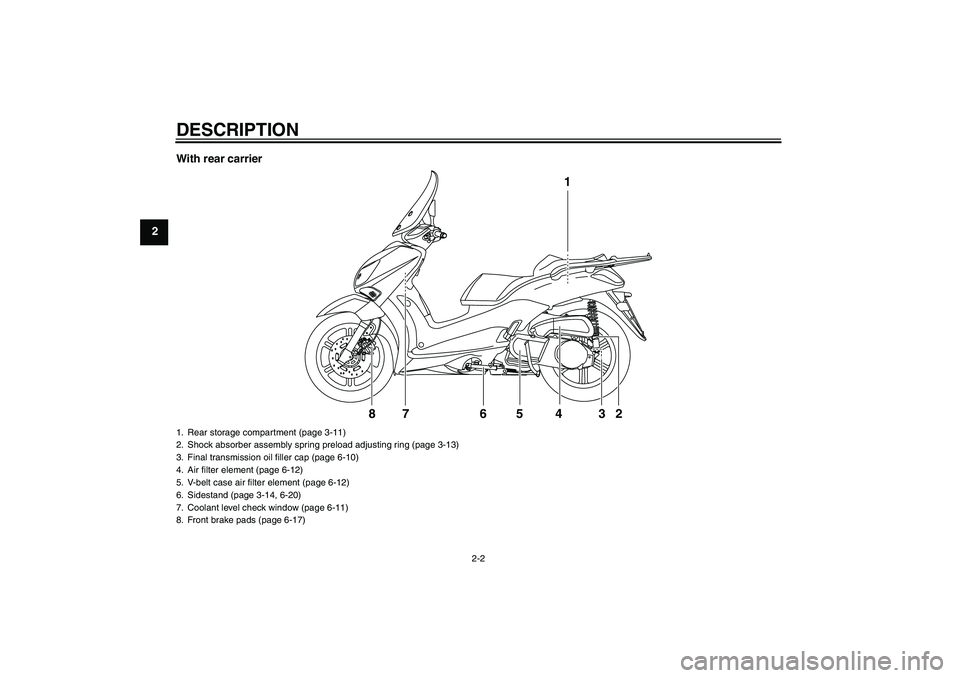

Page 14 of 80
DESCRIPTION
2-2
2With rear carrier
1
2 3 4 5 76 8
1. Rear storage compartment (page 3-11)
2. Shock absorber assembly spring preload adjusting ring (page 3-13)
3. Final transmission oil filler cap (page 6-10)
4. Air filter element (page 6-12)
5. V-belt case air filter element (page 6-12)
6. Sidestand (page 3-14, 6-20)
7. Coolant level check window (page 6-11)
8. Front brake pads (page 6-17)U5B2E1E0.book Page 2 Tuesday, July 22, 2008 2:49 PM
Page 15 of 80
DESCRIPTION
2-3
2
EAU32230

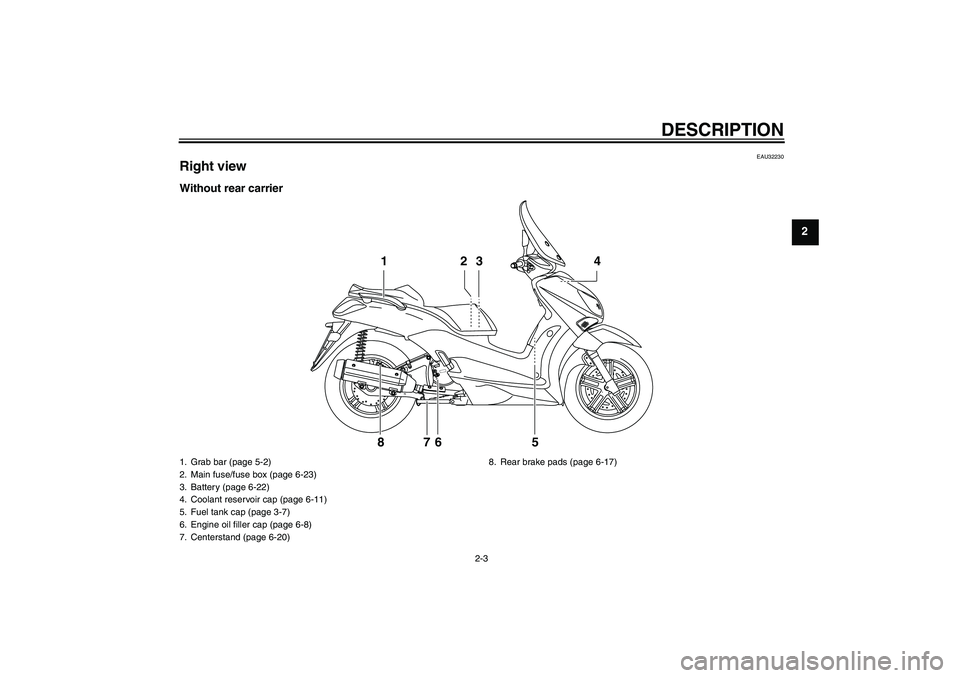

Right viewWithout rear carrier
2 13 4
5 6 7 8
1. Grab bar (page 5-2)
2. Main fuse/fuse box (page 6-23)
3. Battery (page 6-22)
4. Coolant reservoir cap (page 6-11)
5. Fuel tank cap (page 3-7)
6. Engine oil filler cap (page 6-8)
7. Centerstand (page 6-20)8. Rear brake pads (page 6-17)
U5B2E1E0.book Page 3 Tuesday, July 22, 2008 2:49 PM

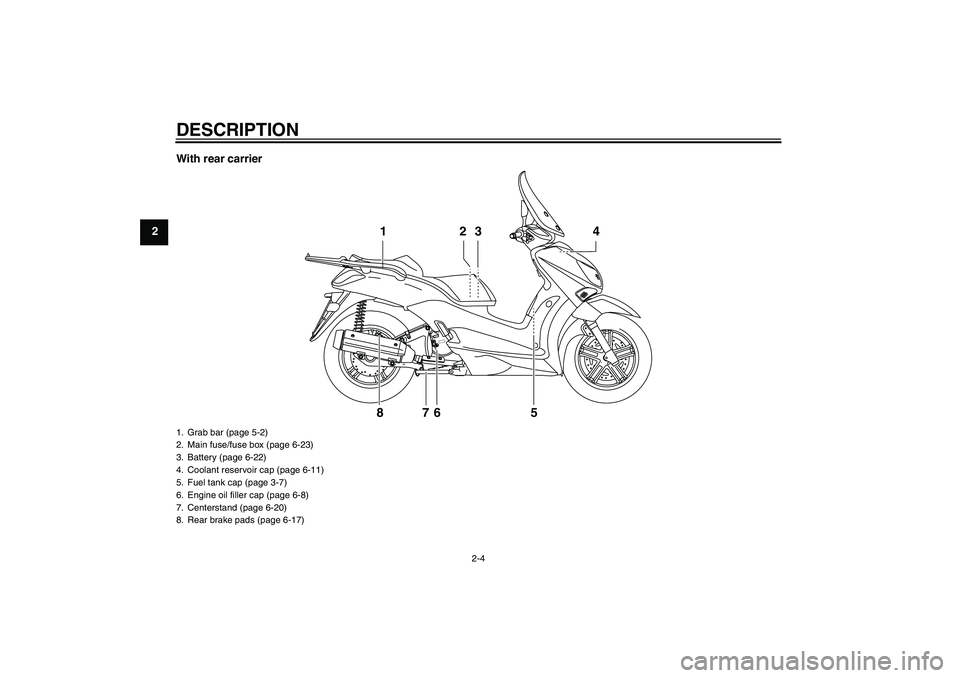

Page 16 of 80
DESCRIPTION
2-4
2With rear carrier
2 13 4
5 6 7 8
1. Grab bar (page 5-2)
2. Main fuse/fuse box (page 6-23)
3. Battery (page 6-22)
4. Coolant reservoir cap (page 6-11)
5. Fuel tank cap (page 3-7)
6. Engine oil filler cap (page 6-8)
7. Centerstand (page 6-20)
8. Rear brake pads (page 6-17)U5B2E1E0.book Page 4 Tuesday, July 22, 2008 2:49 PM

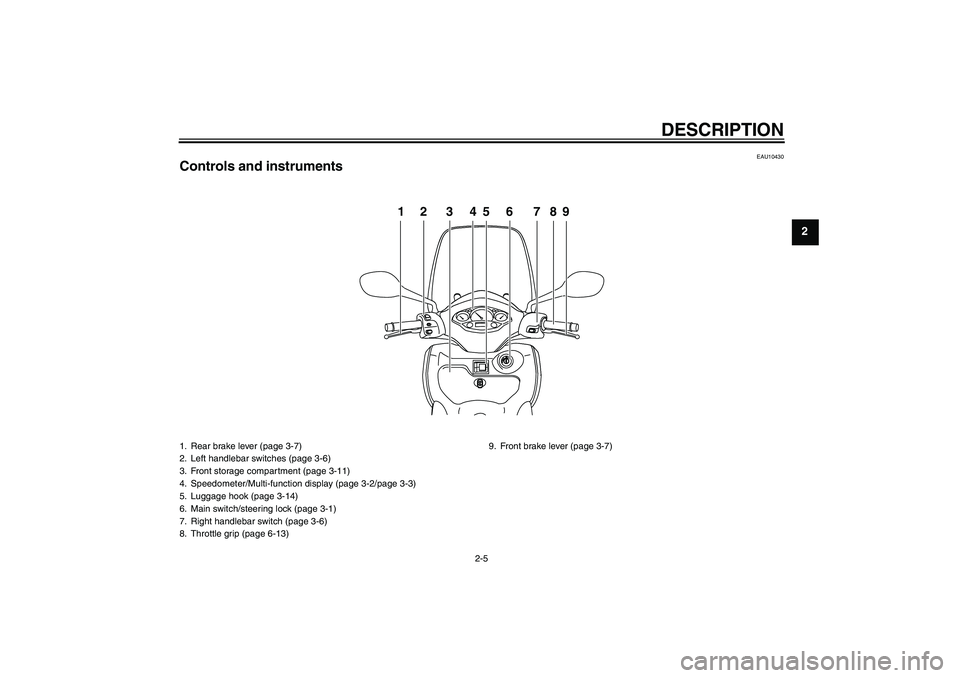

Page 17 of 80
DESCRIPTION
2-5
2
EAU10430
Controls and instruments
PUSHOPEN
12 3456 789
1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Front storage compartment (page 3-11)
4. Speedometer/Multi-function display (page 3-2/page 3-3)
5. Luggage hook (page 3-14)
6. Main switch/steering lock (page 3-1)
7. Right handlebar switch (page 3-6)
8. Throttle grip (page 6-13)9. Front brake lever (page 3-7)
U5B2E1E0.book Page 5 Tuesday, July 22, 2008 2:49 PM

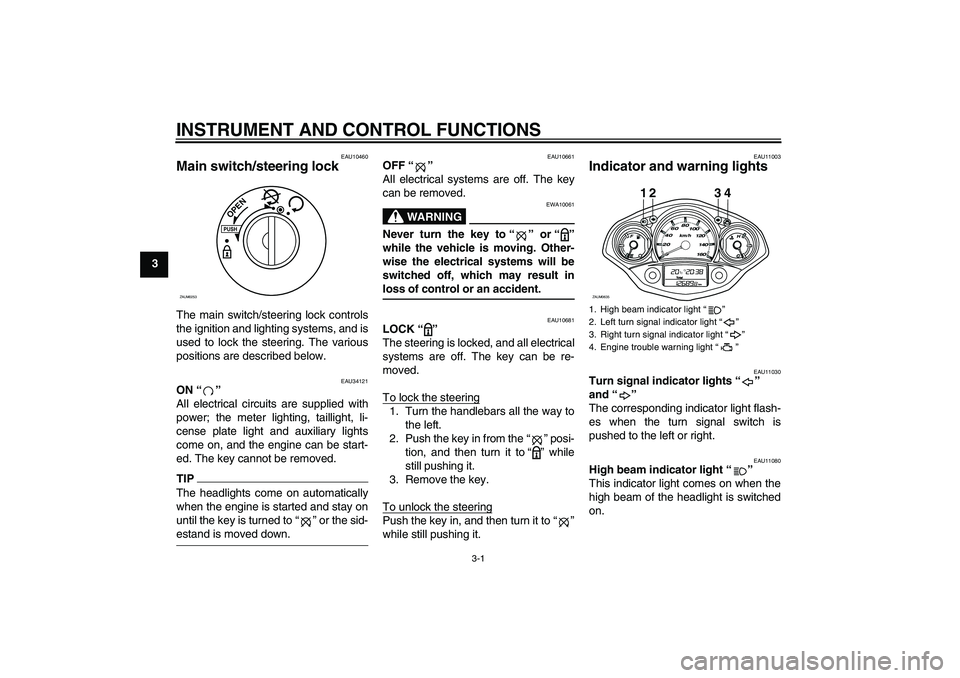

Page 18 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU34121
ON“”
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay on
until the key is turned to“” or the sid-estand is moved down.
EAU10661
OFF“”
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to“” or“”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident.
EAU10681
LOCK“”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the“” posi-
tion, and then turn it to“” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to“”
while still pushing it.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
PUSHOPEN
ZAUM0253
1. High beam indicator light“”
2. Left turn signal indicator light“”
3. Right turn signal indicator light“”
4. Engine trouble warning light“”
12 3 4
ZAUM0635
U5B2E1E0.book Page 1 Tuesday, July 22, 2008 2:49 PM

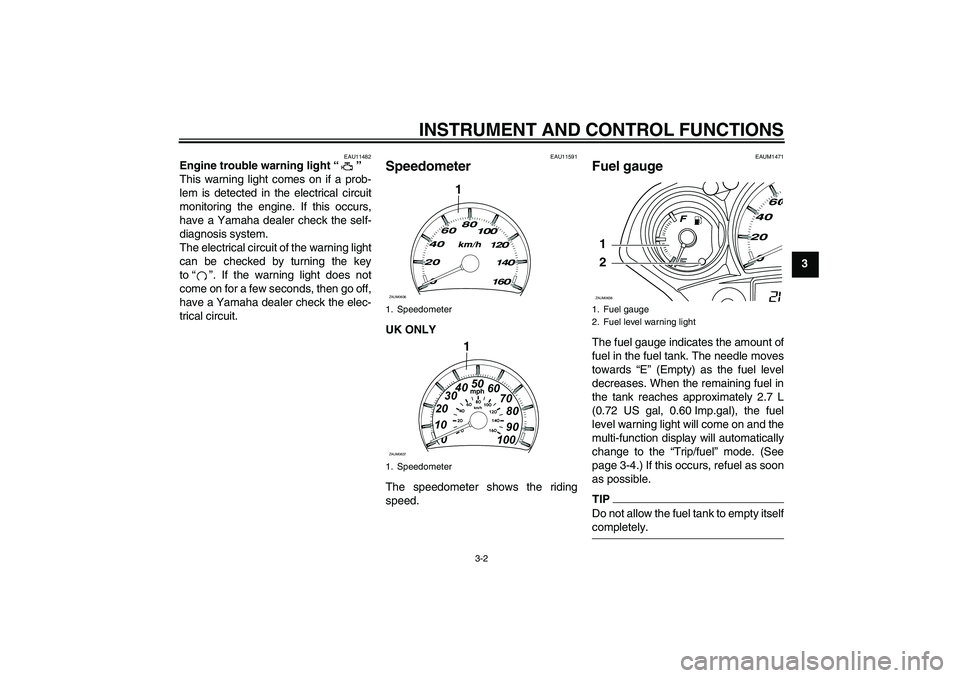

Page 19 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11482
Engine trouble warning light“”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key
to“”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
EAU11591
Speedometer UK ONLY
The speedometer shows the riding
speed.
EAUM1471
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 2.7 L
(0.72 US gal, 0.60 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-4.) If this occurs, refuel as soon
as possible.TIPDo not allow the fuel tank to empty itselfcompletely.
1. Speedometer
1. Speedometer
1
ZAUM0636
1mph
0 1020304050
60
70
80
90
100
ZAUM0637
1. Fuel gauge
2. Fuel level warning light1
2ZAUM0638
U5B2E1E0.book Page 2 Tuesday, July 22, 2008 2:49 PM

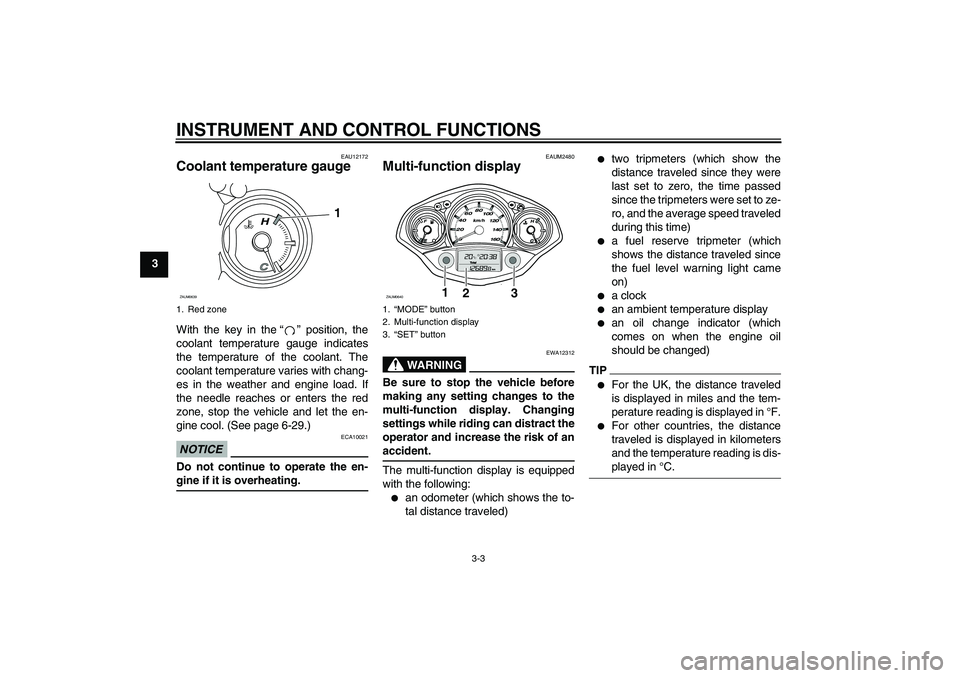

Page 20 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU12172
Coolant temperature gauge With the key in the“” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the en-
gine cool. (See page 6-29.)NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.
EAUM2480
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function display is equipped
with the following:
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to ze-
ro, and the average speed traveled
during this time)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
a clock
an ambient temperature display
an oil change indicator (which
comes on when the engine oil
should be changed)
TIP
For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in °F.
For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is dis-played in °C.
1. Red zone
1
ZAUM0639
1.“MODE” button
2. Multi-function display
3.“SET” button
1
2
3
ZAUM0640
