2-2
EAU10401
DESCRIPTION
EAU10420
Right view1. Tail/brake light (page 6-29)
2. Muffl er (page 3-10)
3. Fuel tank cap (page 3-8)
4. Coolant reservoir (page 6-13)
5. Shock absorber assembly (page 3-13)
6. Seat (page 3-11)
7. Rear storage compartment (page 3-13)8. Spark plug (page 6-9)
9. Battery (page 6-25)
10. Fuse box (page 6-27)
1 2 3, 4 5 6 7 8 9, 10
52S-F8199-E0_CS.indd 2-252S-F8199-E0_CS.indd 2-2
2011/11/16 13:07:002011/11/16 13:07:00
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

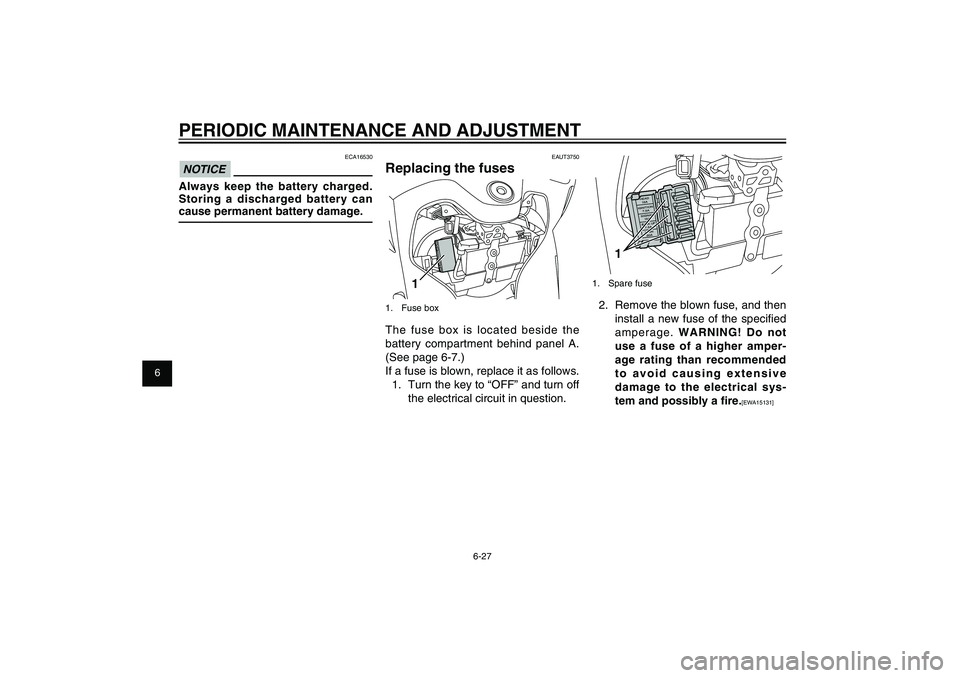

6-27
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1. Spare fuse2. Remove the blown fuse, and then
install a new fuse of the specifi ed
amperage. WARNING! Do not
use a fuse of a higher amper-
age rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a re.
[EWA15131] EAUT3750
Replacing the fuses
1
1. Fuse boxThe fuse box is located beside the
battery compartment behind panel A.
(See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
ECA16530
NOTICEAlways keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
