SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2120 mm (83.5 in)
Overall width:
770 mm (30.3 in)
Overall height:
1085 mm (42.7 in)
Seat height:
785 mm (30.9 in)
Wheelbase:
1440 mm (56.7 in)
Ground clearance:
140 mm (5.51 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:With oil and fuel:
205.0 kg (452 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
600.0 cm³
Bore × stroke:
65.5 × 44.5 mm (2.58 × 1.75 in)
Compression ratio:
12.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
2.00 L (2.11 US qt, 1.76 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
17.3 L (4.57 US gal, 3.81 Imp.gal)
Fuel reserve amount:
3.2 L (0.85 US gal, 0.70 Imp.gal)Fuel injection:Throttle body:
Type/quantity:
32EIDW/1Spark plug (s):Manufacturer/model:
NGK/CR9E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
86/44 (1.955)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
46/16 (2.875)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U20SE0E0.book Page 1 Friday, September 19, 2008 9:27 AM

SPECIFICATIONS
8-2
8

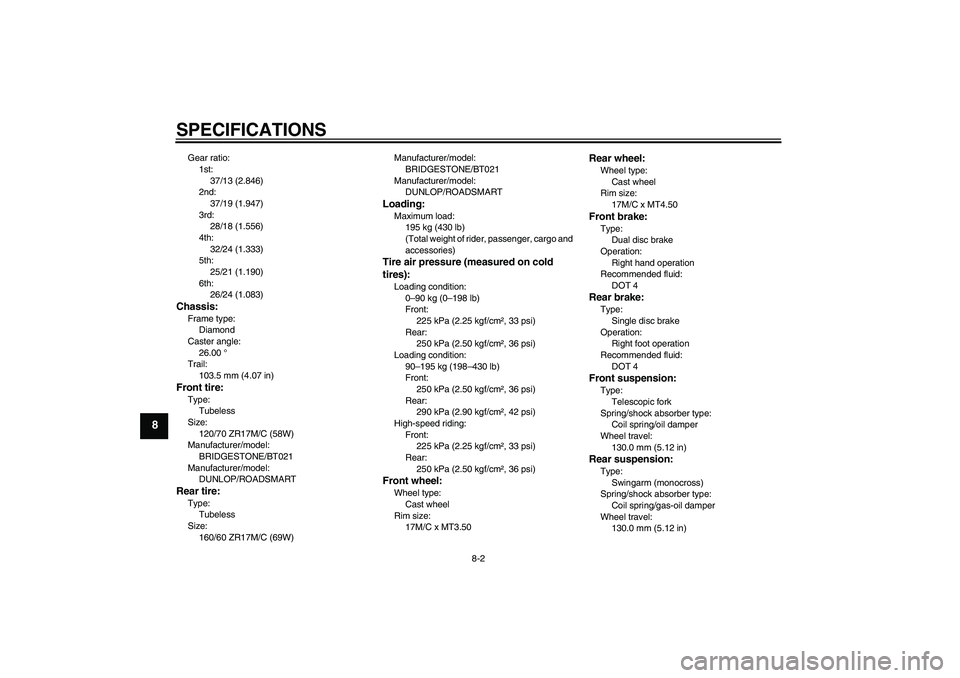

Gear ratio:
1st:
37/13 (2.846)
2nd:
37/19 (1.947)
3rd:
28/18 (1.556)
4th:
32/24 (1.333)
5th:
25/21 (1.190)
6th:
26/24 (1.083)Chassis:Frame type:
Diamond
Caster angle:
26.00 °
Trail:
103.5 mm (4.07 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT021
Manufacturer/model:
DUNLOP/ROADSMARTRear tire:Type:
Tubeless
Size:
160/60 ZR17M/C (69W)Manufacturer/model:
BRIDGESTONE/BT021
Manufacturer/model:
DUNLOP/ROADSMART
Loading:Maximum load:
195 kg (430 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (2.25 kgf/cm², 33 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition:
90–195 kg (198–430 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
225 kPa (2.25 kgf/cm², 33 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT4.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)
U20SE0E0.book Page 2 Friday, September 19, 2008 9:27 AM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60/55 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
U20SE0E0.book Page 3 Friday, September 19, 2008 9:27 AM

CONSUMER INFORMATION
9-1
9
EAU26351

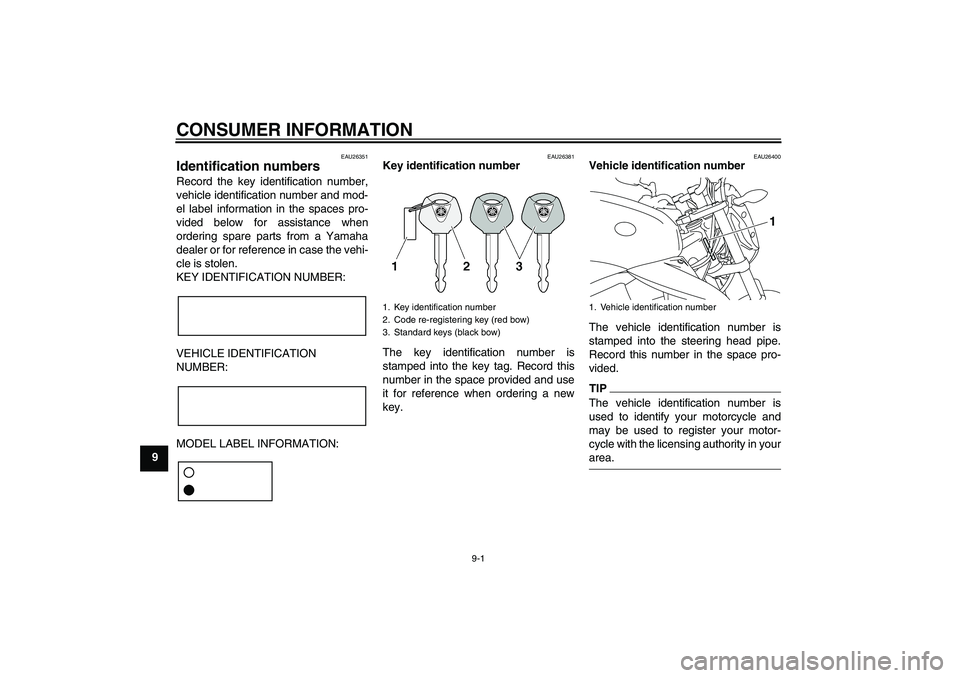

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
1
U20SE0E0.book Page 1 Friday, September 19, 2008 9:27 AM

CONSUMER INFORMATION
9-2
9
EAU26480

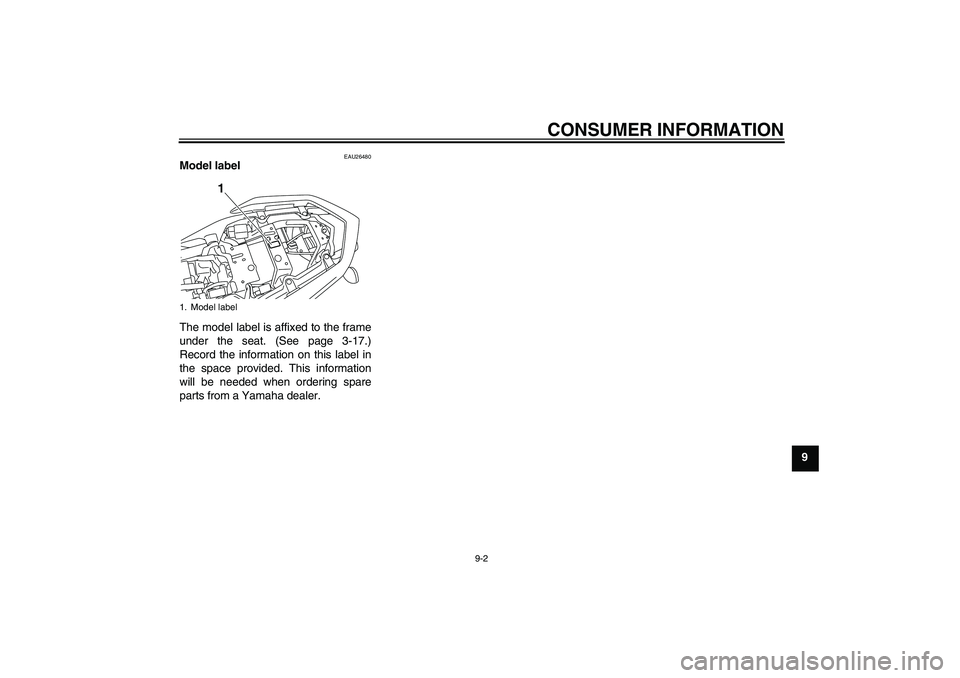

Model label
The model label is affixed to the frame
under the seat. (See page 3-17.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
1
U20SE0E0.book Page 2 Friday, September 19, 2008 9:27 AM

INDEXAAir filter element, replacing ................... 6-16
Anti-theft alarm (optional)...................... 3-11
Auxiliary light bulb, replacing ................ 6-37BBattery................................................... 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-28
Brake and shift pedals, checking and
lubricating ........................................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ............................................ 3-13
Brake pedal ........................................... 3-14CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-16
Clutch lever ........................................... 3-13
Clutch lever free play, adjusting ............ 6-21
Coolant.................................................. 6-12
Coolant temperature warning light .......... 3-4
Cowling and panels, removing and
installing................................................ 6-7DDimmer switch ...................................... 3-12
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack ................................... 6-25EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-17
Engine oil and oil filter cartridge .............. 6-9
Engine stop switch ................................ 3-12
Engine trouble warning light.................... 3-7
FFront and rear brake pads, checking .... 6-23
Front fork, checking .............................. 6-29
Fuel....................................................... 3-15
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-16
Fuel tank cap ........................................ 3-14
Fuses, replacing ................................... 6-32HHandlebar position, adjusting ............... 3-19
Handlebar switches .............................. 3-11
Hazard switch ....................................... 3-12
Headlight bulb, replacing ...................... 6-33
Helmet holder ....................................... 3-18
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-12IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-21
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-36MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-7
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-12RRear brake light switch, adjusting ......... 6-22SSafety information ................................... 1-1
Seat ....................................................... 3-17
Shifting .................................................... 5-2
Shift pedal ............................................. 3-13
Shock absorber assembly, adjusting .... 3-19
Sidestand .............................................. 3-20
Sidestand, checking and lubricating...... 6-29
Spark plugs, checking ............................. 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-12
Steering, checking................................. 6-30
Storage.................................................... 7-3
Storage compartment............................ 3-18
Supporting the motorcycle .................... 6-38
Swingarm pivots, lubricating ................. 6-29TTail/brake light bulb, replacing .............. 6-35
Throttle cable free play, checking ......... 6-18
Throttle grip and cable, checking and
lubricating ........................................... 6-27
Tires ...................................................... 6-19
Tool kit..................................................... 6-1
