PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23142

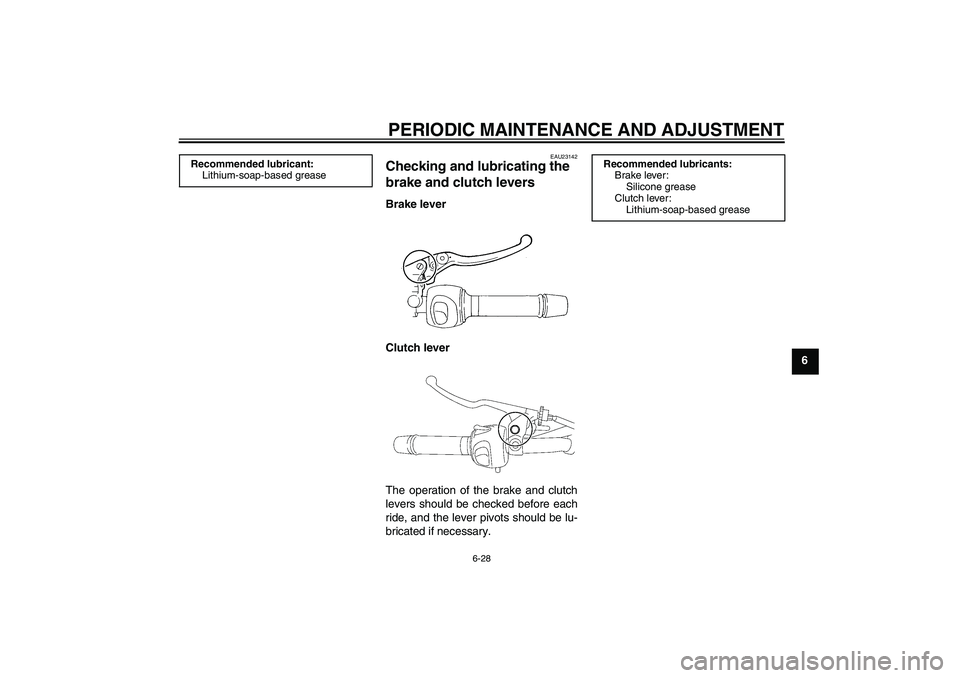

Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
U20SE0E0.book Page 28 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU23202
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10731
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-sulting in a possible loss of control.
EAUM1650
Lubricating the swingarm piv-
ots The swingarm pivots must be lubricat-
ed at the intervals specified in the peri-
odic maintenance and lubrication chart.
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U20SE0E0.book Page 29 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23283
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 6-38 for more
information.) WARNING! To
avoid injury, securely support
the vehicle so there is no danger
of it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
U20SE0E0.book Page 30 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU33654
Battery This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that thebattery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have aYamaha dealer charge your battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
1. Battery band
2. Battery cover
3. Negative battery lead (black)
4. Positive battery lead (red)
2
13
4
U20SE0E0.book Page 31 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6 2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
EAU47010
Replacing the fuses The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-17.)TIPTo access the main fuse, remove thestarter relay cover as shown.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Starter relay cover
2. Main fuse
3. Spare main fuse
4. Fuse box
2
4 3 1
1. Taillight fuse
2. Spare fuse
3. Headlight fuse
4. Ignition fuse
5. Signaling system fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Fuel injection system fuse
8. Radiator fan fuse
1
2
3
4
5
6
7
8
U20SE0E0.book Page 32 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU46811
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.1. Remove the headlight unit side
covers by removing the bolts on
each side.
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
1. Do not touch the glass part of the bulb.
1. Headlight unit side cover
2. Bolt
1
1
22
U20SE0E0.book Page 33 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6 2. Remove the multi-function meter
unit bolts, and then lift up the meter
to unhook its projections from the
slots in the meter stay.3. Remove the headlight unit by re-
moving the bolts.
4. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.5. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
6. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
7. Install the headlight bulb cover,
and then connect the coupler.
8. Fit the projection on the headlight
unit into the grommet in the head-
light stay, and then install the
headlight unit by installing the
bolts.
1. Multi-function meter unit
2. Bolt
1. Projection
2. Slot12
12
1. Headlight unit
2. Bolt
1. Headlight bulb cover
2. Headlight coupler1
2
2
21
1. Headlight bulb holder
2. Headlight bulb
1
2
U20SE0E0.book Page 34 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
69. Fit the projections on the multi-
function meter unit into the slots in
the meter stay, place the meter in
the original position, and then in-
stall the bolts.10. Place the headlight unit side cov-
ers in their original position, and
then install the bolts.
11. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU47020
Replacing the tail/brake light
bulb 1. Remove the seat. (See page
3-17.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the burnt-out bulb by pull-
ing it out.
1. Projection
2. Grommet
1. Projection
2. Slot
2
1
12
1. Tail/brake light bulb socket
1
U20SE0E0.book Page 35 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6 4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24312
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Tail/brake light bulb
2. Tail/brake light bulb socket
2
1
1. Turn signal light lens
2. Screw
2
1
1. License plate light unit
2. Screw
2
1
U20SE0E0.book Page 36 Friday, September 19, 2008 9:27 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
63. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU42872
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-33.)
2. Remove the auxiliary light socket
(together with the coupler) by turn-
ing the socket counterclockwise.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.
1. License plate light bulb socket
2. License plate light bulb
1
2
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
2. Auxiliary light bulb socket
12
U20SE0E0.book Page 37 Friday, September 19, 2008 9:27 AM
