YAMAHA XJ6-S 2011 Workshop Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18680
TIP

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.

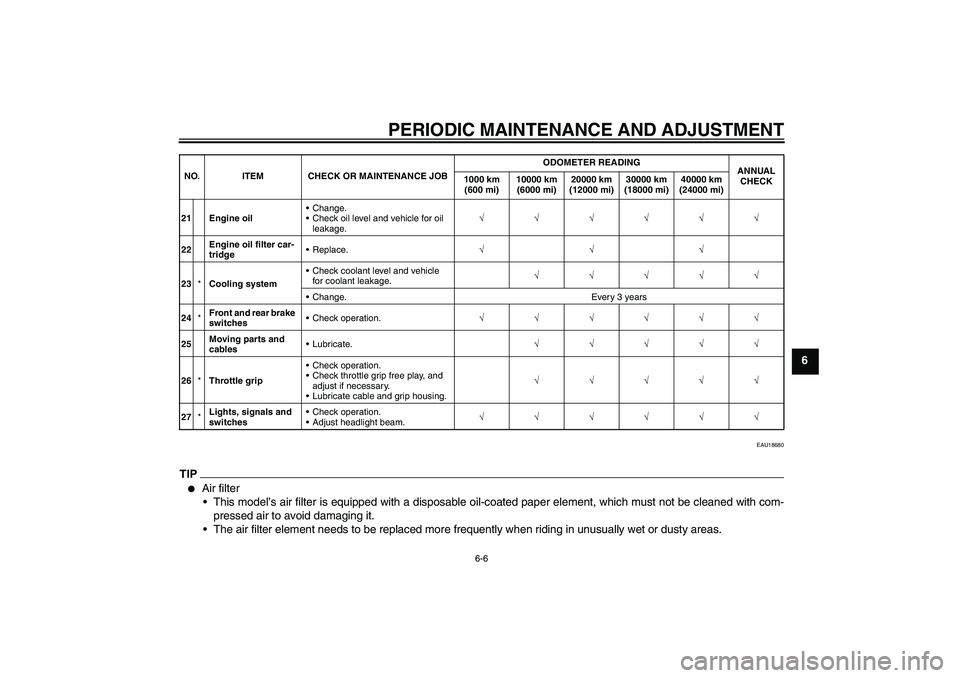

21 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
22Engine oil filter car-
tridgeReplace.√√√
23*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years
24*Front and rear brake
switchesCheck operation.√√√√√√
25Moving parts and
cablesLubricate.√√√√√
26*Throttle gripCheck operation.
Check throttle grip free play, and
adjust if necessary.
Lubricate cable and grip housing.√√√√√
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U36CE2E0.book Page 6 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6

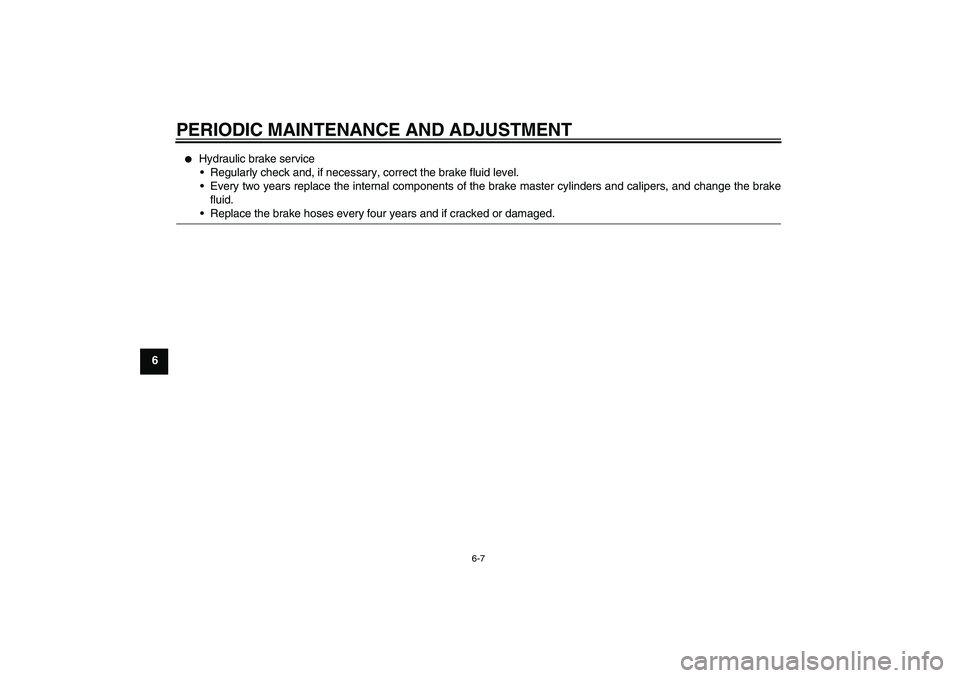

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
U36CE2E0.book Page 7 Friday, July 16, 2010 10:34 AM

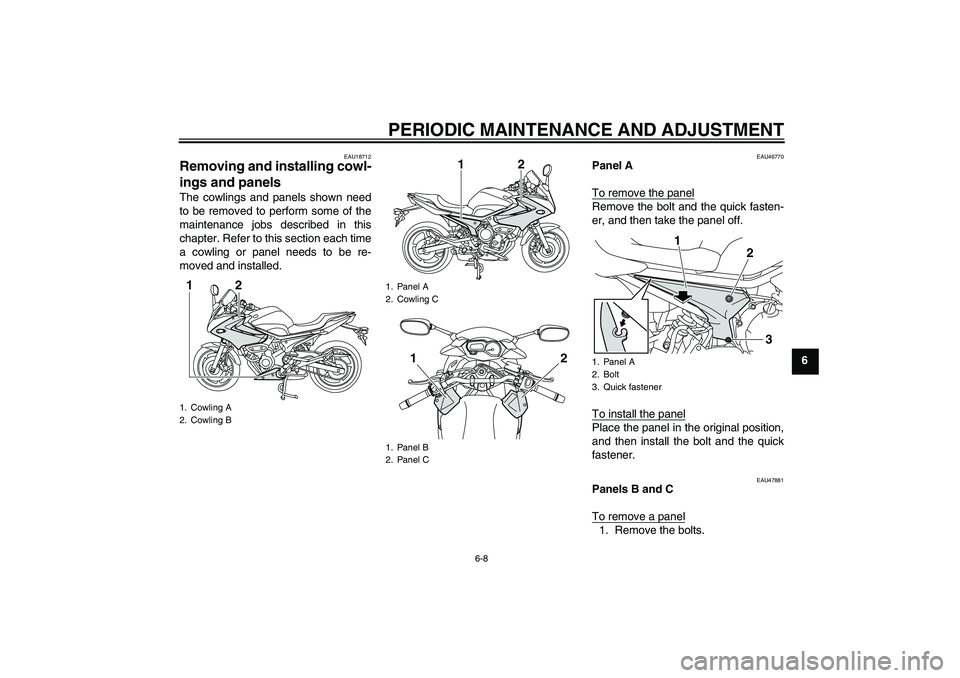

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18712
Removing and installing cowl-
ings and panels The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU46770
Panel A
To remove the panelRemove the bolt and the quick fasten-
er, and then take the panel off.
To install the panelPlace the panel in the original position,
and then install the bolt and the quick
fastener.
EAU47881
Panels B and C
To remove a panel1. Remove the bolts.
1. Cowling A
2. Cowling B12
1. Panel A
2. Cowling C
1. Panel B
2. Panel C
2
1
2 1
1. Panel A
2. Bolt
3. Quick fastener
1
2
3
U36CE2E0.book Page 8 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9

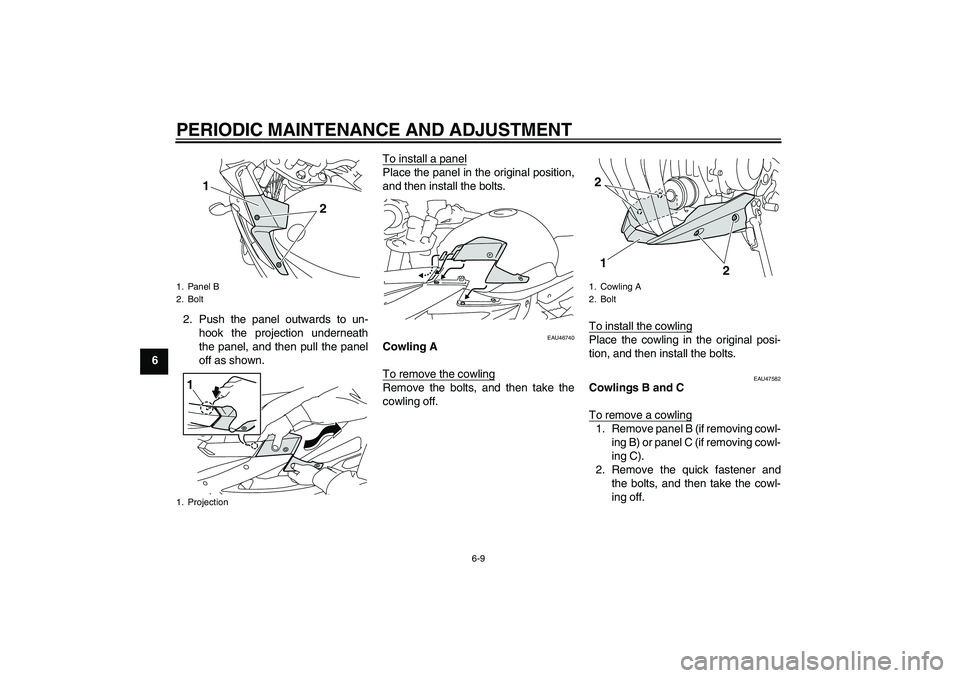

62. Push the panel outwards to un-
hook the projection underneath
the panel, and then pull the panel
off as shown.To install a panel
Place the panel in the original position,
and then install the bolts.
EAU46740
Cowling A
To remove the cowlingRemove the bolts, and then take the
cowling off.To install the cowling
Place the cowling in the original posi-
tion, and then install the bolts.
EAU47582
Cowlings B and C
To remove a cowling1. Remove panel B (if removing cowl-
ing B) or panel C (if removing cowl-
ing C).
2. Remove the quick fastener and
the bolts, and then take the cowl-
ing off.
1. Panel B
2. Bolt
1. Projection
2 1
1
1. Cowling A
2. Bolt
2 2
1
U36CE2E0.book Page 9 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10

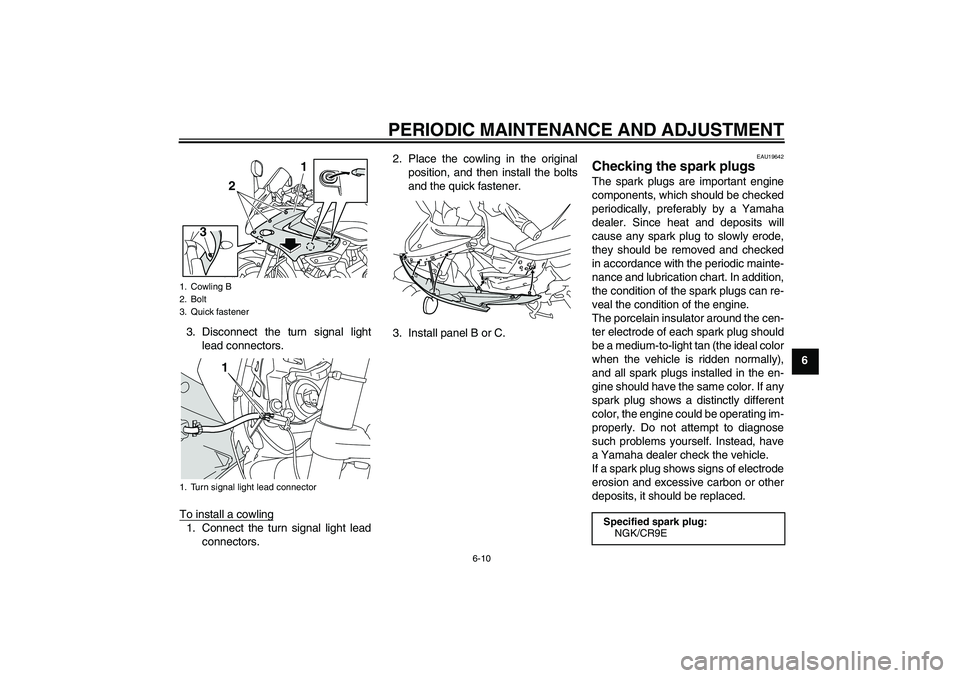

6 3. Disconnect the turn signal light
lead connectors.
To install a cowling
1. Connect the turn signal light lead
connectors.2. Place the cowling in the original
position, and then install the bolts
and the quick fastener.
3. Install panel B or C.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Cowling B
2. Bolt
3. Quick fastener
1. Turn signal light lead connector
3
1
21
Specified spark plug:
NGK/CR9E
U36CE2E0.book Page 10 Friday, July 16, 2010 10:34 AM

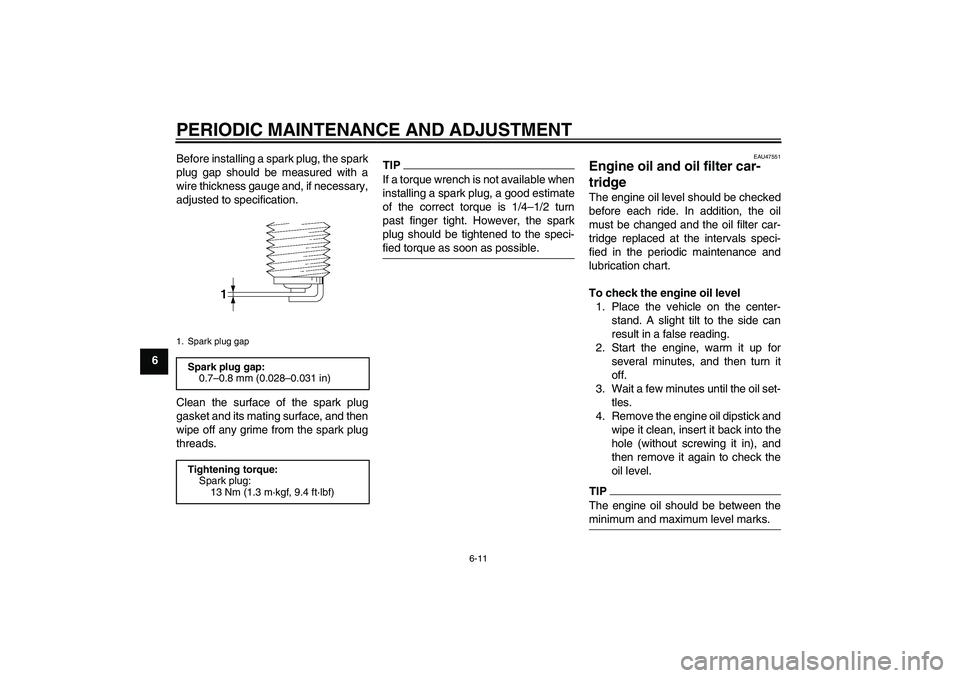

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU47551
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles.
4. Remove the engine oil dipstick and
wipe it clean, insert it back into the
hole (without screwing it in), and
then remove it again to check the
oil level.TIPThe engine oil should be between the
minimum and maximum level marks.
1. Spark plug gapSpark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U36CE2E0.book Page 11 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12

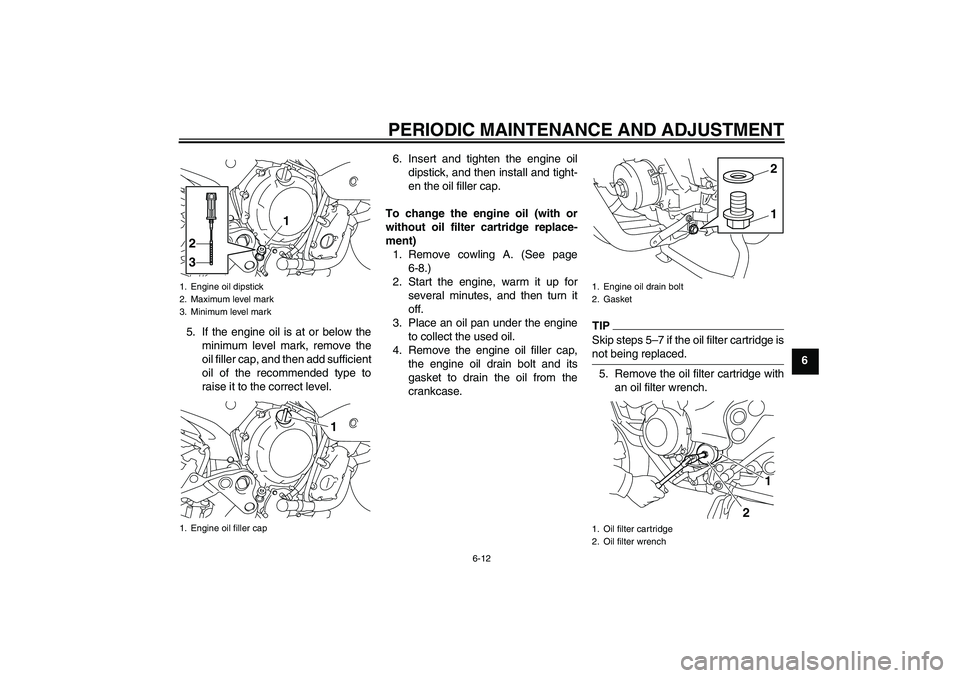

6 5. If the engine oil is at or below the
minimum level mark, remove the
oil filler cap, and then add sufficient
oil of the recommended type to
raise it to the correct level.6. Insert and tighten the engine oil
dipstick, and then install and tight-
en the oil filler cap.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Remove cowling A. (See page
6-8.)
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
4. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5–7 if the oil filter cartridge is
not being replaced.5. Remove the oil filter cartridge with
an oil filter wrench.
1. Engine oil dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
1
2
3
1
1. Engine oil drain bolt
2. Gasket
1. Oil filter cartridge
2. Oil filter wrench
121
2
U36CE2E0.book Page 12 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6

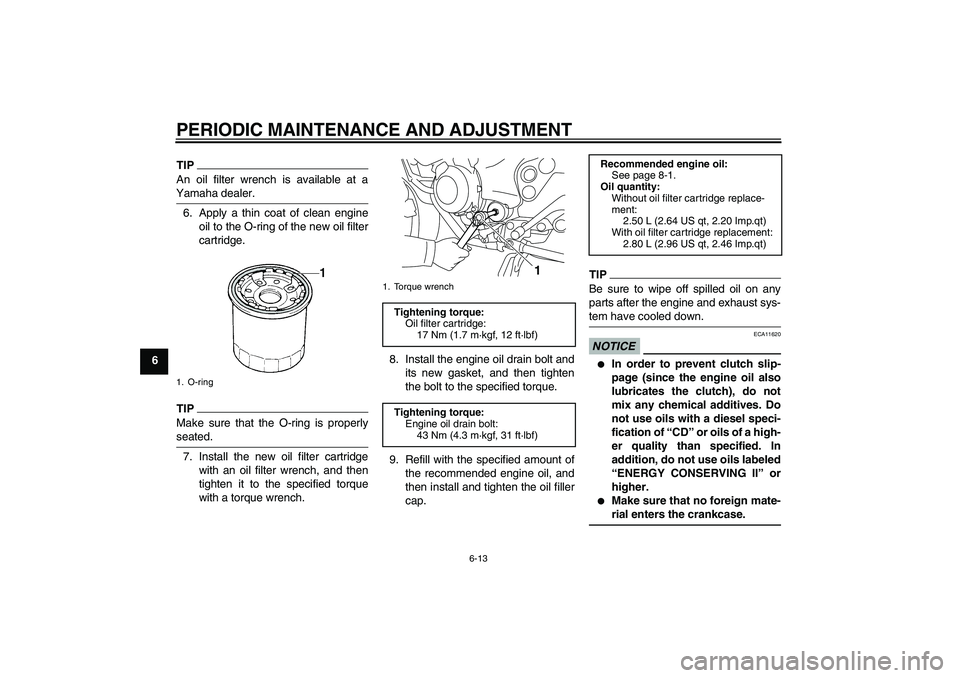

TIPAn oil filter wrench is available at a
Yamaha dealer.6. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.TIPMake sure that the O-ring is properly
seated.7. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
1. O-ring
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
1
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
U36CE2E0.book Page 13 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14

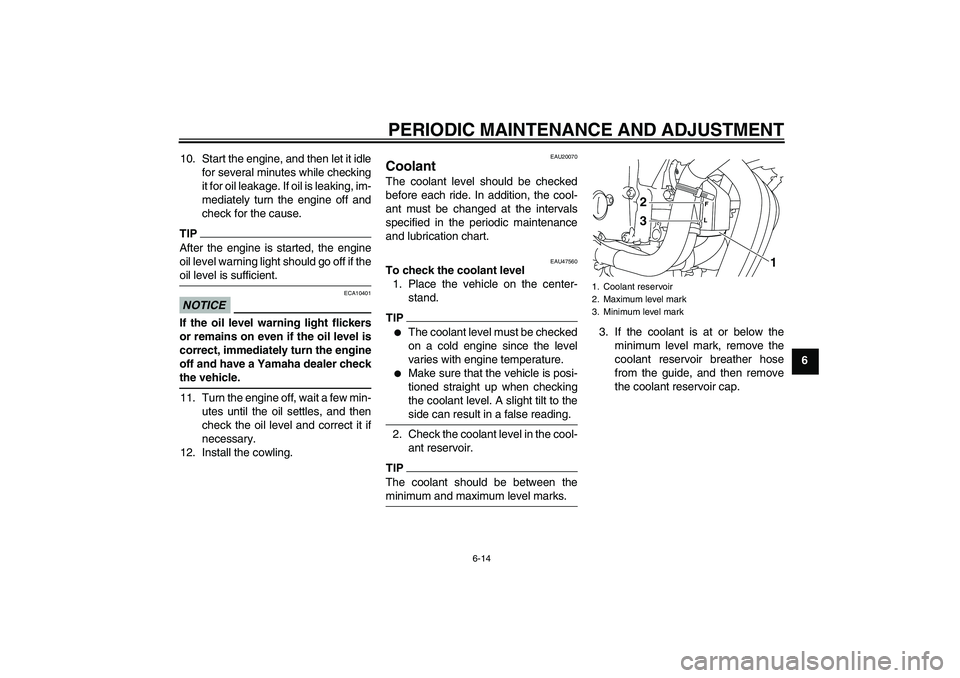

6 10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
TIPAfter the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient.NOTICE
ECA10401
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.11. Turn the engine off, wait a few min-
utes until the oil settles, and then
check the oil level and correct it if
necessary.
12. Install the cowling.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU47560
To check the coolant level
1. Place the vehicle on the center-
stand.TIP

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir breather hose
from the guide, and then remove
the coolant reservoir cap.1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1 2
3
U36CE2E0.book Page 14 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15

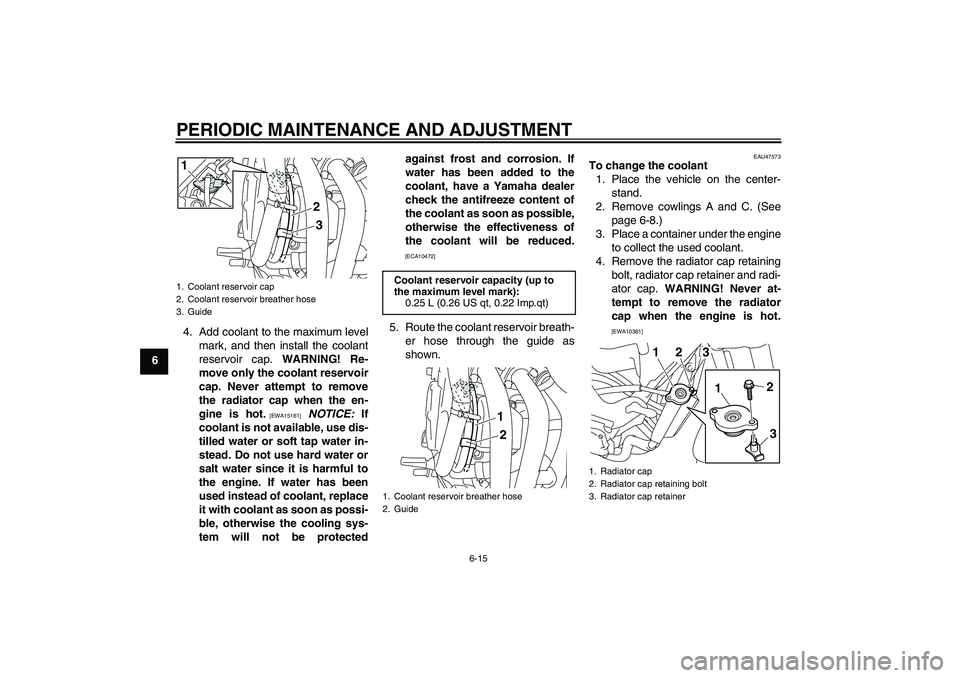

64. Add coolant to the maximum level
mark, and then install the coolant
reservoir cap. WARNING! Re-
move only the coolant reservoir
cap. Never attempt to remove
the radiator cap when the en-
gine is hot.
[EWA15161]
NOTICE: If
coolant is not available, use dis-
tilled water or soft tap water in-
stead. Do not use hard water or
salt water since it is harmful to
the engine. If water has been
used instead of coolant, replace
it with coolant as soon as possi-
ble, otherwise the cooling sys-
tem will not be protectedagainst frost and corrosion. If
water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
[ECA10472]
5. Route the coolant reservoir breath-
er hose through the guide as
shown.
EAU47573
To change the coolant
1. Place the vehicle on the center-
stand.
2. Remove cowlings A and C. (See
page 6-8.)
3. Place a container under the engine
to collect the used coolant.
4. Remove the radiator cap retaining
bolt, radiator cap retainer and radi-
ator cap. WARNING! Never at-
tempt to remove the radiator
cap when the engine is hot.
[EWA10381]
1. Coolant reservoir cap
2. Coolant reservoir breather hose
3. Guide
3
1
2
Coolant reservoir capacity (up to
the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1. Coolant reservoir breather hose
2. Guide
2 1
1. Radiator cap
2. Radiator cap retaining bolt
3. Radiator cap retainer
2 2
1 1
3 3
U36CE2E0.book Page 15 Friday, July 16, 2010 10:34 AM
