PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6 XJ6SA XJ6SA

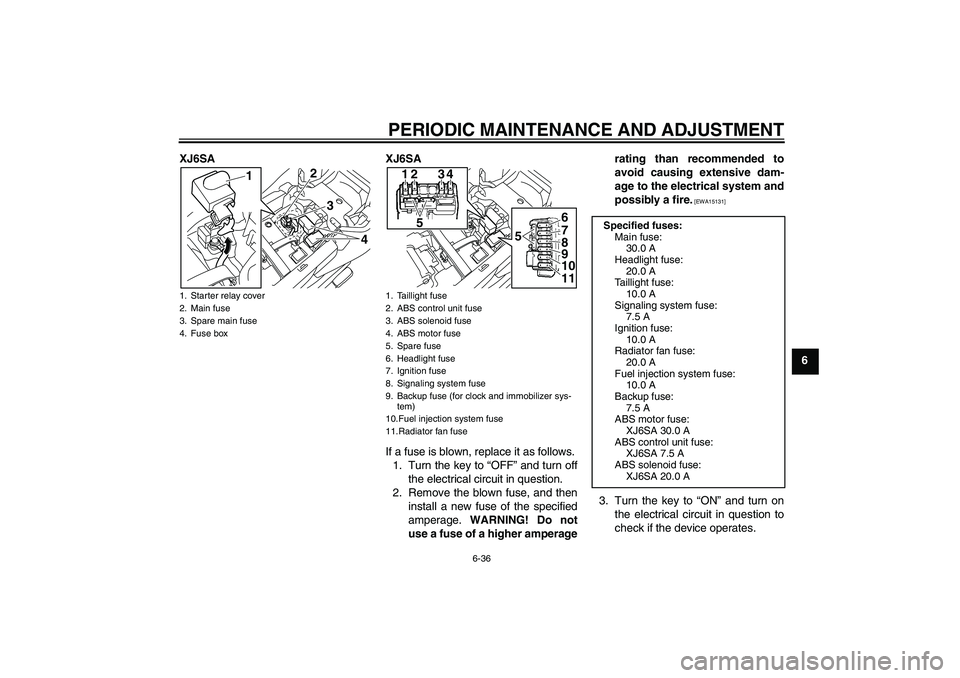

If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperagerating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Starter relay cover
2. Main fuse
3. Spare main fuse
4. Fuse box
2
4 3 1
1. Taillight fuse
2. ABS control unit fuse
3. ABS solenoid fuse
4. ABS motor fuse
5. Spare fuse
6. Headlight fuse
7. Ignition fuse
8. Signaling system fuse
9. Backup fuse (for clock and immobilizer sys-
tem)
10.Fuel injection system fuse
11.Radiator fan fuse
1
5
56
7
8
9
10
11 234
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
ABS motor fuse:
XJ6SA 30.0 A
ABS control unit fuse:
XJ6SA 7.5 A
ABS solenoid fuse:
XJ6SA 20.0 A
U36CE2E0.book Page 36 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
64. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU47600

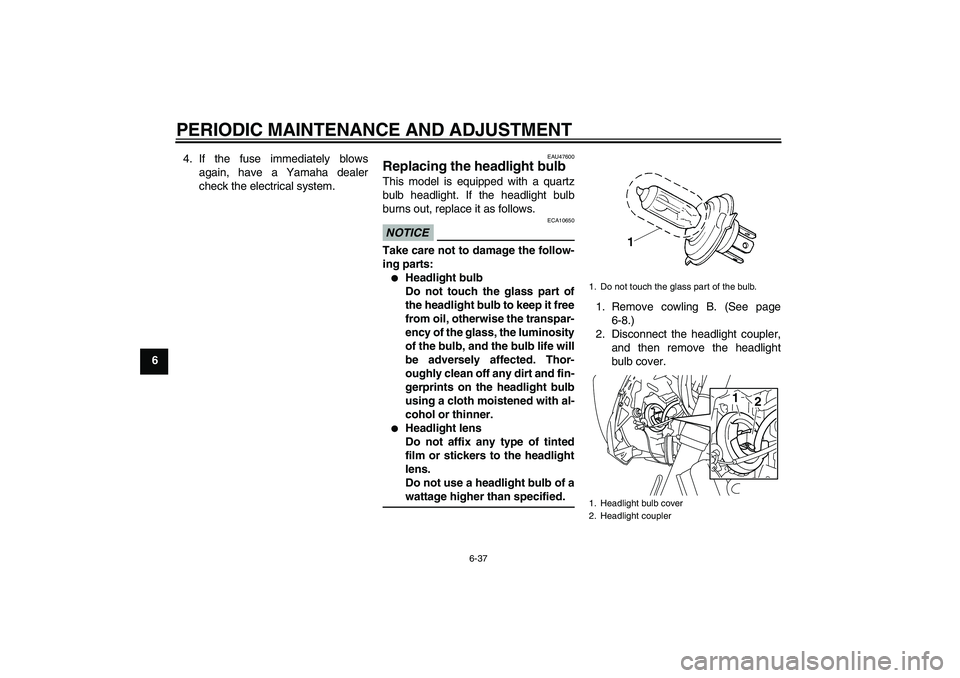

Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove cowling B. (See page
6-8.)
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
2. Headlight coupler
1
2
U36CE2E0.book Page 37 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6 3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU47021

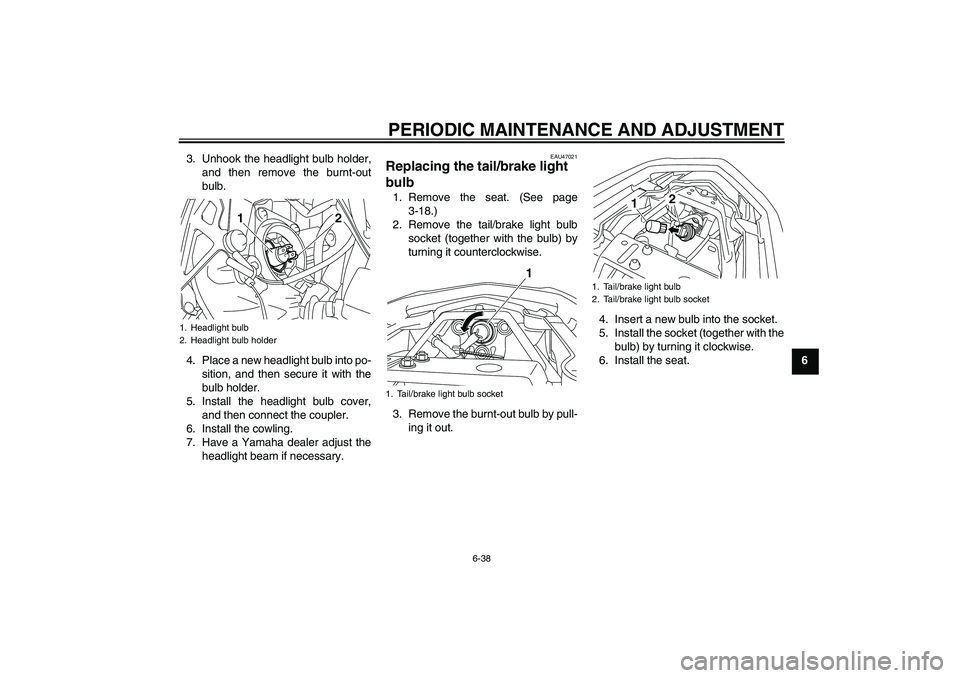

Replacing the tail/brake light
bulb 1. Remove the seat. (See page
3-18.)
2. Remove the tail/brake light bulb
socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
1. Headlight bulb
2. Headlight bulb holder
1
2
1. Tail/brake light bulb socket
1
1. Tail/brake light bulb
2. Tail/brake light bulb socket
2
1
U36CE2E0.book Page 38 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
6
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24313
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the license plate light bulb
socket (together with the bulb) by
pulling it out.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
1. Turn signal light lens
2. Screw
2
1
1. License plate light unit
2. Screw
2
1
1. License plate light bulb socket
2. License plate light bulb
1
2
U36CE2E0.book Page 39 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-40
6
EAU39020

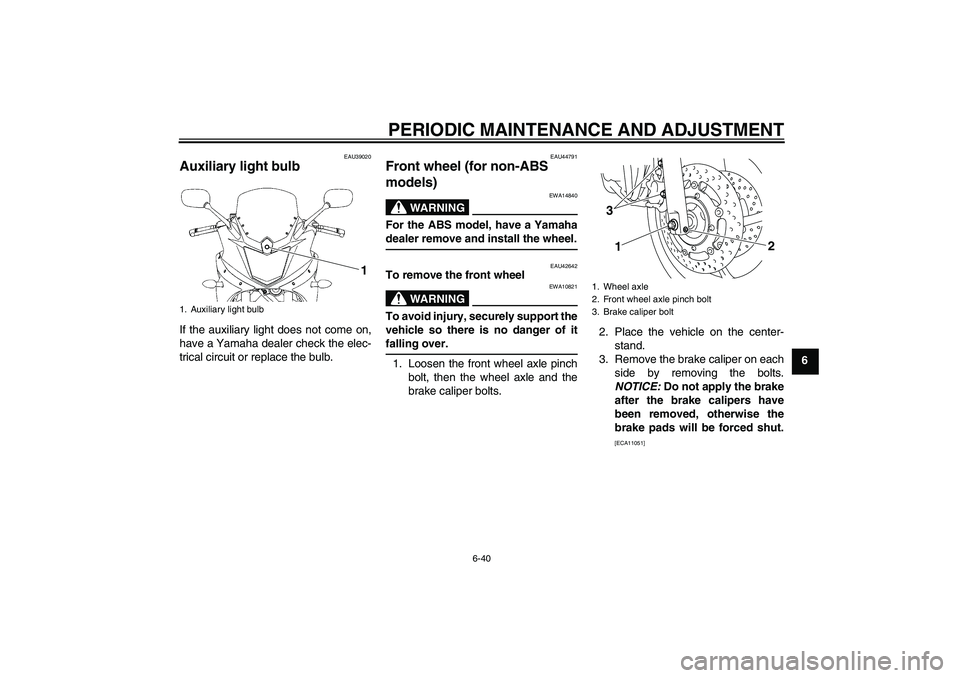

Auxiliary light bulb If the auxiliary light does not come on,
have a Yamaha dealer check the elec-
trical circuit or replace the bulb.
EAU44791
Front wheel (for non-ABS
models)
WARNING
EWA14840
For the ABS model, have a Yamaha
dealer remove and install the wheel.
EAU42642
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.2. Place the vehicle on the center-
stand.
3. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
1. Auxiliary light bulb
1
1. Wheel axle
2. Front wheel axle pinch bolt
3. Brake caliper bolt
13
2
U36CE2E0.book Page 40 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-41
64. Pull the wheel axle out, and then
remove the wheel.
EAU48660
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by install-
ing the bolts.TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.
4. Take the motorcycle off the center-
stand so that the front wheel is on
the ground, and then put the side-
stand down.
5. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.
6. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU44801
Rear wheel (for non-ABS mod-
els)
WARNING
EWA14840
For the ABS model, have a Yamaha
dealer remove and install the wheel.
EAU32874
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the locknut and drive chain
slack adjusting nut on each side of
the swingarm.
2. Loosen the axle nut.
1. Brake caliper
2. Brake caliper bolt
1 2
Tightening torques:
Wheel axle:
65 Nm (6.5 m·kgf, 47 ft·lbf)
Front wheel axle pinch bolt:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
U36CE2E0.book Page 41 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-42
6 3. Place the motorcycle on the cen-
terstand.
4. Remove the axle nut.
5. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIPThe drive chain does not need to be
disassembled in order to remove and
install the rear wheel.6. While supporting the brake caliper
and slightly lifting the wheel, pull
the wheel axle out.TIPA rubber mallet may be useful to tap the
wheel axle out.7. Remove the wheel. NOTICE: Do
not apply the brake after the
wheel has been removed to-gether with the brake disc, oth-
erwise the brake pads will be
forced shut.
[ECA11071]
EAU48651

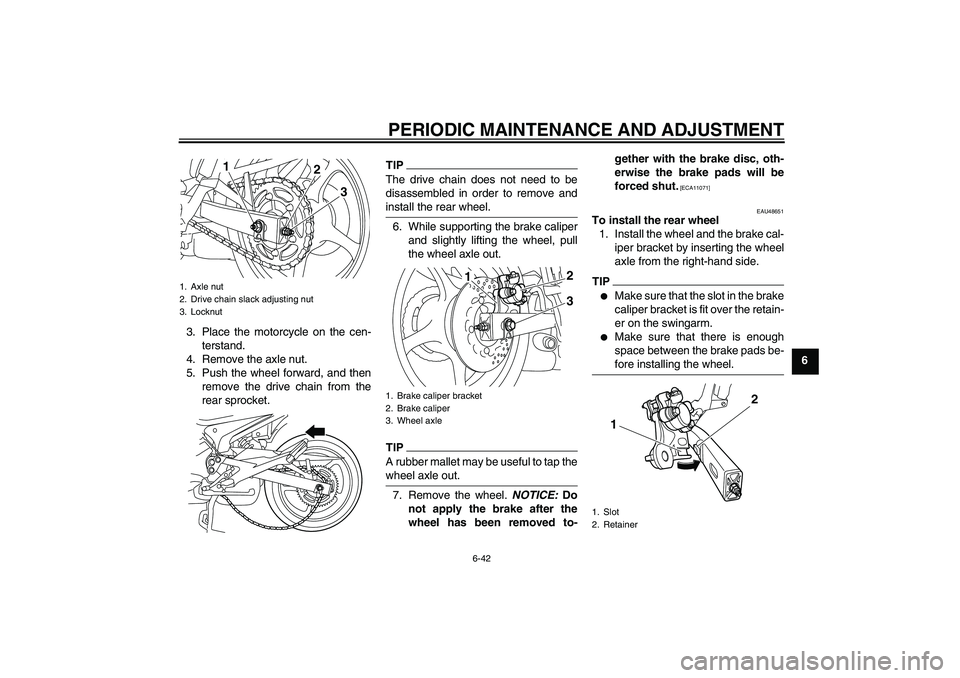

To install the rear wheel
1. Install the wheel and the brake cal-
iper bracket by inserting the wheel
axle from the right-hand side.TIP

Make sure that the slot in the brake
caliper bracket is fit over the retain-
er on the swingarm.


Make sure that there is enough
space between the brake pads be-
fore installing the wheel.
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
1
3
2
1. Brake caliper bracket
2. Brake caliper
3. Wheel axle
2
1
3
1. Slot
2. Retainer
12
U36CE2E0.book Page 42 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-43
62. Install the drive chain onto the rear
sprocket.
3. Install the axle nut.
4. Take the motorcycle off the center-
stand so that the rear wheel is on
the ground, and then put the side-
stand down.
5. Adjust the drive chain slack. (See
page 6-27.)
6. Tighten the axle nut, and then
tighten the locknuts to the speci-
fied torques.
EAU25871

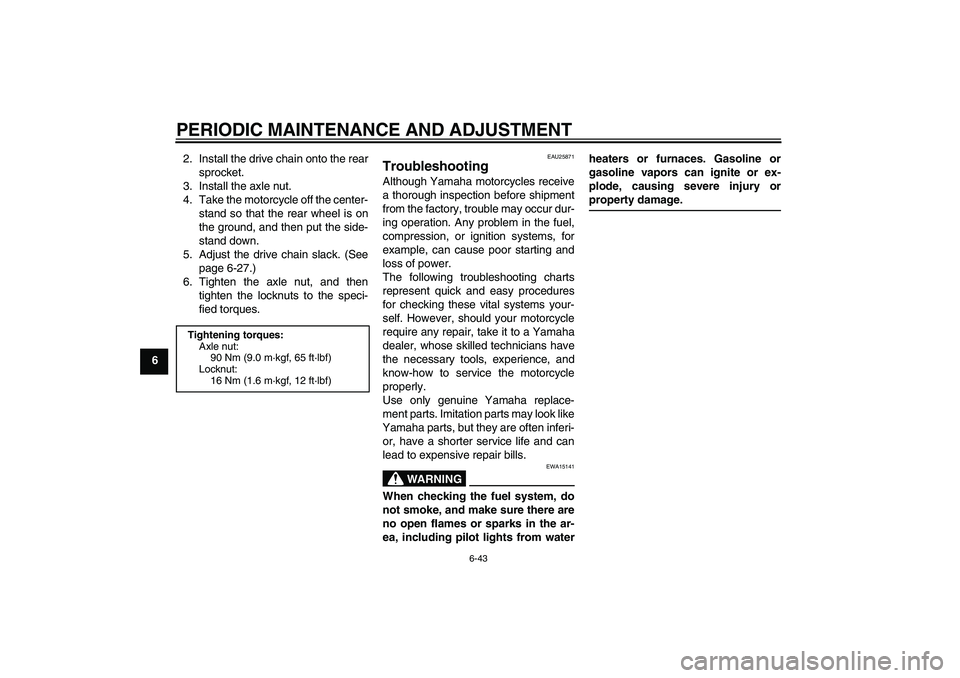

Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
Tightening torques:
Axle nut:
90 Nm (9.0 m·kgf, 65 ft·lbf)
Locknut:
16 Nm (1.6 m·kgf, 12 ft·lbf)
U36CE2E0.book Page 43 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-44
6
EAU42362

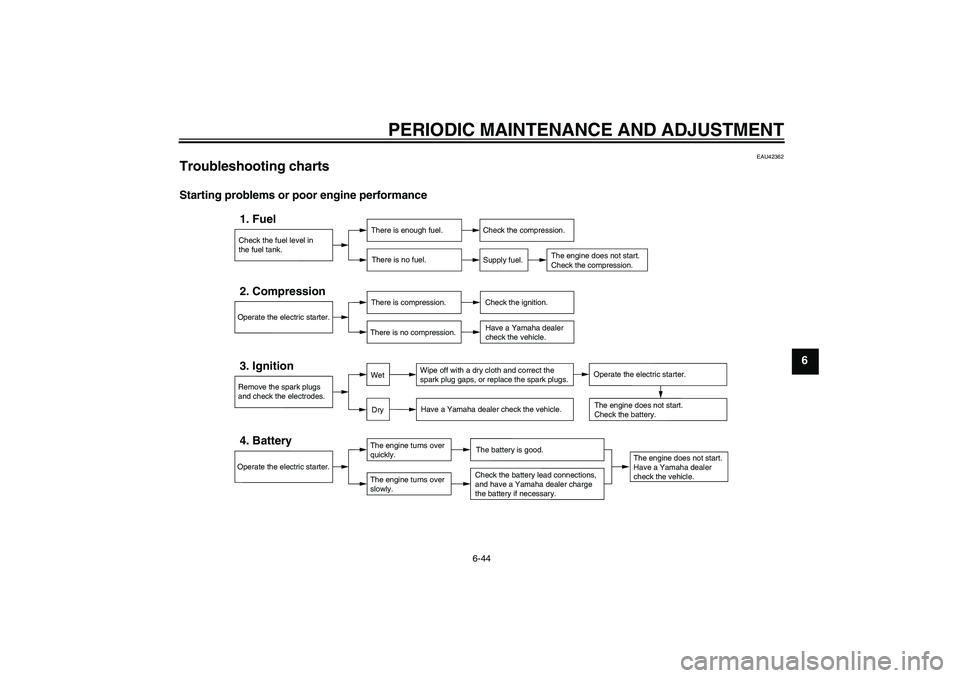

Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
U36CE2E0.book Page 44 Friday, July 16, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-45

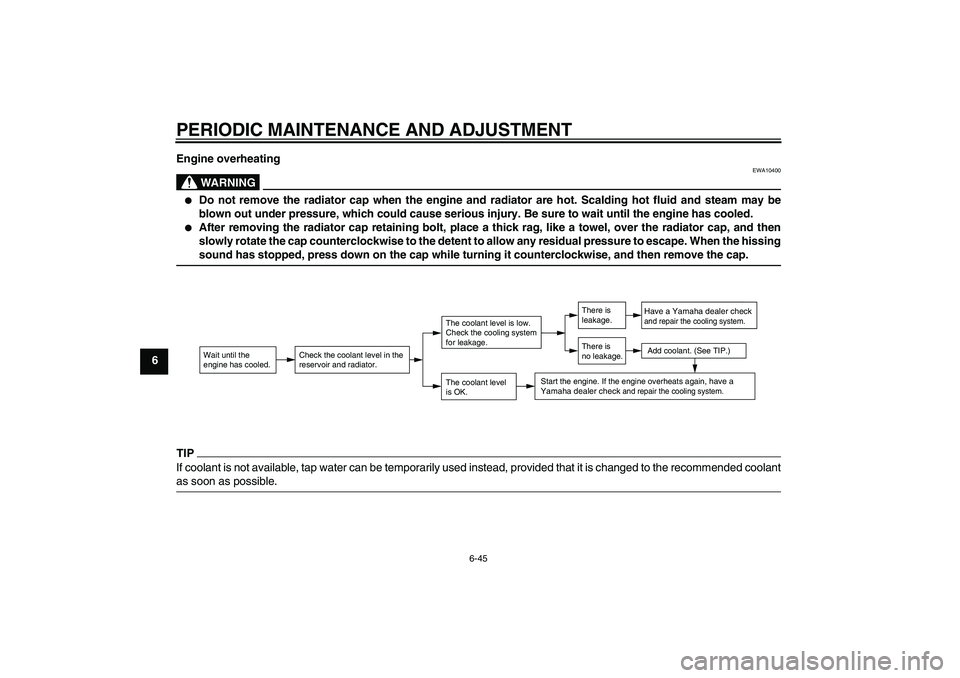

6Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissing
sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U36CE2E0.book Page 45 Friday, July 16, 2010 10:34 AM
