steering YAMAHA XJ600N 2002 Owners Manual

DESCRIPTION
2-3
2
Controls and instruments (XJ600S)14. Clutch lever (page 3-7)
15. Left handlebar switches (page 3-6)
16. Starter (choke) lever (page 3-12)
17. Speedometer unit (page 3-4)
18. Tachometer (page 3-5)
19. Right handlebar switches (page 3-7)
20. Brake lever (page 3-8)
21. Throttle grip (page 6-13)
22. Main switch/steering lock (page 3-1)E_4br.book Page 3 Wednesday, July 25, 2001 1:40 PM

DESCRIPTION
2-4
2
Left view (XJ600N)1. Steering lock (page 3-3)
2. Fuel cock (page 3-11)
3. Helmet holder (page 3-13)
4. Fuse box (page 6-29)
5. Luggage strap holders (page 3-15)6. Seat lock (page 3-12)
7. Shock absorber assembly spring
preload adjusting ring (page 3-14)
8. Shift pedal (page 3-8)
E_4br.book Page 4 Wednesday, July 25, 2001 1:40 PM

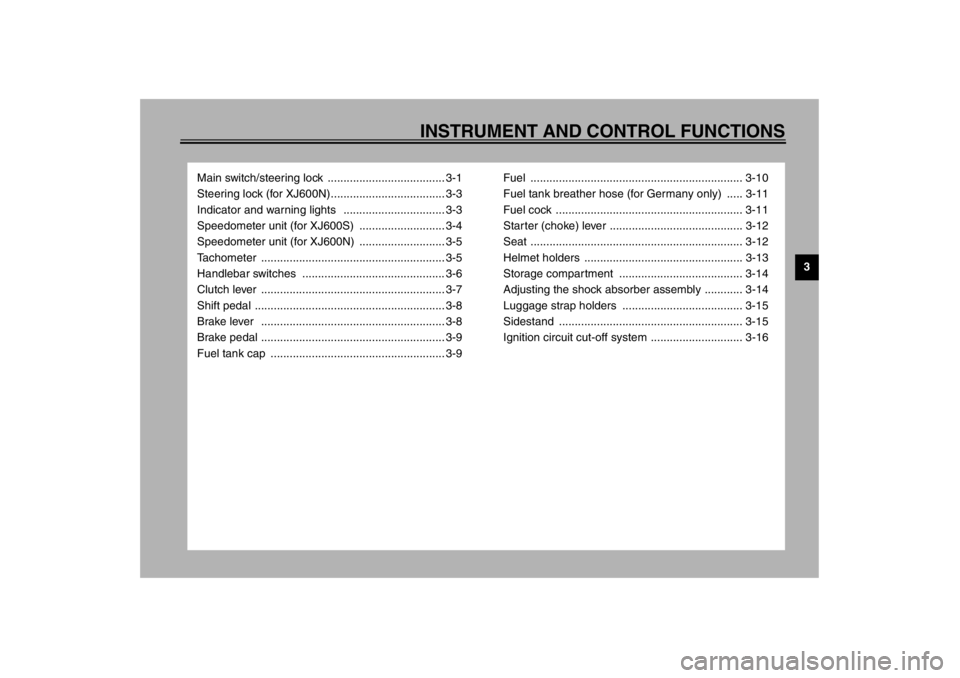

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ..................................... 3-1
Steering lock (for XJ600N).................................... 3-3
Indicator and warning lights ................................ 3-3
Speedometer unit (for XJ600S) ........................... 3-4
Speedometer unit (for XJ600N) ........................... 3-5
Tachometer .......................................................... 3-5
Handlebar switches ............................................. 3-6
Clutch lever .......................................................... 3-7
Shift pedal ............................................................ 3-8
Brake lever .......................................................... 3-8
Brake pedal .......................................................... 3-9
Fuel tank cap ....................................................... 3-9Fuel ................................................................... 3-10
Fuel tank breather hose (for Germany only) ..... 3-11
Fuel cock ........................................................... 3-11
Starter (choke) lever .......................................... 3-12
Seat ................................................................... 3-12
Helmet holders .................................................. 3-13
Storage compartment ....................................... 3-14
Adjusting the shock absorber assembly ............ 3-14
Luggage strap holders ...................................... 3-15
Sidestand .......................................................... 3-15
Ignition circuit cut-off system ............................. 3-16
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU00036
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK (for XJ600S)
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
XJ600S
XJ600N
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF” or “LOCK”. @
EAU01590

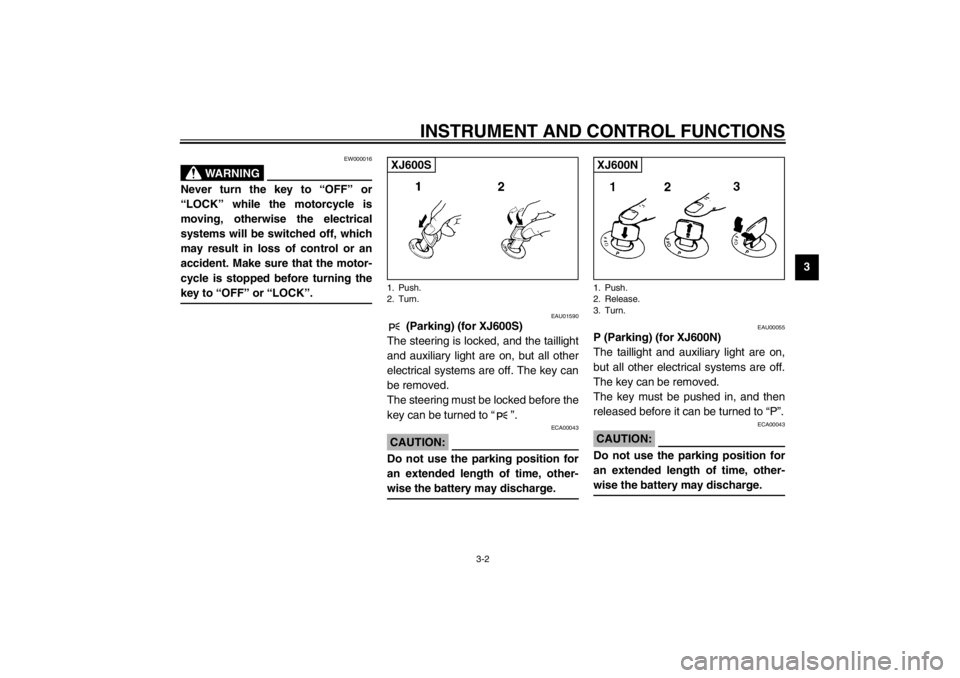

(Parking) (for XJ600S)
The steering is locked, and the taillight
and auxiliary light are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:@ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. @
EAU00055
P (Parking) (for XJ600N)
The taillight and auxiliary light are on,
but all other electrical systems are off.
The key can be removed.
The key must be pushed in, and then
released before it can be turned to “P”.
ECA00043
CAUTION:@ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.@
1. Push.
2. Turn.XJ600S
1. Push.
2. Release.
3. Turn.XJ600N
E_4br.book Page 2 Wednesday, July 25, 2001 1:40 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU02934

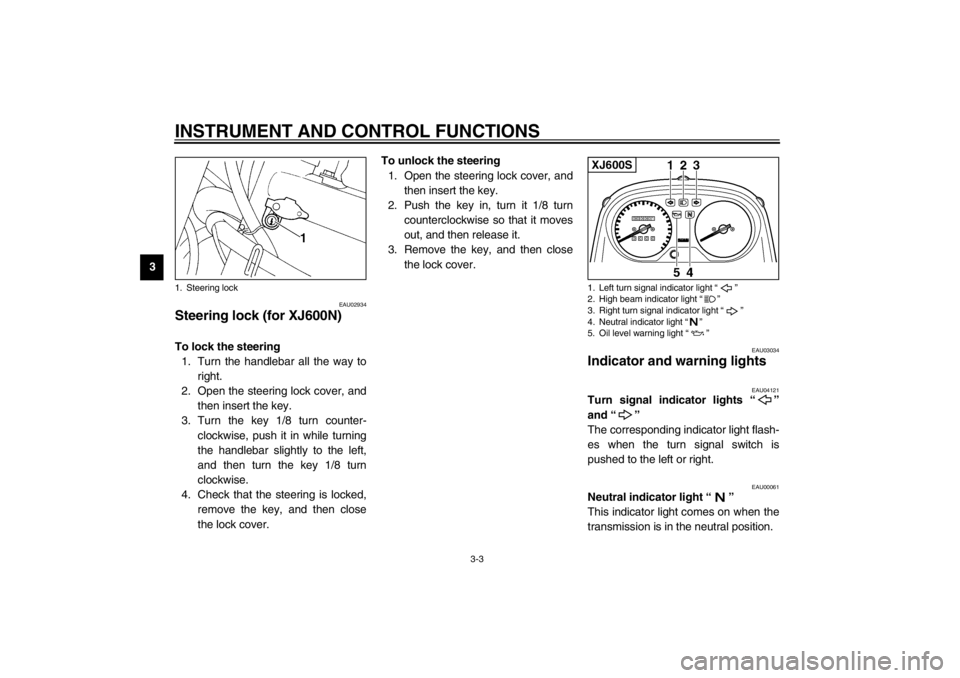

Steering lock (for XJ600N)To lock the steering
1. Turn the handlebar all the way to
right.
2. Open the steering lock cover, and
then insert the key.
3. Turn the key 1/8 turn counter-
clockwise, push it in while turning
the handlebar slightly to the left,
and then turn the key 1/8 turn
clockwise.
4. Check that the steering is locked,
remove the key, and then close
the lock cover.To unlock the steering
1. Open the steering lock cover, and
then insert the key.
2. Push the key in, turn it 1/8 turn
counterclockwise so that it moves
out, and then release it.
3. Remove the key, and then close
the lock cover.
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights “”
and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
1. Steering lock
1. Left turn signal indicator light “”
2. High beam indicator light “”
3. Right turn signal indicator light “”
4. Neutral indicator light “”
5. Oil level warning light “”XJ600S
E_4br.book Page 3 Wednesday, July 25, 2001 1:40 PM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing the panel ....................... 6-5
Checking the spark plugs .................................... 6-6
Engine oil and oil filter cartridge .......................... 6-7
Cleaning the air filter element ............................ 6-10
Adjusting the carburetors ................................... 6-12
Adjusting the engine idling speed ...................... 6-13
Adjusting the throttle cable free play .................. 6-13
Adjusting the valve clearance ............................ 6-14
Tires ................................................................... 6-14
Cast wheels ....................................................... 6-17
Adjusting the clutch lever free play .................... 6-17
Adjusting the brake pedal position ..................... 6-18
Adjusting the rear brake light switch .................. 6-19
Checking the front and rear brake pads ............. 6-19
Checking the brake fluid level ............................ 6-20
Changing the brake fluid .................................... 6-21
Drive chain slack ................................................ 6-21
Lubricating the drive chain ................................. 6-23
Checking and lubricating the cables .................. 6-23Checking and lubricating the throttle grip and
cable ............................................................... 6-24
Checking and lubricating the brake and shift
pedals ............................................................. 6-24
Checking and lubricating the brake and clutch
levers ............................................................... 6-25
Checking and lubricating the centerstand and
sidestand ......................................................... 6-25
Lubricating the rear suspension ........................ 6-25
Checking the front fork ...................................... 6-26
Checking the steering ....................................... 6-26
Checking the wheel bearings ............................ 6-27
Battery ............................................................... 6-27
Replacing the fuses .......................................... 6-29
Replacing the headlight bulb (for XJ600S)......... 6-30
Replacing the headlight bulb (for XJ600N) ........ 6-31
Front wheel ....................................................... 6-33
Rear wheel ........................................................ 6-35
Troubleshooting ................................................. 6-36
Troubleshooting chart ........................................ 6-37
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9
*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-4.) Every 4 years
10*WheelsCheck runout and for damage.√√√√
11*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
12*Wheel bearingsCheck bearing for looseness or damage.√√√√
13*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
14 Drive chainCheck chain slack.
Make sure that the rear wheel is properly aligned.
Clean and lubricate.Every 1,000 km and after washing
the motorcycle or riding in the rain.
15*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease Every 20,000 km
16*Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.√√√√ √
17 Sidestand/centerstandCheck operation.
Lubricate.√√√√ √
18*Sidestand switchCheck operation.√√√√√ √
19*Front forkCheck operation and for oil leakage.√√√√
20*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
21*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based grease.√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
Annual
check
1 10203040
E_4br.book Page 3 Wednesday, July 25, 2001 1:40 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU02939

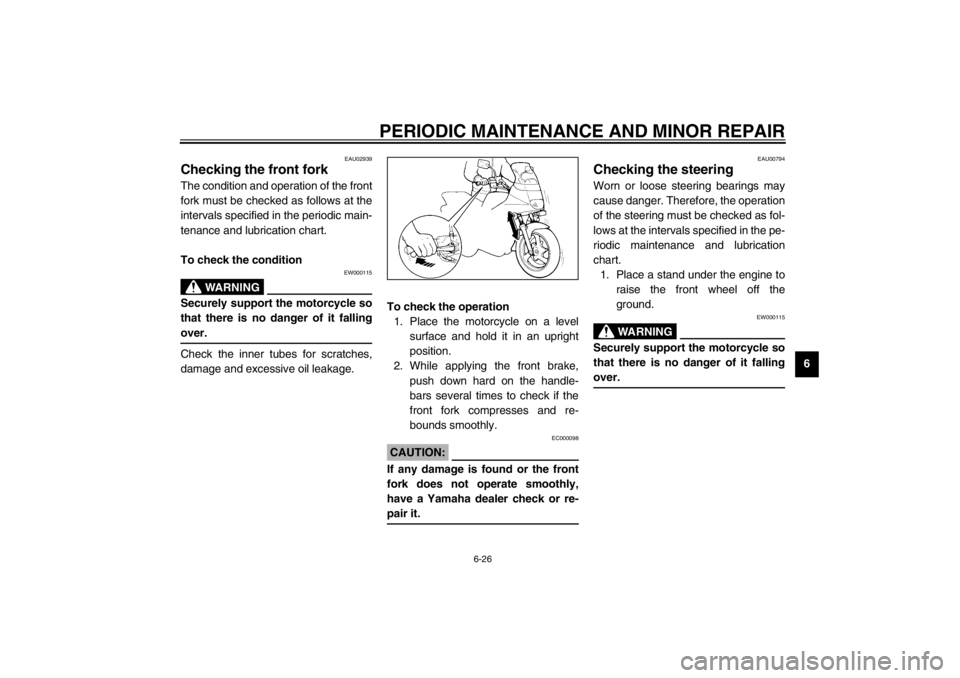

Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:@ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. @
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @
E_4br.book Page 26 Wednesday, July 25, 2001 1:40 PM

CONSUMER INFORMATION
9-2
9
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
EAU01050
Model label The model label is affixed to the frame
under the seat. (See page 3-12 for seat
removal and installation procedures.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
E_4br.book Page 2 Wednesday, July 25, 2001 1:40 PM
