YAMAHA XJ600S 2002 Owners Manual

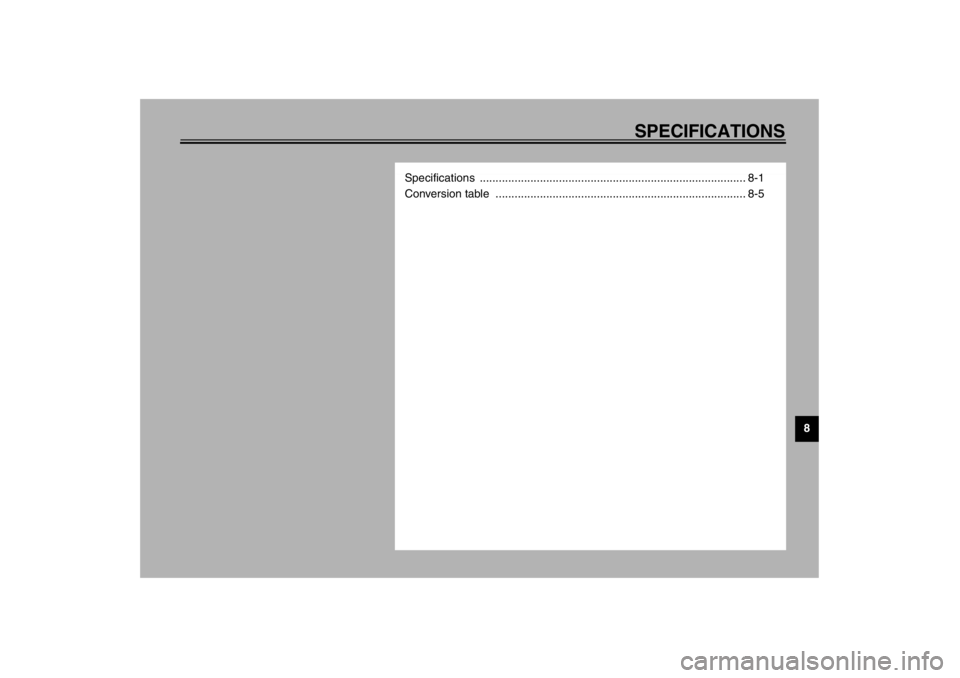

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model XJ600S/XJ600N
Dimensions
Overall length 2,170 mm
Overall width 735 mm
Overall height
XJ600S 1,205 mm
XJ600N 1,090 mm
Seat height 770 mm
Wheelbase 1,445 mm
Ground clearance 150 mm
Minimum turning radius 2,700 mm
Basic weight (with oil and
full fuel tank)
XJ600S 213 kg
XJ600N 210 kg
Engine
Engine type Air-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 598 cm
3
Bore × Stroke 58.5 × 55.7 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Without oil filter cartridge
replacement 2.3 L
With oil filter car tridge
replacement 2.6 L
Total amount (dry engine) 3.1 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

SPECIFICATIONS
8-2
8
Air filterDry type element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 17.0 L
Reserve amount 3.5 L
Carburetor
Manufacturer MIKUNI
Model × quantity BDS28 × 4
Spark plug
Model/Manufacturer CR8E / NGK
U24ESR-N / DENSO
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 2.225
Secondary reduction system Chain drive
Secondary reduction ratio 3.000 (except for CH, A)
2.875 (for CH, A)
Number of drive chain
sprocket teeth (rear/front) 48/16 (except for CH, A)
46/16 (for CH, A)
Transmission type Constant mesh 6-speedOperation Left foot
Gear ratio
1st 2.733
2nd 1.778
3rd 1.333
4th 1.074
5th 0.913
6th 0.821
Chassis
Frame type Double cradle
Caster angle 25°
Trail 97 mm
Tire
Front
Type Tubeless tire
Size 110/80-17 57H
110/80-17 M/C 57H
Manufacturer/model MICHELIN / MACADAM 50
DUNLOP / D103FA
Rear
Type Tubeless tire
Size 130/70-18 63H
130/70-18 M/C 63H
Manufacturer/model MICHELIN / MACADAM 50
DUNLOP / D103A
E_4br.book Page 2 Wednesday, July 25, 2001 1:40 PM

SPECIFICATIONS
8-3
8
Maximum load*
XJ600S 184 kg
XJ600N 187 kg
Tire air pressure (measured on
cold tires)
Up to 90 kg*
Front 200 kPa (2.00 kgf/cm
2, 2.00 bar)
Rear 225 kPa (2.25 kgf/cm2, 2.25 bar)
90 kg–maximum*
Front 200 kPa (2.00 kgf/cm2, 2.00 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
High-speed riding
Front 200 kPa (2.00 kgf/cm2, 2.00 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 × MT 2.50
Rear
Type Cast wheel
Size 18 × MT 3.50Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (monocross suspen-
sion)
Spring/shock absorbers
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 140 mm
Rear 110 mm
Electrical systems
Ignition system Transistorized coil ignition
E_4br.book Page 3 Wednesday, July 25, 2001 1:40 PM

SPECIFICATIONS
8-4
8
Charging system
Type A.C. magneto
Standard output 14 V, 20 A @ 5,000 r/min
Battery
Model YTX9-BS
Voltage, capacity 12 V, 8 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Auxiliary light 12 V, 4 W × 1 (except for GB,
IRL)
12 V, 3.4 W × 1 (for GB, IRL)
Tail/brake light 12 V, 5/21 W × 1
Turn signal light 12 V, 21 W × 4
Meter lighting
XJ600S 12 V, 1.7 W × 3
XJ600N 14 V, 3 W × 2
12 V, 1.7 W × 2
Neutral indicator light 12 V, 3.4 W × 1
High beam indicator light 12 V, 3.4 W × 1
Oil level warning light
XJ600S 12 V, 3.4 W × 1
XJ600N 14 V, 3 W × 1
Turn signal indicator light 12 V, 3.4 W × 2Fuses
Main fuse 30 A
Ignition fuse 10 A
Signaling system fuse 15 A
Headlight fuse 15 A
Hazard fuse 10 A
E_4br.book Page 4 Wednesday, July 25, 2001 1:40 PM

SPECIFICATIONS
8-5
8
EAU03941
Conversion table CS-03EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskgf/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
E_4br.book Page 5 Wednesday, July 25, 2001 1:40 PM

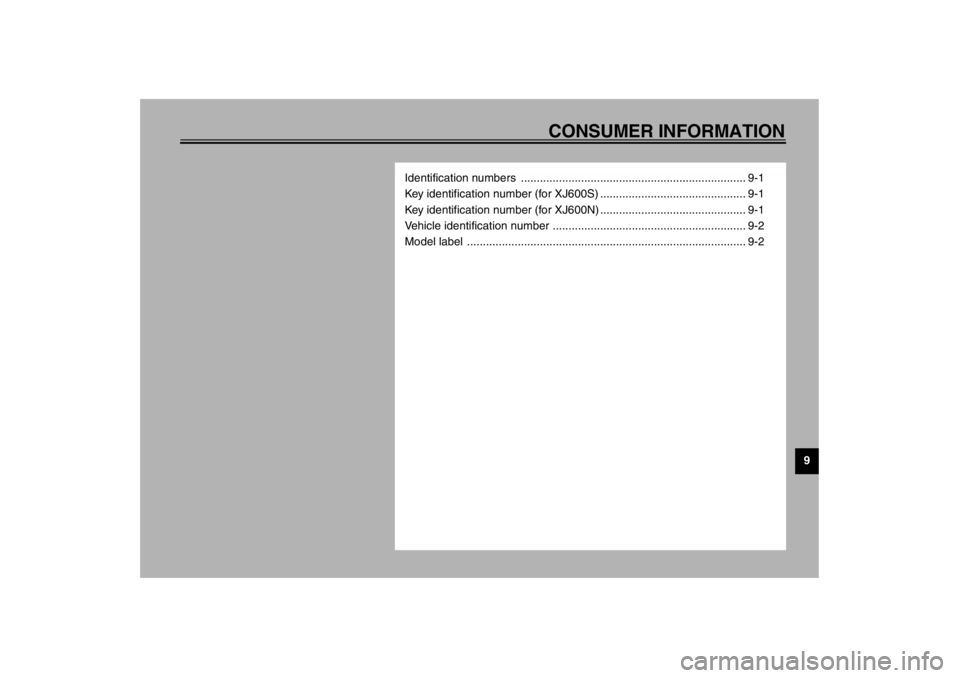

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number (for XJ600S) .............................................. 9-1
Key identification number (for XJ600N) .............................................. 9-1
Vehicle identification number ............................................................. 9-2
Model label ........................................................................................ 9-2
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number
(for XJ600S)The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01042
Key identification number
(for XJ600N)The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
1. Key identification numberXJ600S
1. Key identification numberXJ600N
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM

CONSUMER INFORMATION
9-2
9
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
EAU01050
Model label The model label is affixed to the frame
under the seat. (See page 3-12 for seat
removal and installation procedures.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
E_4br.book Page 2 Wednesday, July 25, 2001 1:40 PM

10-INDEXAAir filter element, cleaning ...................... 6-10BBattery ................................................... 6-27
Brake and clutch levers, checking and
lubricating ............................................ 6-25
Brake and shift pedals, checking and
lubricating ............................................ 6-24
Brake fluid, changing ............................. 6-21
Brake fluid level, checking...................... 6-20
Brake lever...............................................3-8
Brake light switch (rear), adjusting ......... 6-19
Brake pads, checking............................. 6-19
Brake pedal..............................................3-9
Brake pedal position, adjusting .............. 6-18CCables, checking and lubricating............ 6-23
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Centerstand and sidestand,
checking and lubricating ...................... 6-25
Clutch lever ..............................................3-7
Clutch lever free play, adjusting ............. 6-17
Conversion table ......................................8-5
DDimmer switch ......................................... 3-6
Drive chain, lubricating .......................... 6-23
Drive chain slack ................................... 6-21
Checking .......................................... 6-21
Adjusting .......................................... 6-22EEngine break-in ....................................... 5-4
Engine oil and oil filter cartridge ............... 6-7
Engine stop switch................................... 3-7FFront fork, checking ............................... 6-26
Fuel ....................................................... 3-10
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ......... 5-4
Fuel tank breather hose
(Germany only) ................................... 3-11
Fuel tank cap ........................................... 3-9
Fuses, replacing .................................... 6-29HHandlebar switches ................................. 3-6
Hazard switch .......................................... 3-6
Headlight bulb, replacing (for XJ600S)... 6-30
Headlight bulb, replacing (for XJ600N) .. 6-31
Helmet holders ...................................... 3-13
High beam indicator light ......................... 3-4
Horn switch ............................................. 3-6
IIdentification numbers ..............................9-1
Idling speed, adjusting ...........................6-13
Ignition circuit cut-off system ..................3-16
Indicator and warning lights......................3-3KKey identification number (for XJ600N) ....9-1
Key identification number (for XJ600S) ....9-1LLight switch ..............................................3-7
Luggage strap holders ...........................3-15MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-3OOil level warning light ...............................3-4PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-6
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1
