YAMAHA XJ900S 2001 Workshop Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
NOTE:@ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. @
EAU02938
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on the cen-
terstand.NOTE:@ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. @2. Start the engine, warm it up for
several minutes, and then turn it
off.3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
NOTE:@ The engine oil should be between the
minimum and maximum level marks. @4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise

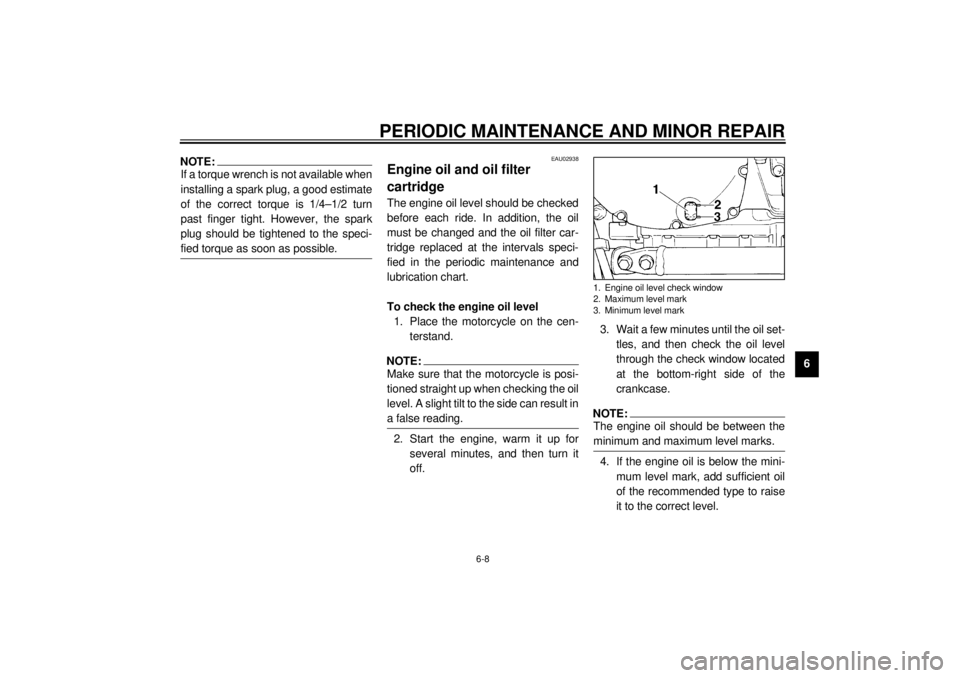

it to the correct level.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
E_4km.book Page 8 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6To change the engine oil (with or
without oil filter cartridge
replacement)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:@ Skip steps 4–6 if the oil filter cartridge is
not being replaced. @
4. Remove the oil filter cartridge with
an oil filter wrench.NOTE:@ An oil filter wrench is available at a
Yamaha dealer. @

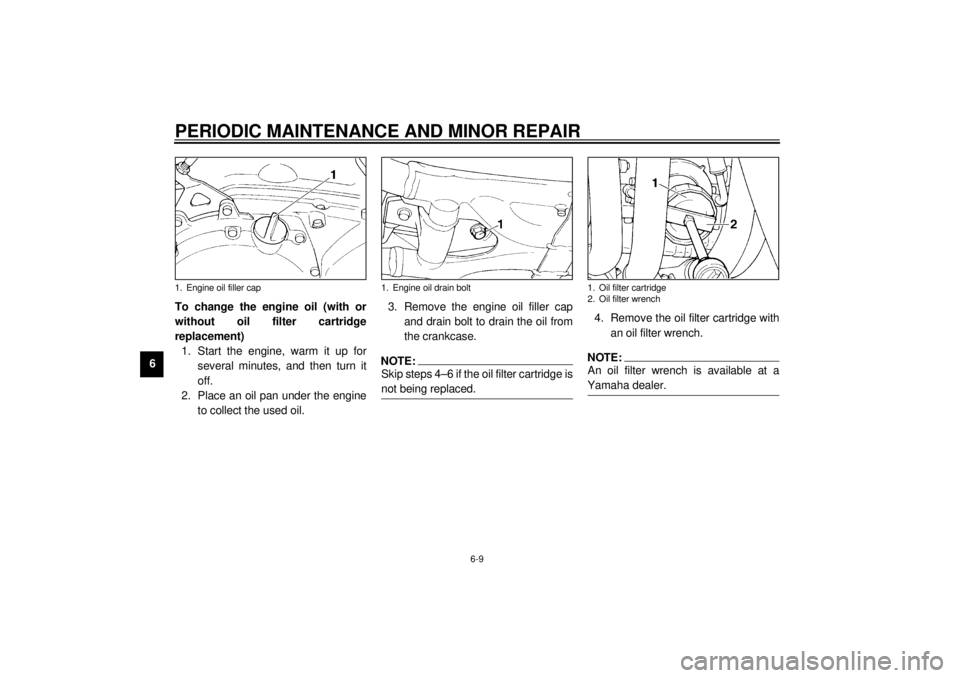

1. Engine oil filler cap
1. Engine oil drain bolt
1. Oil filter cartridge
2. Oil filter wrench
E_4km.book Page 9 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 5. Apply a thin coat of engine oil to
the O-ring of the new oil filter
cartridge.
NOTE:@ Make sure that the O-ring is properly
seated. @6. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
8. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
EC000072
CAUTION:@ l
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of a higher
grade than “CD”. In addition, do
not use oils labeled “ENERGY
CONSERVING II” or higher.
l
Make sure that no foreign mate-
rial enters the crankcase.
@9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:@ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. @
1. O-ring
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kg)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kg)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge
replacement:
3.2 L
With oil filter cartridge
replacement:
3.4 L
Total amount (dry engine):
4.4 L
E_4km.book Page 10 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EC000067
CAUTION:@ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. @10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU03681
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil must be
changed as follows at the intervals
specified in the periodic maintenance
and lubrication chart.
EW000066
WARNING
_ l
Make sure that no foreign mate-
rial enters the final gear case.
l
Make sure that no oil gets on
the tire or wheel.
_To check the final gear oil level
1. Place the motorcycle on the cen-
terstand.
NOTE:_ l
The final gear oil level must be
checked on a cold engine.
l
Make sure that the motorcycle is
positioned straight up when
checking the oil level. A slight tilt to
the side can result in a false read-
ing.
_
E_4km.book Page 11 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:_ The oil level should be at the brim of
the filler hole. _3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.
NOTE:_ GL4 is a quality rating. Hypoid gear oils
rated GL5 or GL6 may also be used. _5. Install and tighten the filler bolt.
6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oil drain bolt
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kg)
Recommended final gear oil:
Hypoid gear oil SAE 80 (API GL4)
or multi-grade hypoid gear oil
SAE 80W-90
Oil quantity:
0.2 L
E_4km.book Page 12 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU03597
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
2. Turn the fuel cock lever to “OFF”,
and then disconnect the fuel hose.3. Remove the fuel tank bolts.
4. Disconnect the fuel sender cou-
pler, and then take the fuel tank
off.5. Remove the air filter case cover by

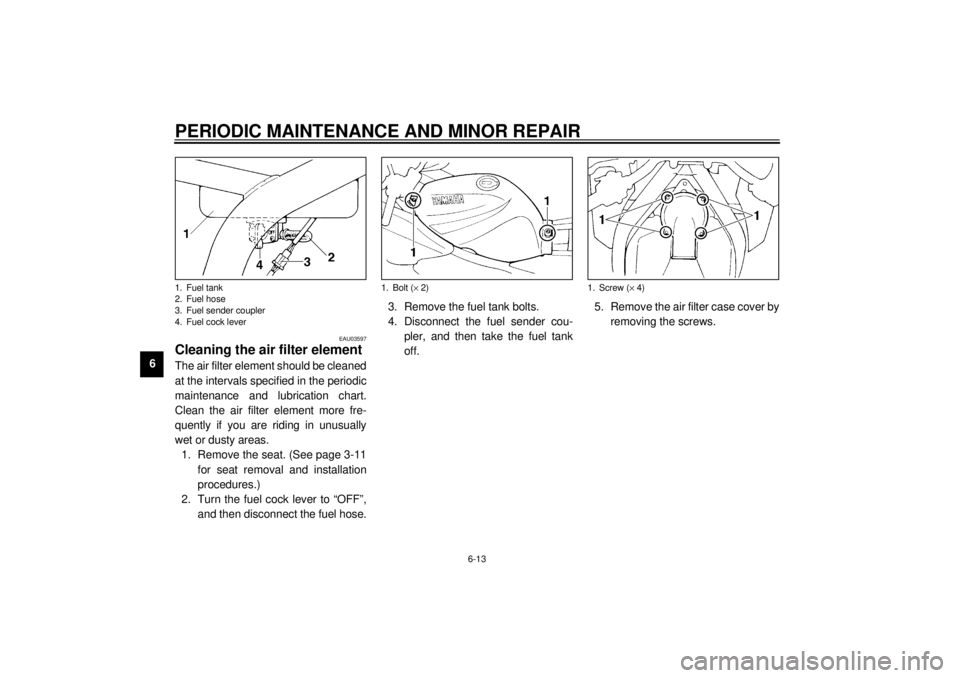

removing the screws.1. Fuel tank
2. Fuel hose
3. Fuel sender coupler
4. Fuel cock lever
1. Bolt (´ 2)
1. Screw (´ 4)
E_4km.book Page 13 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6 6. Pull the air filter element out. 7. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
8. Insert the air filter element into the
air filter case.
EC000082
CAUTION:@ l
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
l
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
@9. Install the air filter case cover by
installing the screws.
10. Connect the fuel sender coupler,
and then install the fuel tank by in-
stalling the bolts.
11. Connect the fuel hose, and then
turn the fuel cock lever to “ON”.
12. Install the seat.
1. Air filter element
E_4km.book Page 14 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU00630
Adjusting the carburetors The carburetors are important parts of
the engine and require very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in
the following section, however, may be
serviced by the owner as part of routine
maintenance.
EC000095
CAUTION:@ The carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine. @
EAU00632
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine and warm it up
for several minutes at 1,000–
2,000 r/min while occasionally rev-
ving it to 4,000–5,000 r/min.NOTE:@ The engine is warm when it quickly re-
sponds to the throttle. @
2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection
a. To decrease the engine
idling speed, turn the screw in
direction
b.NOTE:@ If the specified idling speed cannot be
obtained as described above, have a

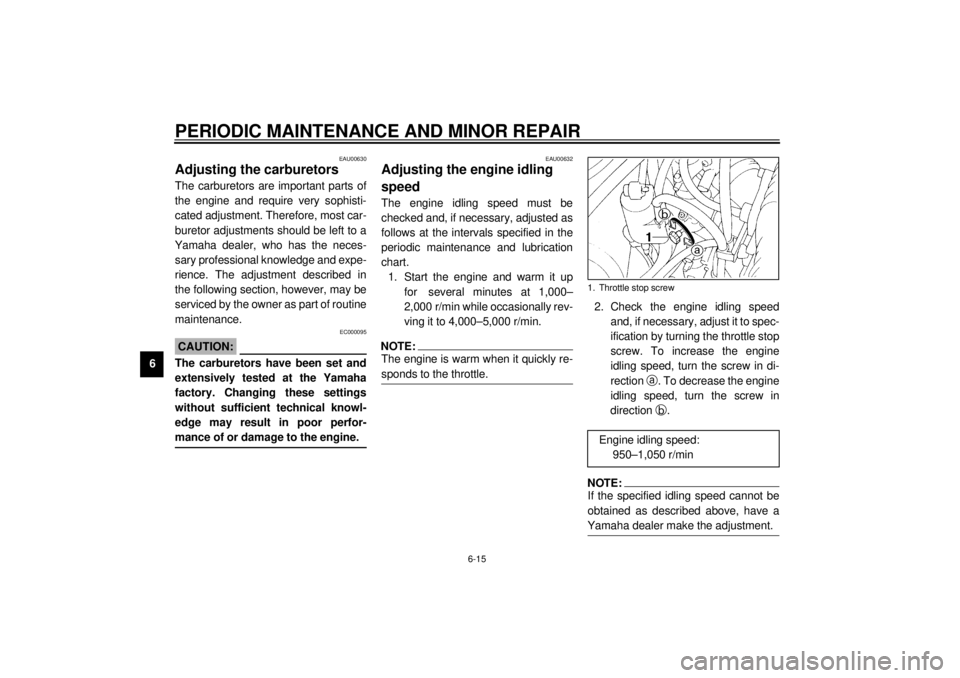

Yamaha dealer make the adjustment. @ 1. Throttle stop screw
Engine idling speed:
950–1,050 r/min
E_4km.book Page 15 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU00635
Adjusting the throttle cable
free play The throttle cable free play should
measure 3–5 mm at the throttle grip.
Periodically check the throttle cable
free play and, if necessary, have a
Yamaha dealer adjust it.a. Throttle cable free play
E_4km.book Page 16 Thursday, September 7, 2000 9:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU00637
Adjusting the valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU00658
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EW000082
WARNING
@ l
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
l
The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
@
CE-01E
CE-07E
EWA00012
WARNING
@ Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind. l
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
Tire air pressure
(measured on cold tires)
Load* Front Rear
Up to 90 kg225 kPa
2.25 kg/cm
2
2.25 bar250 kPa
2.50 kg/cm
2
2.50 bar
90 kg–maximum250 kPa
2.50 kg/cm
2
2.50 bar290 kPa
2.90 kg/cm
2
2.90 bar
High-speed riding250 kPa
2.50 kg/cm
2
2.50 bar290 kPa
2.90 kg/cm
2
2.90 bar
Maximum load* 205 kg
* Total weight of rider, passenger, cargo and
accessories
E_4km.book Page 17 Thursday, September 7, 2000 9:32 AM
