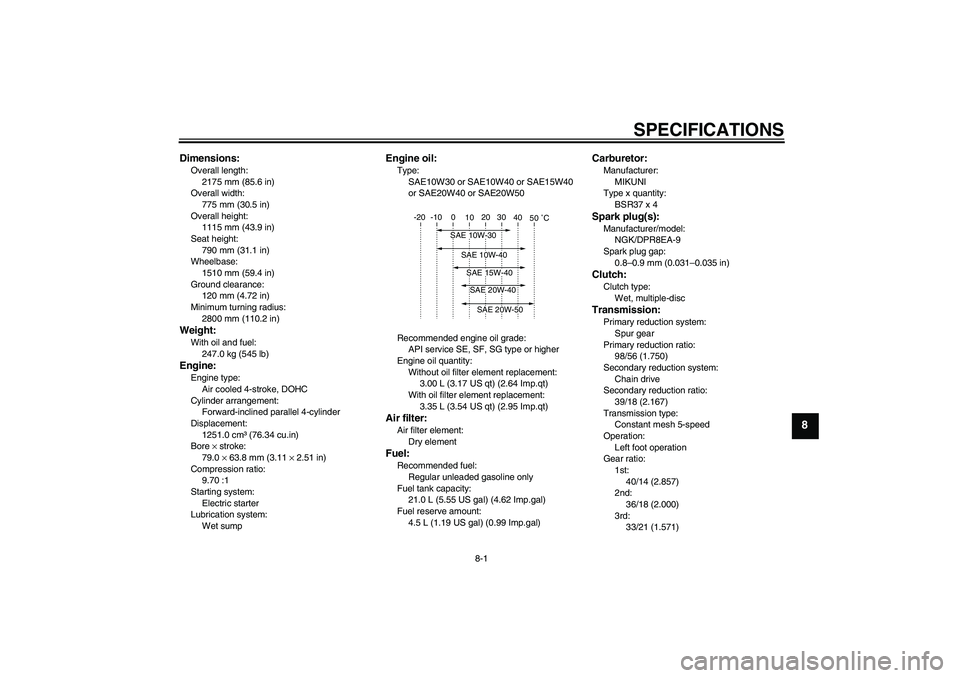

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2175 mm (85.6 in)
Overall width:
775 mm (30.5 in)
Overall height:
1115 mm (43.9 in)
Seat height:
790 mm (31.1 in)
Wheelbase:
1510 mm (59.4 in)
Ground clearance:
120 mm (4.72 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:With oil and fuel:
247.0 kg (545 lb)Engine:Engine type:
Air cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
1251.0 cm³ (76.34 cu.in)
Bore × stroke:
79.0 × 63.8 mm (3.11 × 2.51 in)
Compression ratio:
9.70 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
3.00 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement:
3.35 L (3.54 US qt) (2.95 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
21.0 L (5.55 US gal) (4.62 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)
Carburetor:Manufacturer:
MIKUNI
Type x quantity:
BSR37 x 4Spark plug(s):Manufacturer/model:
NGK/DPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
98/56 (1.750)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
39/18 (2.167)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
40/14 (2.857)
2nd:
36/18 (2.000)
3rd:
33/21 (1.571)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
Page 82 of 90
SPECIFICATIONS
8-2
8
4th:
31/24 (1.292)
5th:
29/26 (1.115)
Chassis:Frame type:
Double cradle
Caster angle:
25.50 °
Trail:
100.0 mm (3.94 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
DUNLOP/D252FJRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
DUNLOP/D252JLoading:Maximum load:
203 kg (448 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
90–203 kg (198–448 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
120.0 mm (4.72 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC generatorBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulb
U5WME2E0.book Page 2 Tuesday, August 3, 2004 11:40 AM
Page 83 of 90
SPECIFICATIONS
8-3
8
Bulb voltage, wattage x quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 4.0 W × 1
Meter lighting:
LED
Neutral indicator light:
12 V, 1.7 W × 1
High beam indicator light:
12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 2
Immobilizer system indicator light:
LEDFuses:Main fuse:
40.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 ABackup fuse:
10.0 A
U5WME2E0.book Page 3 Tuesday, August 3, 2004 11:40 AM
Page 84 of 90
CONSUMER INFORMATION
9-1
9
EAU26351

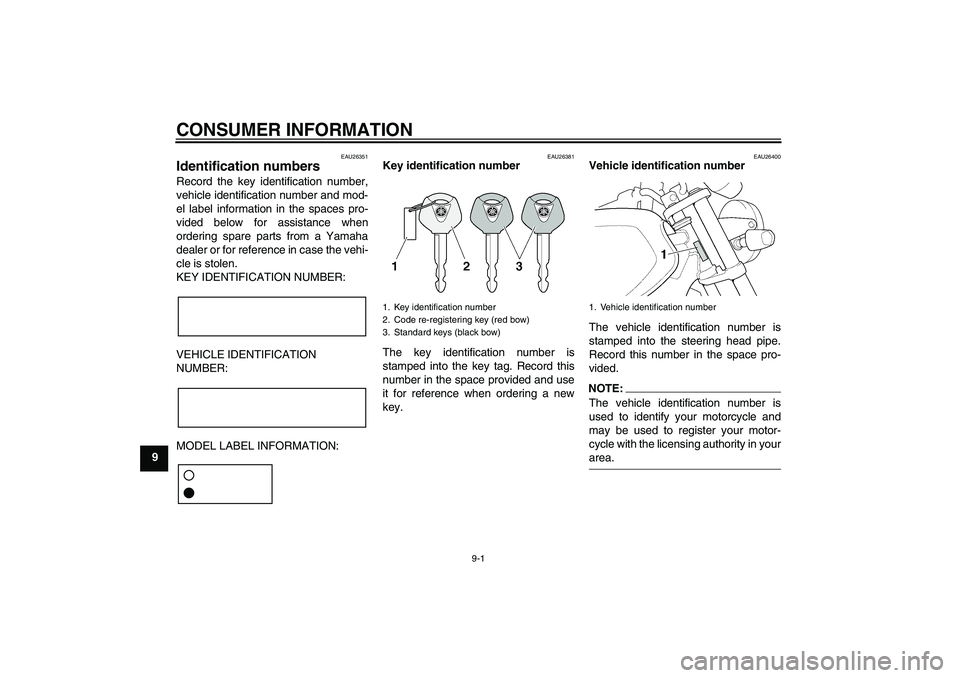

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
Page 85 of 90
CONSUMER INFORMATION
9-2
9
EAU26480

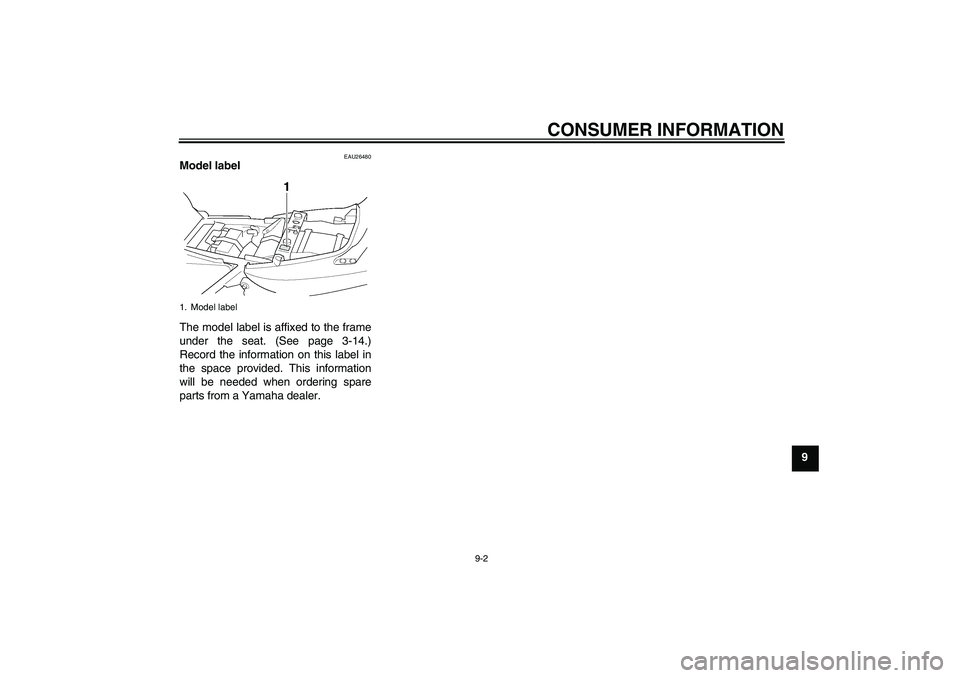

Model label
The model label is affixed to the frame
under the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U5WME2E0.book Page 2 Tuesday, August 3, 2004 11:40 AM
Page 86 of 90
INDEXAAir filter element, cleaning..................... 6-10
Anti-theft alarm (optional)........................ 3-7
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-26
Brake and clutch fluid levels,
checking ............................................. 6-18
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake lever ............................................ 3-10
Brake pedal ........................................... 3-10CCables, checking and lubricating .......... 6-21
Carburetors, adjusting........................... 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Centerstand and sidestand,
checking and lubricating ..................... 6-23
Clutch lever ............................................. 3-9
Clutch lever free play ............................ 6-16DDimmer switch ........................................ 3-8
Drive chain, lubricating.......................... 6-21
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-4
Engine idling speed............................... 6-12
Engine oil and oil filter element ............... 6-8
Engine, starting a warm .......................... 5-2
Engine stop switch .................................. 3-8
FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-24
Fuel....................................................... 3-11
Fuel cock .............................................. 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-12
Fuel tank cap ........................................ 3-11
Fuses, replacing ................................... 6-27HHandlebar switches ................................ 3-7
Hazard switch ......................................... 3-8
Headlight bulb, replacing ...................... 6-28
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ............................................. 3-8IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-19
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLuggage strap holders .......................... 3-18MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-3
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ....................................................... 3-14
Self-diagnosis device .............................. 3-5
Shifting .................................................... 5-3
Shift pedal ............................................... 3-9
Shock absorber assemblies,
adjusting ............................................. 3-17
Sidestand .............................................. 3-18
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starter (choke) lever.............................. 3-14
Starting a cold engine ............................. 5-1
Start switch.............................................. 3-8
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-15
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Tail/brake light bulb, replacing .............. 6-30
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
Page 87 of 90
INDEX
Throttle cable free play, checking ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-22
Tires...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-34
Troubleshooting chart ........................... 6-35
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-30
Turn signal switch ................................... 3-8VValve clearance .................................... 6-13
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-26
Wheel (front) ......................................... 6-31
Wheel (rear).......................................... 6-33
Wheels.................................................. 6-16
U5WME2E0.book Page 2 Tuesday, August 3, 2004 11:40 AM
Page 88 of 90
A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM
Page 89 of 90
A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM
Page 90 of 90
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2004.09-0.3×1 CR
(E)5WM-28199-E2
XJR1300
OWNER’S MANUAL
