DESCRIPTION
2-1
2
EAU10410

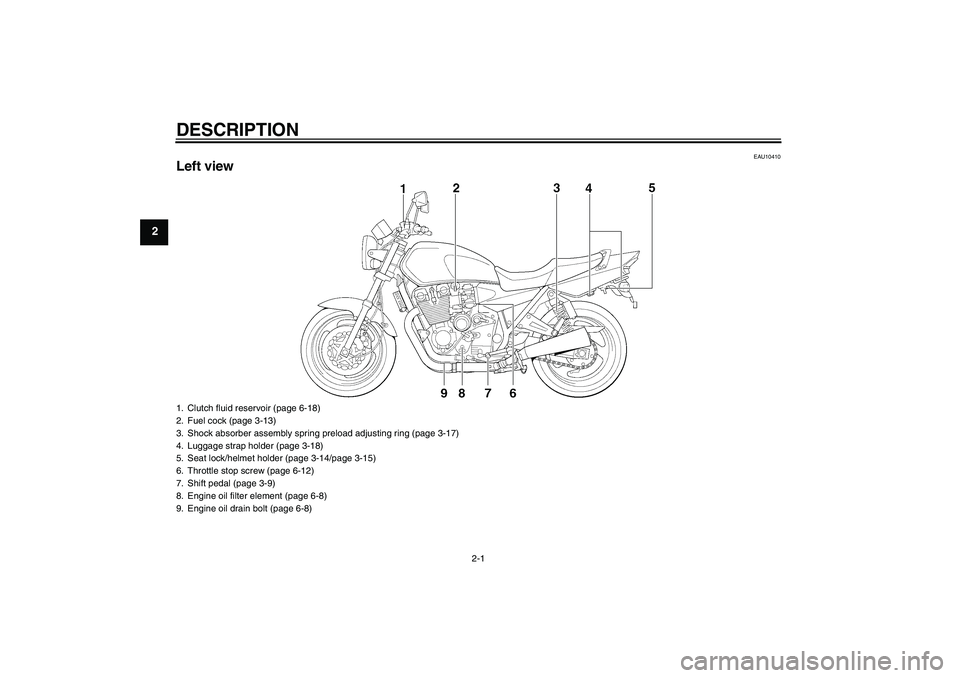

Left view1. Clutch fluid reservoir (page 6-18)
2. Fuel cock (page 3-13)
3. Shock absorber assembly spring preload adjusting ring (page 3-17)
4. Luggage strap holder (page 3-18)
5. Seat lock/helmet holder (page 3-14/page 3-15)
6. Throttle stop screw (page 6-12)
7. Shift pedal (page 3-9)
8. Engine oil filter element (page 6-8)
9. Engine oil drain bolt (page 6-8)U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
62. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:
Skip steps 4–10 if the oil filter elementis not being replaced.
4. Remove panel C. (See page 6-5.)
5. Remove the oil filter element drain
screw to drain the oil from the oil fil-
ter element.
6. Remove the oil filter element cover
by removing the bolt.7. Remove and replace the oil filter
element and O-ring.8. Install the oil filter element cover by
aligning the projection on the cover
with the slot in the crankcase, in-
stalling the bolt, then tightening it
to the specified torque.
NOTE:Make sure that the O-ring is properlyseated.
9. Install the oil filter element drain
screw, and then tighten it to the
specified torque.
1. Engine oil drain bolt
1. Oil filter element drain screw
2. Bolt
3. Oil filter element cover
1. Oil filter element
2. O-ring
1. Projection
2. SlotTightening torque:
Oil filter element cover bolt:
15 Nm (1.5 m·kgf, 11 ft·lbf)
U5WME2E0.book Page 9 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 10. Install the panel.
11. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
12. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do notmix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.
13. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20610
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page
3-14.)
2. Remove panel A. (See page 6-5.)
3. Remove the air filter case cover by
removing the screws.
4. Pull the air filter element out.
Tightening torque:
Oil filter element drain screw:
7 Nm (0.7 m·kgf, 5 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
3.00 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement:
3.35 L (3.54 US qt) (2.95 Imp.qt)
1. Air filter case cover
2. Screw
U5WME2E0.book Page 10 Tuesday, August 3, 2004 11:40 AM

MOTORCYCLE CARE AND STORAGE
7-3
7
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26211
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Turn the fuel cock lever to “ON”.3. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
