INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
CAUTION:
ECA10040
When the tachometer displays an er-
ror code, the vehicle should be
checked as soon as possible in or-der to avoid engine damage.
EAU33572

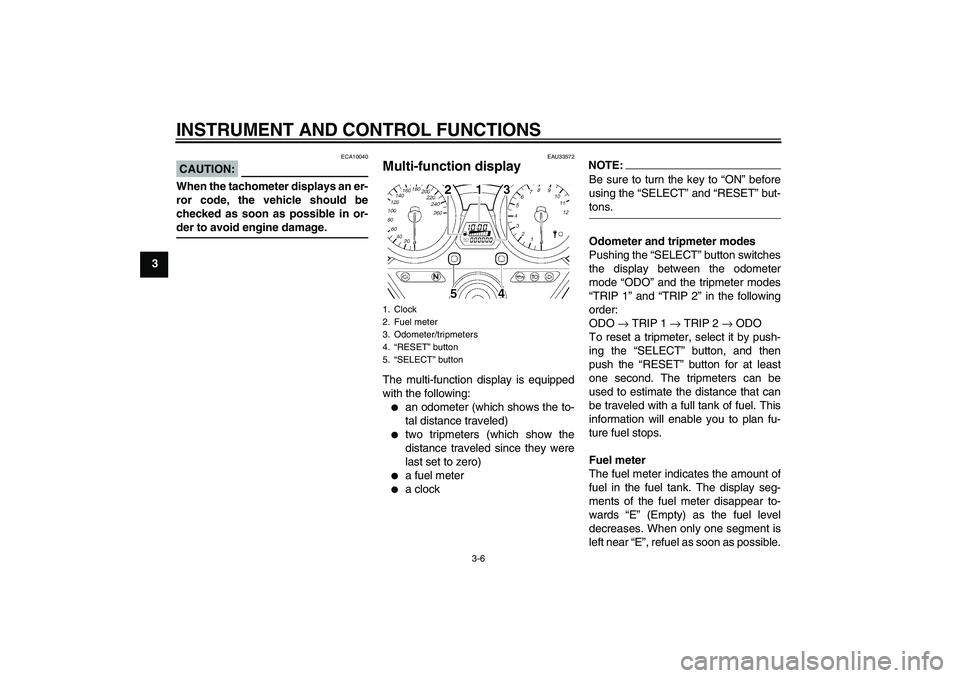

Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel meter


a clock
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. The tripmeters can be
used to estimate the distance that can
be traveled with a full tank of fuel. This
information will enable you to plan fu-
ture fuel stops.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possible.
1. Clock
2. Fuel meter
3. Odometer/tripmeters
4.“RESET” button
5.“SELECT” button
U5WME2E0.book Page 6 Tuesday, August 3, 2004 11:40 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the display segments and
symbol “” will flash. If this occurs,
have a Yamaha dealer check the elec-trical circuit.

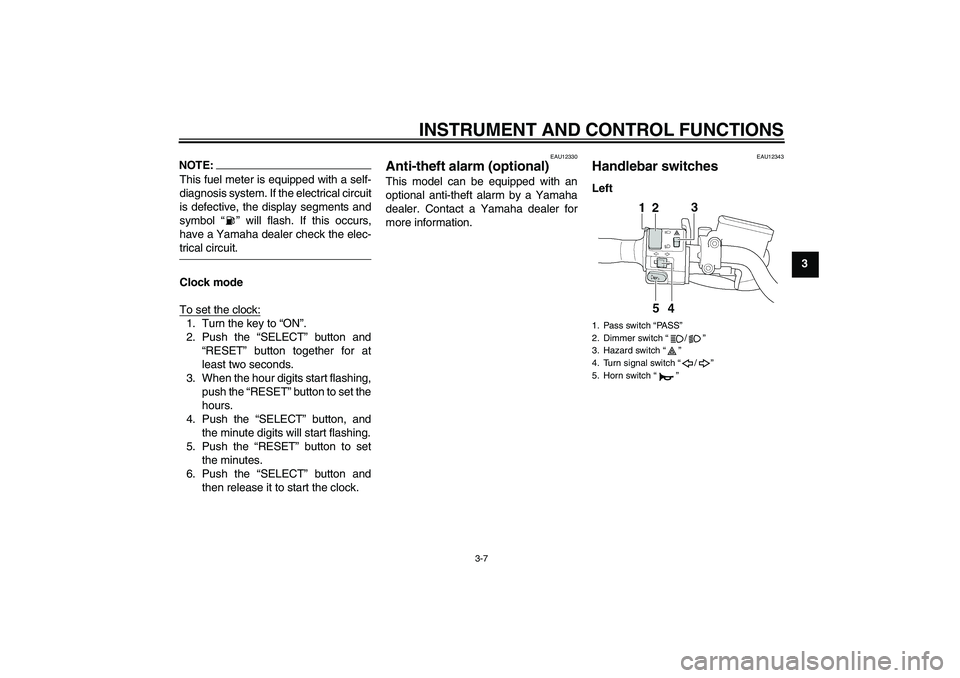

Clock mode
To set the clock:1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flashing,
push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Push the “RESET” button to set
the minutes.
6. Push the “SELECT” button and
then release it to start the clock.
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12343
Handlebar switches Left1. Pass switch “PA S S”
2. Dimmer switch “/”
3. Hazard switch “”
4. Turn signal switch “/”
5. Horn switch “”
