INSTRUMENT AND CONTROL FUNCTIONS
3-17

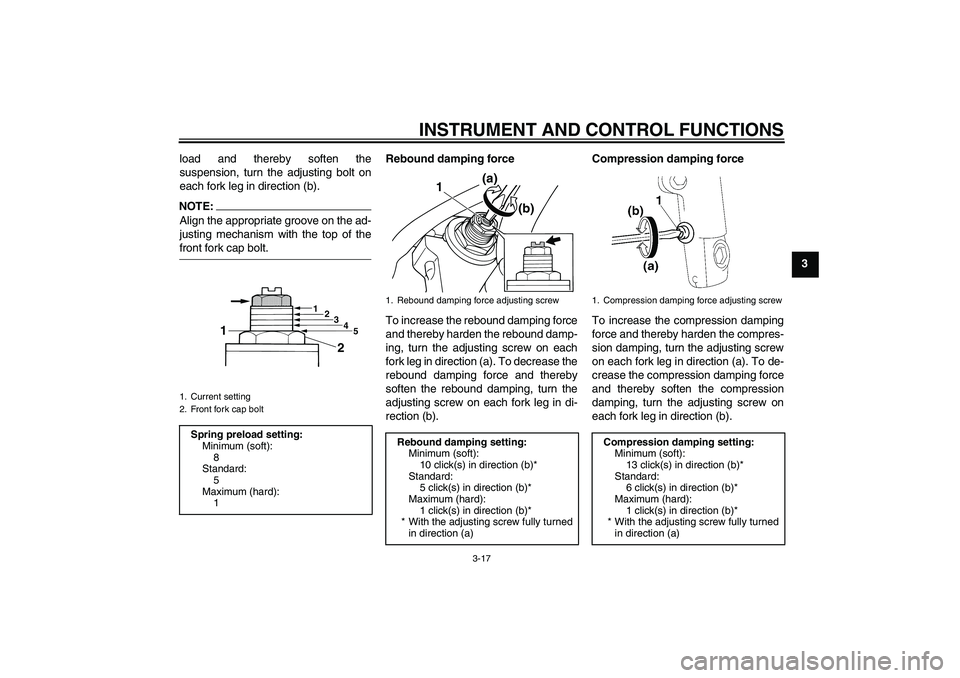

3 load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction (b).
NOTE:Align the appropriate groove on the ad-
justing mechanism with the top of thefront fork cap bolt.Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and thereby
soften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
on each fork leg in direction (a). To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting screw on
each fork leg in direction (b).1. Current setting
2. Front fork cap boltSpring preload setting:
Minimum (soft):
8
Standard:
5
Maximum (hard):
1
1
2
3
4
5
2 1
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
10 click(s) in direction (b)*
Standard:
5 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1(a)
(b)
1. Compression damping force adjusting screw
Compression damping setting:
Minimum (soft):
13 click(s) in direction (b)*
Standard:
6 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
U5WME5E0.book Page 17 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.NOTE:Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify thespecifications as necessary.
EAU43252

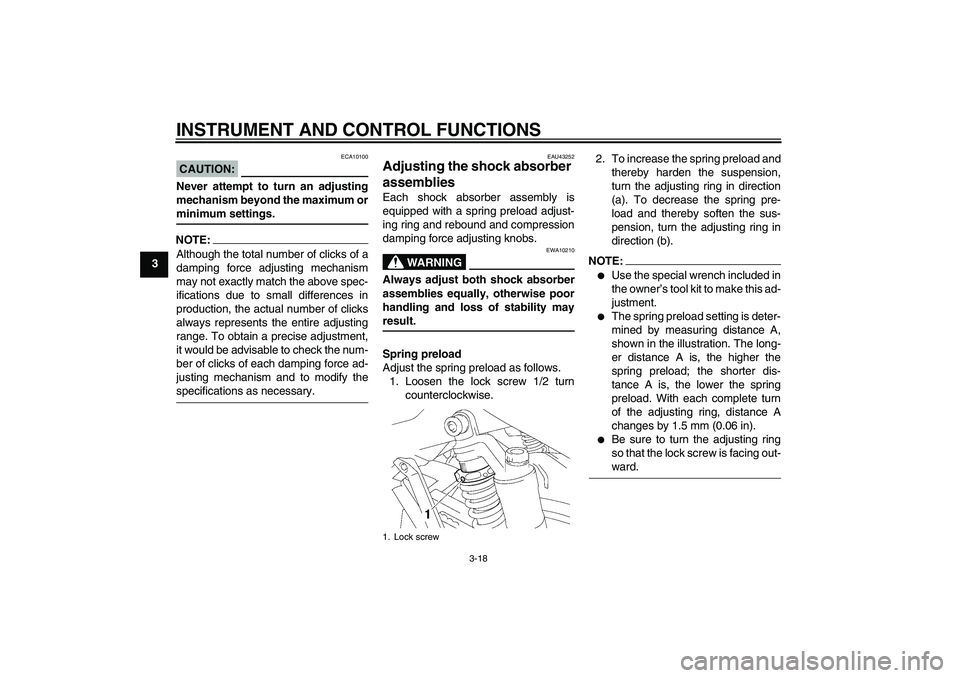

Adjusting the shock absorber
assemblies Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring and rebound and compression
damping force adjusting knobs.
WARNING
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability mayresult.
Spring preload
Adjust the spring preload as follows.
1. Loosen the lock screw 1/2 turn
counterclockwise.2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting ring in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting ring in
direction (b).
NOTE:

Use the special wrench included in
the owner’s tool kit to make this ad-
justment.


The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The long-
er distance A is, the higher the
spring preload; the shorter dis-
tance A is, the lower the spring
preload. With each complete turn
of the adjusting ring, distance A
changes by 1.5 mm (0.06 in).


Be sure to turn the adjusting ring
so that the lock screw is facing out-ward.
1. Lock screw
U5WME5E0.book Page 18 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3 3. Tighten the lock screw to the spec-
ified torque.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob in direction(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting knob in di-
rection (b).
Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting knob
1. Special wrench
2. Spring preload adjusting ring
1. Distance A
Spring preload setting:
Minimum (soft):
Distance A = 0 mm (0 in)
Standard:
Distance A = 17 mm (0.67 in)
Maximum (hard):
Distance A = 28 mm (1.10 in)
Tightening torque:
Lock screw:
0.1 Nm (0.01 m·kgf, 0.07 ft·lbf)
1. Rebound damping force adjusting knob
Rebound damping setting:
Minimum (soft):
36 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)
1. Compression damping force adjusting knob
U5WME5E0.book Page 19 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3in direction (a). To decrease the com-
pression damping force and thereby
soften the compression damping, turn
the adjusting knob in direction (b).
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.NOTE:Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
WARNING
EWA10230
These shock absorbers contain
highly pressurized nitrogen gas. For
proper handling read and under-
stand the following information be-
fore handling the shock absorbers.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.

Do not tamper with or attempt to
open the gas cylinders.


Do not subject the shock ab-
sorbers to an open flame or oth-
er high heat sources, otherwise
they may explode due to exces-
sive gas pressure.


Do not deform or damage the
gas cylinders in any way, as this
will result in poor damping per-
formance.


Always have a Yamaha dealerservice the shock absorbers.
EAU43440

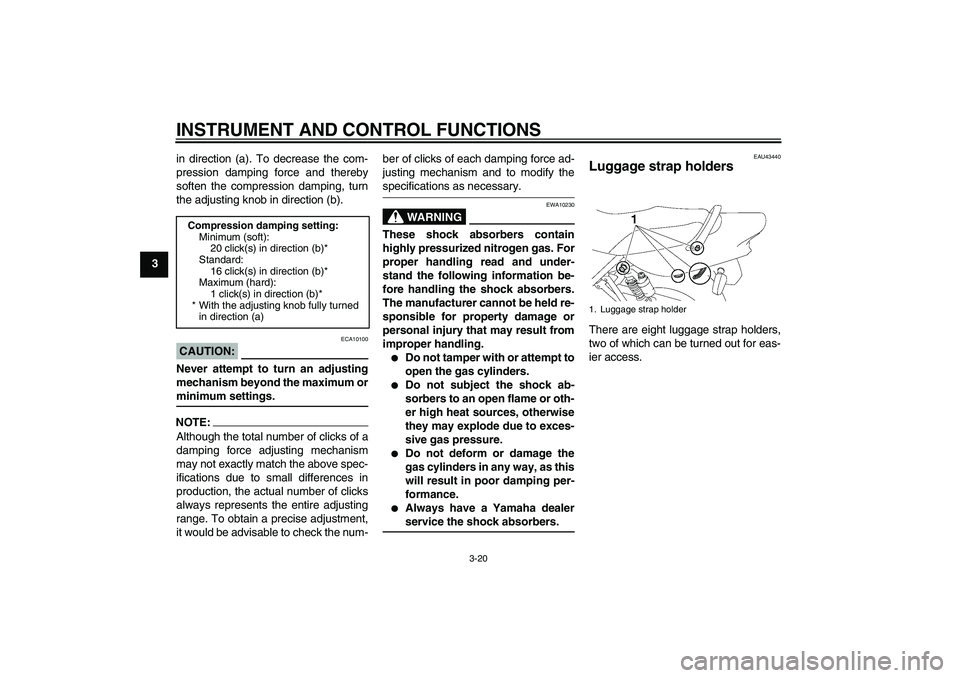

Luggage strap holders There are eight luggage strap holders,
two of which can be turned out for eas-
ier access.
Compression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
16 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)
1. Luggage strap holder
U5WME5E0.book Page 20 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
EAU15281

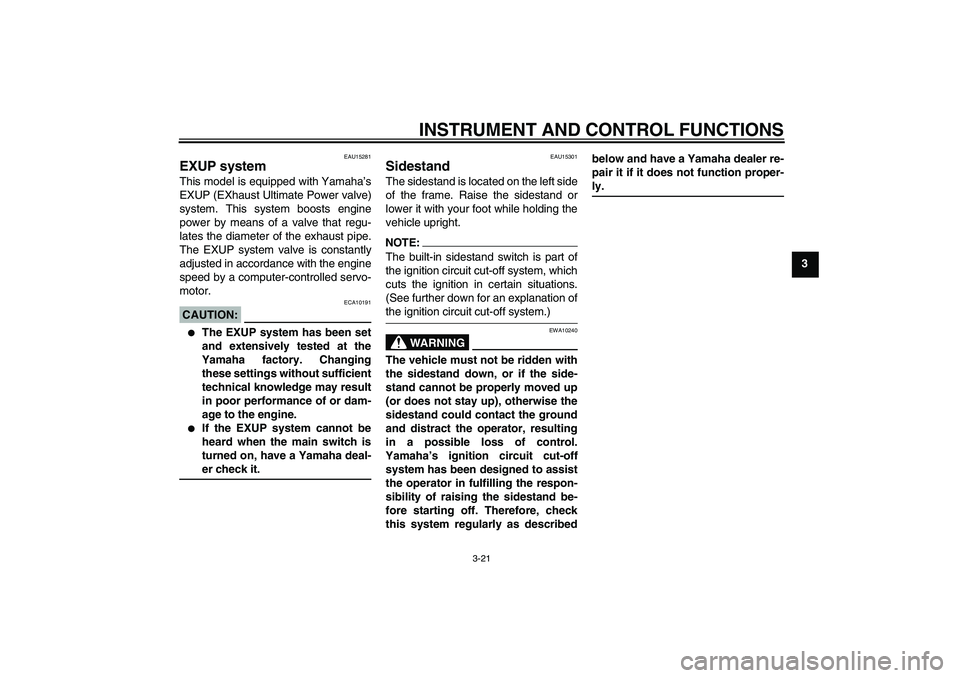

EXUP system This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that regu-
lates the diameter of the exhaust pipe.
The EXUP system valve is constantly
adjusted in accordance with the engine
speed by a computer-controlled servo-
motor.CAUTION:
ECA10191


The EXUP system has been set
and extensively tested at the
Yamaha factory. Changing
these settings without sufficient
technical knowledge may result
in poor performance of or dam-
age to the engine.


If the EXUP system cannot be
heard when the main switch is
turned on, have a Yamaha deal-er check it.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
U5WME5E0.book Page 21 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
EAU44900

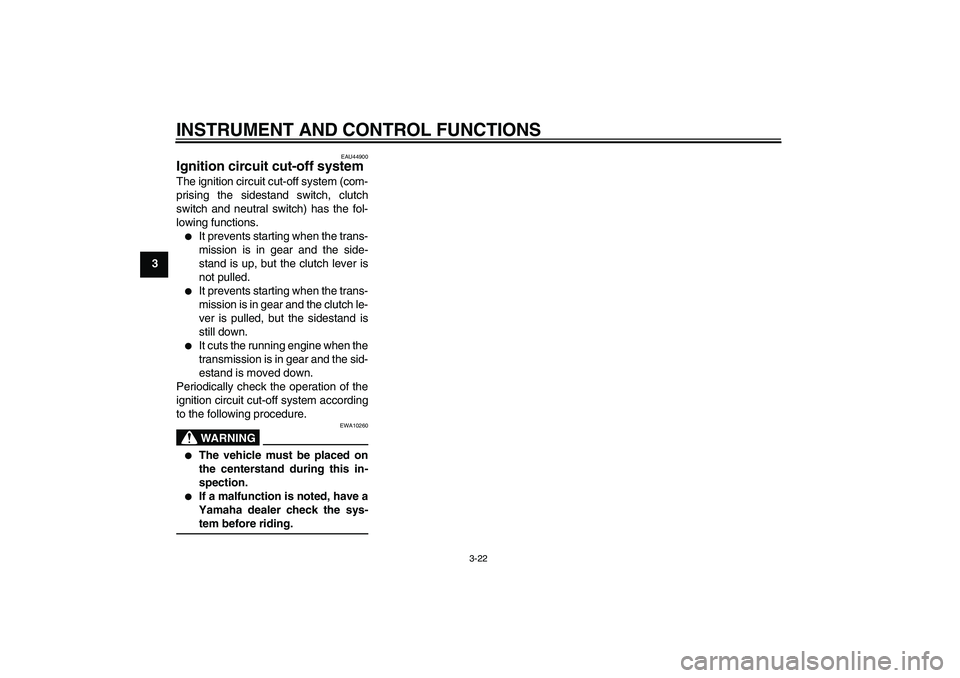

Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10260


The vehicle must be placed on
the centerstand during this in-
spection.


If a malfunction is noted, have a
Yamaha dealer check the sys-tem before riding.
U5WME5E0.book Page 22 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-23
3

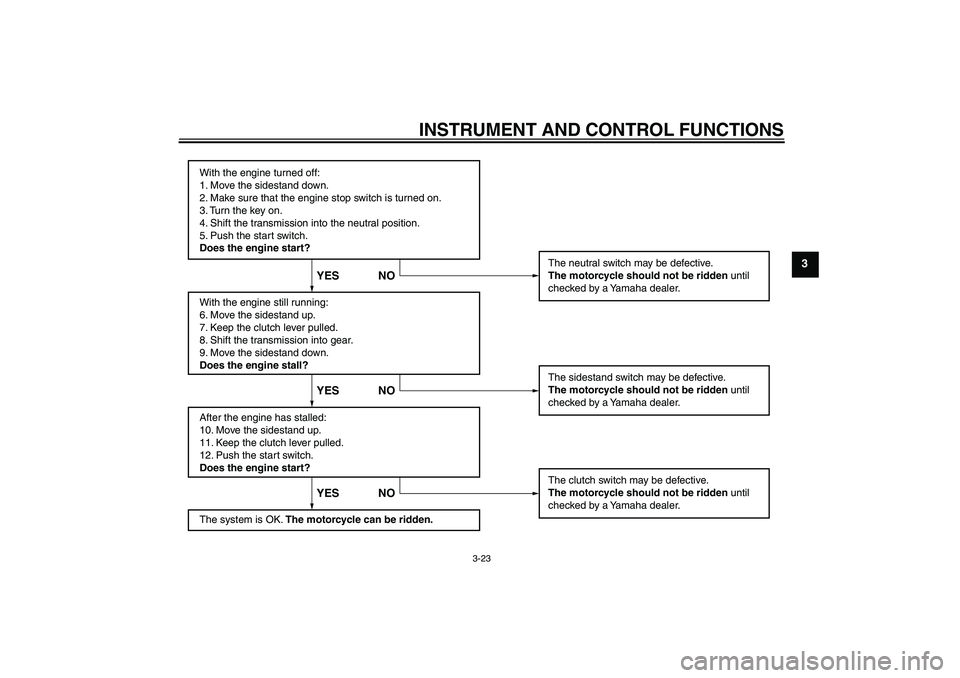

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
U5WME5E0.book Page 23 Wednesday, December 5, 2007 10:30 AM

PRE-OPERATION CHECKS
4-1
4
EAU15593

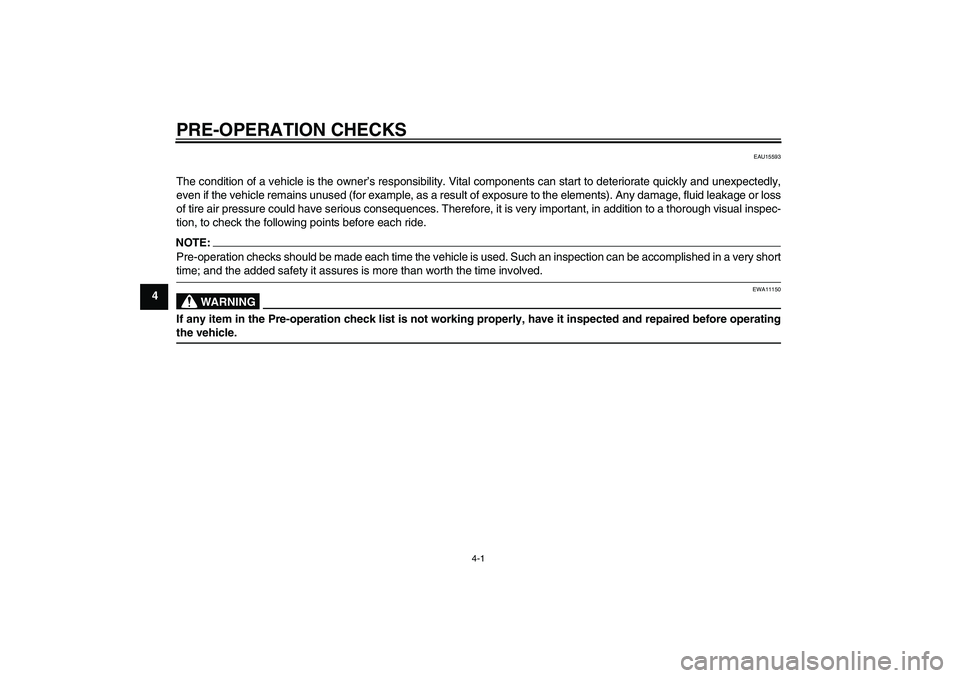

The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.NOTE:Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very shorttime; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operatingthe vehicle.U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM

PRE-OPERATION CHECKS
4-2
4
EAU15605

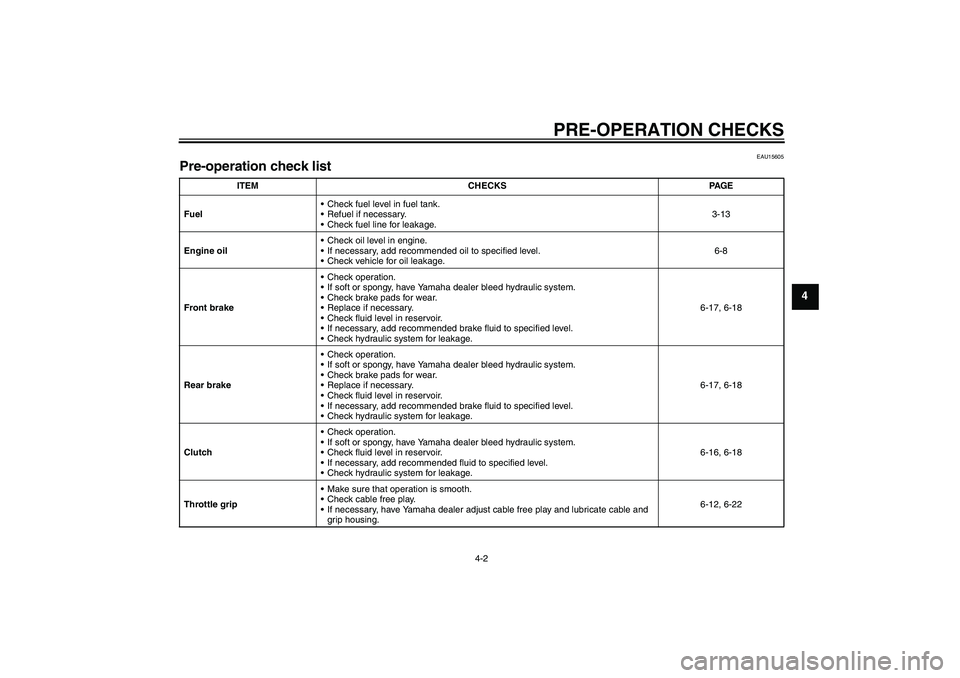

Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-13
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-8
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
ClutchCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended fluid to specified level.
Check hydraulic system for leakage.6-16, 6-18
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-12, 6-22
U5WME5E0.book Page 2 Wednesday, December 5, 2007 10:30 AM

PRE-OPERATION CHECKS
4-3
4
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-19, 6-21
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-13, 6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-23
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-21 ITEM CHECKS PAGE
U5WME5E0.book Page 3 Wednesday, December 5, 2007 10:30 AM
