fuses YAMAHA XJR 1300 2008 Owners Manual

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-10
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather hose ................3-14
Catalytic converters ......................3-14
Seat ..............................................3-15
Helmet holder ...............................3-15
Storage compartment ...................3-16
Adjusting the front fork ..................3-16
Adjusting the shock absorber
assemblies ................................3-18Luggage strap holders ................. 3-20
EXUP system ............................... 3-21
Sidestand ..................................... 3-21
Ignition circuit cut-off system ........ 3-22
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-6
Checking the spark plugs ............... 6-7
Engine oil and oil filter element ...... 6-8
Replacing the air filter element
and cleaning the check hose .... 6-11
Checking the throttle cable
free play .................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13Cast wheels ................................. 6-16
Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ....................................... 6-16
Checking the front and rear
brake pads ................................ 6-17
Checking the brake and clutch
fluid levels ................................. 6-18
Changing the brake and clutch
fluids ......................................... 6-19
Drive chain slack .......................... 6-19
Cleaning and lubricating the
drive chain ................................ 6-21
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-23
Lubricating the swingarm
pivots ........................................ 6-24
Checking the front fork ................. 6-24
Checking the steering .................. 6-25
Checking the wheel bearings ....... 6-26
Battery ......................................... 6-26
Replacing the fuses ..................... 6-27
Replacing the headlight bulb ....... 6-28U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM

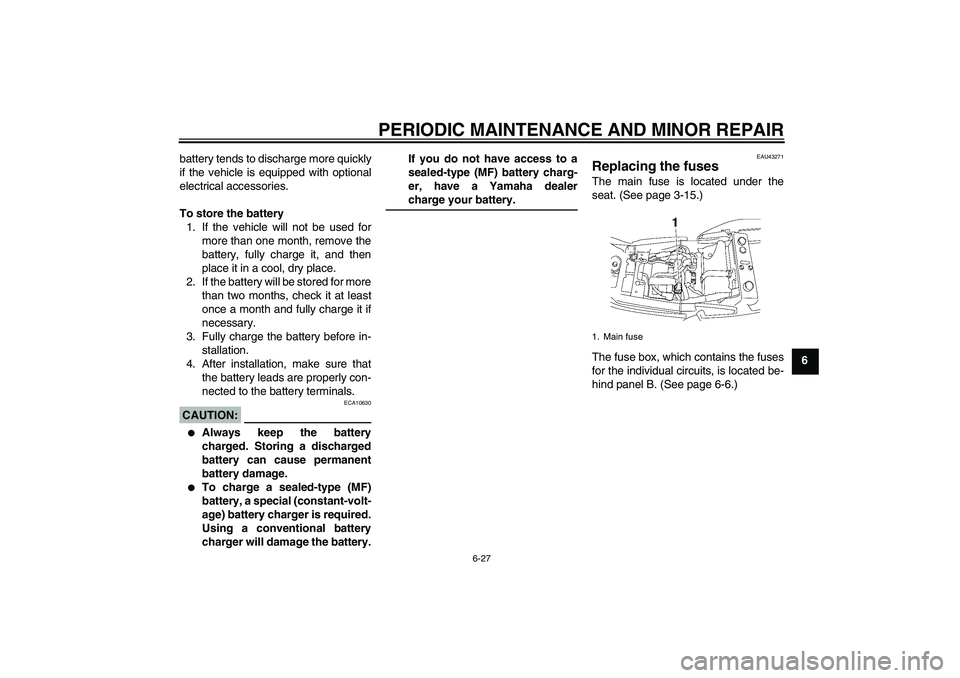

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU43271
Replacing the fuses The main fuse is located under the
seat. (See page 3-15.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel B. (See page 6-6.)1. Main fuse
U5WME5E0.book Page 27 Wednesday, December 5, 2007 10:30 AM

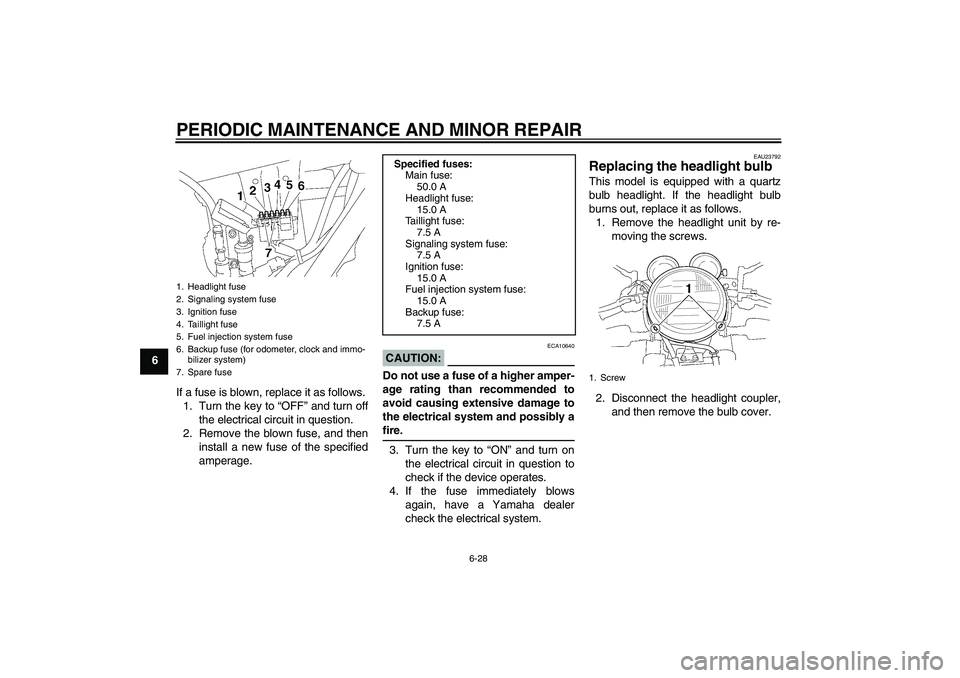

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23792
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
1. Screw
U5WME5E0.book Page 28 Wednesday, December 5, 2007 10:30 AM

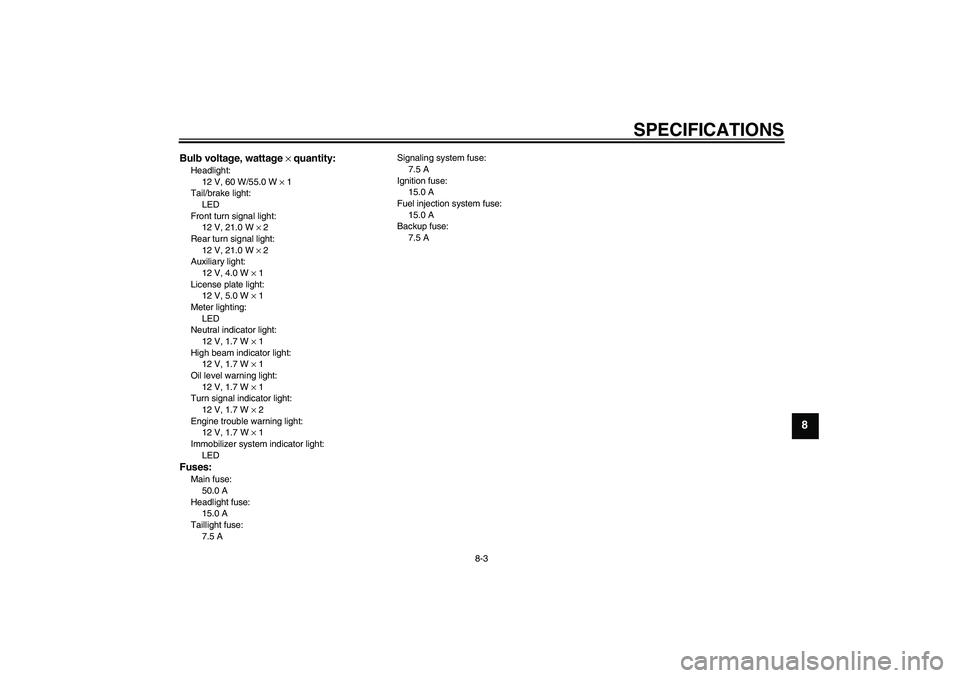

SPECIFICATIONS
8-3
8
Bulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 4.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
12 V, 1.7 W × 1
High beam indicator light:
12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 2
Engine trouble warning light:
12 V, 1.7 W × 1
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 ASignaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
U5WME5E0.book Page 3 Wednesday, December 5, 2007 10:30 AM

INDEXAAir filter element and check hose,
replacing and cleaning........................ 6-11
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-26
Brake and clutch fluid levels,
checking ............................................. 6-18
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake and shift pedals, checking and
lubricating ........................................... 6-22
Brake lever ............................................ 3-11
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converters .............................. 3-14
Centerstand and sidestand, checking
and lubricating .................................... 6-23
Clutch lever .................................. 3-10, 6-16DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-21
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine oil and oil filter element ............... 6-8
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-21
FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-24
Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-14
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-27HHandlebar switches ................................ 3-9
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-28
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-22
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-31
Luggage strap holders .......................... 3-20MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-6
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ....................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assemblies,
adjusting ............................................. 3-18
Sidestand .............................................. 3-21
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-16
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Tail/brake light ....................................... 6-30
Throttle cable free play, checking ......... 6-12
U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM
