spark plugs YAMAHA XJR 1300 2008 Owners Manual

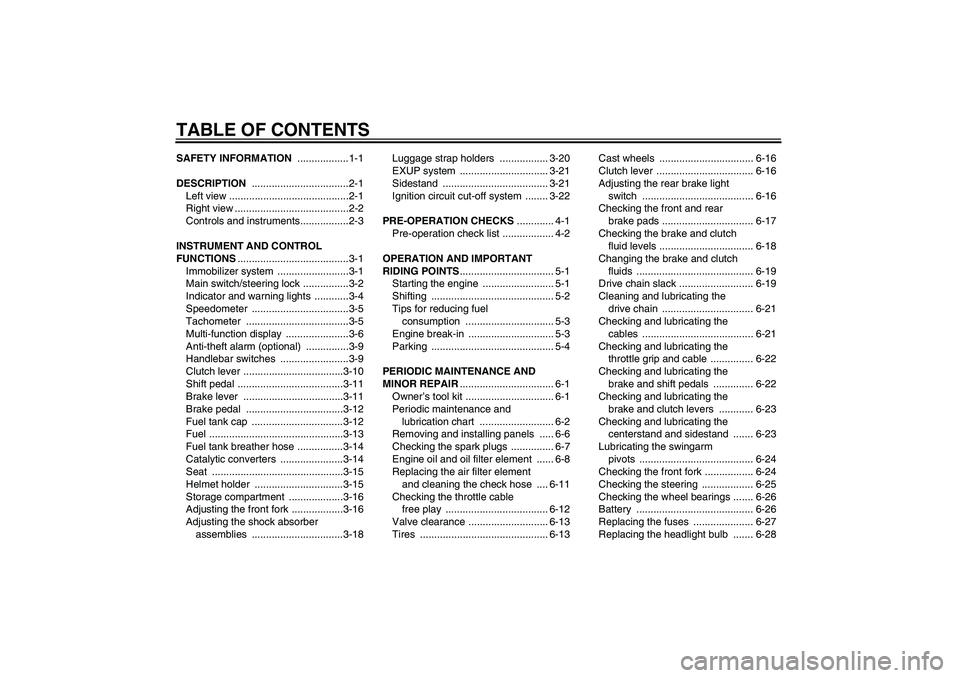

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-10
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather hose ................3-14
Catalytic converters ......................3-14
Seat ..............................................3-15
Helmet holder ...............................3-15
Storage compartment ...................3-16
Adjusting the front fork ..................3-16
Adjusting the shock absorber
assemblies ................................3-18Luggage strap holders ................. 3-20
EXUP system ............................... 3-21
Sidestand ..................................... 3-21
Ignition circuit cut-off system ........ 3-22
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-6
Checking the spark plugs ............... 6-7
Engine oil and oil filter element ...... 6-8
Replacing the air filter element
and cleaning the check hose .... 6-11
Checking the throttle cable
free play .................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13Cast wheels ................................. 6-16
Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ....................................... 6-16
Checking the front and rear
brake pads ................................ 6-17
Checking the brake and clutch
fluid levels ................................. 6-18
Changing the brake and clutch
fluids ......................................... 6-19
Drive chain slack .......................... 6-19
Cleaning and lubricating the
drive chain ................................ 6-21
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-23
Lubricating the swingarm
pivots ........................................ 6-24
Checking the front fork ................. 6-24
Checking the steering .................. 6-25
Checking the wheel bearings ....... 6-26
Battery ......................................... 6-26
Replacing the fuses ..................... 6-27
Replacing the headlight bulb ....... 6-28U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A

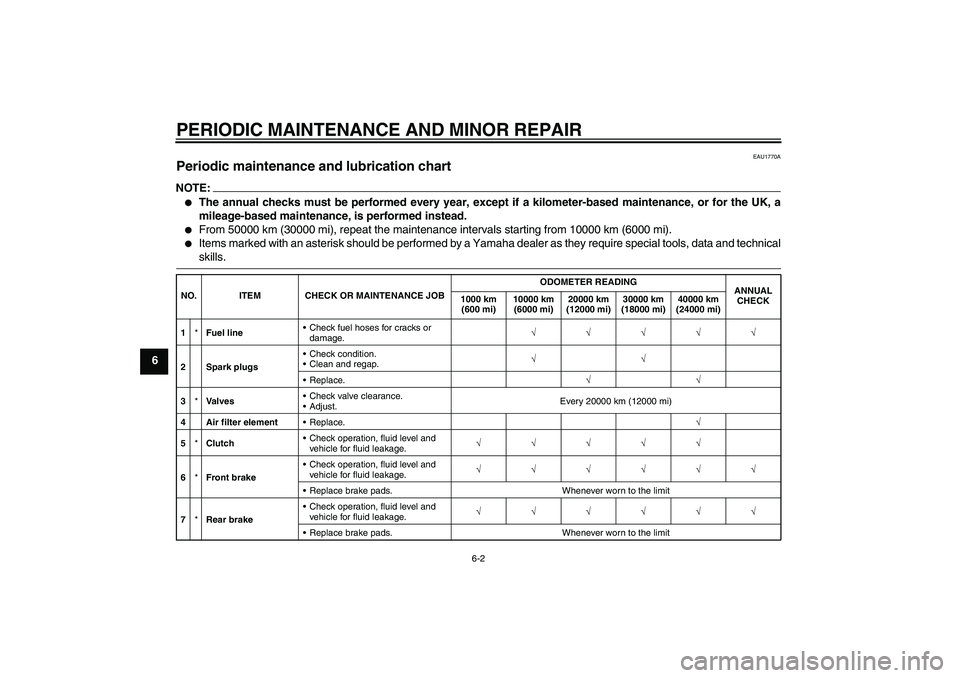

Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2 Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 20000 km (12000 mi)
4 Air filter elementReplace.√
5*ClutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U5WME5E0.book Page 2 Wednesday, December 5, 2007 10:30 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU19193

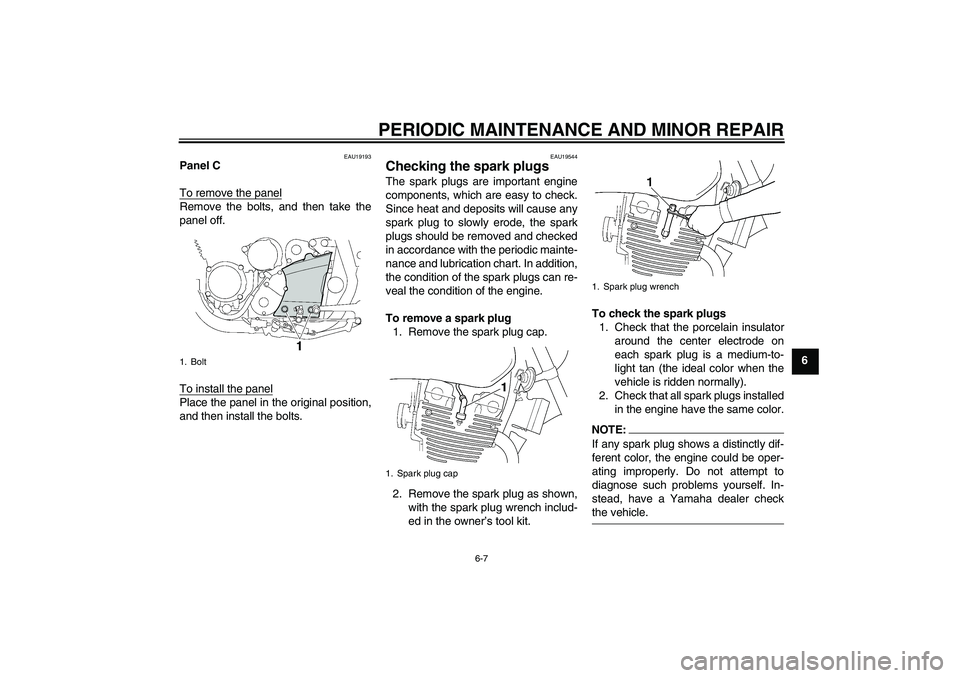

Panel C
To remove the panelRemove the bolts, and then take the
panel off.
To install the panelPlace the panel in the original position,
and then install the bolts.
EAU19544
Checking the spark plugs The spark plugs are important engine
components, which are easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plugs should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
To remove a spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.To check the spark plugs
1. Check that the porcelain insulator
around the center electrode on
each spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
2. Check that all spark plugs installed
in the engine have the same color.
NOTE:If any spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.
1. Bolt
1. Spark plug cap
1. Spark plug wrench
U5WME5E0.book Page 7 Wednesday, December 5, 2007 10:30 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU42600

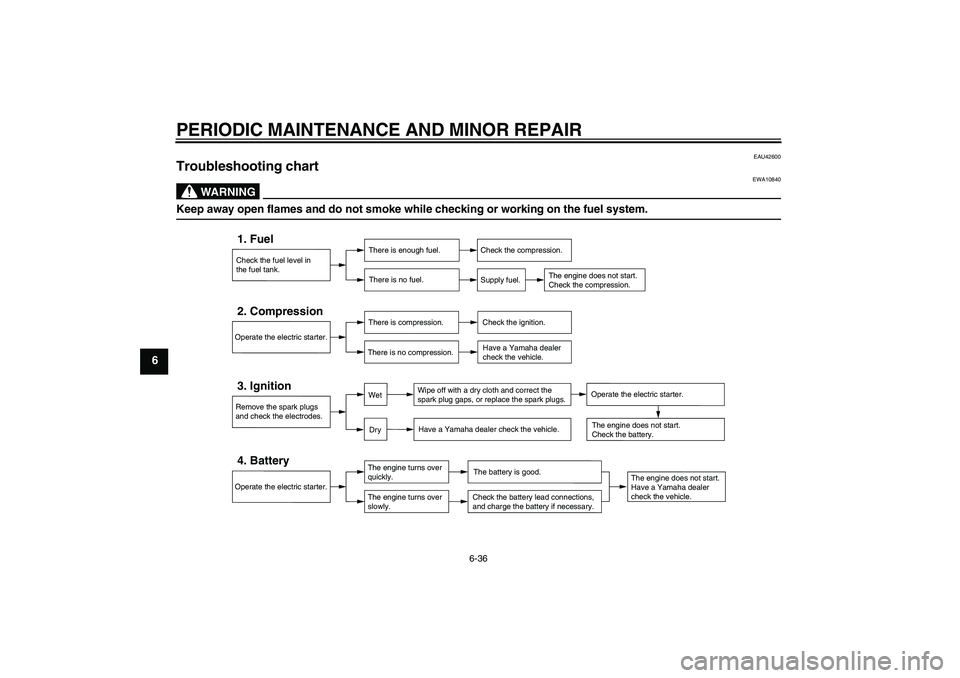

Troubleshooting chart
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U5WME5E0.book Page 36 Wednesday, December 5, 2007 10:30 AM

MOTORCYCLE CARE AND STORAGE
7-4

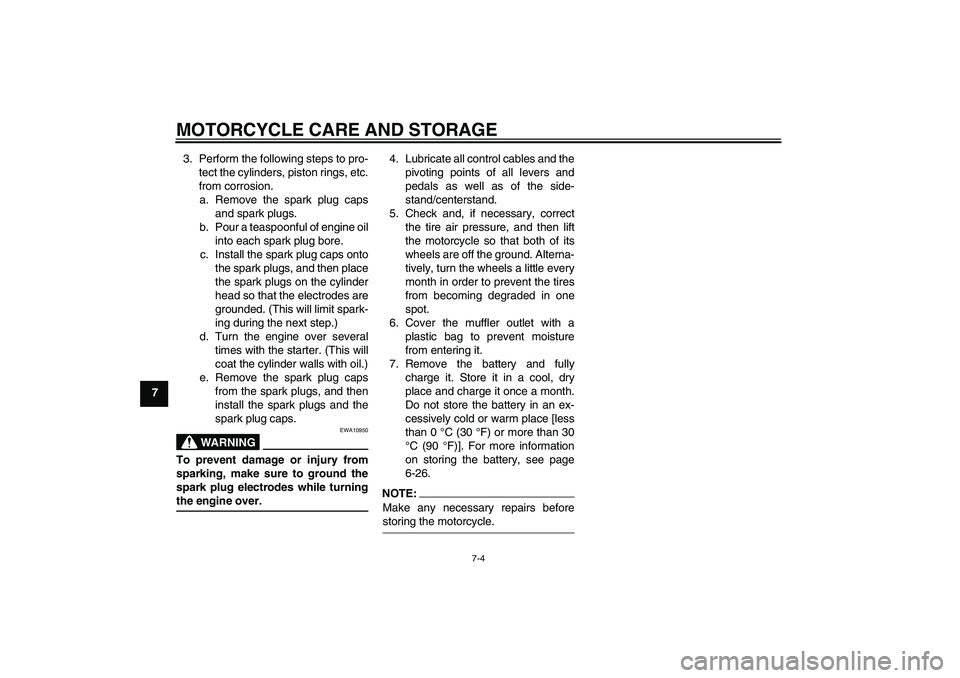

73. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-26.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U5WME5E0.book Page 4 Wednesday, December 5, 2007 10:30 AM

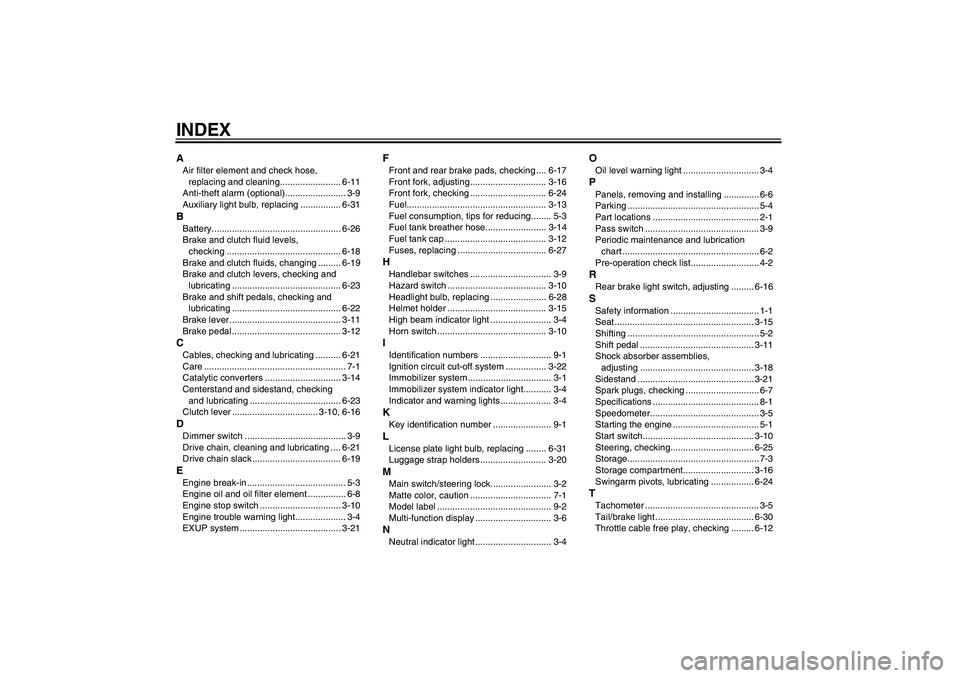

INDEXAAir filter element and check hose,
replacing and cleaning........................ 6-11
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-26
Brake and clutch fluid levels,
checking ............................................. 6-18
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake and shift pedals, checking and
lubricating ........................................... 6-22
Brake lever ............................................ 3-11
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converters .............................. 3-14
Centerstand and sidestand, checking
and lubricating .................................... 6-23
Clutch lever .................................. 3-10, 6-16DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-21
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine oil and oil filter element ............... 6-8
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-21
FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-24
Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-14
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-27HHandlebar switches ................................ 3-9
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-28
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-22
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-31
Luggage strap holders .......................... 3-20MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-6
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ....................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assemblies,
adjusting ............................................. 3-18
Sidestand .............................................. 3-21
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-16
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Tail/brake light ....................................... 6-30
Throttle cable free play, checking ......... 6-12
U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM
