YAMAHA XJR 1300 2011 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2011, Model line: XJR 1300, Model: YAMAHA XJR 1300 2011Pages: 96, PDF Size: 3.33 MB

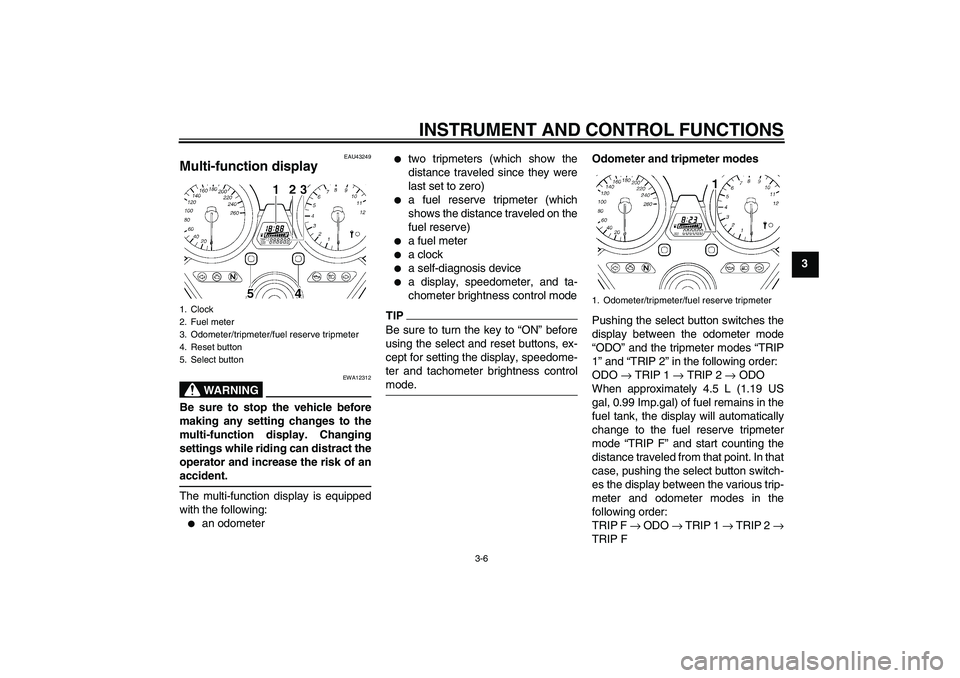

Page 21 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU43249
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.The multi-function display is equipped
with the following:
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
a fuel meter
a clock
a self-diagnosis device
a display, speedometer, and ta-
chometer brightness control mode
TIPBe sure to turn the key to “ON” before
using the select and reset buttons, ex-
cept for setting the display, speedome-
ter and tachometer brightness control
mode.
Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “TRIP
1” and “TRIP 2” in the following order:
ODO → TRIP 1 → TRIP 2 → ODO
When approximately 4.5 L (1.19 US
gal, 0.99 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting the
distance traveled from that point. In that
case, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
TRIP F → ODO → TRIP 1 → TRIP 2 →
TRIP F
1. Clock
2. Fuel meter
3. Odometer/tripmeter/fuel reserve tripmeter
4. Reset button
5. Select button
1. Odometer/tripmeter/fuel reserve tripmeter
U5WME8E0.book Page 6 Monday, August 9, 2010 3:10 PM

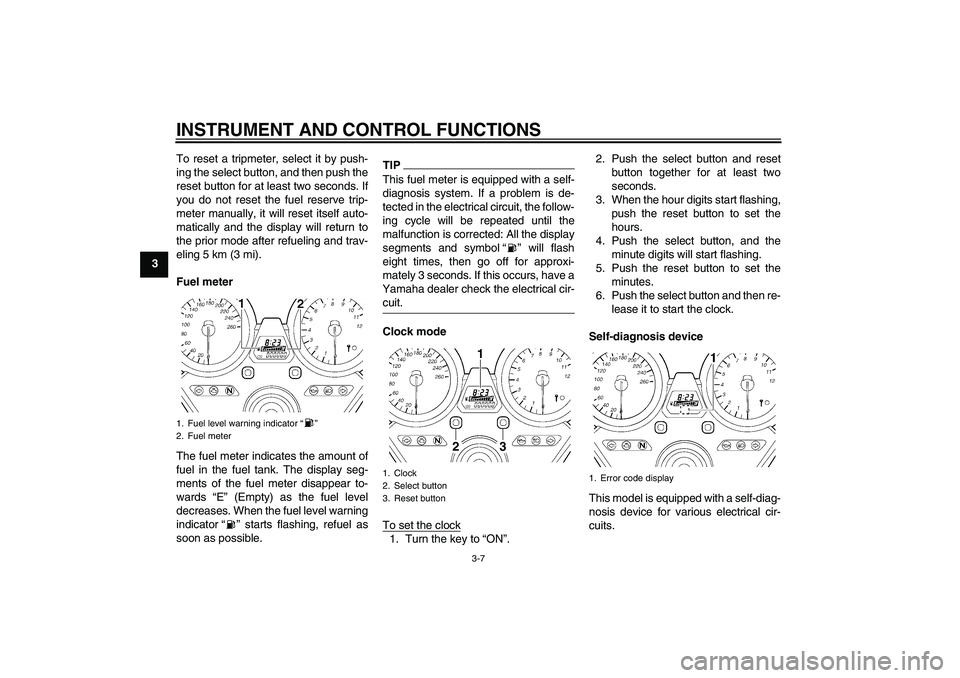

Page 22 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3To reset a tripmeter, select it by push-
ing the select button, and then push the
reset button for at least two seconds. If
you do not reset the fuel reserve trip-
meter manually, it will reset itself auto-
matically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the fuel level warning
indicator“” starts flashing, refuel as
soon as possible.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, the follow-
ing cycle will be repeated until the
malfunction is corrected: All the display
segments and symbol“” will flash
eight times, then go off for approxi-
mately 3 seconds. If this occurs, have a
Yamaha dealer check the electrical cir-
cuit.Clock mode
To set the clock1. Turn the key to “ON”.2. Push the select button and reset
button together for at least two
seconds.
3. When the hour digits start flashing,
push the reset button to set the
hours.
4. Push the select button, and the
minute digits will start flashing.
5. Push the reset button to set the
minutes.
6. Push the select button and then re-
lease it to start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
1. Fuel level warning indicator“”
2. Fuel meter
1. Clock
2. Select button
3. Reset button
1
3
2
1. Error code display
U5WME8E0.book Page 7 Monday, August 9, 2010 3:10 PM

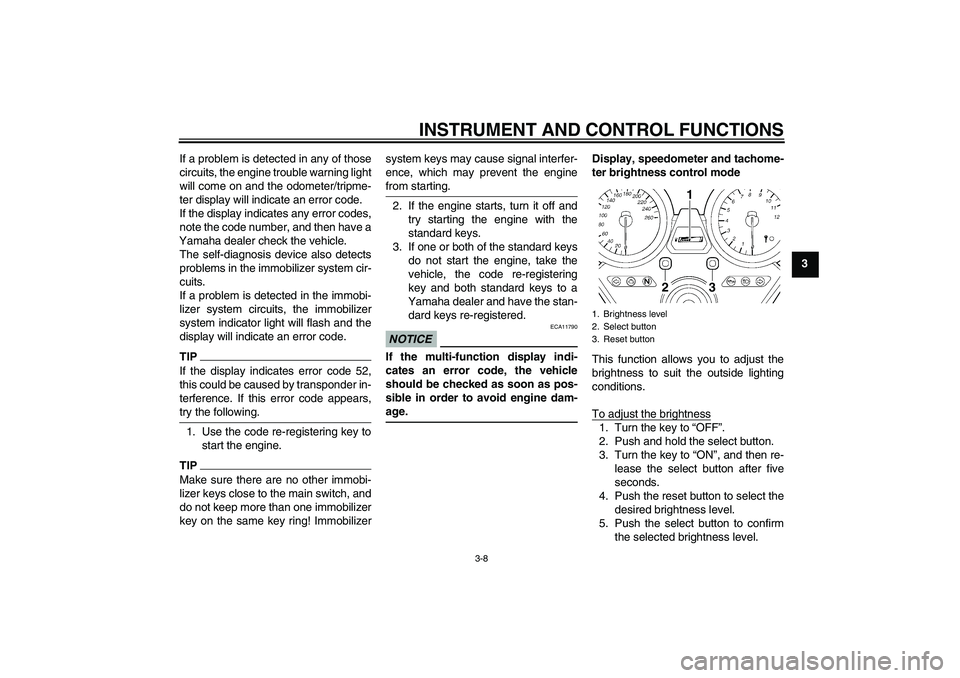

Page 23 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3 If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the odometer/tripme-
ter display will indicate an error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
display will indicate an error code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,
try the following.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizersystem keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.NOTICE
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.
Display, speedometer and tachome-
ter brightness control mode
This function allows you to adjust the
brightness to suit the outside lighting
conditions.
To adjust the brightness1. Turn the key to “OFF”.
2. Push and hold the select button.
3. Turn the key to “ON”, and then re-
lease the select button after five
seconds.
4. Push the reset button to select the
desired brightness level.
5. Push the select button to confirm
the selected brightness level.1. Brightness level
2. Select button
3. Reset button
1
3
2
U5WME8E0.book Page 8 Monday, August 9, 2010 3:10 PM
Page 24 of 96

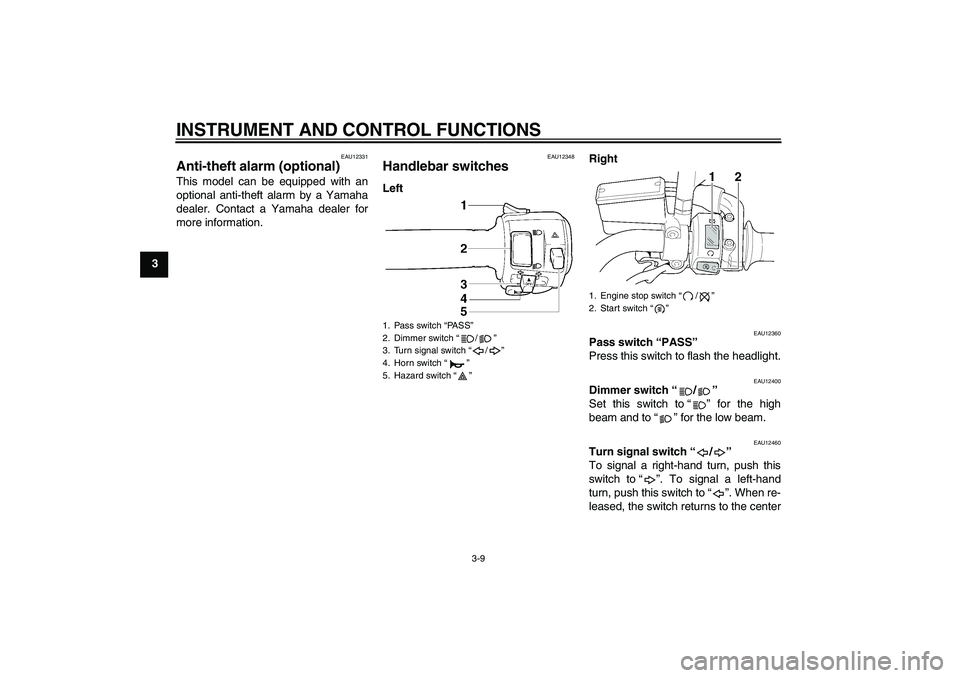

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches LeftRight
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
1. Pass switch “PA S S”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
5. Hazard switch“”
1. Engine stop switch“/”
2. Start switch“”
U5WME8E0.book Page 9 Monday, August 9, 2010 3:10 PM

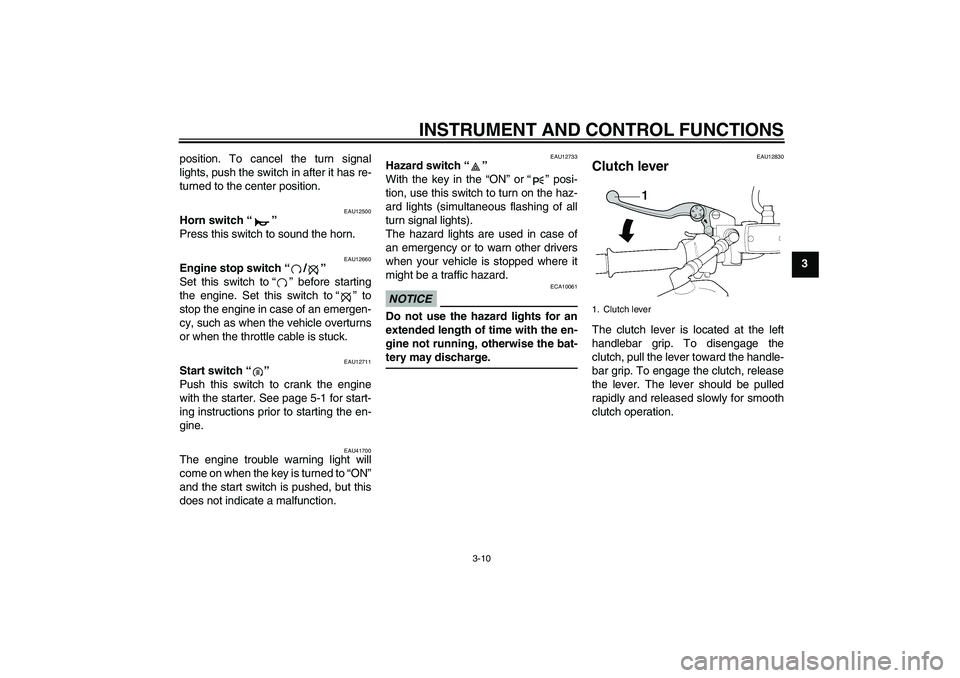

Page 25 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3 position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.1. Clutch lever
U5WME8E0.book Page 10 Monday, August 9, 2010 3:10 PM
Page 26 of 96

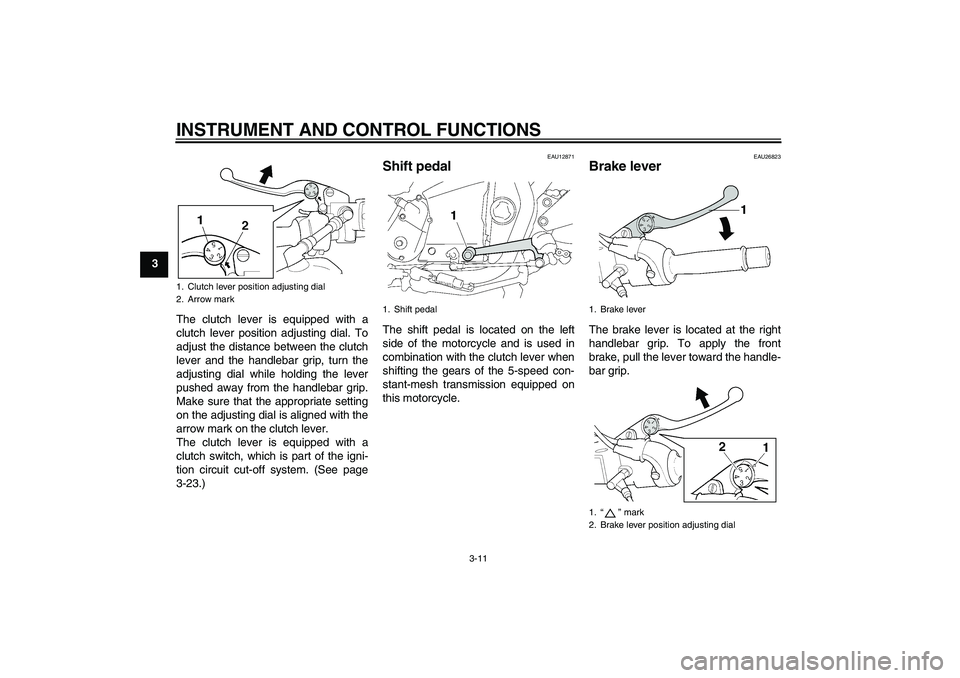

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-23.)
EAU12871
Shift pedal The shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26823
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever position adjusting dial
2. Arrow mark
1. Shift pedal
1. Brake lever
1.“” mark
2. Brake lever position adjusting dial
U5WME8E0.book Page 11 Monday, August 9, 2010 3:10 PM

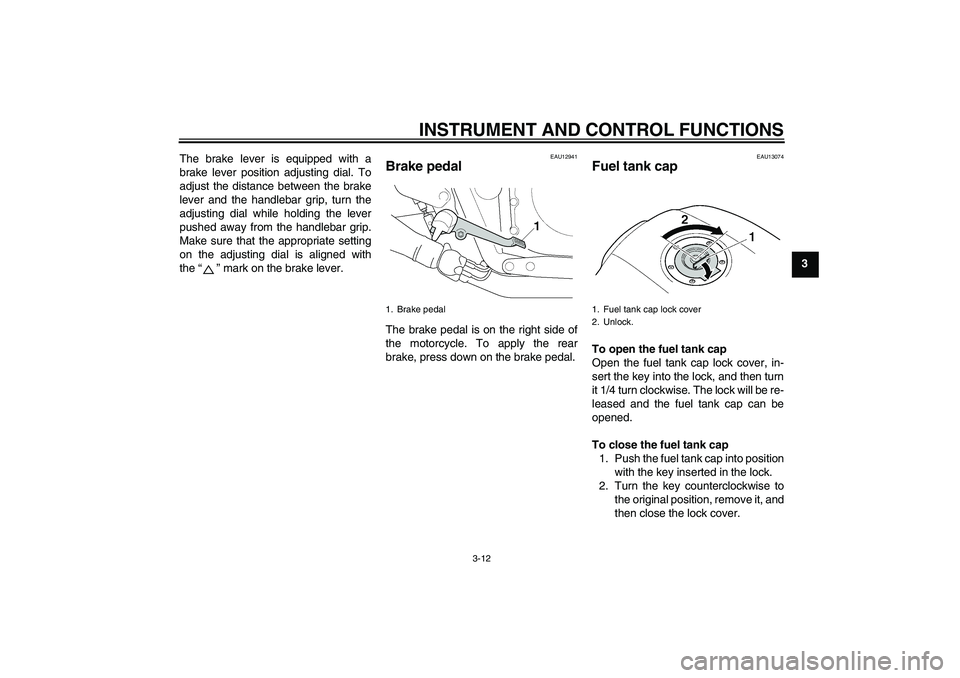

Page 27 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3 The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with
the“” mark on the brake lever.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13074
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.
U5WME8E0.book Page 12 Monday, August 9, 2010 3:10 PM

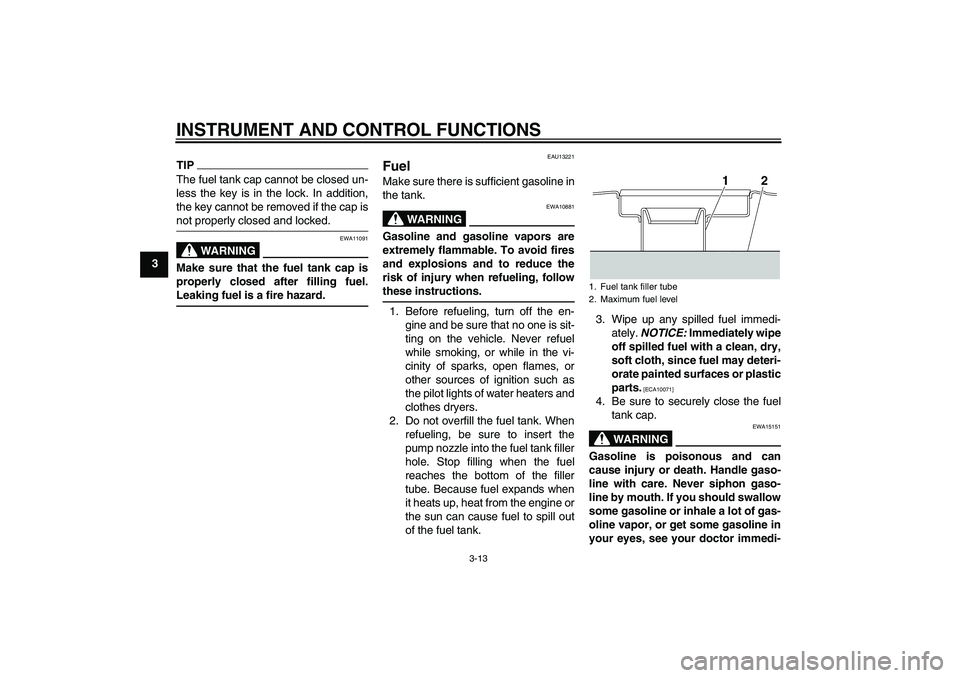

Page 28 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-1. Fuel tank filler tube
2. Maximum fuel level
U5WME8E0.book Page 13 Monday, August 9, 2010 3:10 PM
Page 29 of 96

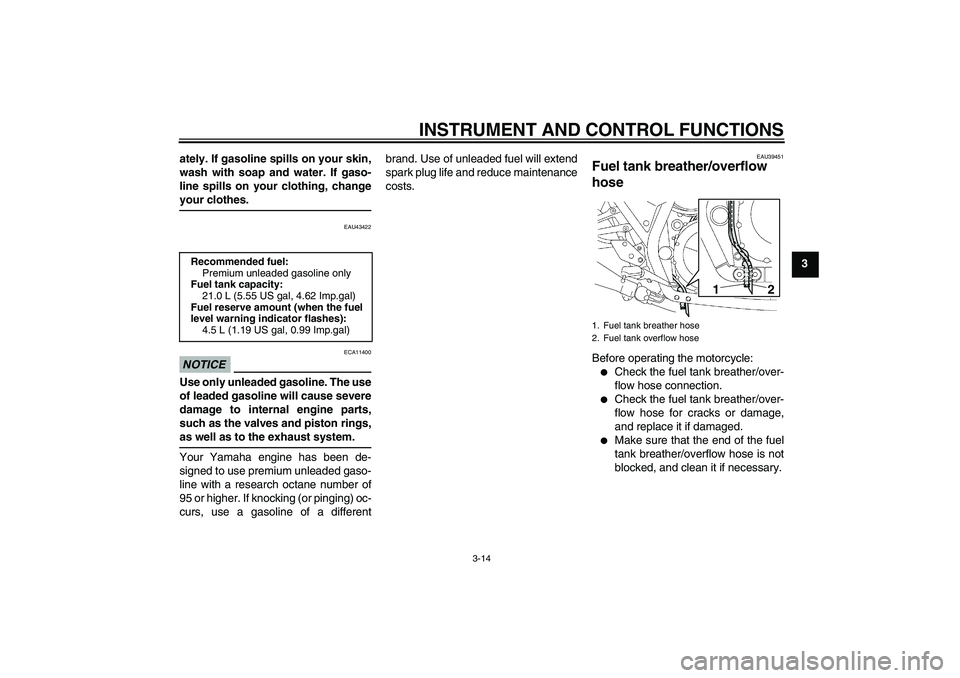

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3 ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU43422
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a differentbrand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU39451
Fuel tank breather/overflow
hose Before operating the motorcycle:
Check the fuel tank breather/over-
flow hose connection.
Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if damaged.
Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
21.0 L (5.55 US gal, 4.62 Imp.gal)
Fuel reserve amount (when the fuel
level warning indicator flashes):
4.5 L (1.19 US gal, 0.99 Imp.gal)
1. Fuel tank breather hose
2. Fuel tank overflow hose
2
1
U5WME8E0.book Page 14 Monday, August 9, 2010 3:10 PM
Page 30 of 96

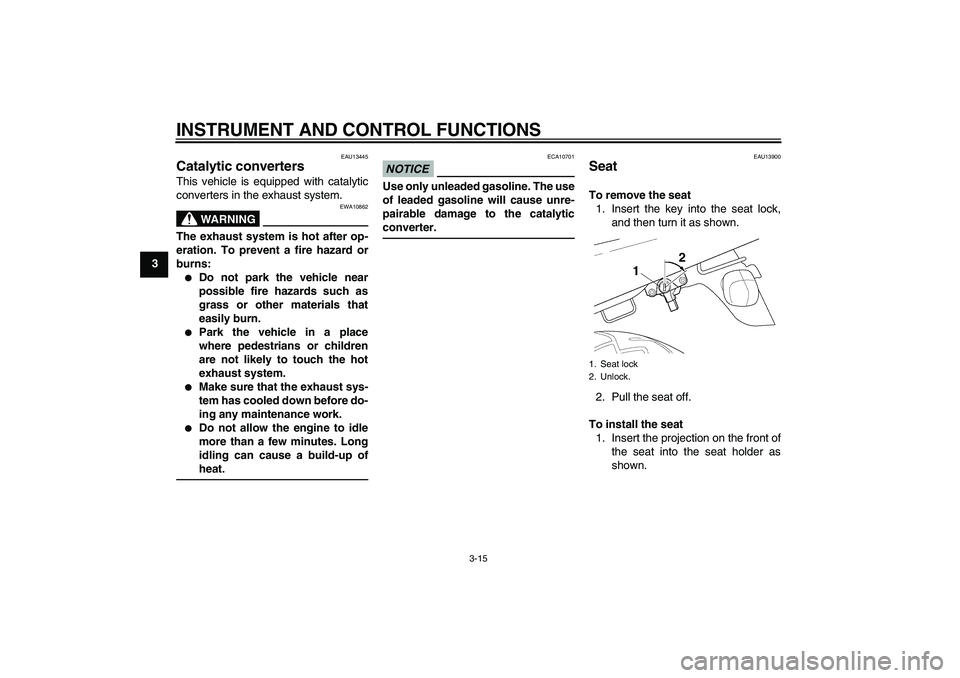

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU13445
Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAU13900
Seat To remove the seat
1. Insert the key into the seat lock,
and then turn it as shown.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.1. Seat lock
2. Unlock.
U5WME8E0.book Page 15 Monday, August 9, 2010 3:10 PM
