YAMAHA XL 700 2005 Repair Manual

3-18
E
5. While lightly squeezing the throttle lever,
push the start switch (green button).
WARNING@ On this watercraft, the engine is con-
nected directly to the jet pump. Starting
the engine immediately generates some
thrust. Apply only enough throttle to
keep the engine running.
@
6. Release the start switch as soon as the
engine starts to run.
CAUTION:@
Never push the start switch while the
engine is running.

Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
try again.
@
7. After the engine has warmed up, push
the choke knob in to its original position.
NOTE:@ If the choke knob is left pulled out, the
engine will stall.
@
E_F0M-70.book Page 18 Wednesday, June 23, 2004 4:52 PM

3-19
E
EJU01066
Stopping the engine
To stop the engine, release the throttle
lever, and then push the engine stop switch
(red button).
WARNING@ You need throttle to steer. Shutting off
the engine can cause you to hit an obsta-
cle you are attempting to avoid. A colli-
sion could result in severe injury or
death.
@
EJU01067
Leaving the watercraft
If leaving the watercraft, remove the
engine shut-off cord to reduce the chance of
accidental starting or unauthorized use by
children or others.
E_F0M-70.book Page 19 Wednesday, June 23, 2004 4:52 PM

3-20
E
EJU01068
Operating your watercraft
EJU01250
Getting to know your
watercraft
Operating your watercraft requires skills
acquired through practice over a period of
time. Take the time to learn the basic tech-
niques well before attempting more difficult
maneuvers.
Operating your new watercraft can be a
very enjoyable activity, providing you with
hours of pleasure. However, it is essential to
familiarize yourself with the operation of the
watercraft to achieve the skill level neces-
sary to enjoy riding safely. Before operating
this watercraft, read this Owner’s/Operator’s
Manual, the Riding Practice Guide, and all
warning and caution labels on the water-
craft. Pay particular attention to the safety
information on pages 1-9 to 1-16. These
materials should give you an understanding
of the watercraft and its operation.
Remember: This watercraft is designed to
carry the operator and up to 2 passengers.
Never exceed the maximum load limit or
allow more than 3 persons (or 2 persons if a
water-skier is being pulled) to ride the water-
craft at one time.
EJU01070
Learning to operate your
watercraft
Before operating the watercraft, always
perform the pre-operation checks listed on
page 3-5. The short time spent checking the
watercraft will reward you with added safety
and reliability.
Check all local laws before operating your
watercraft.
Operate defensively at safe speeds and
keep a safe distance away from people,
objects, and other watercraft. Select a wide
area to learn in, where you have good visi-
bility and light boat traffic.
Use the buddy system—operate with
someone nearby. Scan constantly for peo-
ple, objects, and other watercraft. Be alert
for conditions that limit your visibility or block
your vision of others.
Attach the engine shut-off cord (lanyard)
to your wrist and keep it free from the han-
dlebars so that the engine stops if the opera-
tor falls off.
Wear a personal flotation device (PFD).
All riders must wear an authority-approved
PFD that is suitable for personal watercraft
use. Maximum load: 240 kg (530 lb)
Load is the total weight of cargo,
operator and passengers.
E_F0M-70.book Page 20 Wednesday, June 23, 2004 4:52 PM

3-21
E
Wear protective clothing. Severe internal
injuries can occur if water is forced into body
cavities as result of falling into the water or
being near the jet thrust nozzle. Normal
swimwear does not adequately protect
against forceful water entry into rectum and
vagina. All riders must wear a wetsuit bot-
tom or clothing that provides equivalent pro-
tection.
Such clothing includes thick, tightly
woven, sturdy and snug-fitting apparel such
as denim, but does not include spandex or
similar fabrics like those used in bicycle
shorts. A full wetsuit can also protect against
hypothermia (subnormal body temperature)
and abrasions.
Footwear and gloves are recommended.
Eye protection is recommended to keep
wind, water, and glare from the sun out of
your eyes while you operate your watercraft.
Restraining straps for eyewear are made
which are designed to float should your eye-
wear fall in the water.
You should grip the handlebars firmly and
keep both feet on the floor of the footwell. Do
not attempt to ride with passengers until
your operating skills are fully developed.
EJU12512
Riding watercraft with
passengers
When 2 or 3 persons (including the oper-
ator) are on board, the watercraft handles
differently, and is not as easy to maneuver,
so operating it requires a higher degree of
skill. Before attempting to operate the water-
craft with passengers on board, the operator
must practice operating the watercraft alone
enough to be able to acquire the necessary
skills. The passengers must always wear an
authority-approved PFD and a wetsuit bot-
tom or equivalent.
WARNING@ Do not apply throttle when anyone is at
rear of watercraft. Turn engine off or keep
engine at idle. Water and/or debris exit-
ing the jet thrust nozzle can cause severe
injury. Passengers should not attempt to
board the watercraft if the operator is
applying throttle.
@
Do not give a ride to children whose feet
cannot reach the floor of the footwell. The
passengers should hold on firmly, either to
the person in front of them or to the handgrip
provided, and keep both feet on the floor of
footwell.
WARNING@ When passengers are on board, make
sure that they are holding on firmly and
have feet in the footwell before you start
to accelerate.
@
When pulling a skier, the spotter should
face to the rear while holding the handgrip
with both hands. The spotter should always
sit astride the seat with his or her feet placed
firmly on the footrest for proper balance. Fol-
low all local laws regarding skiing such as
skier-down flags, rearward-facing spotter,
and other requirements.
E_F0M-70.book Page 21 Wednesday, June 23, 2004 4:52 PM

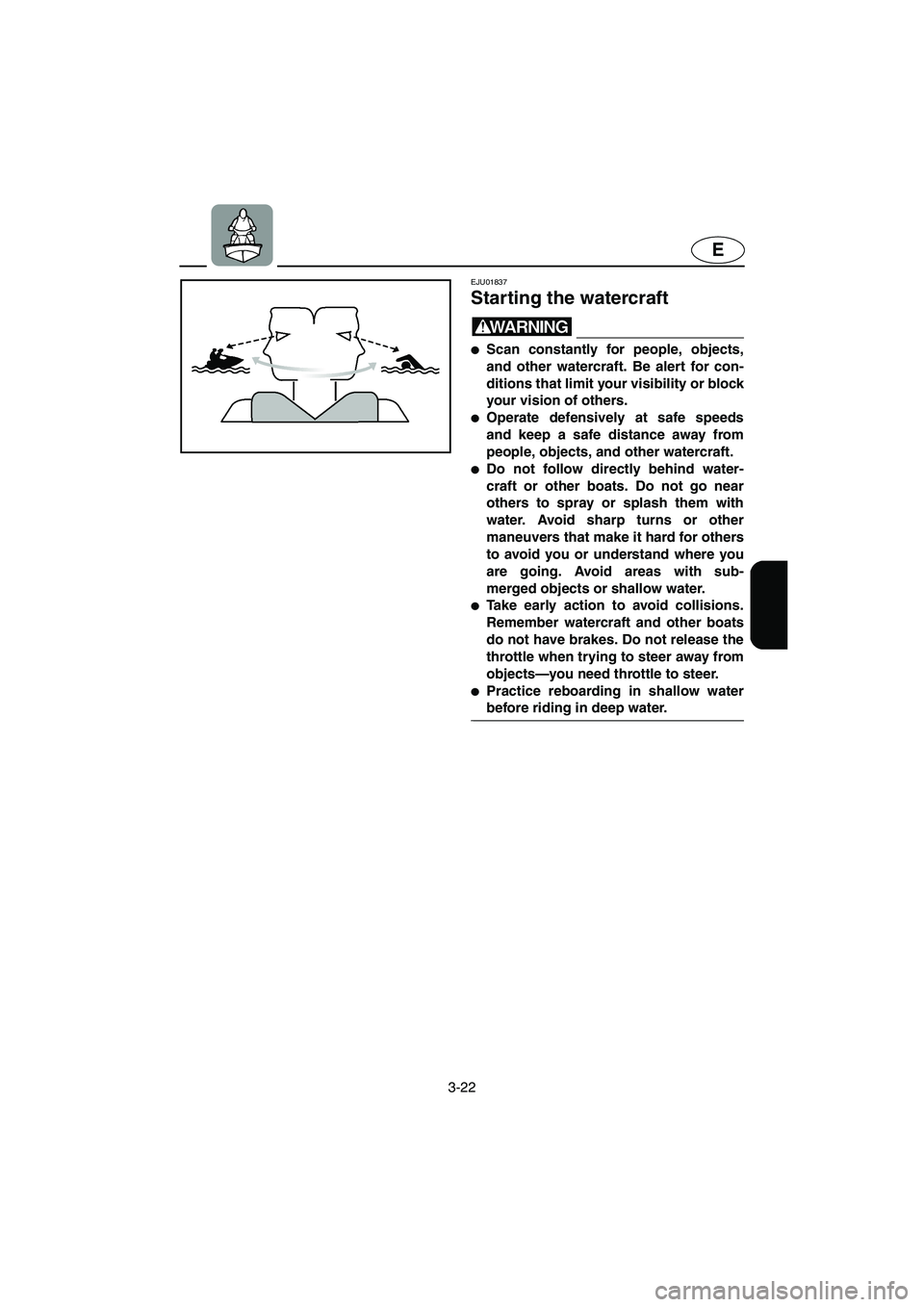

3-22
E
EJU01837
Starting the watercraft
WARNING@
Scan constantly for people, objects,
and other watercraft. Be alert for con-
ditions that limit your visibility or block
your vision of others.

Operate defensively at safe speeds
and keep a safe distance away from
people, objects, and other watercraft.

Do not follow directly behind water-
craft or other boats. Do not go near
others to spray or splash them with
water. Avoid sharp turns or other
maneuvers that make it hard for others
to avoid you or understand where you
are going. Avoid areas with sub-
merged objects or shallow water.

Take early action to avoid collisions.
Remember watercraft and other boats
do not have brakes. Do not release the
throttle when trying to steer away from
objects—you need throttle to steer.

Practice reboarding in shallow water
before riding in deep water.
@
E_F0M-70.book Page 22 Wednesday, June 23, 2004 4:52 PM

3-23
E
EJU01073
Starting and boarding in shallow
water
1. Do not start the engine in less than
60 cm (2 ft) of water. Put the watercraft
in water that is deep enough, and then
board the watercraft from the side or the
rear.
2. Attach the engine shut-off cord to your
left wrist, and then install the clip to the
engine shut-off switch.
3. Grip the handlebars with both hands,
place both feet on the floor of the foot-
well, start the engine, and start off.
EJU01074
Starting from a dock
1. Board the watercraft from the side.
2. Attach the engine shut-off cord to your
left wrist, and then install the clip to the
engine shut-off switch.
3. Push the watercraft away from the dock,
grip the handlebars with both hands,
place both feet on the floor of the foot-
well, start the engine, and start off.
E_F0M-70.book Page 23 Wednesday, June 23, 2004 4:52 PM

3-24
E
EJU01075
Boarding and starting in deep
water
WARNING@
Operator and passenger should prac-
tice getting on board in shallow water
before riding in deep water. Boarding
in deep water requires more skill.

The fatigue and exposure that could
result after unsuccessful attempts to
get back on the watercraft may
increase the risk of injuries and drown-
ing.
@
EJU01838
Boarding alone
1. Swim to the rear of the watercraft and
place both hands on the boarding plat-
form, pull yourself up, and then grasp the
handgrip with one hand.
2. Pull yourself up to a kneeling position on
the platform, and then move to the seat
and sit astride.
3. Attach the engine shut-off cord to your
left wrist, and then install the clip to the
engine shut-off switch.
4. Grip the handlebars firmly with both
hands, place both feet on the floor of the
footwell, start the engine, and then look
in all directions before starting off.
WARNING@ Before starting off, make sure that there
are no boats, obstructions, or swimmers
around you.
@
E_F0M-70.book Page 24 Wednesday, June 23, 2004 4:52 PM

3-25
E
EJU18491
Boarding with passengers
WARNING@ Severe internal injuries can occur if
water is forced into body cavities as a
result of being near the jet thrust nozzle.
Do not apply throttle until the passen-
gers are seated with their feet on the
floor of the footwell and are securely
holding on to the person in front of them
or to the grips.
@
1. Climb on board as noted in the previous
section, and sit astride the seat. Attach
the engine shut-off cord to your left wrist,
and then install the clip to the engine
shut-off switch.
2. Have the passenger move to the rear of
the watercraft.
3. Have the passenger get on board and sit
on the seat. If a second passenger is
getting on, have him or her follow the
same procedure.
NOTE:@ When a passenger is getting on board, both
he and the operator should try to balance
the watercraft.
@
4. The operator should check to see that
the passengers have their feet on the
floor of the footwell and that they are
securely holding on to the person in front
of them or to the grips.
5. Start the engine, look in all directions,
and then accelerate to planing speed.
WARNING@ Before starting off, make sure that there
are no boats, obstructions, or swimmers
around you.
@
E_F0M-70.book Page 25 Wednesday, June 23, 2004 4:52 PM

3-26
E
NOTE:@ The heavier the total weight of the operator
and passengers, the more difficult it will be
to balance the watercraft. Do not operate the
watercraft when the total weight exceeds
240 kg (530 lb) including any cargo. If it is
difficult to balance the watercraft at a stand-
still, proceed as follows:
1. The passenger must steady the water-
craft while the operator is boarding. The
operator pulls him or herself up to a
kneeling position on the platform, and
then moves to the seat and sits astride to
balance the watercraft.
2. The operator attaches the engine shut-
off cord to his or her left wrist, and then
installs the clip to the engine shut-off
switch.
3. The operator starts the engine and lets it
run at idle.
4. The passenger pulls him or herself up to
a kneeling position, and then crawls onto
the seat as the watercraft accelerates.
5. The operator gradually increases speed
to balance the watercraft.
@
E_F0M-70.book Page 26 Wednesday, June 23, 2004 4:52 PM

3-27
E
EJU18831

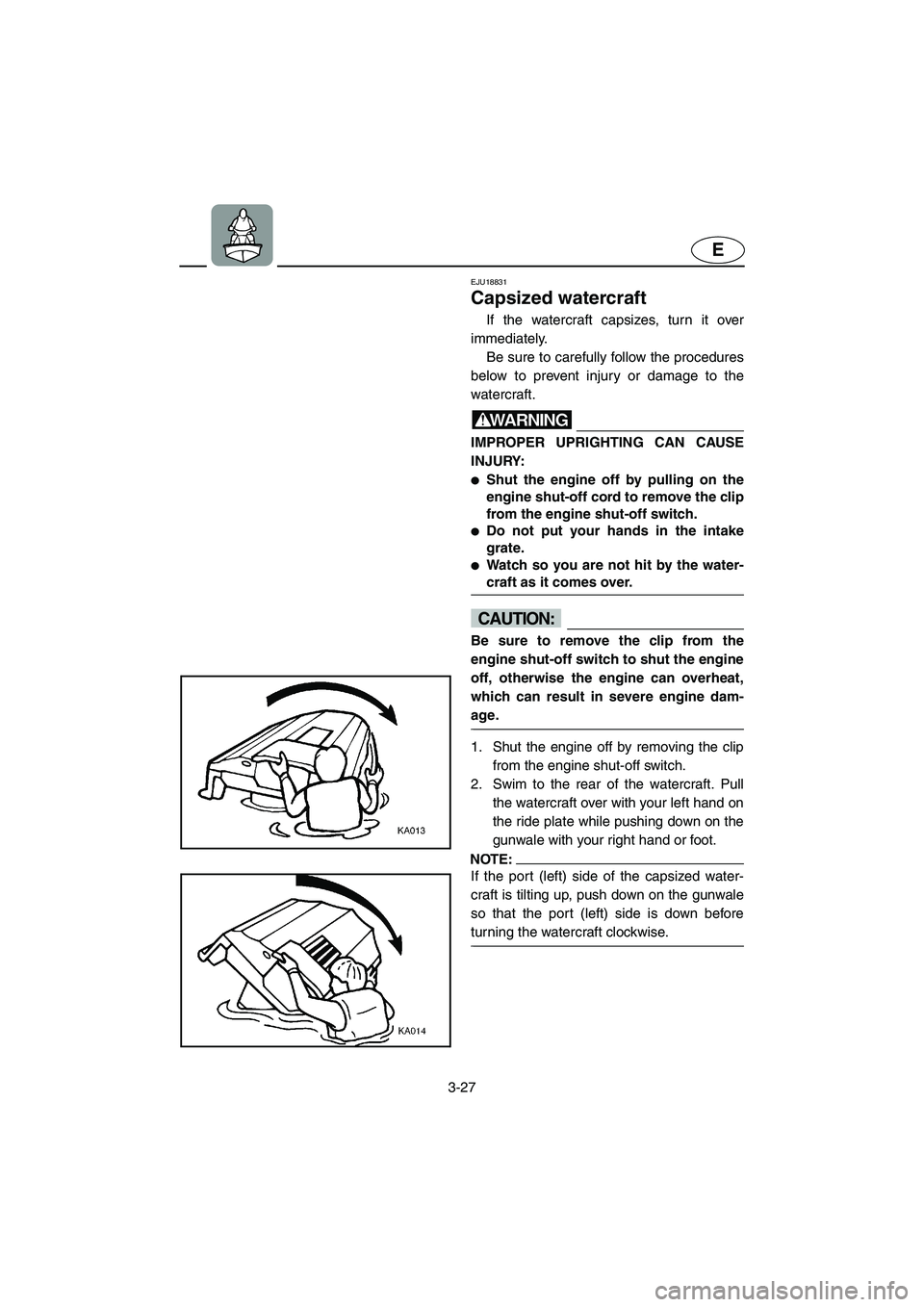

Capsized watercraft
If the watercraft capsizes, turn it over
immediately.
Be sure to carefully follow the procedures
below to prevent injury or damage to the
watercraft.
WARNING@ IMPROPER UPRIGHTING CAN CAUSE
INJURY:

Shut the engine off by pulling on the
engine shut-off cord to remove the clip
from the engine shut-off switch.

Do not put your hands in the intake
grate.

Watch so you are not hit by the water-
craft as it comes over.
@
CAUTION:@ Be sure to remove the clip from the
engine shut-off switch to shut the engine
off, otherwise the engine can overheat,
which can result in severe engine dam-
age.
@
1. Shut the engine off by removing the clip
from the engine shut-off switch.
2. Swim to the rear of the watercraft. Pull
the watercraft over with your left hand on
the ride plate while pushing down on the
gunwale with your right hand or foot.
NOTE:@ If the port (left) side of the capsized water-
craft is tilting up, push down on the gunwale
so that the port (left) side is down before
turning the watercraft clockwise.
@
E_F0M-70.book Page 27 Wednesday, June 23, 2004 4:52 PM
