2005
WaveRunner
XL700
OWNER’S / OPERATOR’S
MANUAL
READ THIS MANUAL
CAREFULLY BEFORE OPERATION!
F0M-F8199-76
YAMAHA MOTOR CO., LTD.
Printed in USA
Aug. 2004—1.2 × 1 CRF0M-F8199-76(E)
Page 2 of 120
A5-shiro_tate.fm Page 1 Monday, May 28, 2001 12:03 PM
Page 3 of 120
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM
Page 4 of 120
E
EJU00989

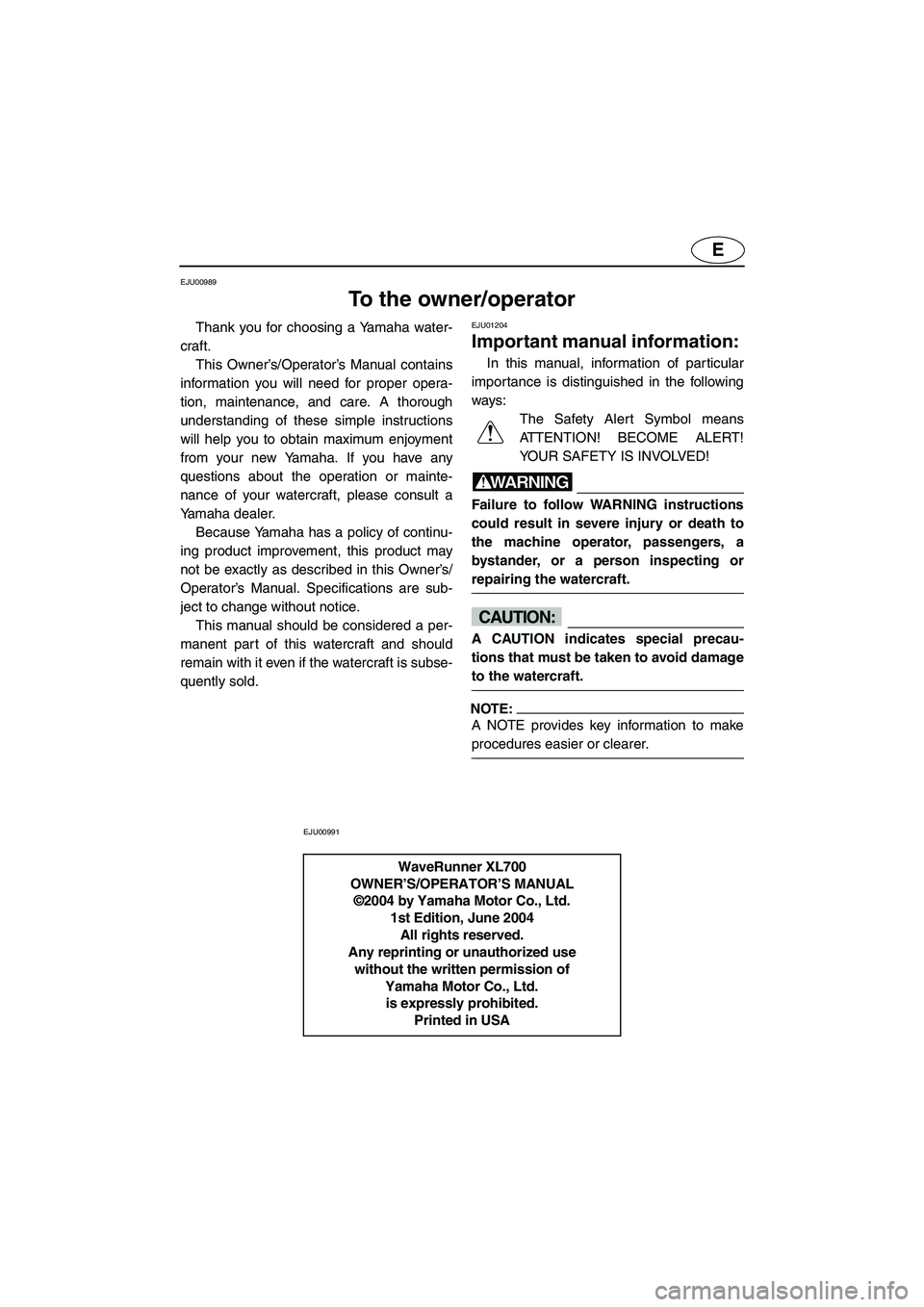

To the owner/operator
Thank you for choosing a Yamaha water-
craft.
This Owner’s/Operator’s Manual contains
information you will need for proper opera-
tion, maintenance, and care. A thorough
understanding of these simple instructions
will help you to obtain maximum enjoyment
from your new Yamaha. If you have any
questions about the operation or mainte-
nance of your watercraft, please consult a
Yamaha dealer.
Because Yamaha has a policy of continu-
ing product improvement, this product may
not be exactly as described in this Owner’s/
Operator’s Manual. Specifications are sub-
ject to change without notice.
This manual should be considered a per-
manent part of this watercraft and should
remain with it even if the watercraft is subse-
quently sold.EJU01204
Important manual information:
In this manual, information of particular
importance is distinguished in the following
ways:
The Safety Alert Symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
WARNING@ Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, passengers, a
bystander, or a person inspecting or
repairing the watercraft.
@
CAUTION:@ A CAUTION indicates special precau-
tions that must be taken to avoid damage
to the watercraft.
@
NOTE:@ A NOTE provides key information to make
procedures easier or clearer.
@
EJU00991
WaveRunner XL700
OWNER’S/OPERATOR’S MANUAL
©2004 by Yamaha Motor Co., Ltd.
1st Edition, June 2004
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in USA
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM
Page 5 of 120
EEJU00992

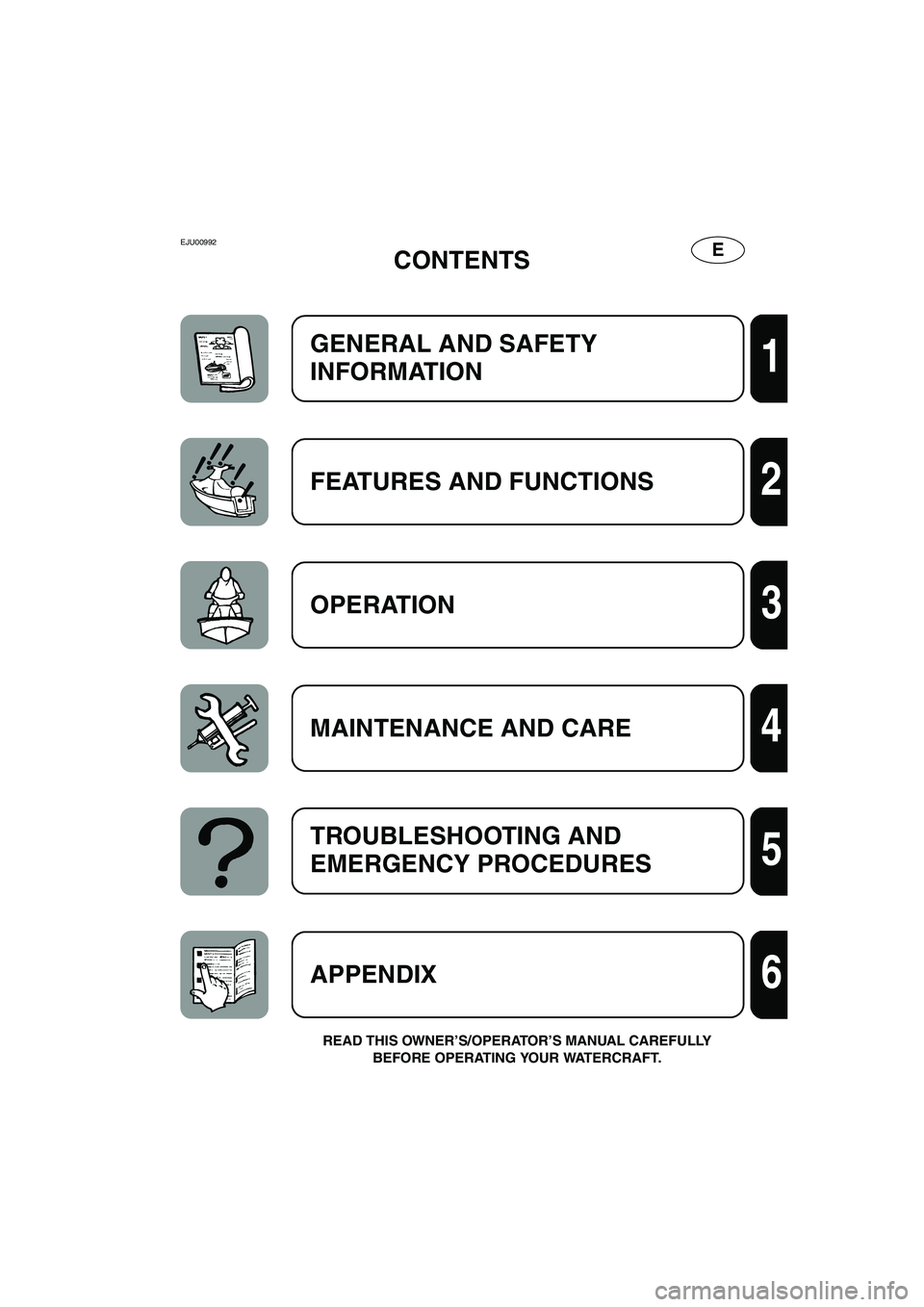

CONTENTS
READ THIS OWNER’S/OPERATOR’S MANUAL CAREFULLY
BEFORE OPERATING YOUR WATERCRAFT.
GENERAL AND SAFETY
INFORMATION
1
FEATURES AND FUNCTIONS 2
OPERATION3
MAINTENANCE AND CARE4
TROUBLESHOOTING AND
EMERGENCY PROCEDURES
5
APPENDIX6
E_F0M-70.book Page 2 Wednesday, June 23, 2004 4:52 PM
Page 6 of 120
E_F0M-70.book Page 3 Wednesday, June 23, 2004 4:52 PM
Page 7 of 120
E
1
EJU00993

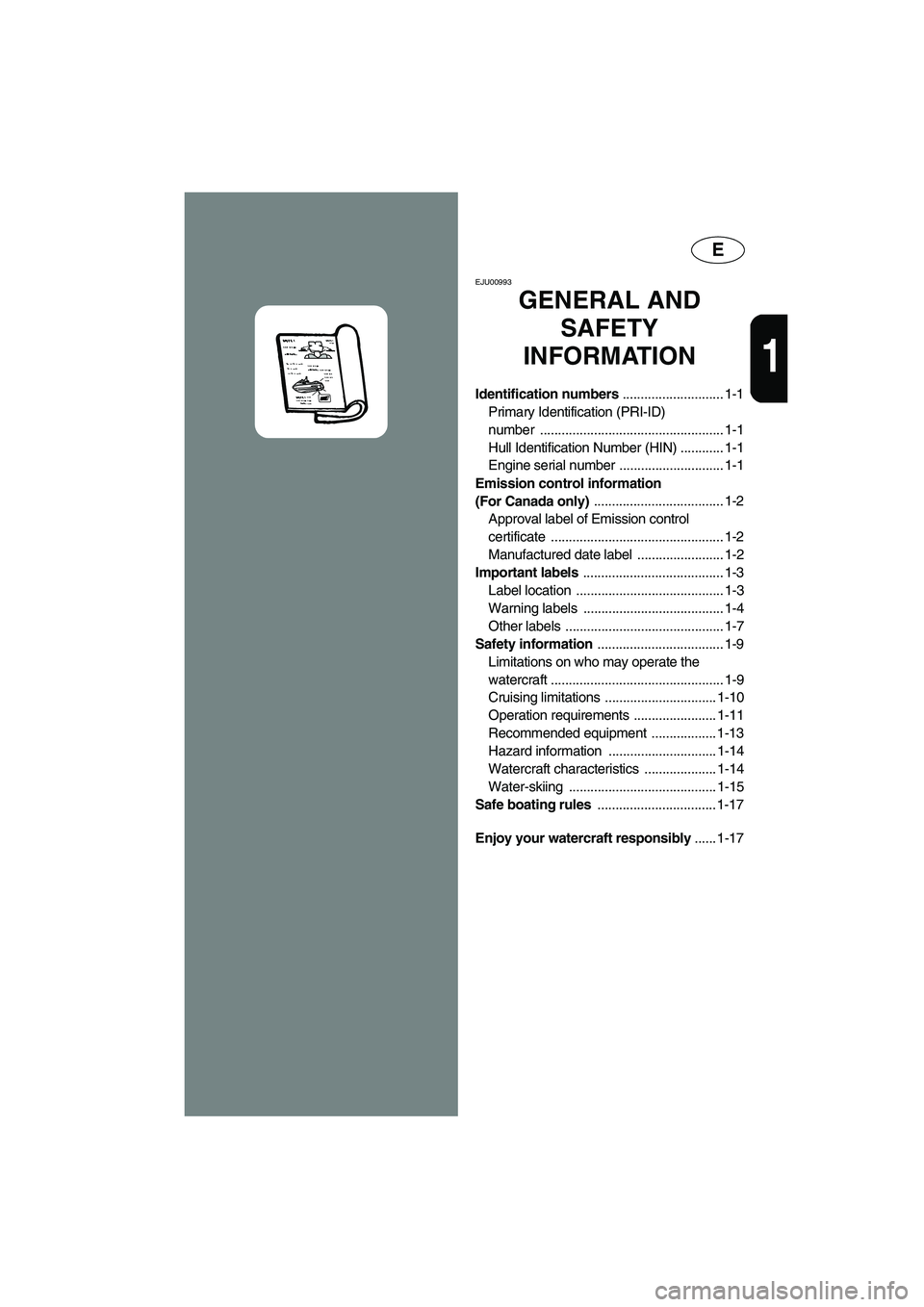

GENERAL AND
SAFETY
INFORMATION
Identification numbers ............................ 1-1
Primary Identification (PRI-ID)
number ................................................... 1-1
Hull Identification Number (HIN) ............ 1-1
Engine serial number ............................. 1-1
Emission control information
(For Canada only) .................................... 1-2
Approval label of Emission control
certificate ................................................ 1-2
Manufactured date label ........................ 1-2
Important labels ....................................... 1-3
Label location ......................................... 1-3
Warning labels ....................................... 1-4
Other labels ............................................ 1-7
Safety information ................................... 1-9
Limitations on who may operate the
watercraft ................................................ 1-9
Cruising limitations ............................... 1-10
Operation requirements ....................... 1-11
Recommended equipment .................. 1-13
Hazard information .............................. 1-14
Watercraft characteristics .................... 1-14
Water-skiing ......................................... 1-15
Safe boating rules ................................. 1-17
Enjoy your watercraft responsibly ...... 1-17
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM
Page 8 of 120
1-1
E
EJU01830

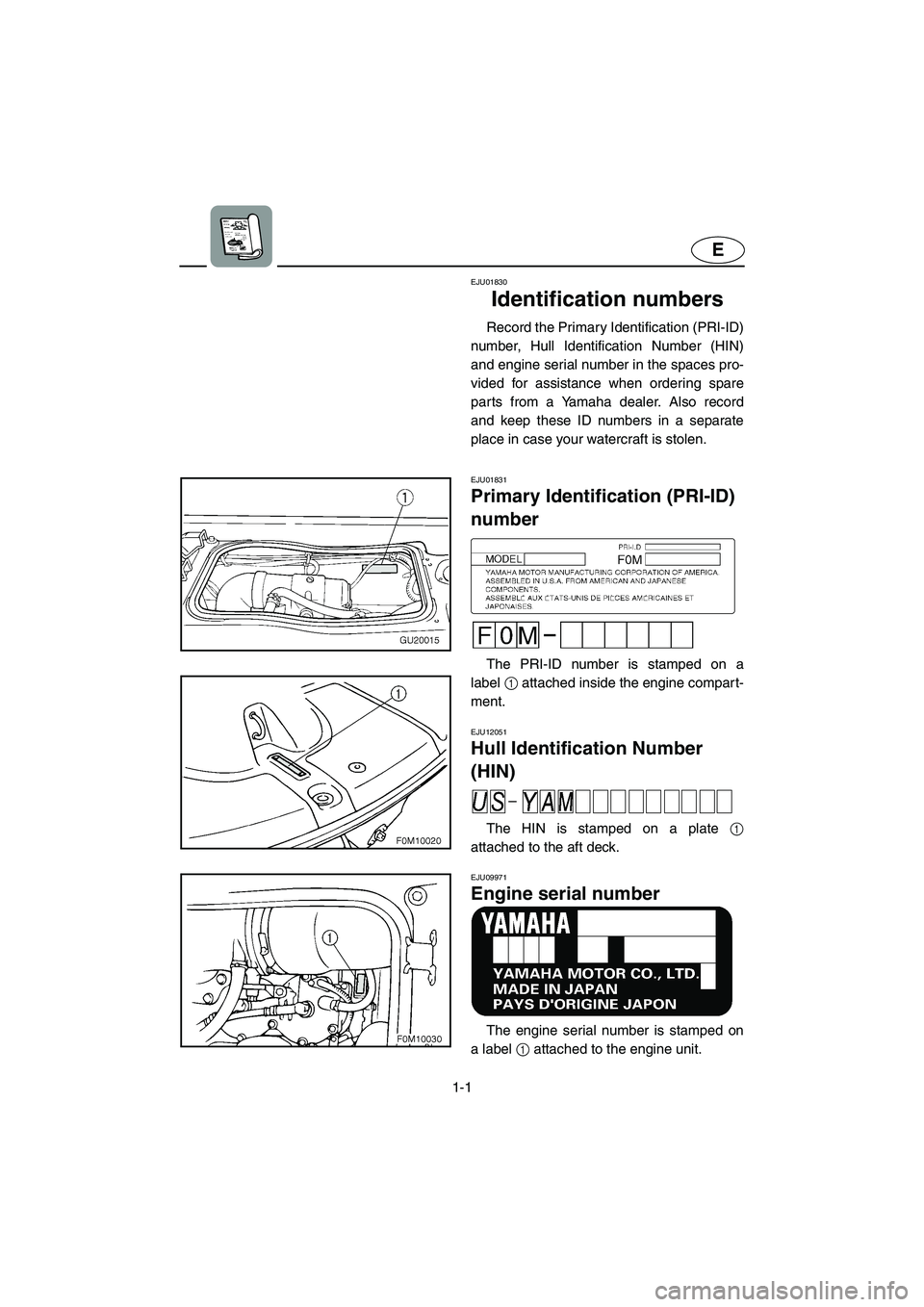

Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN)
and engine serial number in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer. Also record
and keep these ID numbers in a separate
place in case your watercraft is stolen.
EJU01831
Primary Identification (PRI-ID)
number
The PRI-ID number is stamped on a
label1 attached inside the engine compart-
ment.
EJU12051
Hull Identification Number
(HIN)
The HIN is stamped on a plate 1
attached to the aft deck.
EJU09971
Engine serial number
The engine serial number is stamped on
a label 1 attached to the engine unit.
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM
Page 9 of 120
1-2
E
EJU19870

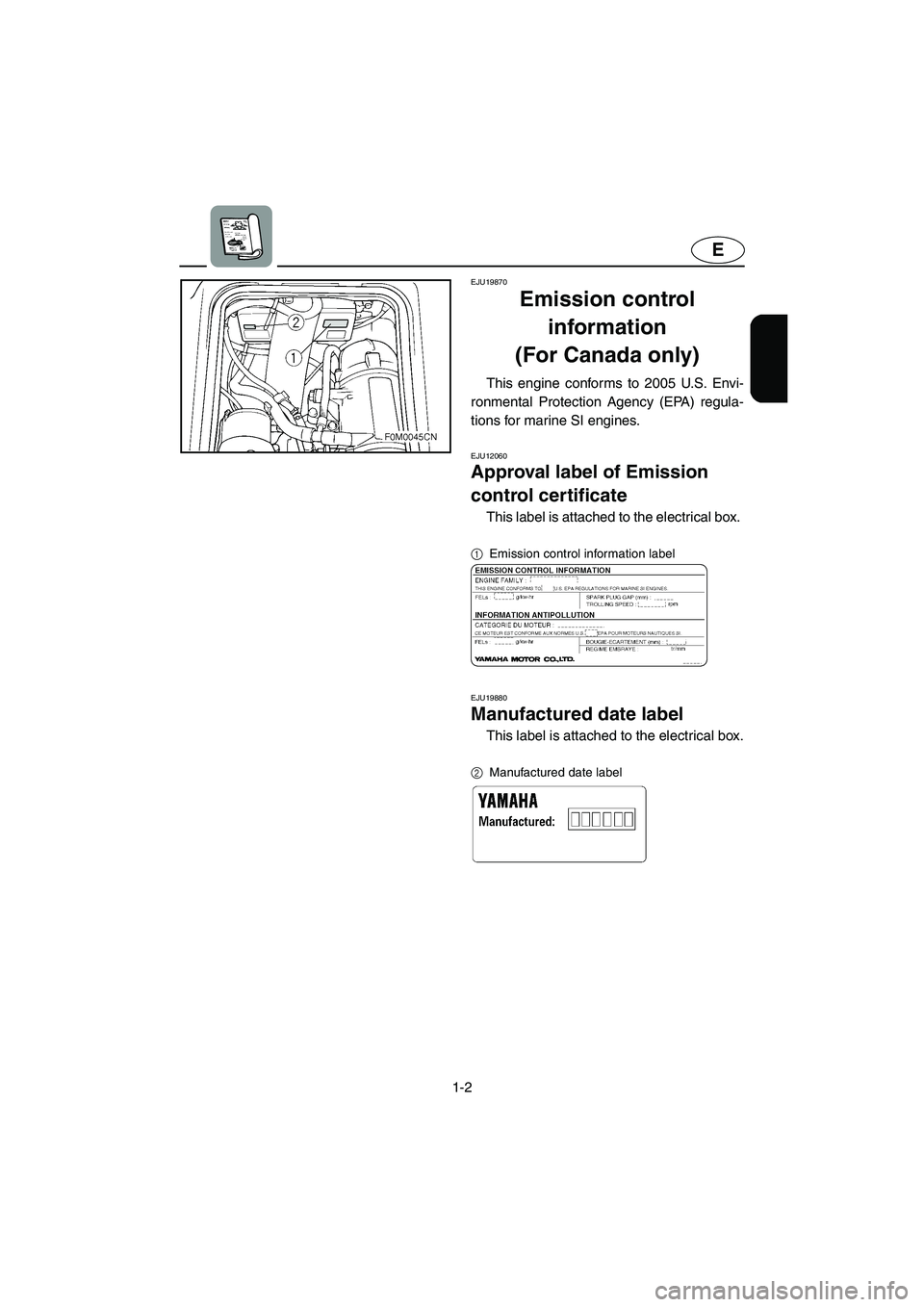

Emission control
information
(For Canada only)
This engine conforms to 2005 U.S. Envi-
ronmental Protection Agency (EPA) regula-
tions for marine SI engines.
EJU12060
Approval label of Emission
control certificate
This label is attached to the electrical box.
1
Emission control information label
EJU19880
Manufactured date label
This label is attached to the electrical box.
2
Manufactured date label
E_F0M-70.book Page 2 Wednesday, June 23, 2004 4:52 PM
Page 10 of 120
1-3
E
EJU00998

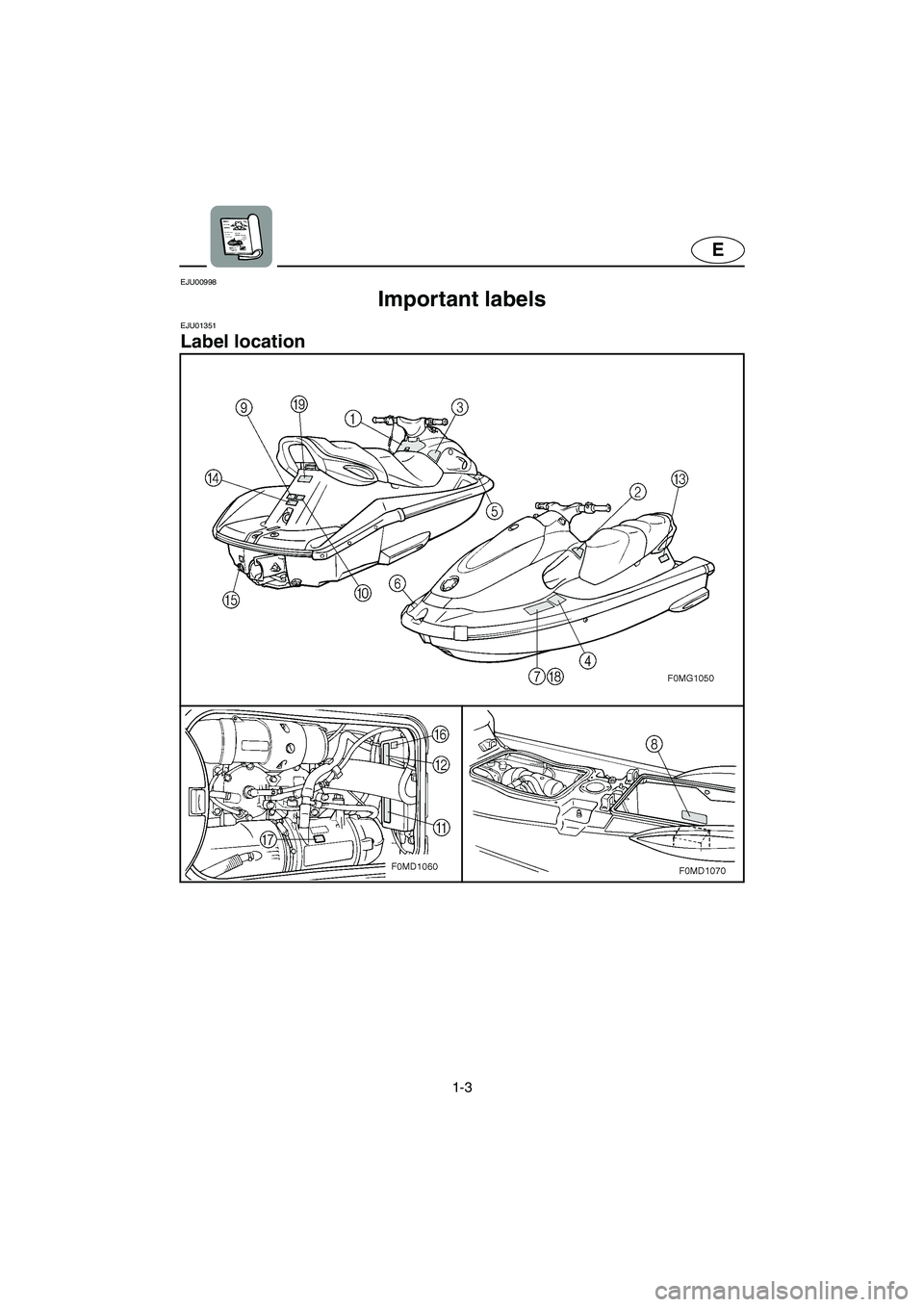

Important labels
EJU01351
Label location
E_F0M-70.book Page 3 Wednesday, June 23, 2004 4:52 PM
