battery YAMAHA XL 700 2005 Owners Manual

2-3
E

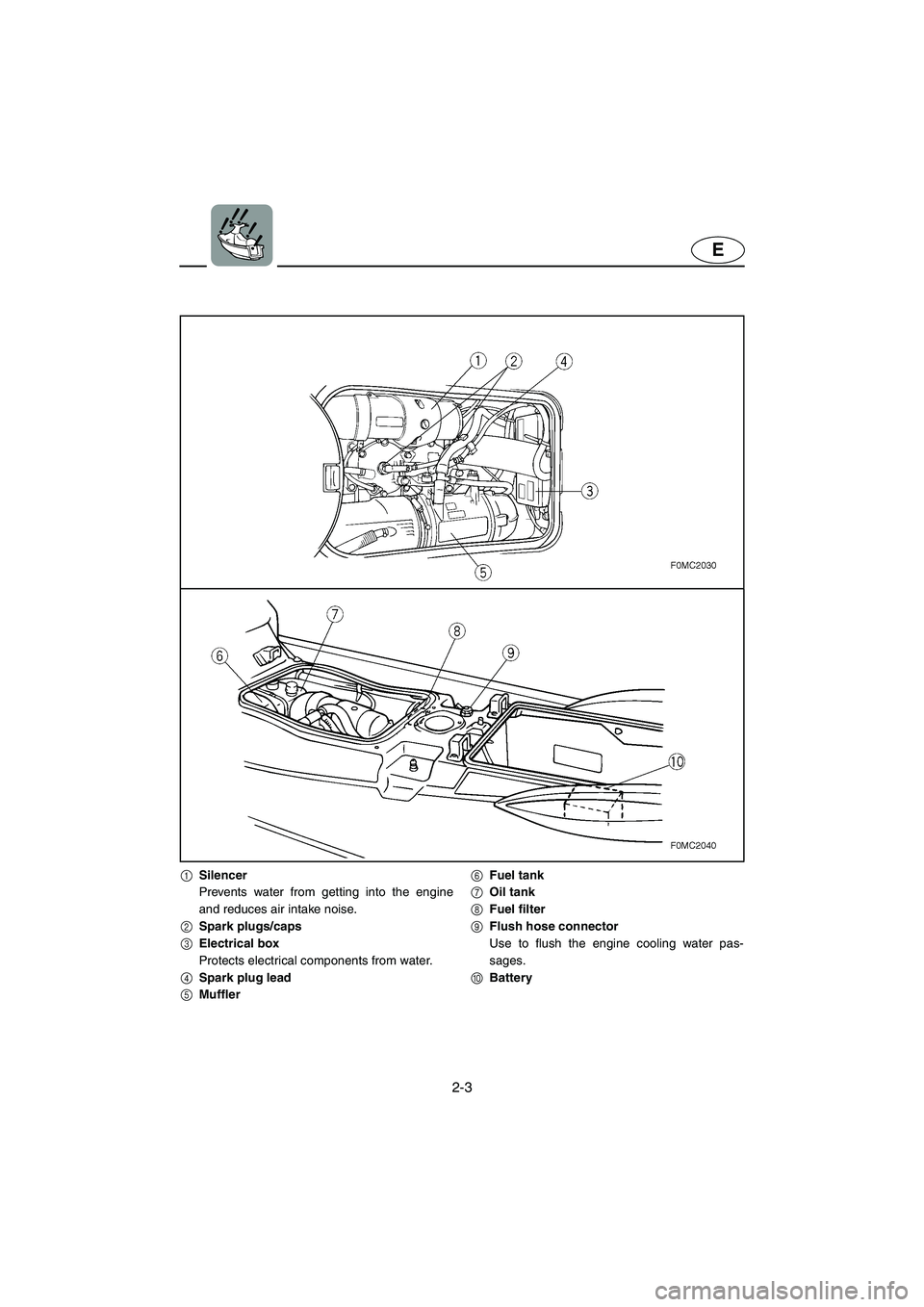

1Silencer
Prevents water from getting into the engine
and reduces air intake noise.
2Spark plugs/caps
3Electrical box
Protects electrical components from water.
4Spark plug lead
5Muffler6Fuel tank
7Oil tank
8Fuel filter
9Flush hose connector
Use to flush the engine cooling water pas-
sages.
0Battery
E_F0M-70.book Page 3 Wednesday, June 23, 2004 4:52 PM

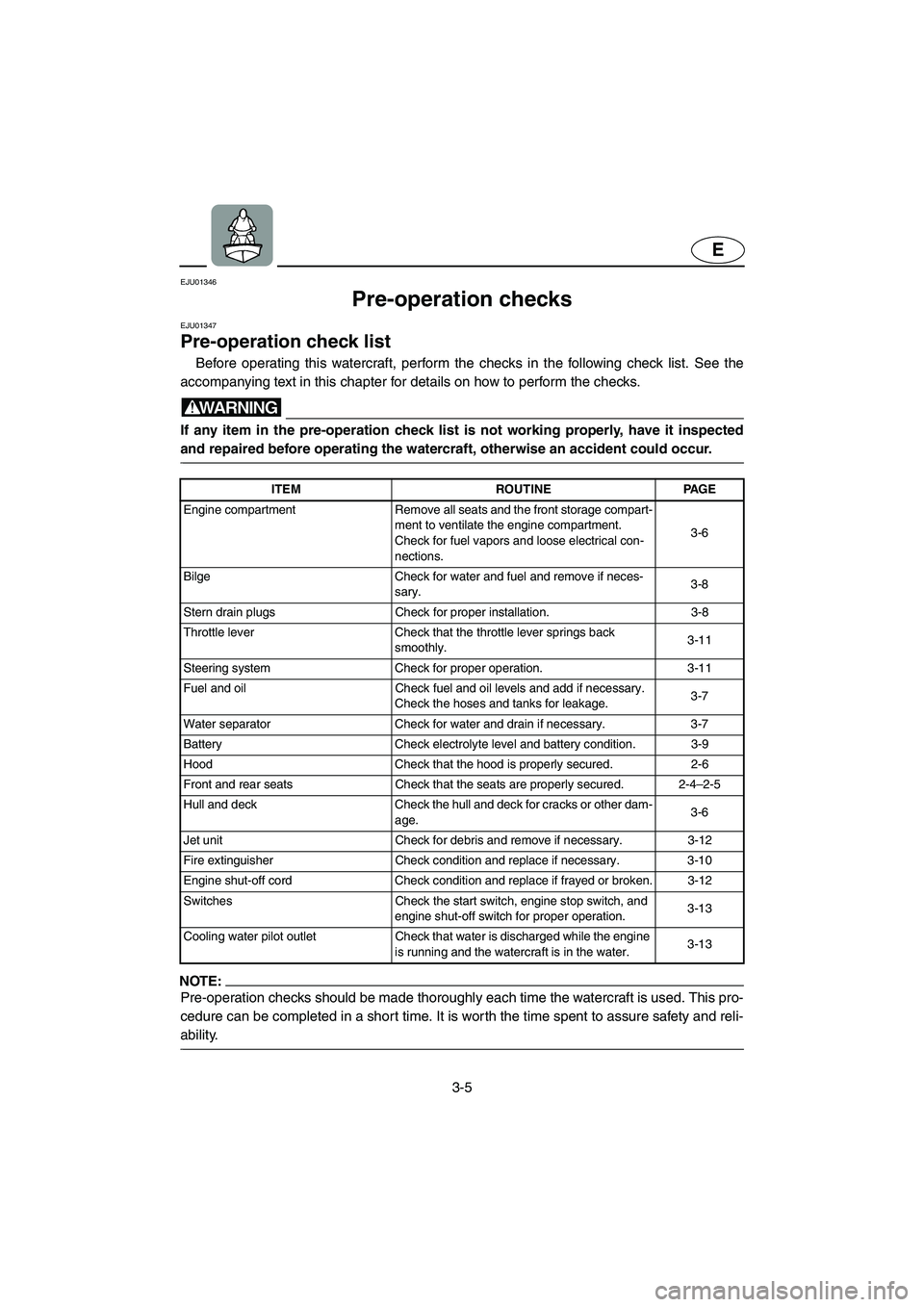

3-5
E
EJU01346
Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove all seats and the front storage compart-
ment to ventilate the engine compartment.
Check for fuel vapors and loose electrical con-
nections.3-6
Bilge Check for water and fuel and remove if neces-
sary.3-8
Stern drain plugs Check for proper installation. 3-8
Throttle lever Check that the throttle lever springs back
smoothly.3-11
Steering system Check for proper operation. 3-11
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-7
Water separator Check for water and drain if necessary. 3-7
Battery Check electrolyte level and battery condition. 3-9
Hood Check that the hood is properly secured. 2-6
Front and rear seats Check that the seats are properly secured. 2-4–2-5
Hull and deck Check the hull and deck for cracks or other dam-
age.3-6
Jet unit Check for debris and remove if necessary. 3-12
Fire extinguisher Check condition and replace if necessary. 3-10
Engine shut-off cord Check condition and replace if frayed or broken. 3-12
Switches Check the start switch, engine stop switch, and
engine shut-off switch for proper operation.3-13
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water.3-13
E_F0M-70.book Page 5 Wednesday, June 23, 2004 4:52 PM

3-9
E
EJU01969

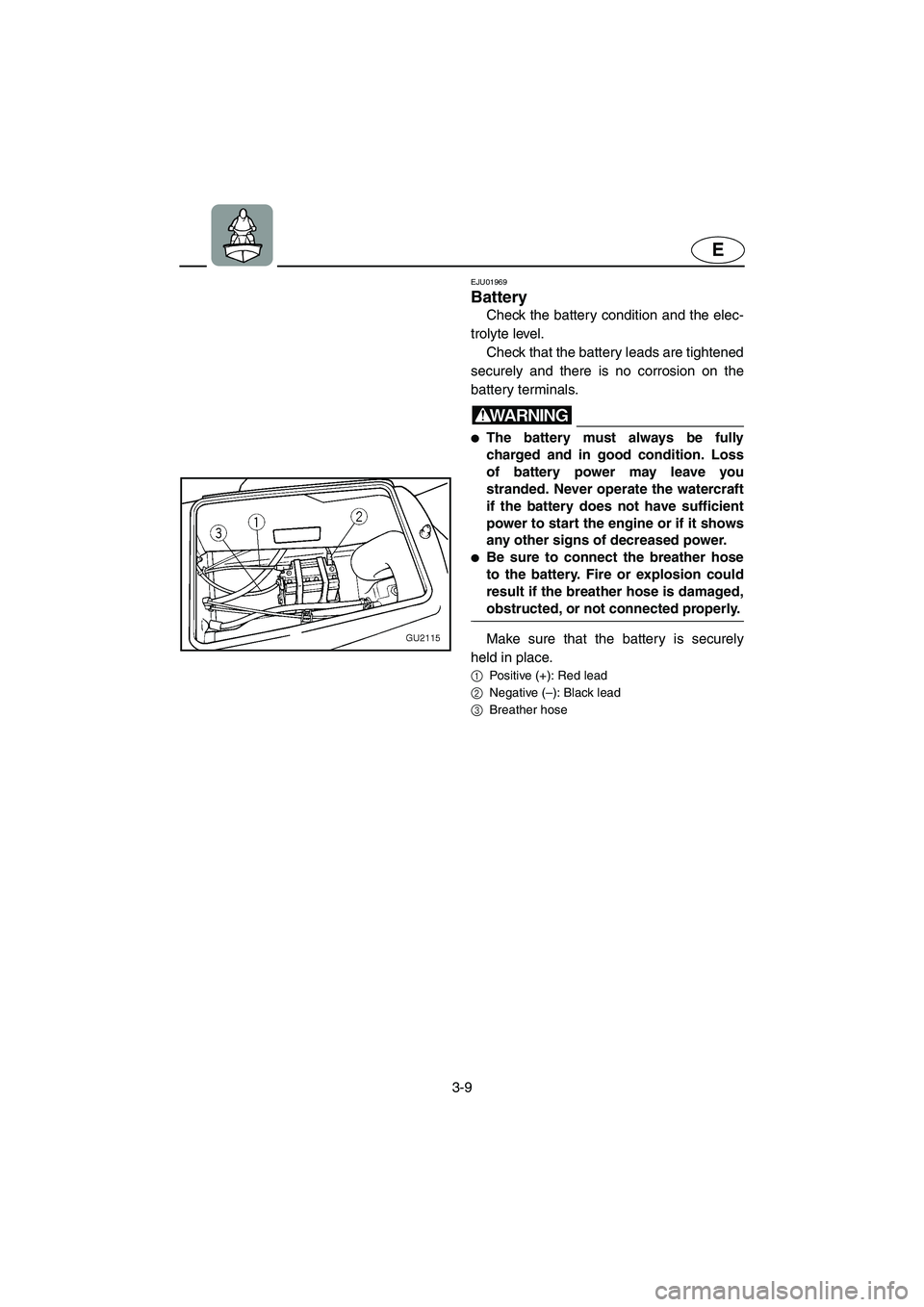

Battery
Check the battery condition and the elec-
trolyte level.
Check that the battery leads are tightened
securely and there is no corrosion on the
battery terminals.
WARNING@
The battery must always be fully
charged and in good condition. Loss
of battery power may leave you
stranded. Never operate the watercraft
if the battery does not have sufficient
power to start the engine or if it shows
any other signs of decreased power.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
Make sure that the battery is securely
held in place.
1
Positive (+): Red lead
2
Negative (–): Black lead
3
Breather hose
E_F0M-70.book Page 9 Wednesday, June 23, 2004 4:52 PM

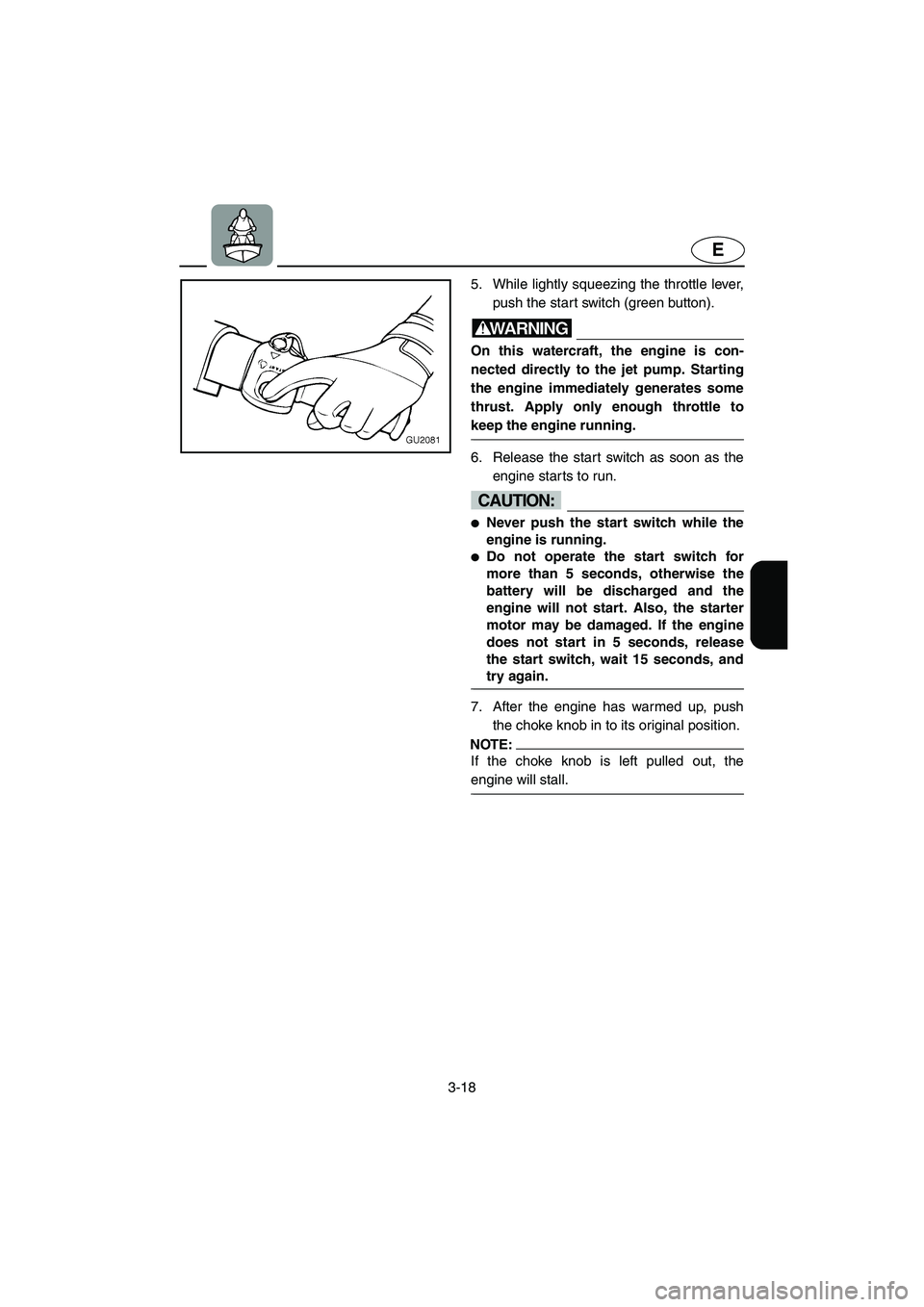

3-18
E
5. While lightly squeezing the throttle lever,
push the start switch (green button).
WARNING@ On this watercraft, the engine is con-
nected directly to the jet pump. Starting
the engine immediately generates some
thrust. Apply only enough throttle to
keep the engine running.
@
6. Release the start switch as soon as the
engine starts to run.
CAUTION:@
Never push the start switch while the
engine is running.

Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
try again.
@
7. After the engine has warmed up, push
the choke knob in to its original position.
NOTE:@ If the choke knob is left pulled out, the
engine will stall.
@
E_F0M-70.book Page 18 Wednesday, June 23, 2004 4:52 PM

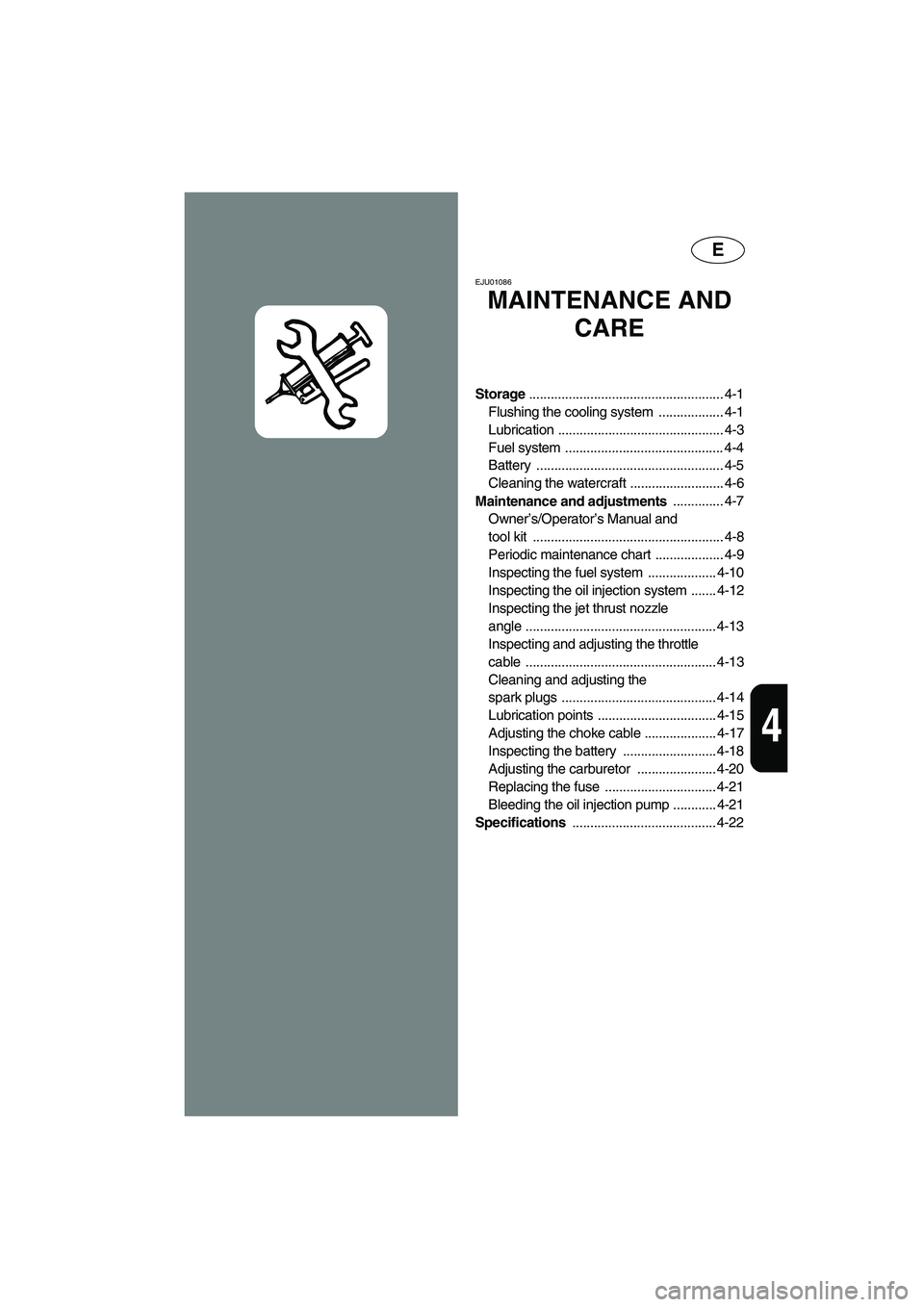

E
4
EJU01086
MAINTENANCE AND
CARE
Storage ...................................................... 4-1
Flushing the cooling system .................. 4-1
Lubrication .............................................. 4-3
Fuel system ............................................ 4-4
Battery .................................................... 4-5
Cleaning the watercraft .......................... 4-6
Maintenance and adjustments .............. 4-7
Owner’s/Operator’s Manual and
tool kit ..................................................... 4-8
Periodic maintenance chart ................... 4-9
Inspecting the fuel system ................... 4-10
Inspecting the oil injection system ....... 4-12
Inspecting the jet thrust nozzle
angle ..................................................... 4-13
Inspecting and adjusting the throttle
cable ..................................................... 4-13
Cleaning and adjusting the
spark plugs ........................................... 4-14
Lubrication points ................................. 4-15
Adjusting the choke cable .................... 4-17
Inspecting the battery .......................... 4-18
Adjusting the carburetor ...................... 4-20
Replacing the fuse ............................... 4-21
Bleeding the oil injection pump ............ 4-21
Specifications ........................................ 4-22
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM

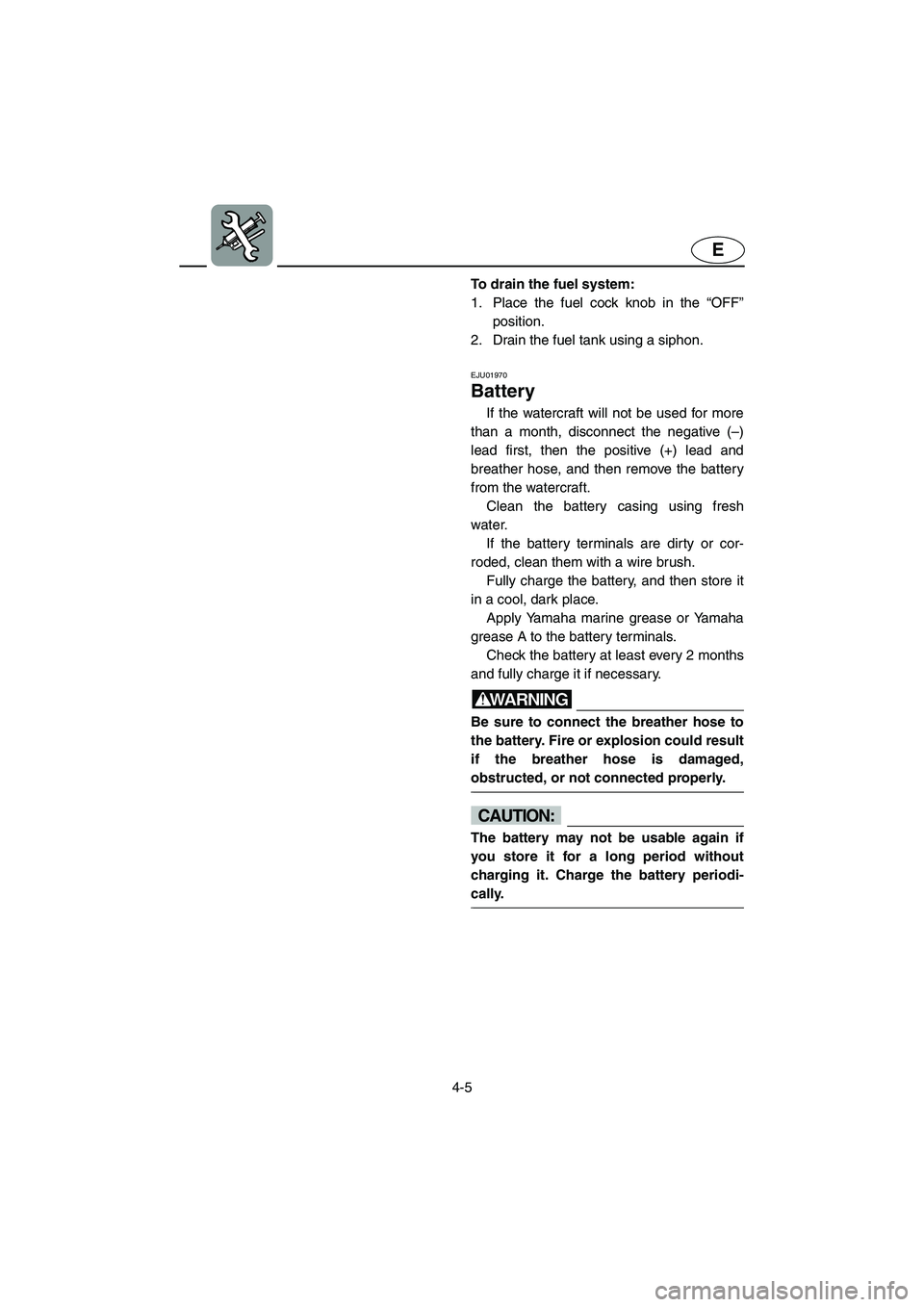

4-5
E
To drain the fuel system:
1. Place the fuel cock knob in the “OFF”
position.
2. Drain the fuel tank using a siphon.
EJU01970
Battery
If the watercraft will not be used for more
than a month, disconnect the negative (–)
lead first, then the positive (+) lead and
breather hose, and then remove the battery
from the watercraft.
Clean the battery casing using fresh
water.
If the battery terminals are dirty or cor-
roded, clean them with a wire brush.
Fully charge the battery, and then store it
in a cool, dark place.
Apply Yamaha marine grease or Yamaha
grease A to the battery terminals.
Check the battery at least every 2 months
and fully charge it if necessary.
WARNING@ Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@ The battery may not be usable again if
you store it for a long period without
charging it. Charge the battery periodi-
cally.
@
E_F0M-70.book Page 5 Wednesday, June 23, 2004 4:52 PM

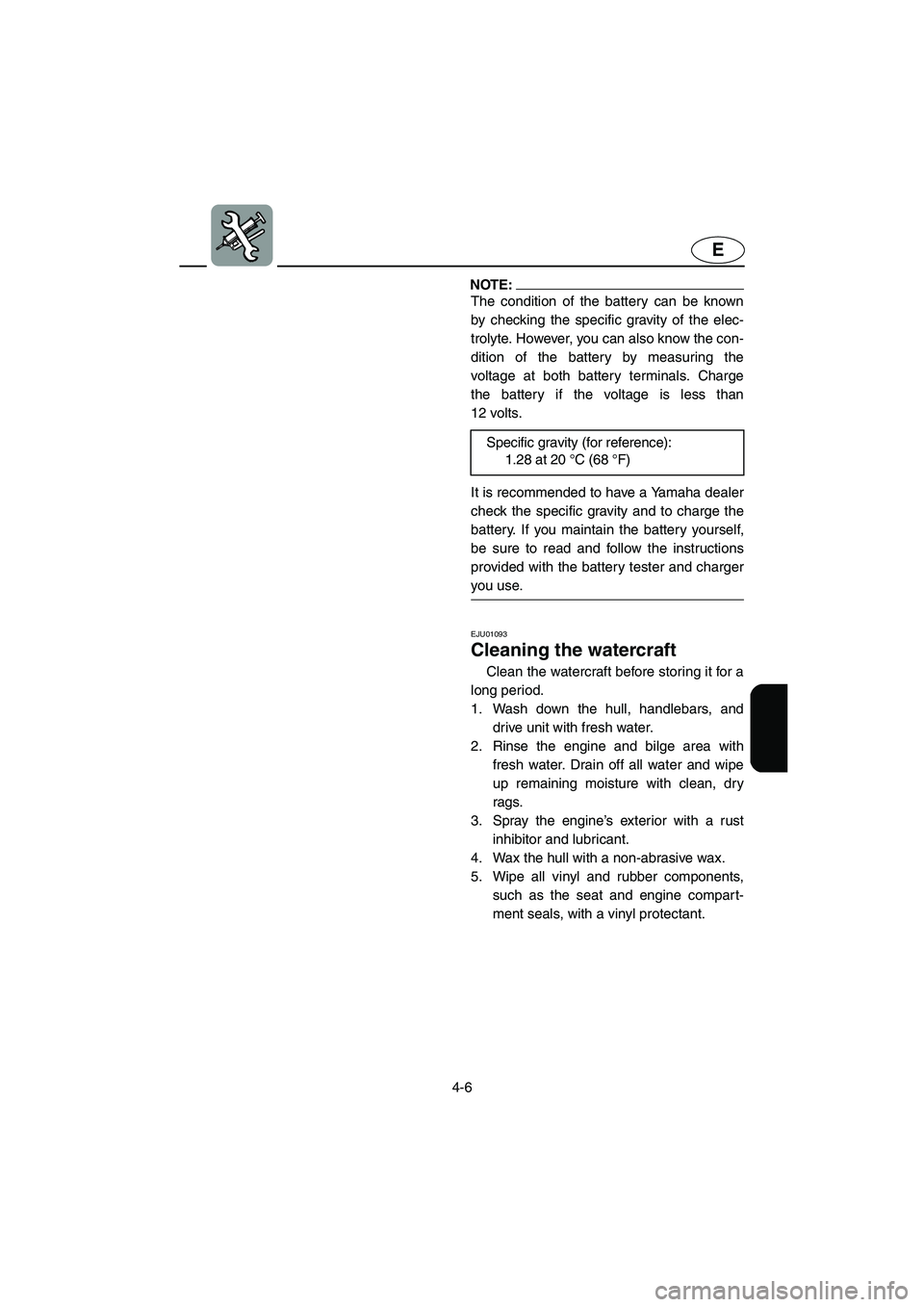

4-6
E
NOTE:@ The condition of the battery can be known
by checking the specific gravity of the elec-
trolyte. However, you can also know the con-
dition of the battery by measuring the
voltage at both battery terminals. Charge
the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and to charge the
battery. If you maintain the battery yourself,
be sure to read and follow the instructions
provided with the battery tester and charger
you use.
@
EJU01093
Cleaning the watercraft
Clean the watercraft before storing it for a
long period.
1. Wash down the hull, handlebars, and
drive unit with fresh water.
2. Rinse the engine and bilge area with
fresh water. Drain off all water and wipe
up remaining moisture with clean, dry
rags.
3. Spray the engine’s exterior with a rust
inhibitor and lubricant.
4. Wax the hull with a non-abrasive wax.
5. Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
E_F0M-70.book Page 6 Wednesday, June 23, 2004 4:52 PM

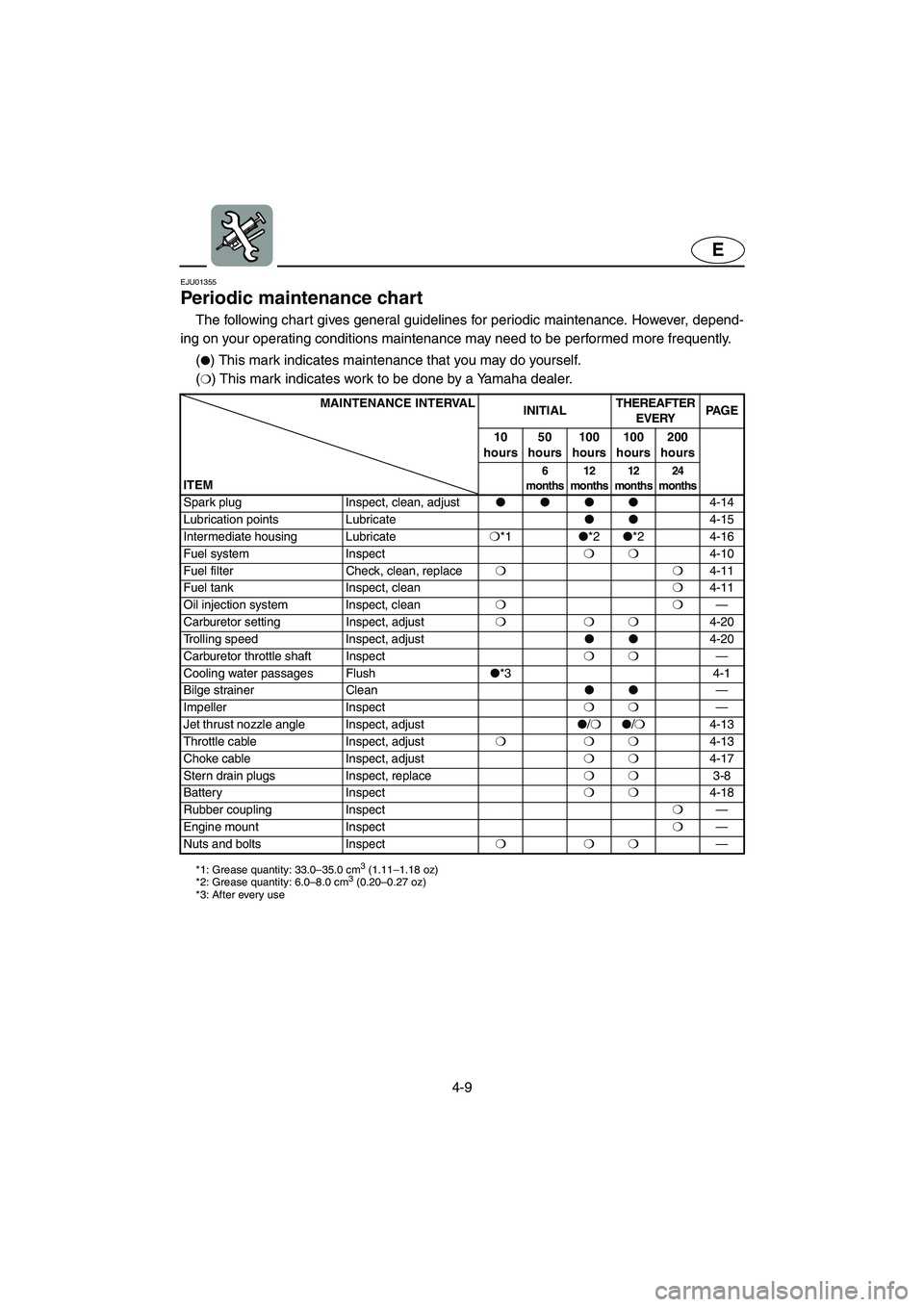

4-9
E
EJU01355
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
(

) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust




4-14
Lubrication points Lubricate


4-15
Intermediate housing Lubricate❍
*1

*2

*2 4-16
Fuel system Inspect❍❍
4-10
Fuel filter Check, clean, replace❍❍
4-11
Fuel tank Inspect, clean❍
4-11
Oil injection system Inspect, clean❍❍
—
Carburetor setting Inspect, adjust❍❍❍
4-20
Trolling speed Inspect, adjust


4-20
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush

*3 4-1
Bilge strainer Clean


—
Impeller Inspect❍❍
—
Jet thrust nozzle angle Inspect, adjust

/❍

/❍
4-13
Throttle cable Inspect, adjust❍❍❍
4-13
Choke cable Inspect, adjust❍❍
4-17
Stern drain plugs Inspect, replace❍❍
3-8
Battery Inspect ❍❍
4-18
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
*1: Grease quantity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease quantity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: After every use
E_F0M-70.book Page 9 Wednesday, June 23, 2004 4:52 PM

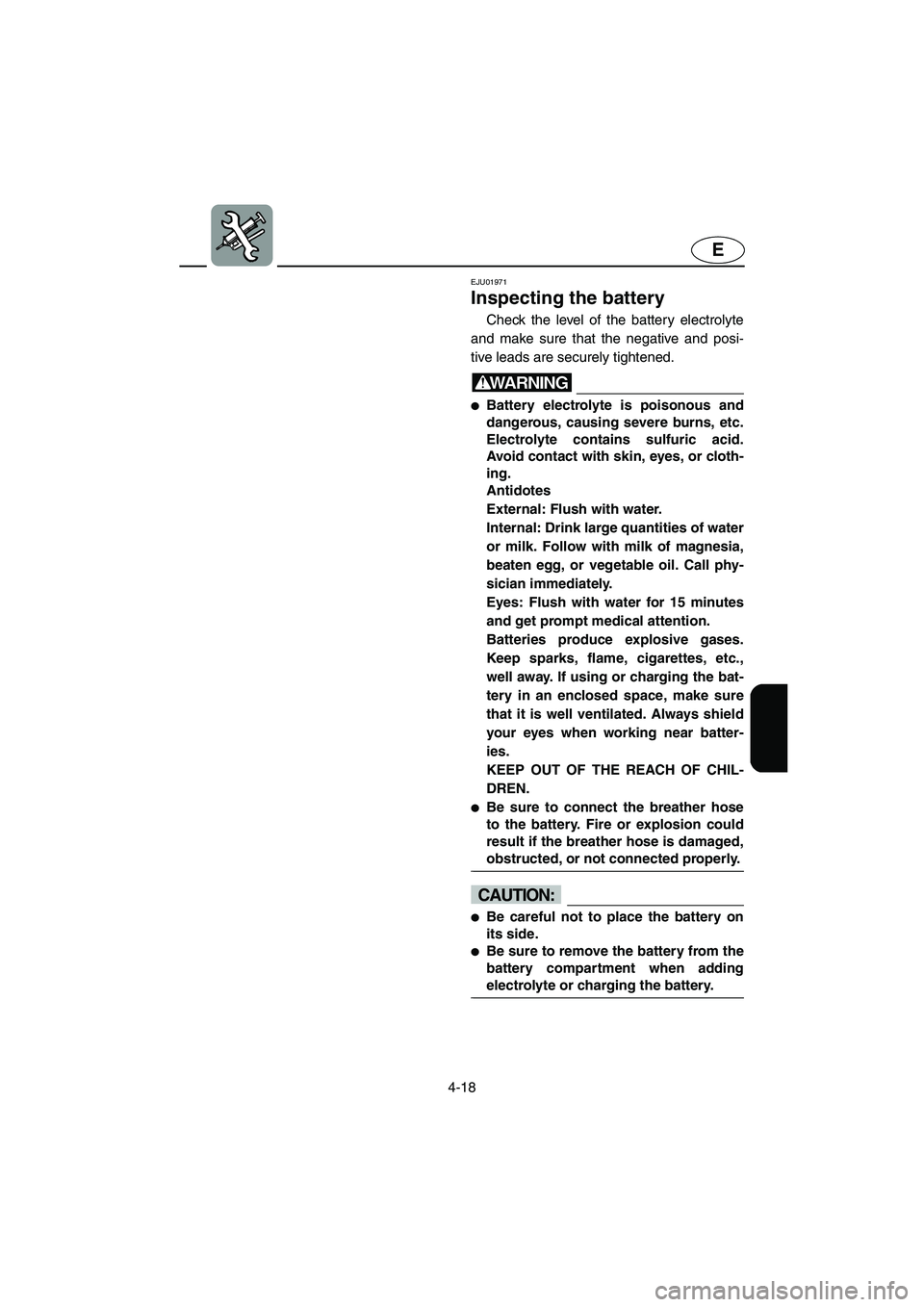

4-18
E
EJU01971
Inspecting the battery
Check the level of the battery electrolyte
and make sure that the negative and posi-
tive leads are securely tightened.
WARNING@
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc.
Electrolyte contains sulfuric acid.
Avoid contact with skin, eyes, or cloth-
ing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call phy-
sician immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes, etc.,
well away. If using or charging the bat-
tery in an enclosed space, make sure
that it is well ventilated. Always shield
your eyes when working near batter-
ies.
KEEP OUT OF THE REACH OF CHIL-
DREN.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@
Be careful not to place the battery on
its side.

Be sure to remove the battery from the
battery compartment when adding
electrolyte or charging the battery.
@
E_F0M-70.book Page 18 Wednesday, June 23, 2004 4:52 PM

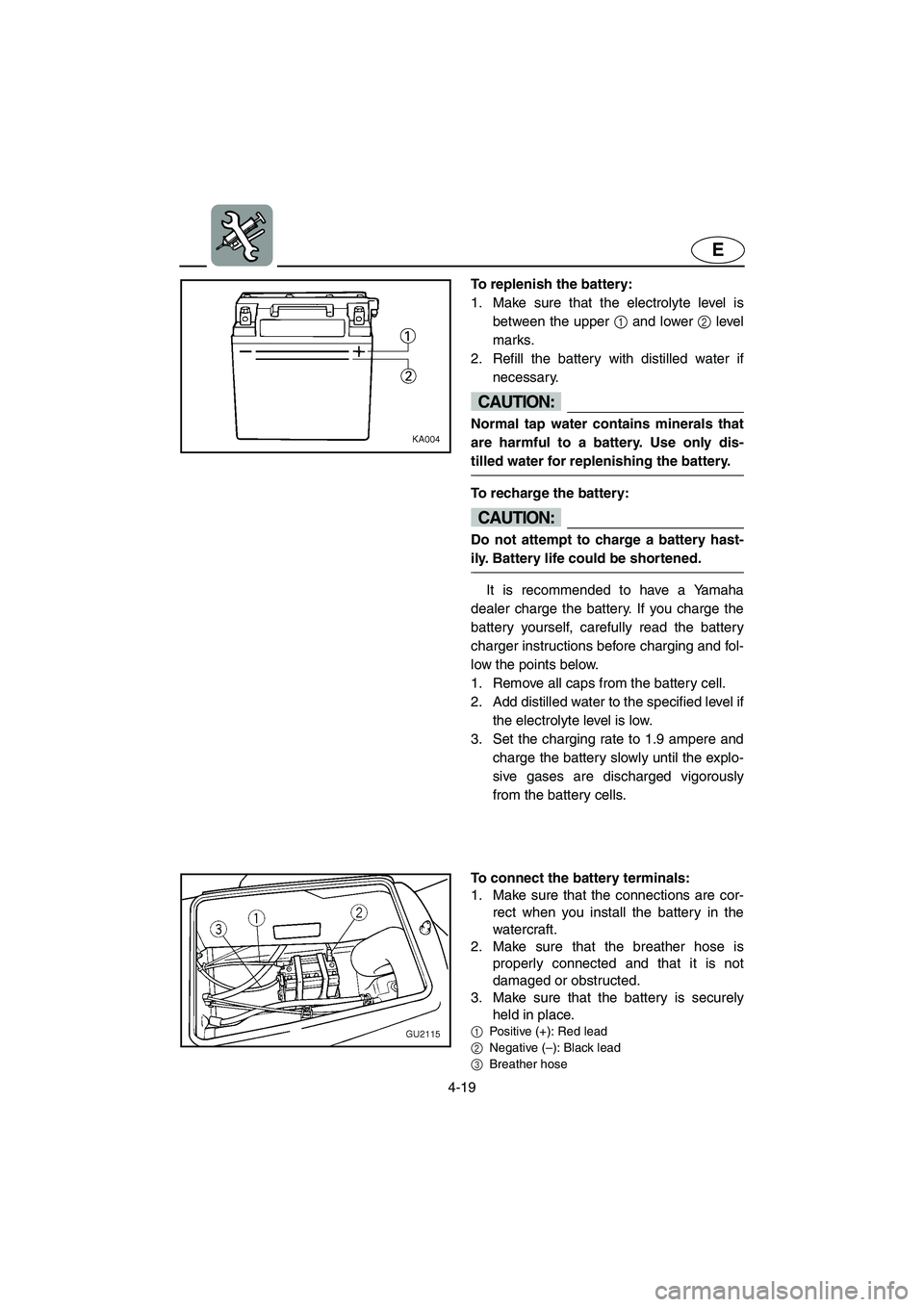

4-19
E
To replenish the battery:
1. Make sure that the electrolyte level is
between the upper 1 and lower 2 level
marks.
2. Refill the battery with distilled water if
necessary.
CAUTION:@ Normal tap water contains minerals that
are harmful to a battery. Use only dis-
tilled water for replenishing the battery.
@
To recharge the battery:
CAUTION:@ Do not attempt to charge a battery hast-
ily. Battery life could be shortened.
@
It is recommended to have a Yamaha
dealer charge the battery. If you charge the
battery yourself, carefully read the battery
charger instructions before charging and fol-
low the points below.
1. Remove all caps from the battery cell.
2. Add distilled water to the specified level if
the electrolyte level is low.
3. Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases are discharged vigorously
from the battery cells.
To connect the battery terminals:
1. Make sure that the connections are cor-
rect when you install the battery in the
watercraft.
2. Make sure that the breather hose is
properly connected and that it is not
damaged or obstructed.
3. Make sure that the battery is securely
held in place.
1Positive (+): Red lead
2Negative (–): Black lead
3Breather hose
E_F0M-70.book Page 19 Wednesday, June 23, 2004 4:52 PM
