cooling YAMAHA XL 700 2005 Owners Manual

E
2
EJU01007
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-4
Rear seat ................................................ 2-4
Front seat ............................................... 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-7
Oil tank filler cap ..................................... 2-7
Fuel cock knob ....................................... 2-8
Engine stop switch ................................. 2-9
Engine shut-off switch ............................ 2-9
Choke knob ............................................ 2-9
Throttle lever ........................................ 2-10
Start switch ........................................... 2-10
Cooling water pilot outlet ..................... 2-11
Steering system ................................... 2-11
Handgrip ............................................... 2-12
Finger grip ............................................ 2-12
Engine overheat warning system ........ 2-13
Oil level warning lamp .......................... 2-14
Storage compartments ........................ 2-15
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM

2-1
E
EJU01008
Location of main components
1Cooling water pilot outlet
Use to verify cooling water flow.
2Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
3Front storage compartment
4Hood
5Fuel cock knob
Use to select either normal or reserve fuel flow
from the fuel tank to the carburetors, or to shut
off fuel flow.
6Handlebars
Use to control direction.
7Fuel tank filler cap
8Rope hole
Use to attach a rope for mooring only.
9Oil tank filler cap
0Choke knob
Use to start a cold engine.AFootwell
Use to place feet for balance.
BFootrest
To keep proper balance while facing to the rear
to watch the skier.
CFire extinguisher container
Use to store the fire extinguisher.
DIntake grate
Prevents debris from getting into the jet pump.
EHandgrip
Use for suppor t when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
FRear seat
GFront seat
HGlove compartment
ISeat storage compartments
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM

2-3
E
1Silencer
Prevents water from getting into the engine
and reduces air intake noise.
2Spark plugs/caps
3Electrical box
Protects electrical components from water.
4Spark plug lead
5Muffler6Fuel tank
7Oil tank
8Fuel filter
9Flush hose connector
Use to flush the engine cooling water pas-
sages.
0Battery
E_F0M-70.book Page 3 Wednesday, June 23, 2004 4:52 PM

2-11
E
EJU01130
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlet.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlet.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlet. If water is not
being discharged from the outlet, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and check
for the cause. (See pages 2-13 and 5-4 for
further instructions.)
NOTE:@ If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
@
EJU01021
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
E_F0M-70.book Page 11 Wednesday, June 23, 2004 4:52 PM

2-13
E
EJU01131
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the
engine speed will be limited to about
3,400 r/min.
When this occurs, check for water dis-
charge at the cooling water pilot outlet. If
there is no discharge of water, reduce the
engine speed and beach the watercraft, and
then check the intake grate and impeller for
clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
@
E_F0M-70.book Page 13 Wednesday, June 23, 2004 4:52 PM

3-5
E
EJU01346
Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove all seats and the front storage compart-
ment to ventilate the engine compartment.
Check for fuel vapors and loose electrical con-
nections.3-6
Bilge Check for water and fuel and remove if neces-
sary.3-8
Stern drain plugs Check for proper installation. 3-8
Throttle lever Check that the throttle lever springs back
smoothly.3-11
Steering system Check for proper operation. 3-11
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-7
Water separator Check for water and drain if necessary. 3-7
Battery Check electrolyte level and battery condition. 3-9
Hood Check that the hood is properly secured. 2-6
Front and rear seats Check that the seats are properly secured. 2-4–2-5
Hull and deck Check the hull and deck for cracks or other dam-
age.3-6
Jet unit Check for debris and remove if necessary. 3-12
Fire extinguisher Check condition and replace if necessary. 3-10
Engine shut-off cord Check condition and replace if frayed or broken. 3-12
Switches Check the start switch, engine stop switch, and
engine shut-off switch for proper operation.3-13
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water.3-13
E_F0M-70.book Page 5 Wednesday, June 23, 2004 4:52 PM

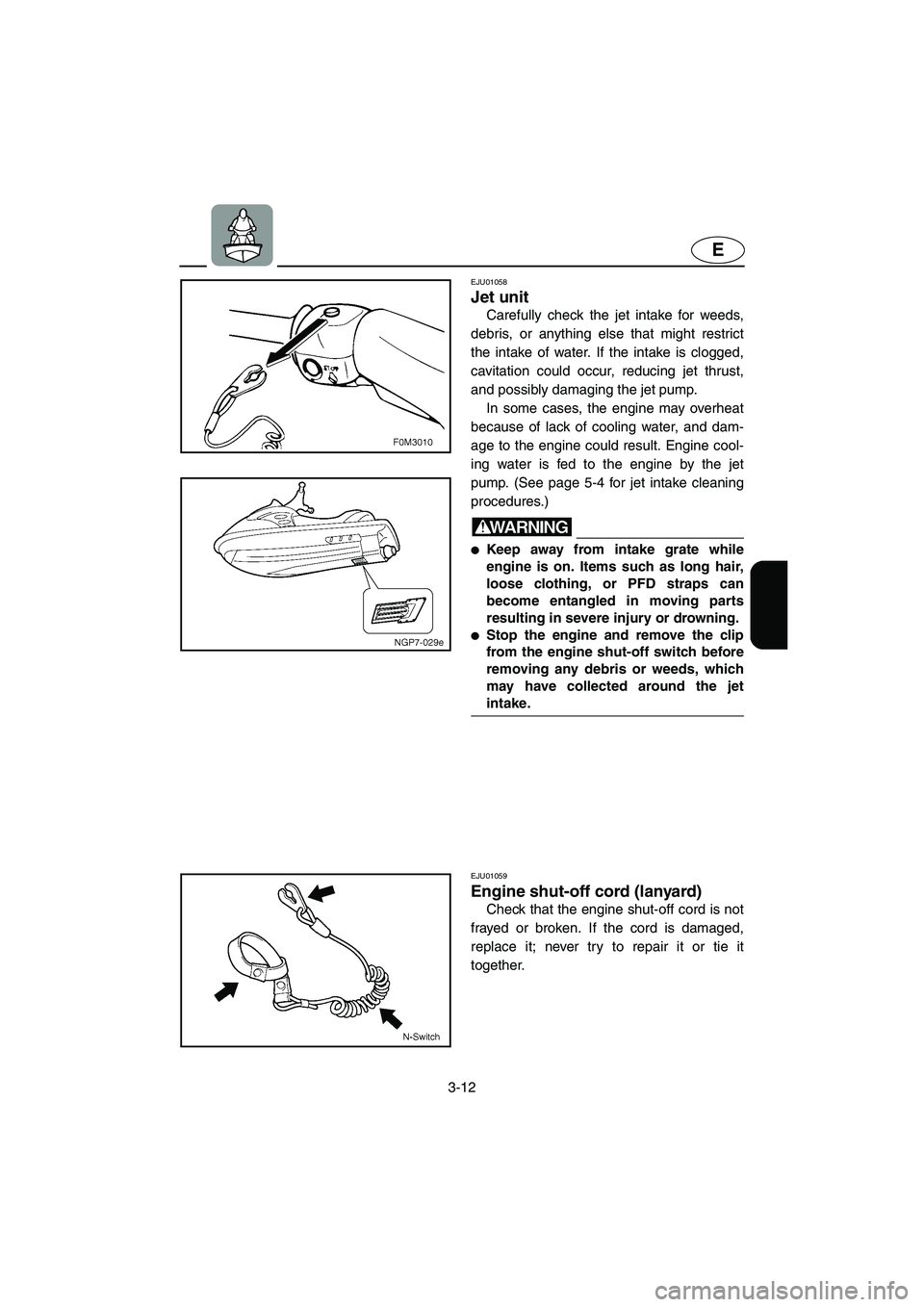

3-12
E
EJU01058
Jet unit
Carefully check the jet intake for weeds,
debris, or anything else that might restrict
the intake of water. If the intake is clogged,
cavitation could occur, reducing jet thrust,
and possibly damaging the jet pump.
In some cases, the engine may overheat
because of lack of cooling water, and dam-
age to the engine could result. Engine cool-
ing water is fed to the engine by the jet
pump. (See page 5-4 for jet intake cleaning
procedures.)
WARNING@
Keep away from intake grate while
engine is on. Items such as long hair,
loose clothing, or PFD straps can
become entangled in moving parts
resulting in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet
intake.
@
EJU01059
Engine shut-off cord (lanyard)
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged,
replace it; never try to repair it or tie it
together.
E_F0M-70.book Page 12 Wednesday, June 23, 2004 4:52 PM

3-13
E
EJU18352
Switches
CAUTION:@ Do not run the engine of the watercraft
for more than 15 seconds on land with-
out supplying water, otherwise the
engine may overheat.
@
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch 1 to start the
engine. As soon as the engine starts run-
ning, push the engine stop switch 2 to ver-
ify that the engine stops immediately.
Restart the engine, and then pull the engine
shut-off cord 5 to remove the clip 4 from
the engine shut-off switch 3 to verify that
the engine stops immediately. (See pages
2-9 to 2-10 for information on proper opera-
tion of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU01320
Cooling water pilot outlet
Check that water comes out from the out-
let while the engine is running and the
watercraft is in the water.
E_F0M-70.book Page 13 Wednesday, June 23, 2004 4:52 PM

3-34
E
EJU01084
Post-operation checks
Always perform the following post-opera-
tion checks after operating the watercraft.
1. Remove the watercraft from the water.
2. Wash down the hull, handlebars, and jet
unit with fresh water.
3. Remove the seat and check the engine
compartment for water. To drain excess
water, remove the stern drain plugs, then
raise the bow of the watercraft enough to
allow water in the bilge to drain out.
NOTE:@ This watercraft is equipped with an auto-
matic bilge-draining system that removes
water from the engine compartment while
you are underway. However, some residual
water will remain.
@
4. Put the watercraft in a horizontal posi-
tion.
5. Flush the cooling system to prevent it
from clogging with salt, sand, or dirt.
(See page 4-1 for flushing the cooling
system procedures.)
6. Drain residual water from the exhaust
system by alternately squeezing and
releasing the throttle lever for 10 to
15 seconds while the engine is running.
CAUTION:@ Do not attempt to run the engine at full
throttle or for more than 15 seconds
while the watercraft is out of the water,
otherwise the engine may overheat or
seize.
@
E_F0M-70.book Page 34 Wednesday, June 23, 2004 4:52 PM

E
4
EJU01086
MAINTENANCE AND
CARE
Storage ...................................................... 4-1
Flushing the cooling system .................. 4-1
Lubrication .............................................. 4-3
Fuel system ............................................ 4-4
Battery .................................................... 4-5
Cleaning the watercraft .......................... 4-6
Maintenance and adjustments .............. 4-7
Owner’s/Operator’s Manual and
tool kit ..................................................... 4-8
Periodic maintenance chart ................... 4-9
Inspecting the fuel system ................... 4-10
Inspecting the oil injection system ....... 4-12
Inspecting the jet thrust nozzle
angle ..................................................... 4-13
Inspecting and adjusting the throttle
cable ..................................................... 4-13
Cleaning and adjusting the
spark plugs ........................................... 4-14
Lubrication points ................................. 4-15
Adjusting the choke cable .................... 4-17
Inspecting the battery .......................... 4-18
Adjusting the carburetor ...................... 4-20
Replacing the fuse ............................... 4-21
Bleeding the oil injection pump ............ 4-21
Specifications ........................................ 4-22
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM
