2-3
E
1Silencer
Prevents water from getting into the engine
and reduces air intake noise.
2Spark plugs/caps
3Electrical box
Protects electrical components from water.
4Spark plug lead
5Muffler6Fuel tank
7Oil tank
8Fuel filter
9Flush hose connector
Use to flush the engine cooling water pas-
sages.
0Battery
E_F0M-70.book Page 3 Wednesday, June 23, 2004 4:52 PM

2-14
E
EJU01132
Oil level warning lamp
If the oil remaining in the tank drops to
about 1.2 L (0.31 US gal, 0.26 Imp gal) or
the oil filter is clogged, the oil level warning
lamp begins to blink.
If the oil level warning lamp begins to
blink, refill with engine oil as soon as possi-
ble.
NOTE:@
The lamp will light up for 2 seconds after
starting the engine to check the lamp
operation.

If the warning lamp blinks with adequate
oil in the tank, check for a clogged oil fil-
ter.
@
E_F0M-70.book Page 14 Wednesday, June 23, 2004 4:52 PM

4-9
E
EJU01355
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
(

) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust




4-14
Lubrication points Lubricate


4-15
Intermediate housing Lubricate❍
*1

*2

*2 4-16
Fuel system Inspect❍❍
4-10
Fuel filter Check, clean, replace❍❍
4-11
Fuel tank Inspect, clean❍
4-11
Oil injection system Inspect, clean❍❍
—
Carburetor setting Inspect, adjust❍❍❍
4-20
Trolling speed Inspect, adjust


4-20
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush

*3 4-1
Bilge strainer Clean


—
Impeller Inspect❍❍
—
Jet thrust nozzle angle Inspect, adjust

/❍

/❍
4-13
Throttle cable Inspect, adjust❍❍❍
4-13
Choke cable Inspect, adjust❍❍
4-17
Stern drain plugs Inspect, replace❍❍
3-8
Battery Inspect ❍❍
4-18
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
*1: Grease quantity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease quantity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: After every use
E_F0M-70.book Page 9 Wednesday, June 23, 2004 4:52 PM

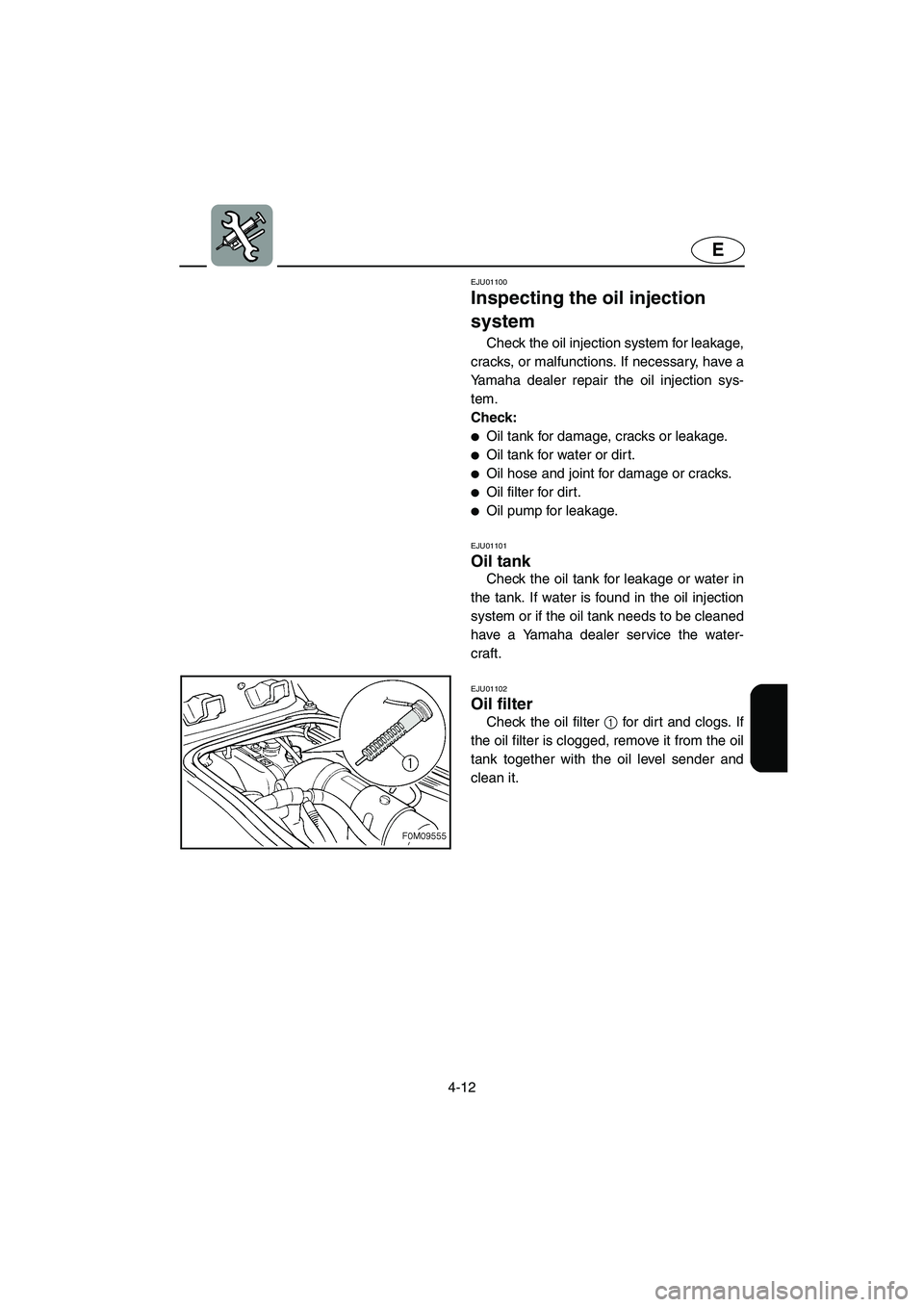

4-12
E
EJU01100
Inspecting the oil injection
system
Check the oil injection system for leakage,
cracks, or malfunctions. If necessary, have a
Yamaha dealer repair the oil injection sys-
tem.
Check:

Oil tank for damage, cracks or leakage.

Oil tank for water or dirt.

Oil hose and joint for damage or cracks.

Oil filter for dirt.

Oil pump for leakage.
EJU01101
Oil tank
Check the oil tank for leakage or water in
the tank. If water is found in the oil injection
system or if the oil tank needs to be cleaned
have a Yamaha dealer service the water-
craft.
EJU01102
Oil filter
Check the oil filter 1 for dirt and clogs. If
the oil filter is clogged, remove it from the oil
tank together with the oil level sender and
clean it.
E_F0M-70.book Page 12 Wednesday, June 23, 2004 4:52 PM

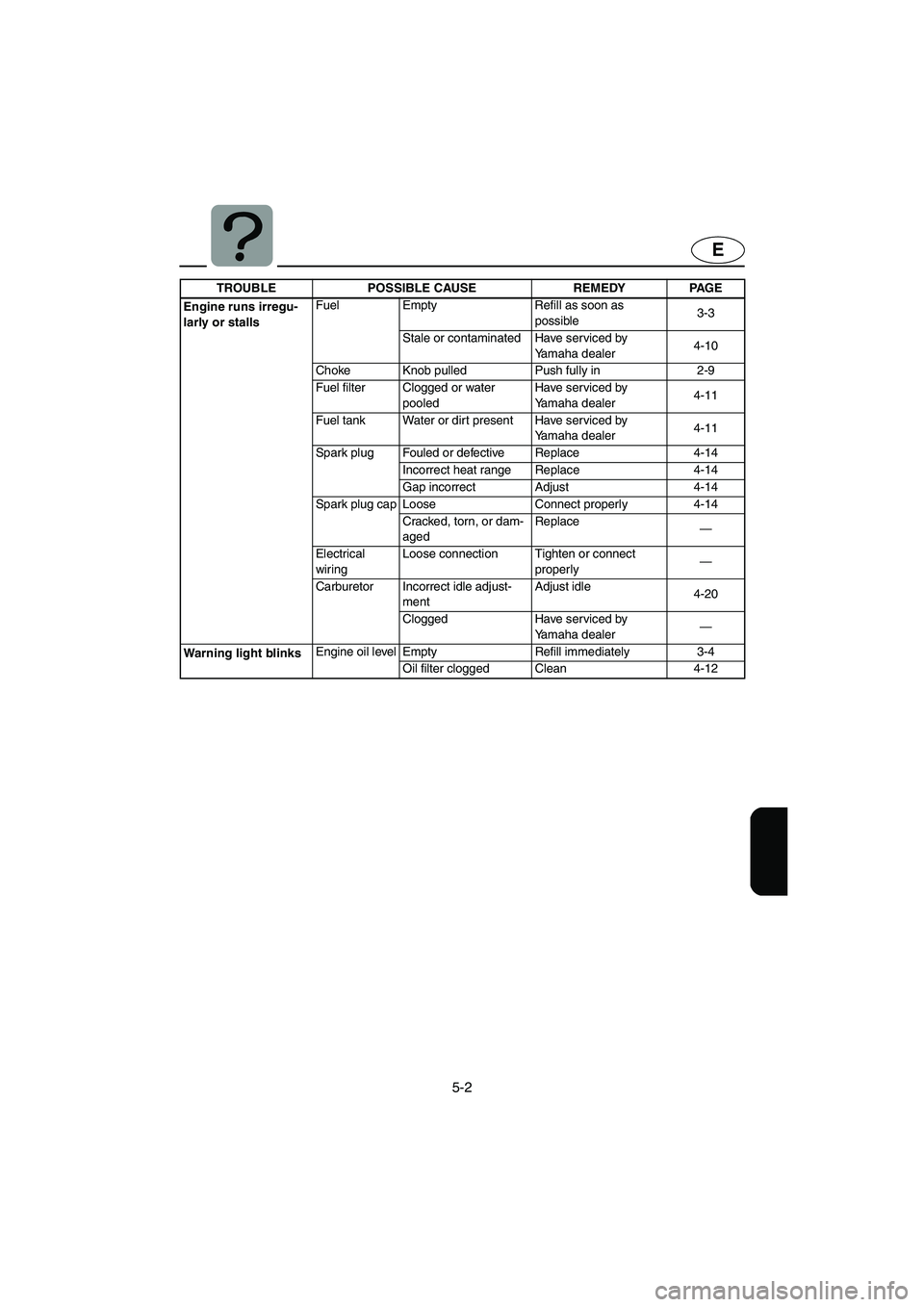

5-2
E
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as
possible3-3
Stale or contaminated Have serviced by
Yamaha dealer4-10
Choke Knob pulled Push fully in 2-9
Fuel filter Clogged or water
pooledHave serviced by
Yamaha dealer4-11
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-11
Spark plug Fouled or defective Replace 4-14
Incorrect heat range Replace 4-14
Gap incorrect Adjust 4-14
Spark plug cap Loose Connect properly 4-14
Cracked, torn, or dam-
agedReplace
—
Electrical
wiringLoose connection Tighten or connect
properly—
Carburetor Incorrect idle adjust-
mentAdjust idle
4-20
Clogged Have serviced by
Yamaha dealer—
Warning light blinksEngine oil level Empty Refill immediately 3-4
Oil filter clogged Clean 4-12 TROUBLE POSSIBLE CAUSE REMEDY PAGE
E_F0M-70.book Page 2 Wednesday, June 23, 2004 4:52 PM

6-1
E
EJU01125
Index
2-stroke engine oil ................................... 3-2
A
Adjusting the carburetor ........................ 4-20
Adjusting the choke cable ..................... 4-17
Adjusting the trolling speed ................... 4-20
Approval label of Emission control
certificate ................................................. 1-2
B
Battery .............................................. 3-9, 4-5
Beaching the watercraft ........................ 3-32
Bilge ........................................................ 3-8
Bleeding the oil injection pump ............. 4-21
Boarding alone ...................................... 3-24
Boarding and starting in deep water ..... 3-24
Boarding with passengers ..................... 3-25
C
Capsized watercraft .............................. 3-27
Choke knob ............................................. 2-9
Cleaning and adjusting the spark
plugs...................................................... 4-14
Cleaning the jet intake and impeller ........ 5-4
Cleaning the watercraft ........................... 4-6
Connecting the jumper cables................. 5-6
Cooling water pilot outlet .............. 2-11, 3-13
Cruising limitations ................................ 1-10
D
Docking the watercraft .......................... 3-32
E
Emergency procedures ........................... 5-4
Emission control information
(For Canada only) ................................... 1-2
Engine break-in ..................................... 3-14
Engine compartment ............................... 3-6
Engine overheat warning system .......... 2-13
Engine serial number .............................. 1-1
Engine shut-off cord (lanyard) ............... 3-12
Engine shut-off switch ............................. 2-9
Engine stop switch .................................. 2-9
Enjoy your watercraft responsibly ......... 1-17F
Filling the fuel tank .................................. 3-3
Filling the oil tank .................................... 3-4
Finger grip ............................................. 2-12
Fire extinguisher .................................... 3-10
Flushing the cooling system .................... 4-1
Front seat ................................................ 2-5
Front storage compartment ................... 2-15
Fuel and oil.............................................. 3-1
Fuel and oil systems ............................... 3-7
Fuel cock knob ........................................ 2-8
Fuel filter ............................................... 4-11
Fuel system ............................................. 4-4
Fuel tank ............................................... 4-11
Fuel tank filler cap ................................... 2-7
G
Gasohol ................................................... 3-2
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-20
Glove compartment ............................... 2-16
H
Handgrip ................................................ 2-12
Hazard information ................................ 1-14
Hood........................................................ 2-6
Hull and deck .......................................... 3-6
Hull Identification Number (HIN).............. 1-1
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-3
Inspecting and adjusting the throttle
cable...................................................... 4-13
Inspecting the battery ............................ 4-18
Inspecting the fuel system ..................... 4-10
Inspecting the jet thrust nozzle angle .... 4-13
Inspecting the oil injection system ......... 4-12
J
Jet unit................................................... 3-12
Jumping the battery ................................. 5-5
L
Label location .......................................... 1-3
Learning to operate your watercraft ...... 3-20
Leaving the watercraft ........................... 3-19
E_F0M-70.book Page 1 Wednesday, June 23, 2004 4:52 PM

6-2
E
Limitations on who may operate the
watercraft ................................................ 1-9
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-15
M
Maintenance and adjustments ................ 4-7
Manufactured date label.......................... 1-2
O
Oil filter .................................................. 4-12
Oil level warning lamp ........................... 2-14
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-7
Operating your watercraft...................... 3-20
Operation .............................................. 3-14
Operation of controls and other
functions .................................................. 2-4
Operation requirements ........................ 1-11
Other labels ............................................. 1-7
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-34
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID)
number .................................................... 1-1
R
Rear seat................................................. 2-4
Recommended equipment .................... 1-13
Replacing the fuse ................................ 4-21
Riding watercraft with passengers ........ 3-21
Rough water operation .......................... 3-33
S
Safe boating rules ................................. 1-17
Safety information ................................... 1-9
Seat storage compartment .................... 2-16
Specifications ........................................ 4-22
Starting and boarding in shallow
water ..................................................... 3-23
Starting from a dock .............................. 3-23Starting the engine ................................ 3-16
Starting the watercraft ........................... 3-22
Start switch............................................ 2-10
Steering system ...........................2-11, 3-11
Stern drain plug ....................................... 3-8
Stopping the engine .............................. 3-19
Stopping the watercraft ......................... 3-31
Storage.................................................... 4-1
Storage compartments .......................... 2-15
Submerged watercraft ............................. 5-8
Switches ................................................ 3-13
T
Throttle .................................................. 3-11
Throttle lever ......................................... 2-10
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-36
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-29
W
Warning labels ........................................ 1-4
Watercraft characteristics ...................... 1-14
Water separator ...................................... 3-7
Water-skiing .......................................... 1-15
E_F0M-70.book Page 2 Wednesday, June 23, 2004 4:52 PM
