YAMAHA XMAX 125 2012 Owner's Guide

EAU12950

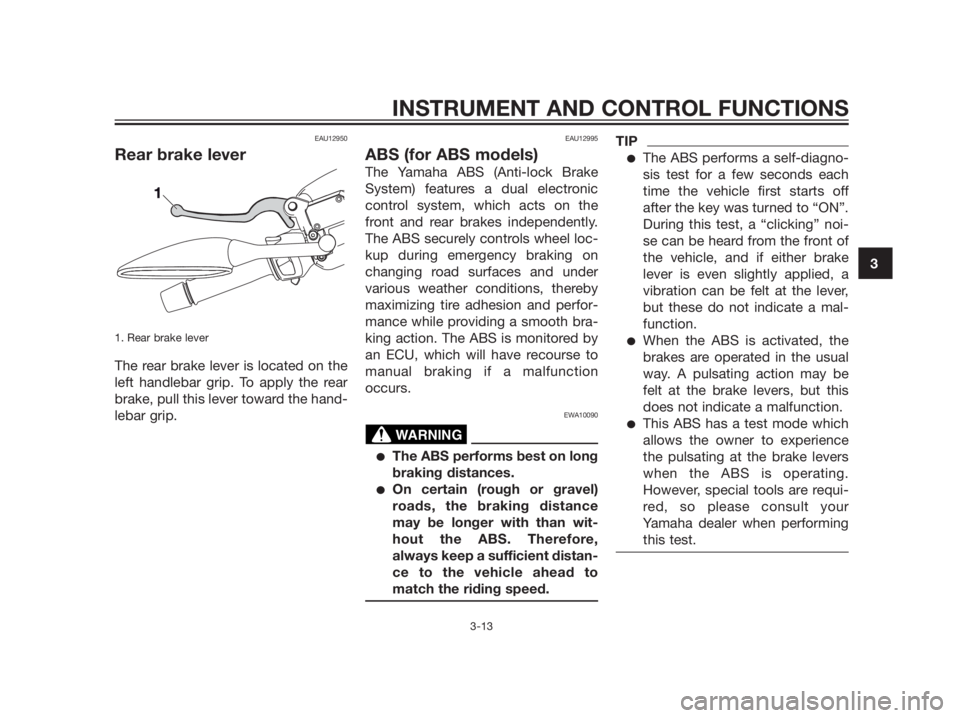

Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU12995
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic
control system, which acts on the
front and rear brakes independently.
The ABS securely controls wheel loc-
kup during emergency braking on
changing road surfaces and under
various weather conditions, thereby
maximizing tire adhesion and perfor-
mance while providing a smooth bra-
king action. The ABS is monitored by
an ECU, which will have recourse to
manual braking if a malfunction
occurs.
EWA10090
The ABS performs best on long
braking distances.
On certain (rough or gravel)
roads, the braking distance
may be longer with than wit-
hout the ABS. Therefore,
always keep a sufficient distan-
ce to the vehicle ahead to
match the riding speed.
TIP
The ABS performs a self-diagno-
sis test for a few seconds each
time the vehicle first starts off
after the key was turned to “ON”.
During this test, a “clicking” noi-
se can be heard from the front of
the vehicle, and if either brake
lever is even slightly applied, a
vibration can be felt at the lever,
but these do not indicate a mal-
function.
When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be
felt at the brake levers, but this
does not indicate a malfunction.
This ABS has a test mode which
allows the owner to experience
the pulsating at the brake levers
when the ABS is operating.
However, special tools are requi-
red, so please consult your
Yamaha dealer when performing
this test.WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3

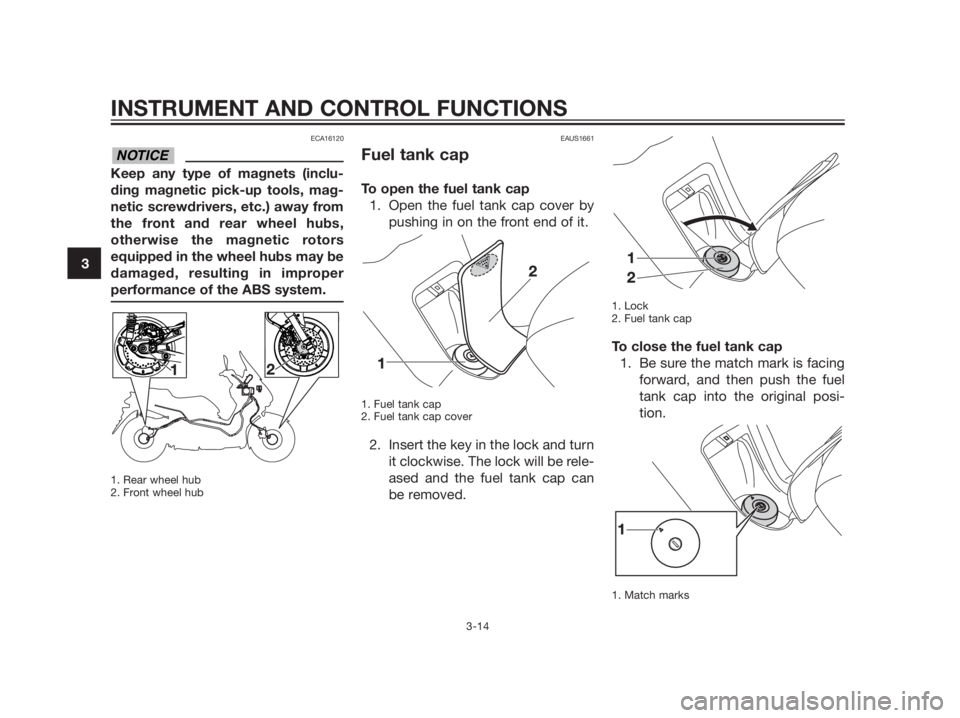

ECA16120
Keep any type of magnets (inclu-
ding magnetic pick-up tools, mag-
netic screwdrivers, etc.) away from
the front and rear wheel hubs,
otherwise the magnetic rotors
equipped in the wheel hubs may be
damaged, resulting in improper
performance of the ABS system.
1. Rear wheel hub 2. Front wheel hub
EAUS1661
Fuel tank cap
To open the fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the front end of it.
1. Fuel tank cap 2. Fuel tank cap cover
2. Insert the key in the lock and turn
it clockwise. The lock will be rele-
ased and the fuel tank cap can
be removed.
1. Lock 2. Fuel tank cap
To close the fuel tank cap
1. Be sure the match mark is facing
forward, and then push the fuel
tank cap into the original posi-
tion.
1. Match marks
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3

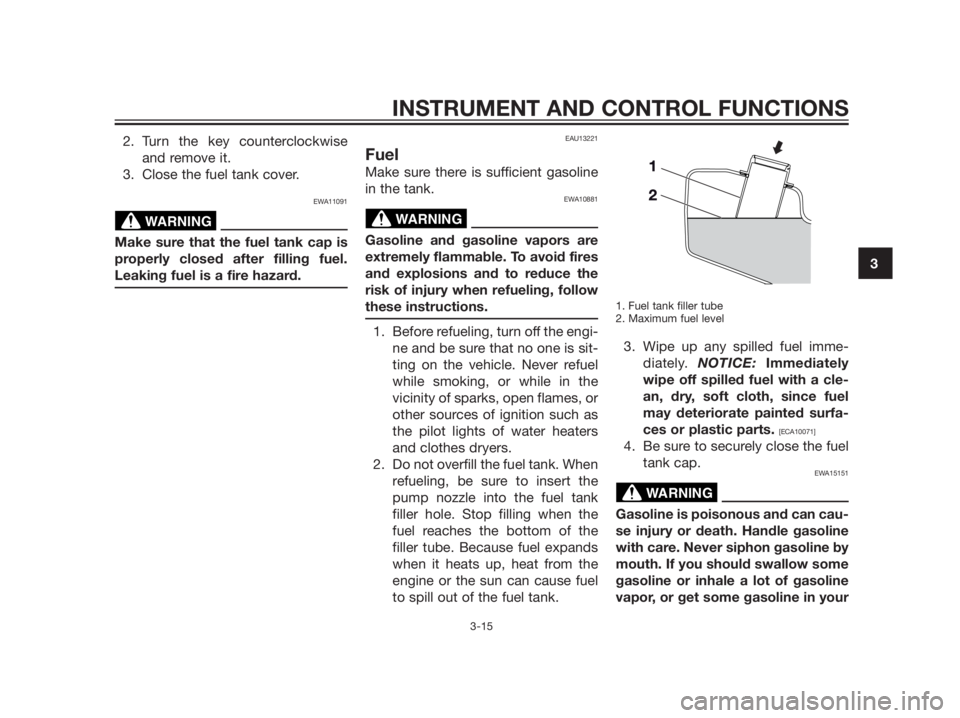

2. Turn the key counterclockwise
and remove it.
3. Close the fuel tank cover.
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi-
ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank
filler hole. Stop filling when the
fuel reaches the bottom of the
filler tube. Because fuel expands
when it heats up, heat from the
engine or the sun can cause fuel
to spill out of the fuel tank.
1. Fuel tank filler tube
2. Maximum fuel level
3. Wipe up any spilled fuel imme-
diately. NOTICE: Immediately
wipe off spilled fuel with a cle-
an, dry, soft cloth, since fuel
may deteriorate painted surfa-
ces or plastic parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
EWA15151
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your
WARNING
WARNINGWARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3

eyes, see your doctor immediately.
If gasoline spills on your skin, wash
with soap and water. If gasoline
spills on your clothing, change your
clothes.
EAU33520
ECA11400
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
EAU13445

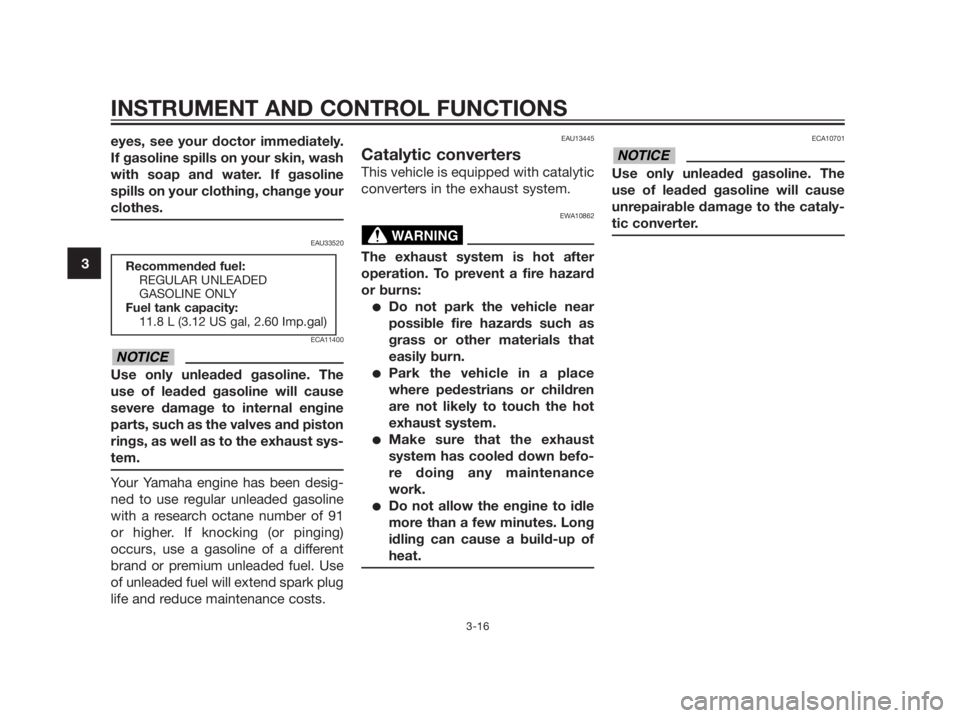

Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
EWA10862
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
NOTICE
WARNING
NOTICE
Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
11.8 L (3.12 US gal, 2.60 Imp.gal)
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3

EAUT1040

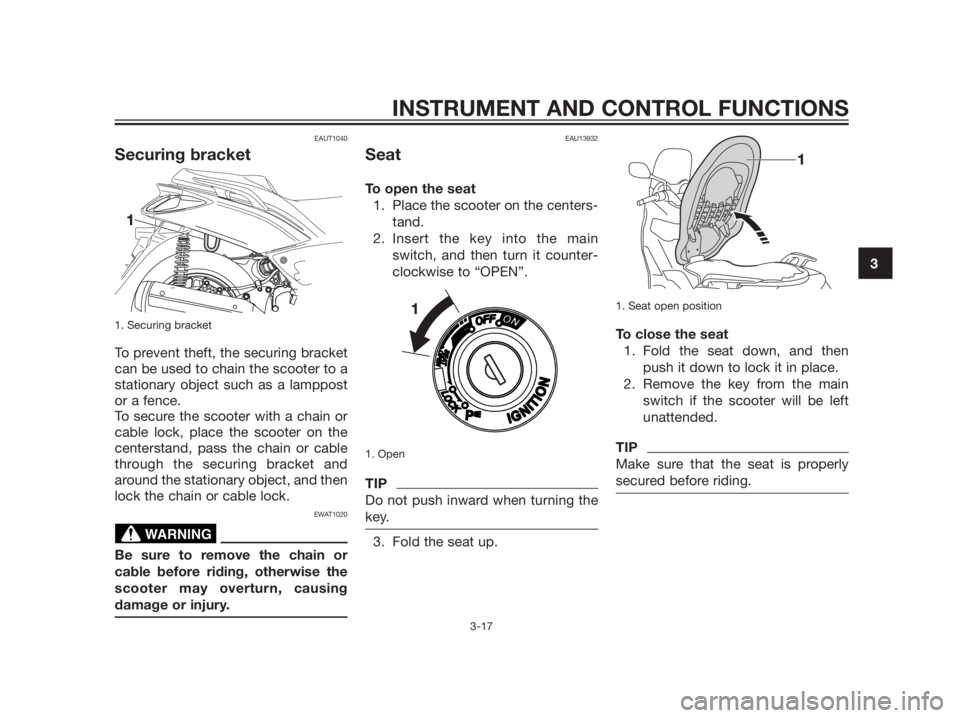

Securing bracket
1. Securing bracket
To prevent theft, the securing bracket
can be used to chain the scooter to a
stationary object such as a lamppost
or a fence.
To secure the scooter with a chain or
cable lock, place the scooter on the
centerstand, pass the chain or cable
through the securing bracket and
around the stationary object, and then
lock the chain or cable lock.
EWAT1020
Be sure to remove the chain or
cable before riding, otherwise the
scooter may overturn, causing
damage or injury.
EAU13932
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise to “OPEN”.
1. Open
TIP
Do not push inward when turning the
key.
3. Fold the seat up.
1. Seat open position
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
TIP
Make sure that the seat is properly
secured before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-17
3

EAUS1623

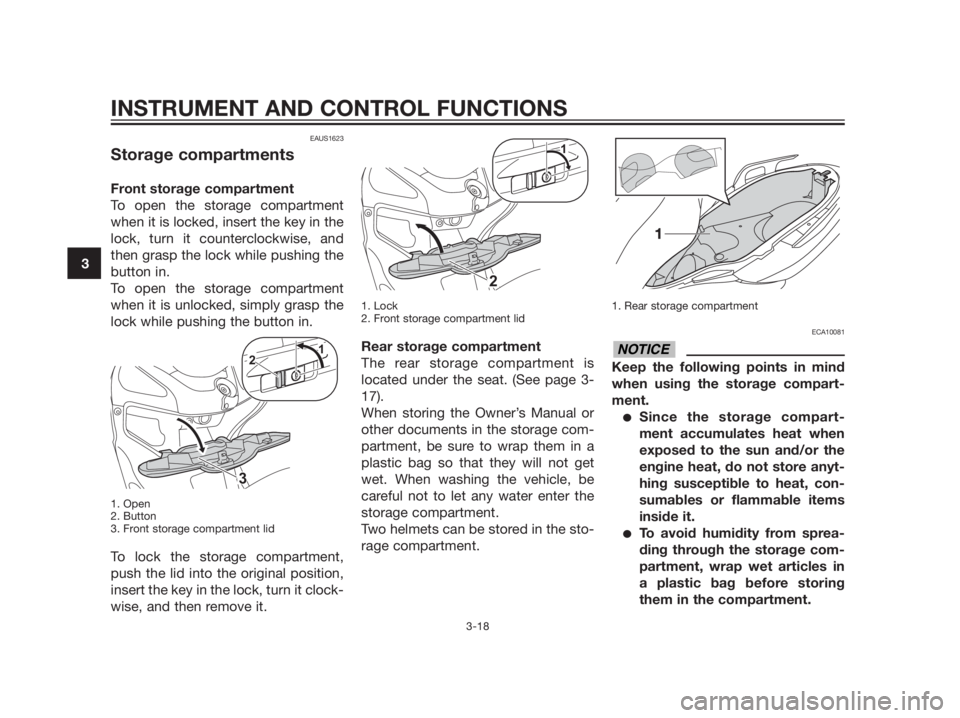

Storage compartments
Front storage compartment
To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and
then grasp the lock while pushing the
button in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.
1. Open
2. Button
3. Front storage compartment lid
To lock the storage compartment,
push the lid into the original position,
insert the key in the lock, turn it clock-
wise, and then remove it.
1. Lock
2. Front storage compartment lid
Rear storage compartment
The rear storage compartment is
located under the seat. (See page 3-
17).
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
Two helmets can be stored in the sto-
rage compartment.
1. Rear storage compartment
ECA10081
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compart-
ment accumulates heat when
exposed to the sun and/or the
engine heat, do not store anyt-
hing susceptible to heat, con-
sumables or flammable items
inside it.
To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
NOTICE
1
2
21
3
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3

Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
EWA15860
Do not exceed the following loa-
ding limits:
Front storage compartment:
1 kg (2 lb)
Rear storage compartment:
5 kg (11 lb)
Maximum load for the vehicle:
YP125R 182 kg (401 lb)
YP125RA 179 kg (395 lb)
YP125R Sport 180.5 kg (398 lb)
YP125RA Business 171.8 kg
(379 lb)
EAU14892

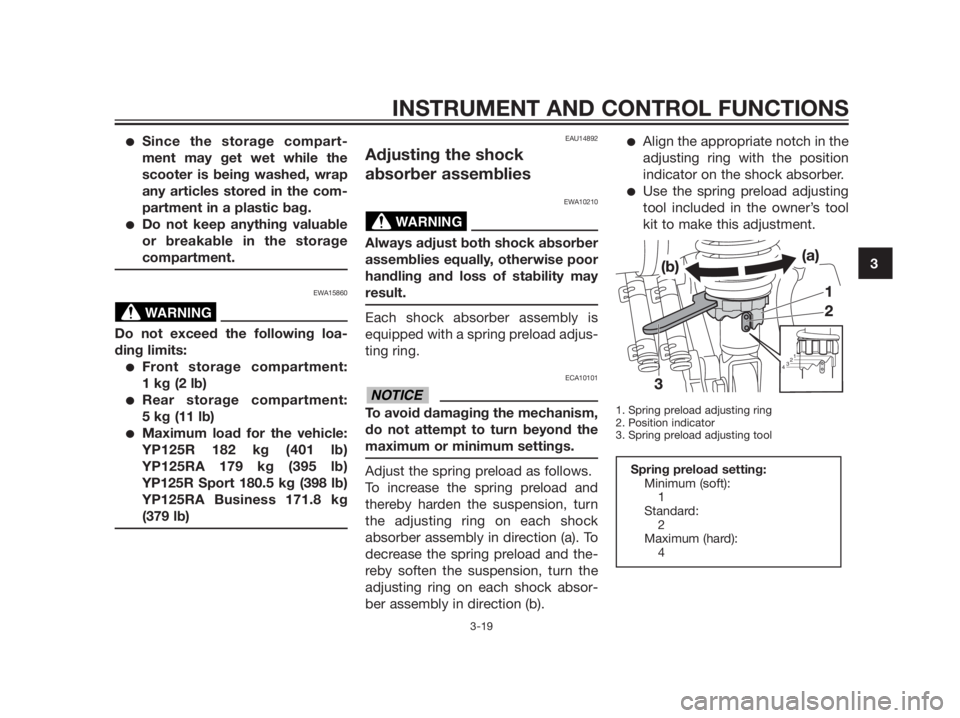

Adjusting the shock
absorber assemblies
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
Align the appropriate notch in the
adjusting ring with the position
indicator on the shock absorber.
Use the spring preload adjusting
tool included in the owner’s tool
kit to make this adjustment.
1. Spring preload adjusting ring
2. Position indicator
3. Spring preload adjusting tool
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1
2
3
4
NOTICE
WARNING
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3

EAUS2020

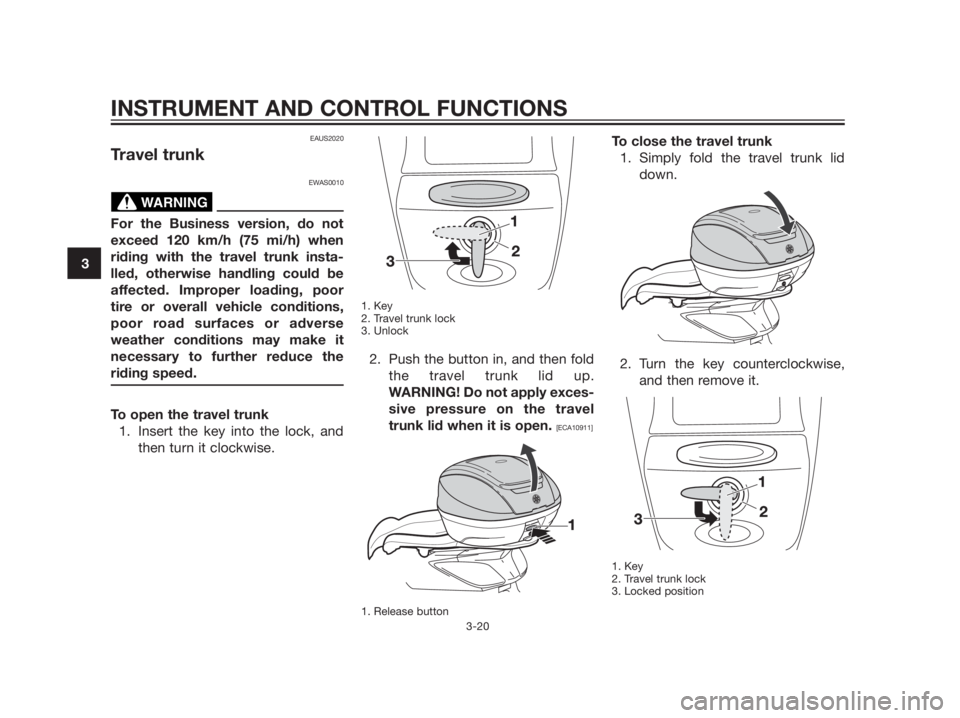

Travel trunk
EWAS0010
For the Business version, do not
exceed 120 km/h (75 mi/h) when
riding with the travel trunk insta-
lled, otherwise handling could be
affected. Improper loading, poor
tire or overall vehicle conditions,
poor road surfaces or adverse
weather conditions may make it
necessary to further reduce the
riding speed.
To open the travel trunk
1. Insert the key into the lock, and
then turn it clockwise.
1. Key
2. Travel trunk lock
3. Unlock
2. Push the button in, and then fold
the travel trunk lid up.
WARNING! Do not apply exces-
sive pressure on the travel
trunk lid when it is open.
[ECA10911]
1. Release button
To close the travel trunk
1. Simply fold the travel trunk lid
down.
2. Turn the key counterclockwise,
and then remove it.
1. Key
2. Travel trunk lock
3. Locked position
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3

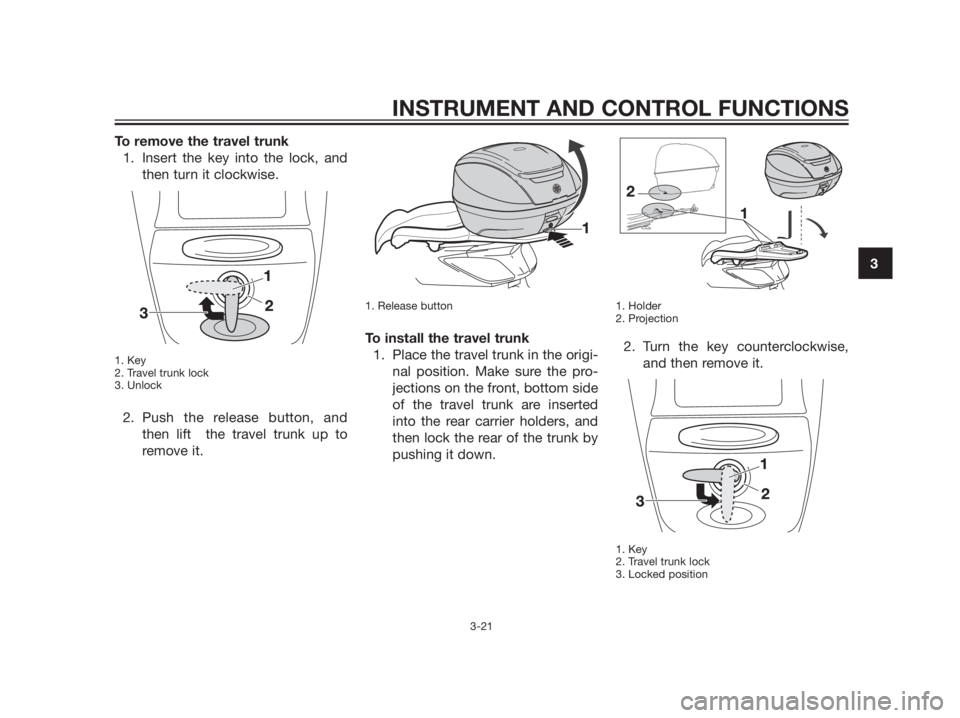

To remove the travel trunk
1. Insert the key into the lock, and
then turn it clockwise.
1. Key
2. Travel trunk lock
3. Unlock
2. Push the release button, and
then lift the travel trunk up to
remove it.
1. Release button
To install the travel trunk
1. Place the travel trunk in the origi-
nal position. Make sure the pro-
jections on the front, bottom side
of the travel trunk are inserted
into the rear carrier holders, and
then lock the rear of the trunk by
pushing it down.
1. Holder
2. Projection
2. Turn the key counterclockwise,
and then remove it.
1. Key
2. Travel trunk lock
3. Locked position
INSTRUMENT AND CONTROL FUNCTIONS
3-21
3

EAU15303

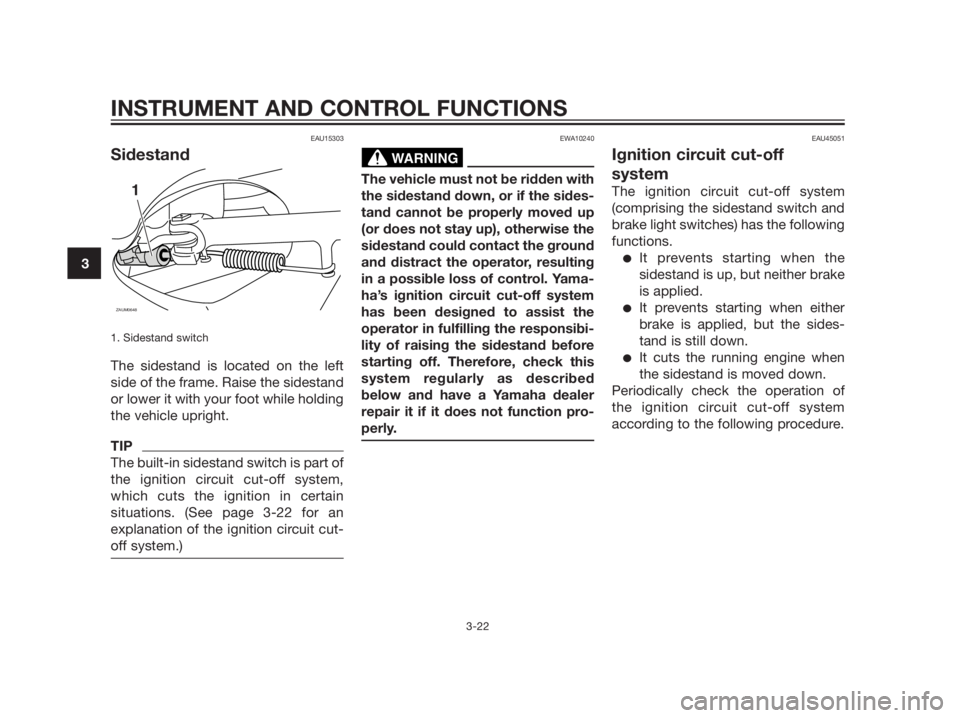

Sidestand
1. Sidestand switch
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See page 3-22 for an
explanation of the ignition circuit cut-
off system.)
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
It prevents starting when the
sidestand is up, but neither brake
is applied.
It prevents starting when either
brake is applied, but the sides-
tand is still down.
It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
WARNING
ZAUM0648
1
INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
