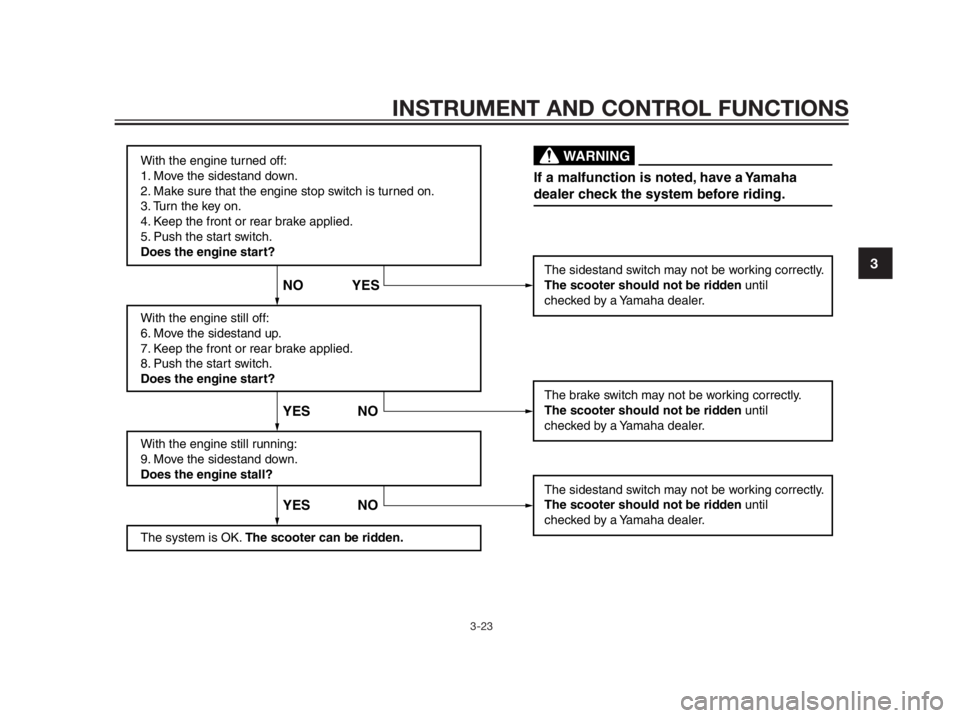

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-23
3

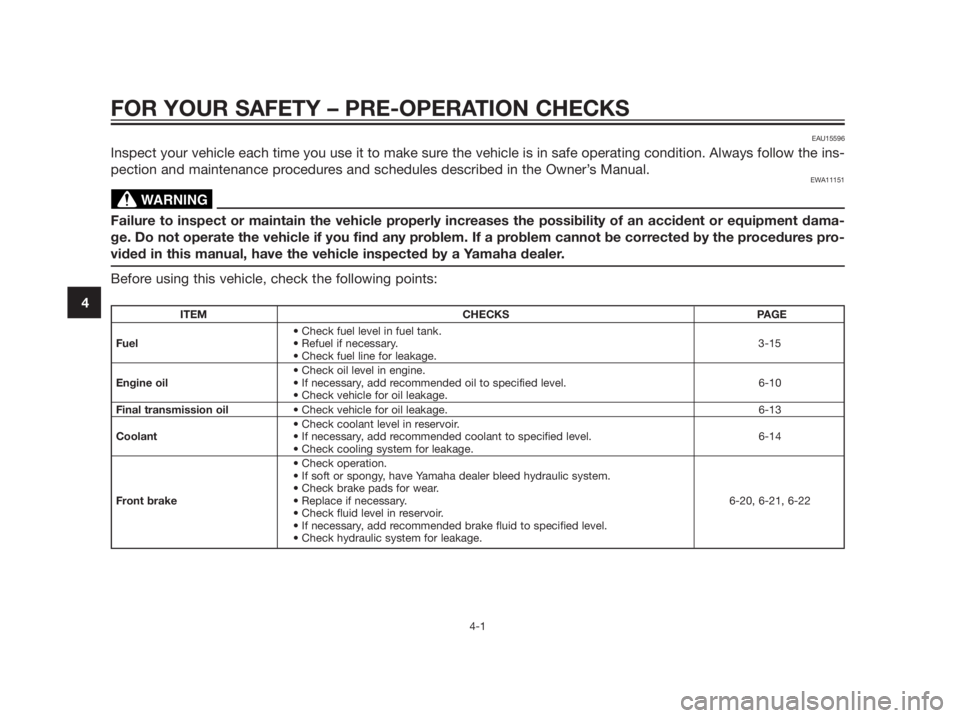

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
ITEM CHECKS PAGE

Fuel3-15


Engine oil 6-10

Final transmission oil 6-13

Coolant 6-14




Front brake 6-20, 6-21, 6-22

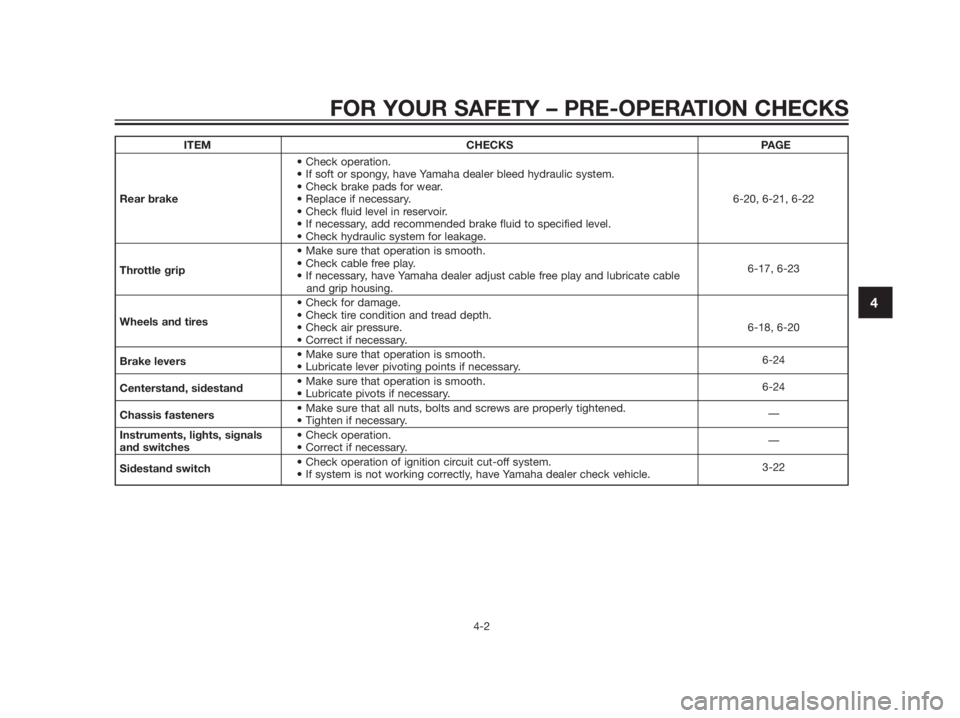

ITEM CHECKS PAGE



Rear brake 6-20, 6-21, 6-22




Throttle grip
6-17, 6-23
and grip housing.

Wheels and tires
6-18, 6-20

Brake levers
6-24
Centerstand, sidestand
6-24
Chassis fasteners
—
Instruments, lights, signals • Check operation.
and switches—
Sidestand switch
3-22
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU48020
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. In this case, the
multi-function display indicates error
code 30, but this is not a malfunction.
Turn the key to “OFF” and then to
“ON” to clear the error code. Failing
to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAUS1890
Starting the engine
ECA10250
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-22 for more information.
1. Turn the key to “ON”.
The following warning light, indi-
cator light and indicators should
come on for a few seconds, then
go off.
Engine trouble warning light
ABS warning light (for ABS
models)
Immobilizer system indicator light
V-belt replacement indicator
Oil change indicator
NOTICE
WARNING
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

ECA15022

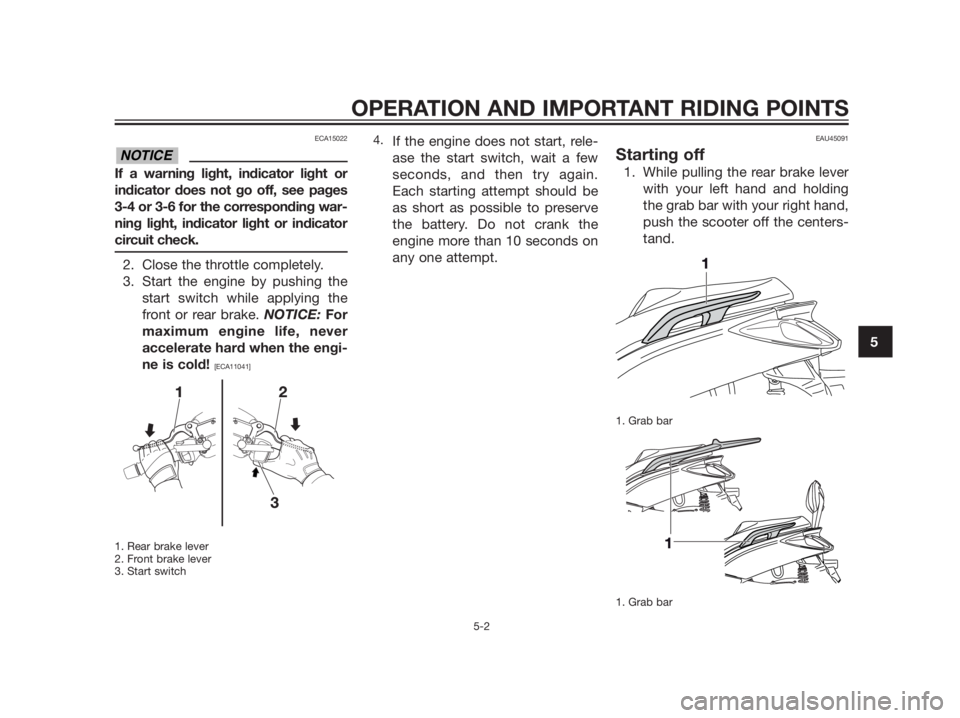

If a warning light, indicator light or
indicator does not go off, see pages
3-4 or 3-6 for the corresponding war-
ning light, indicator light or indicator
circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake. NOTICE: For
maximum engine life, never
accelerate hard when the engi-
ne is cold!
[ECA11041]
1. Rear brake lever
2. Front brake lever
3. Start switch
3. If the engine does not start, rele-
ase the start switch, wait a few
seconds, and then try again.
Each starting attempt should be
as short as possible to preserve
the battery. Do not crank the
engine more than 10 seconds on
any one attempt.EAU45091
Starting off
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
1. Grab bar
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
4.

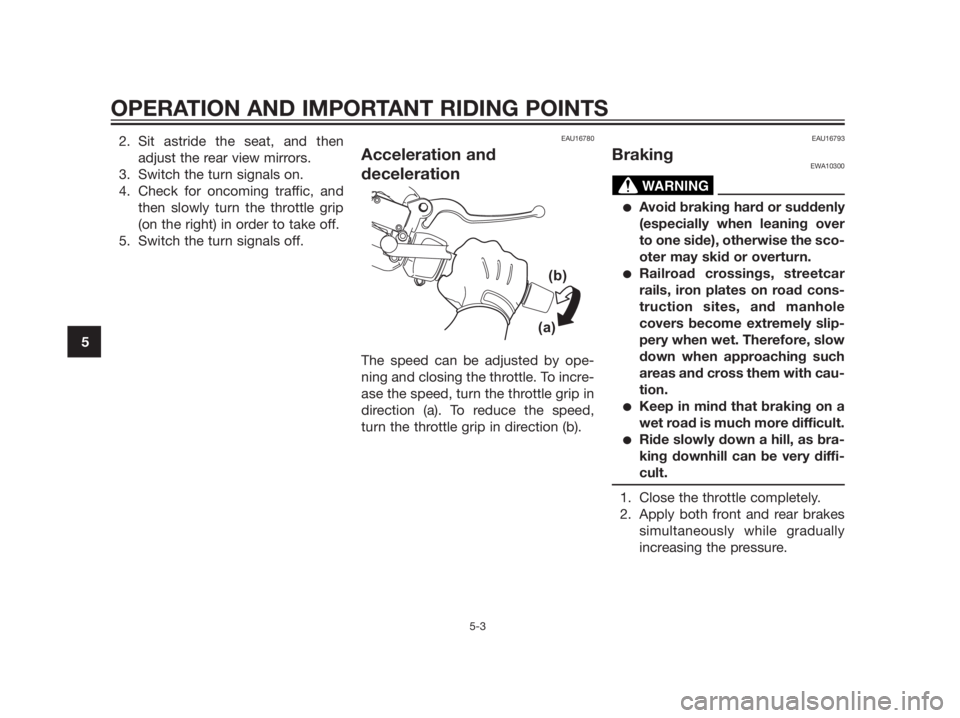

2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16793
BrakingEWA10300
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.
Keep in mind that braking on a
wet road is much more difficult.
Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
WARNING
(a)(b)
OPERATION AND IMPORTANT RIDING POINTS
5-3
5

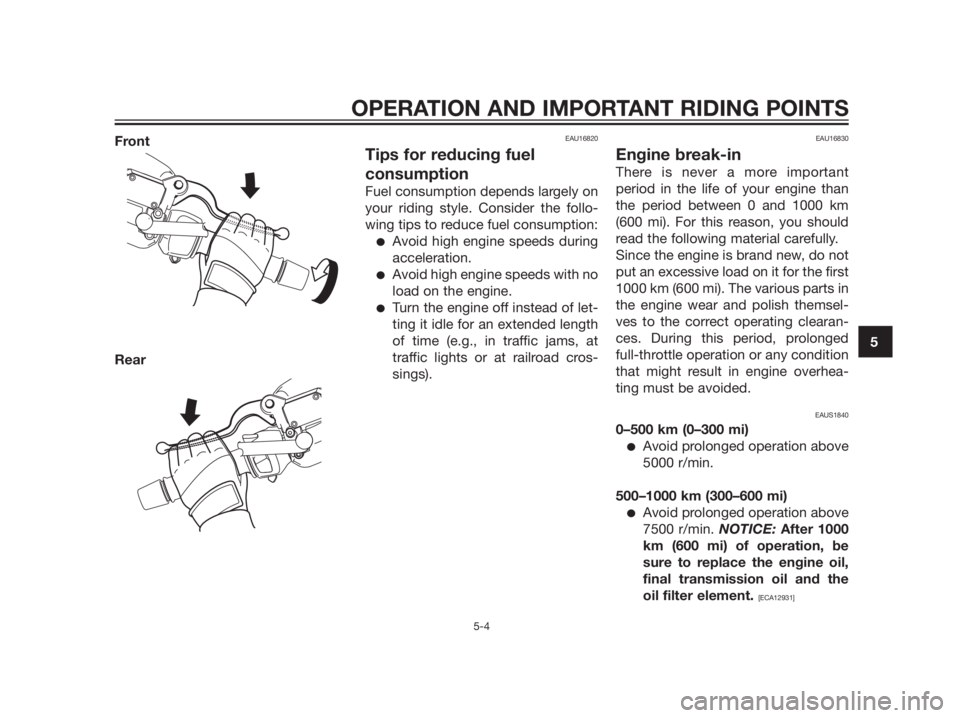

Front
RearEAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Avoid high engine speeds during
acceleration.
Avoid high engine speeds with no
load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16830
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUS1840
0–500 km (0–300 mi)
Avoid prolonged operation above
5000 r/min.
500–1000 km (300–600 mi)
Avoid prolonged operation above
7500 r/min. NOTICE: After 1000
km (600 mi) of operation, be
sure to replace the engine oil,
final transmission oil and the
oil filter element.
[ECA12931]
OPERATION AND IMPORTANT RIDING POINTS
5-4
5

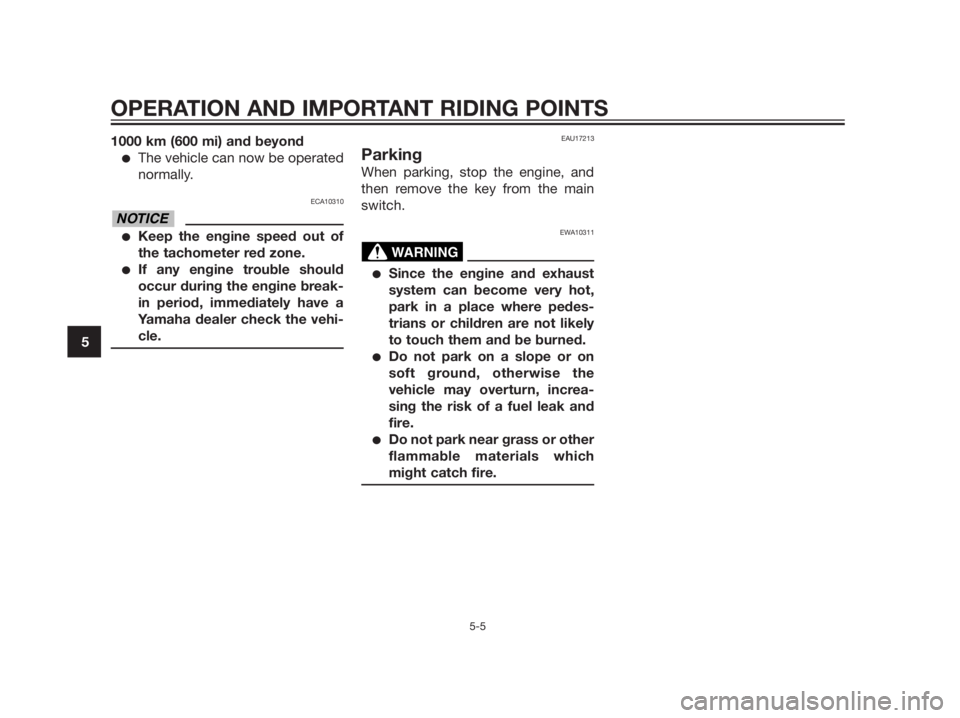

1000 km (600 mi) and beyond
The vehicle can now be operated
normally.
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehi-
cle.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
Do not park near grass or other
flammable materials which
might catch fire.
WARNING
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-5
5

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAUS1821

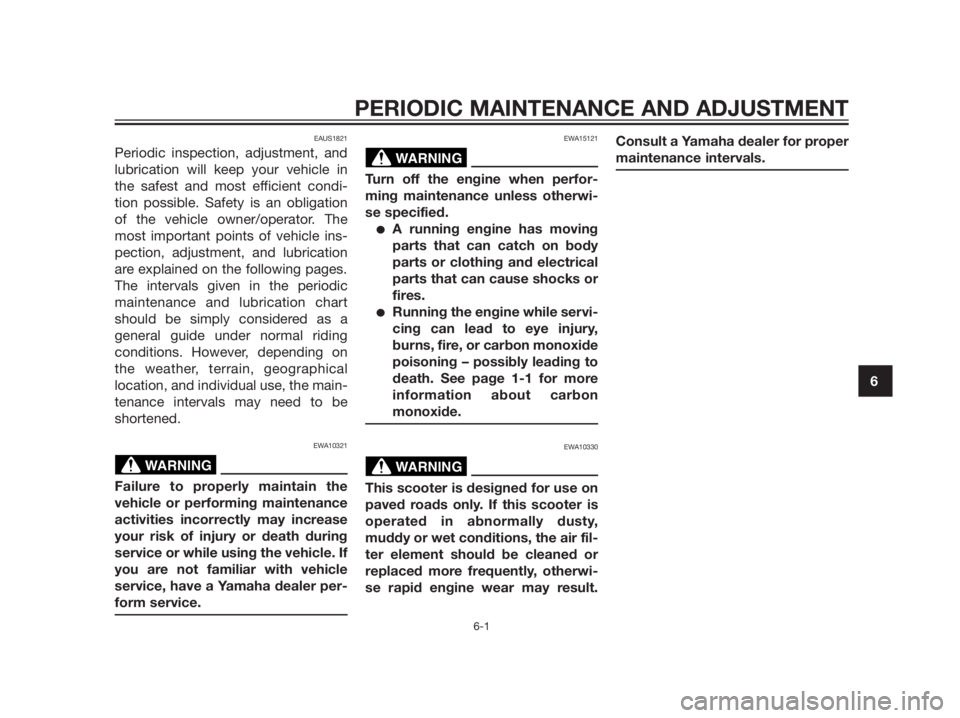

Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA10330
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.Consult a Yamaha dealer for proper
maintenance intervals.
WARNING
WARNING
WARNING

EAU48810
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let bra-
ke components cool before touching
them.
EAUS1830

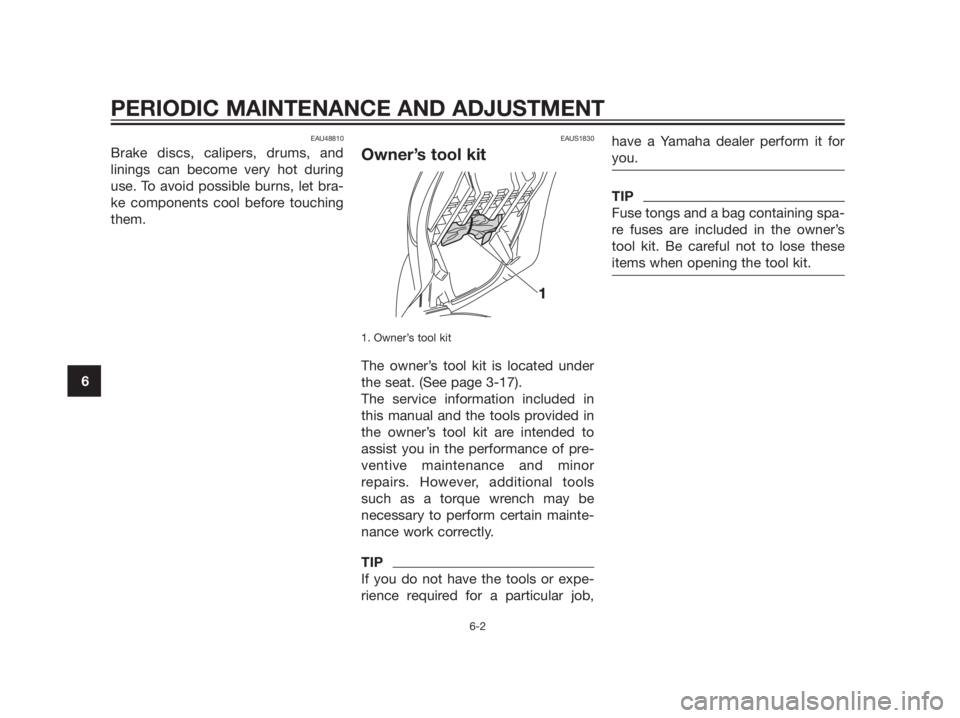

Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-17).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
TIP
If you do not have the tools or expe-
rience required for a particular job,have a Yamaha dealer perform it for
you.
TIP
Fuse tongs and a bag containing spa-
re fuses are included in the owner’s
tool kit. Be careful not to lose these
items when opening the tool kit.
