Instrument and control functions
4-25
4
EAU46833
Handlebar position
The handlebar can be adjusted to one
of two positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebar.
EAU14893
Adjusting the shock absorber
assemblies
WARNING
EWA10211
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may re-
sult.
Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring on each shock absorber as-
sembly in direction (b).
Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
Use the spring preload adjusting
tool included in the owner’s tool
kit to make this adjustment.
1. Handlebar
1
UBL2E0E0.book Page 25 Friday, June 23, 2017 9:30 AM

Instrument and control functions
4-26
4
EAU15306
Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See the following section for an
explanation of the ignition circuit cut-
off system.)
WARNING
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly and have a
Yamaha dealer repair it if it does not
function properly.
1. Position indicator
2. Spring preload adjusting ring
3. Spring preload adjusting tool
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
5
1
2
3
4
5
ZAUM1545
1. Sidestand switch
ZAUM0648
1
UBL2E0E0.book Page 26 Friday, June 23, 2017 9:30 AM

Instrument and control functions
4-27
4
EAU78690
Ignition circuit cut-off system
The ignition circuit cut-off system
works with the sidestand switch and
brake light switches. It has the follow-
ing functions.
It prevents the engine from start-
ing when the sidestand is down.
It prevents the engine from start-
ing if the brakes are not applied.
It will stop the running engine if the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system accord-
ing to the following procedure.
UBL2E0E0.book Page 27 Friday, June 23, 2017 9:30 AM

Instrument and control functions
4-28
4

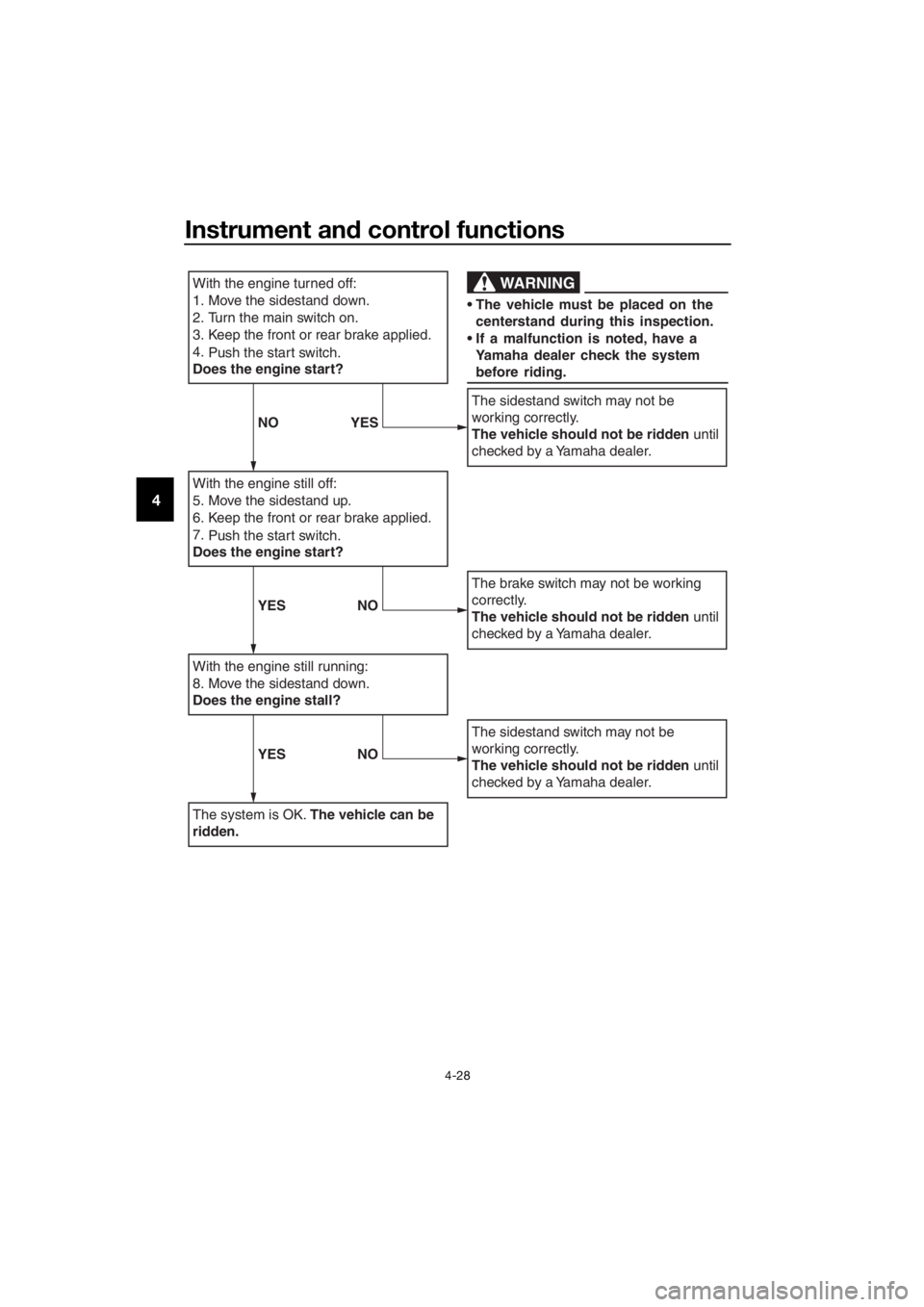

With the engine turned off:
1. Move the sidestand down.
2. Turn the main switch on.
3. Keep the front or rear brake applied.
Push the start switch. 4.
Does the engine start?
With the engine still off:
5. Move the sidestand up.
6. Keep the front or rear brake applied.
Push the start switch. 7.
Does the engine start?
With the engine still running:
8. Move the sidestand down.
Does the engine stall?
The system is OK. The vehicle can be
ridden.
The sidestand switch may not be
working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working
correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be
working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.
WARNING
The vehicle must be placed on the
centerstand during this inspection.
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
NO YES
YES NO
YES NO
UBL2E0E0.book Page 28 Friday, June 23, 2017 9:30 AM

Instrument and control functions
4-29
4
EAU78213
Auxiliary DC jack
WARNING
EWA14361
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC jack
is not being used.
NOTICE
ECA15432
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 12 W (1 A),
otherwise the fuse may blow or the
battery may discharge.
This vehicle is equipped with an auxil-
iary DC jack located within storage
compartment A.
A 12-V accessory connected to the
auxiliary DC jack can be used when the
main switch is in the “ON” position and
should only be used when the engine is
running.
To use the auxiliary DC jack
1. Open storage compartment A.
(See page 3-9.)
2. Turn the main switch off.
3. Remove the auxiliary DC jack cap.
4. Turn the accessory off.5. Insert the accessory plug into the
auxiliary DC jack.
6. Turn the main switch on, and then
start the engine. (See page 6-2.)
7. Turn the accessory on.
1. Auxiliary DC jack cap
1
1. Auxiliary DC jack
1
UBL2E0E0.book Page 29 Friday, June 23, 2017 9:30 AM

For your safety – pre-operation checks
5-1
5
EAU63440
Inspect your vehicle each time you use it to make sure the vehicle is in safe oper-
ating condition. Always follow the inspection and maintenance procedures and
schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility
of an accident or equipment damage. Do not operate the vehicle if you find
any problem. If a problem cannot be corrected by the procedures provided
in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank overflow hose for obstructions, cracks
or damage, and check hose connection.4-18,
4-19
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.7-9
Final transmission oil• Check vehicle for oil leakage. 7-11
Coolant• Check coolant level in reservoir.
• If necessary, add recommended coolant to specified
level.
• Check cooling system for leakage.7-12
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.7-19,
7-20,
7-20
Rear brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.7-19,
7-20,
7-20
Throttle grip• Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip
free play and lubricate cable and grip housing.7-15,
7-23
UBL2E0E0.book Page 1 Friday, June 23, 2017 9:30 AM

For your safety – pre-operation checks
5-2
5
Control cables• Make sure that operation is smooth.
• Lubricate if necessary.7-22
Wheels and tires•Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.7-16,
7-18
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.7-23
Centerstand, side-
stand• Make sure that operation is smooth.
• Lubricate pivots if necessary.7-24
Chassis fasteners• Make sure that all nuts, bolts and screws are properly
tightened.
• Tighten if necessary.—
Instruments, lights,
signals and switches• Check operation.
• Correct if necessary.—
Sidestand switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer
check vehicle.4-26 ITEM CHECKS PAGE
UBL2E0E0.book Page 2 Friday, June 23, 2017 9:30 AM

Operation and important riding points
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU78221
TIP
This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. In this case, the engine
trouble warning light will come on but
this is not a malfunction. Before re-
starting the engine, turn the main
switch off and then back on to reset the
engine trouble warning light. Failing to
do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
UBL2E0E0.book Page 1 Friday, June 23, 2017 9:30 AM

Operation and important riding points
6-2
6
EAU78231
Starting the engine
NOTICE
ECA10251
See page 6-5 for engine break-in in-
structions prior to operating the ve-
hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up. (See page 4-27.)
1. Turn the main switch on and make
sure that the stop/run/start switch
is set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.
Engine trouble warning light
Traction control system indi-
cator light
Smart key system indicator
light
TIP
The ABS warning light should come on
and stay on until the vehicle reaches a
traveling speed of 10 km/h (6 mi/h) or
higher.
NOTICE
ECA22510
If a warning or indicator light does
not work as described above, see
page 4-1 for the corresponding
warning and indicator light circuit
check.
2. Close the throttle.
3. While applying the front or rear
brake, push the “ ” side of the
stop/run/start switch. Release it
when the engine starts.
TIP
If the engine does not start, release the
start switch after 5 seconds. Before
pressing the start switch again, wait 10
seconds to allow battery voltage to re-
store.
NOTICE
ECA11043
For maximum engine life, never ac-
celerate hard when the engine is
cold!
UBL2E0E0.book Page 2 Friday, June 23, 2017 9:30 AM

Operation and important riding points
6-3
6
EAU45093
Starting off
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand,
push the scooter off the center-
stand.
2. Sit astride the seat, and then ad-
just the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
EAU16782
Acceleration and deceleration
The speed can be adjusted by opening
and closing the throttle. To increase
the speed, turn the throttle grip in di-
rection (a). To reduce the speed, turn
the throttle grip in direction (b).
1. Grab bar
ZAUM1519
1
(a)(b)
UBL2E0E0.book Page 3 Friday, June 23, 2017 9:30 AM
