Table of contentsSafety information ............................ 1-1
Further safe-riding points ............... 1-5
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments ............... 2-3
Smart key system ........................... 3-1
Smart key system ........................... 3-1
Operating range of the smart key system......................................... 3-2
Handling of the smart key and mechanical keys ......................... 3-3
Smart key ....................................... 3-5
Replacing the smart key battery..... 3-6
Main switch .................................... 3-8
Stop an d Start System ..................... 4-1
Stop and Start System ................... 4-1
Stop and Start System operation ... 4-1
Instrument an d control functions ... 5-1
Indicator lights and warning lights............................................ 5-1
Speedometer .................................. 5-3
Tachometer .................................... 5-3
Multi-function display ..................... 5-4
Handlebar switches ...................... 5-12
Front brake lever .......................... 5-14
Rear brake lever ........................... 5-14 Anti-lock brake system (ABS) ....... 5-14
Traction control system ................ 5-15
Fuel tank cap ................................ 5-17
Fuel ............................................... 5-18
Fuel tank overflow hose ................ 5-20
Catalytic converter ........................ 5-20
Storage compartments ................. 5-20
Windshield .................................... 5-22
Handlebar position ....................... 5-25
Adjusting the shock absorber
assemblies ................................. 5-25
Auxiliary DC jack .......................... 5-26
Sidestand ...................................... 5-27
Ignition circuit cut-off system ....... 5-27
For your safety – pre-operation
checks ............................................... 6-1
Operation an d important ri din g
points ................................................. 7-1
Engine break-in ............................... 7-1
Starting the engine .......................... 7-2
Starting off ...................................... 7-3
Acceleration and deceleration ........ 7-3
Braking ............................................ 7-3
Tips for reducing fuel consumption ................................ 7-4
Parking ........................................... 7-4 Perio
dic maintenance an d
a d justment ........................................ 8-1
Tool kit ............................................ 8-2
Periodic maintenance chart for the emission control system ............. 8-3
General maintenance and lubrication chart .......................... 8-4
Removing and installing the
panel............................................ 8-8
Checking the spark plug................. 8-9
Canister ........................................ 8-10
Engine oil and oil strainer ............. 8-10
Final transmission oil .................... 8-12
Coolant ......................................... 8-13
Air filter and V-belt case air filter elements .................................... 8-14
Checking the throttle grip free
play ............................................ 8-17
Valve clearance............................. 8-17
Tires .............................................. 8-17
Cast wheels .................................. 8-19
Checking the front and rear brake lever free play ............................ 8-19
Checking the front and rear brake pads .......................................... 8-20
Checking the brake fluid level ...... 8-21
Changing the brake fluid .............. 8-22
Checking the V-belt ...................... 8-22
Checking and lubricating the
cables ........................................ 8-23UB9YE0E0.book Page 1 Wednesday, January 6, 2021 3:03 PM

Table of contents
Checking and lubricating the
throttle grip and cable ................8-23
Lubricating the front and rear brake levers................................8-23
Checking and lubricating the
centerstand and sidestand ........8-24
Checking the front fork..................8-25
Checking the steering ...................8-25
Checking the wheel bearings ........8-26
Battery ...........................................8-26
Replacing the fuses .......................8-27
Vehicle lights .................................8-29
Front turn signal light.....................8-29
Rear turn signal light bulb .............8-30
Replacing the license plate light bulb ............................................8-30
Troubleshooting ............................8-31
Troubleshooting chart ...................8-32
Emergency mode .........................8-34
Scooter care an d stora ge ................9-1
Matte color caution .........................9-1
Care .................................................9-1
Storage ............................................9-3
Specifications ..................................10-1
Consumer information ...................11-1
Identification numbers ...................11-1
Diagnostic connector ....................11-2
Vehicle data recording ..................11-2 In
dex ................................................ 12-1
UB9YE0E0.book Page 2 Wednesday, January 6, 2021 3:03 PM

Safety information
1-4
1

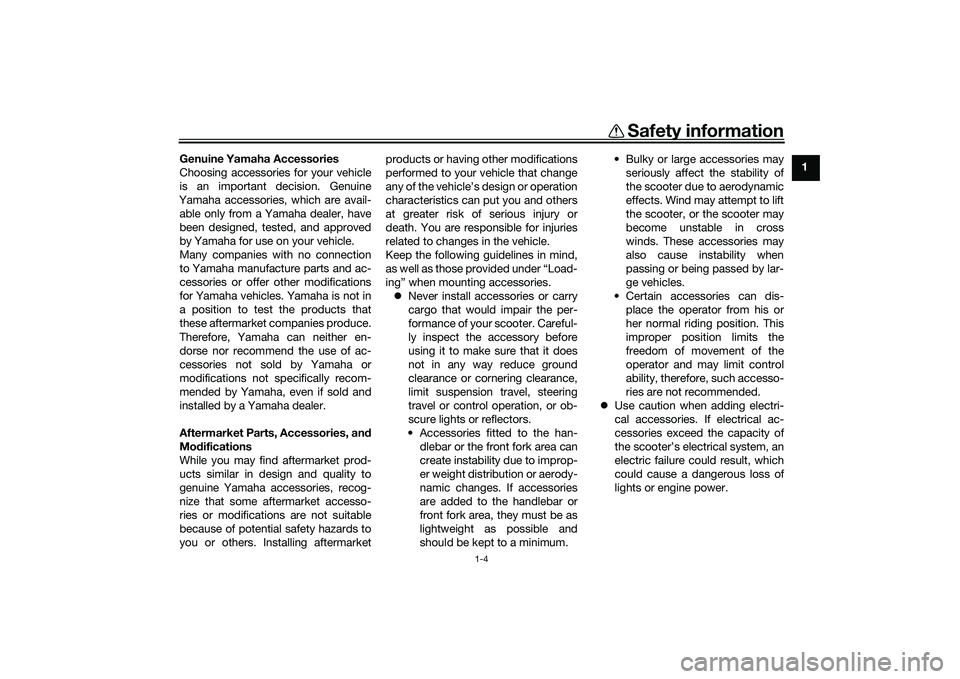

Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, an d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
 Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Careful-
ly inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum. • Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by lar-
ge vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the scooter’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
UB9YE0E0.book Page 4 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-5
3
EAU76474

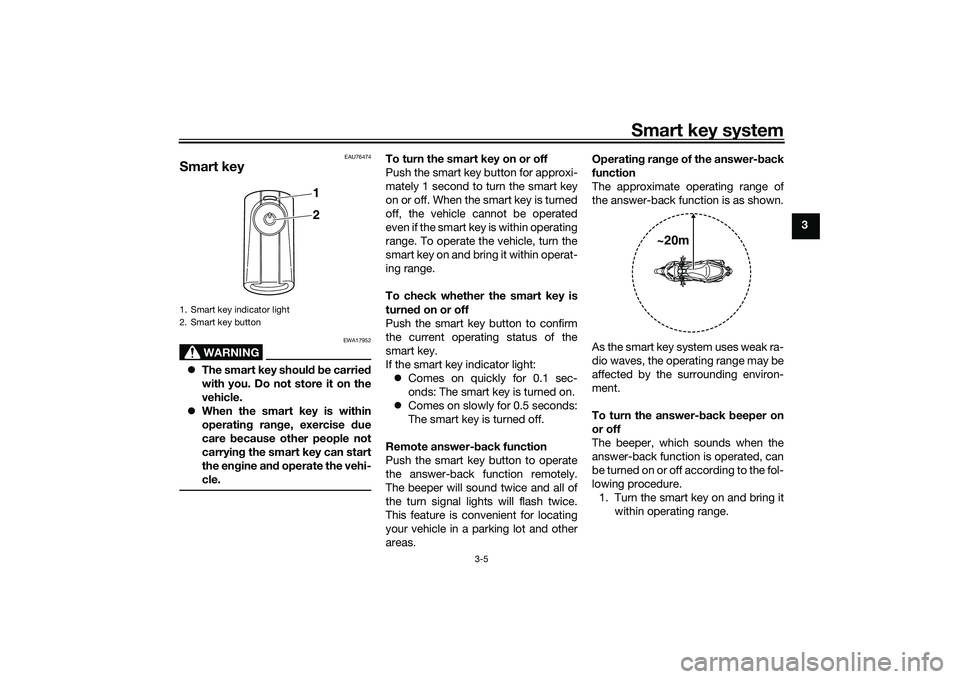

Smart key
WARNING
EWA17952
The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.
To turn the smart key on or off
Push the smart key button for approxi-
mately 1 second to turn the smart key
on or off. When the smart key is turned
off, the vehicle cannot be operated
even if the smart key is within operating
range. To operate the vehicle, turn the
smart key on and bring it within operat-
ing range.
To check whether the smart key is
turne d on or off
Push the smart key button to confirm
the current operating status of the
smart key.
If the smart key indicator light:  Comes on quickly for 0.1 sec-
onds: The smart key is turned on.
 Comes on slowly for 0.5 seconds:
The smart key is turned off.
Remote answer- back function
Push the smart key button to operate
the answer-back function remotely.
The beeper will sound twice and all of
the turn signal lights will flash twice.
This feature is convenient for locating
your vehicle in a parking lot and other
areas. Operatin
g ran ge of the answer- back
function
The approximate operating range of
the answer-back function is as shown.
As the smart key system uses weak ra-
dio waves, the operating range may be
affected by the surrounding environ-
ment.
To turn the answer- back beeper on
or off
The beeper, which sounds when the
answer-back function is operated, can
be turned on or off according to the fol-
lowing procedure. 1. Turn the smart key on and bring it within operating range.
1. Smart key indicator light
2. Smart key button
1
2
~20m
UB9YE0E0.book Page 5 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-8
3
EAU76892

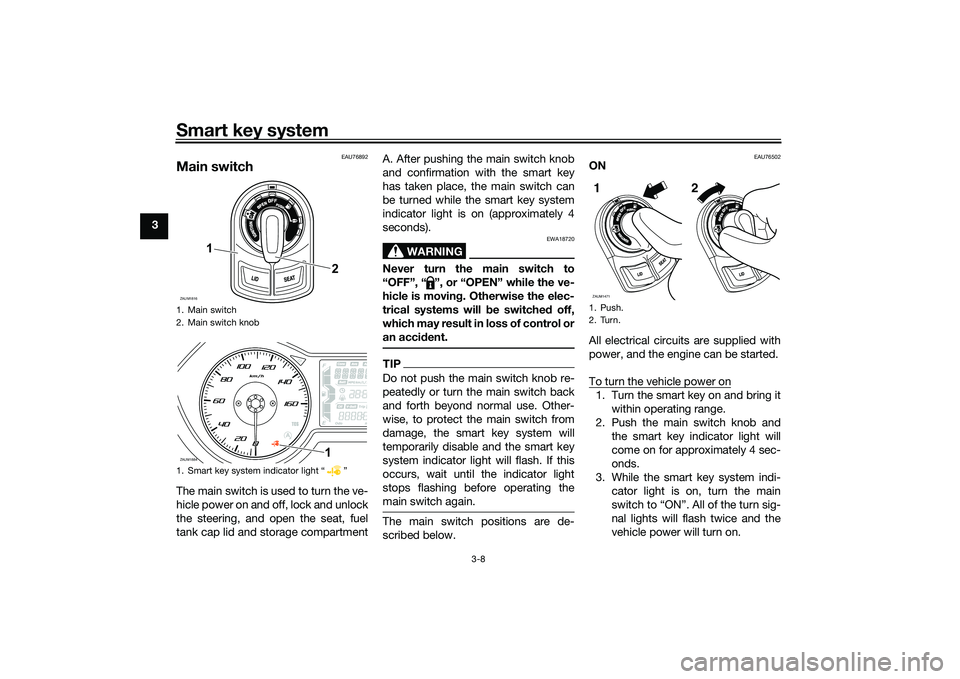

Main switchThe main switch is used to turn the ve-
hicle power on and off, lock and unlock
the steering, and open the seat, fuel
tank cap lid and storage compartmentA. After pushing the main switch knob
and confirmation with the smart key
has taken place, the main switch can
be turned while the smart key system
indicator light is on (approximately 4
seconds).
WARNING
EWA18720
Never turn the main switch to
“OFF”, “ ”, or “OPEN” while the ve-
hicle is movin
g. Otherwise the elec-
trical systems will be switche d off,
which may result in loss of control or
an acci dent.TIPDo not push the main switch knob re-
peatedly or turn the main switch back
and forth beyond normal use. Other-
wise, to protect the main switch from
damage, the smart key system will
temporarily disable and the smart key
system indicator light will flash. If this
occurs, wait until the indicator light
stops flashing before operating the

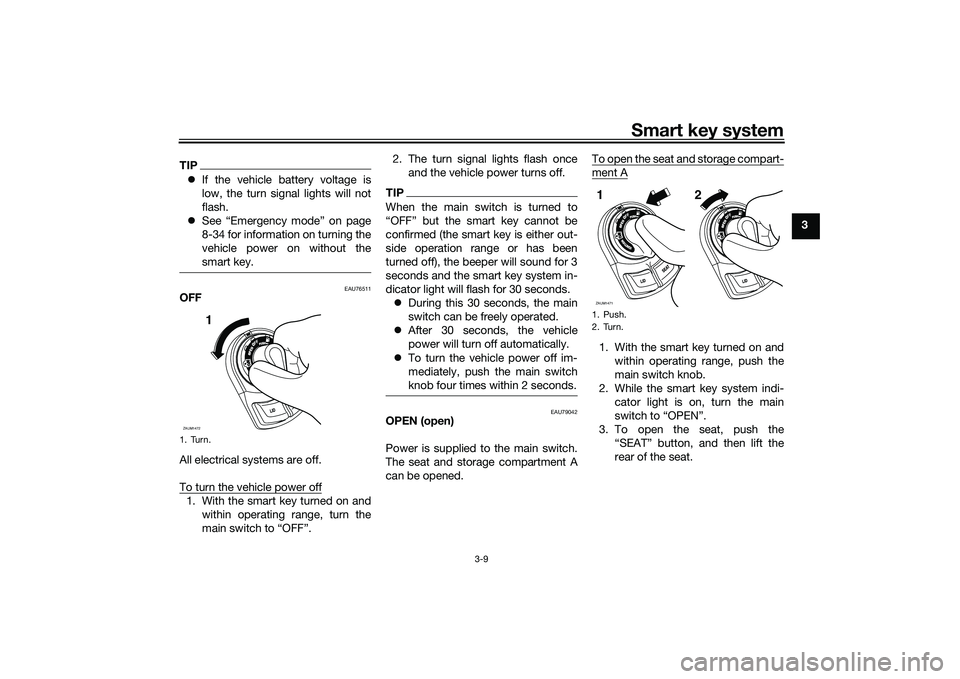

main switch again.The main switch positions are de-
scribed below.
EAU76502
ON
All electrical circuits are supplied with
power, and the engine can be started.
To turn the vehicle power on1. Turn the smart key on and bring it
within operating range.
2. Push the main switch knob and the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights will flash twice and the
vehicle power will turn on.
1. Main switch
2. Main switch knob
1. Smart key system indicator light “ ”ZAUM1816
2
1
ZAUM1884
1
1. Push.
2. Turn.ZAUM14711 2
UB9YE0E0.book Page 8 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-9
3
TIPIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
 See “Emergency mode” on page
8-34 for information on turning the
vehicle power on without the
smart key.
EAU76511
OFF
All electrical systems are off.
To turn the vehicle power off1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”. 2. The turn signal lights flash once
and the vehicle power turns off.
TIPWhen the main switch is turned to
“OFF” but the smart key cannot be
confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds. During this 30 seconds, the main
switch can be freely operated.
 After 30 seconds, the vehicle
power will turn off automatically.
 To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU79042
OPEN (open)
Power is supplied to the main switch.
The seat and storage compartment A
can be opened. To open the seat and storage compart-
ment A1. With the smart key turned on and
within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “OPEN”.
3. To open the seat, push the “SEAT” button, and then lift the
rear of the seat.
1. Turn.ZAUM1472
1
1. Push.
2. Turn.ZAUM14711 2
UB9YE0E0.book Page 9 Wednesday, January 6, 2021 3:03 PM

Instrument and control functions
5-1
5
EAU4939P
In dicator li ghts an d warnin g
li g hts
EAU88680
Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU88690
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88711
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by vehicle power on. The light
should come on for a few seconds,
and then go off. If the light does not
come on initially when the vehicle pow-
er on, or if the light remains on, have a
Yamaha dealer check the vehicle.NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine spee d to prevent exhaust sys-
tem damag e.
TIPThe engine is sensitively controlled for
the on-board diagnostic system to de-
tect deterioration and malfunction of
the emission control system. Due to
this specification, the MIL may come
on or flash for vehicle modifications,
lack of maintenance, or excessive or
improper use of the vehicle. To prevent
this, observe these precautions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change drivetrain specifi-
cations (chain, sprockets, wheels,
tires, etc.).
 Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain proper V-belt and drive
belt (if equipped).
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. ABS warning light “ ”
4. Malfunction indicator light “ ”
5. Traction control system indicator
light “ ”
6. Stop and Start System indicator light “ ”
7. Smart key system indicator light “ ”ZAUM1896
1
234
567
UB9YE0E0.book Page 1 Wednesday, January 6, 2021 3:03 PM

Instrument and control functions
5-12
5
“OIL SERV”: Appears when the oil
change indicator “OIL” starts flashing.
If “OIL SERV” is displayed, change the
engine oil, and then reset the oil chan-
ge indicator and oil change tripmeter.
“V-BELT SERV”: Appears when the V-
belt replacement indicator “V-Belt”
starts flashing. If “V-BELT SERV” is
displayed, replace the V-belt, and then
reset the V-belt replacement indicator
and V-belt replacement tripmeter.
When there are two or more warnings,
the warning messages are displayed in
the following order:
L FUEL →
H TEMP → ICE → OIL SERV
→ VBELT SERV → L FUEL
EAU1234R

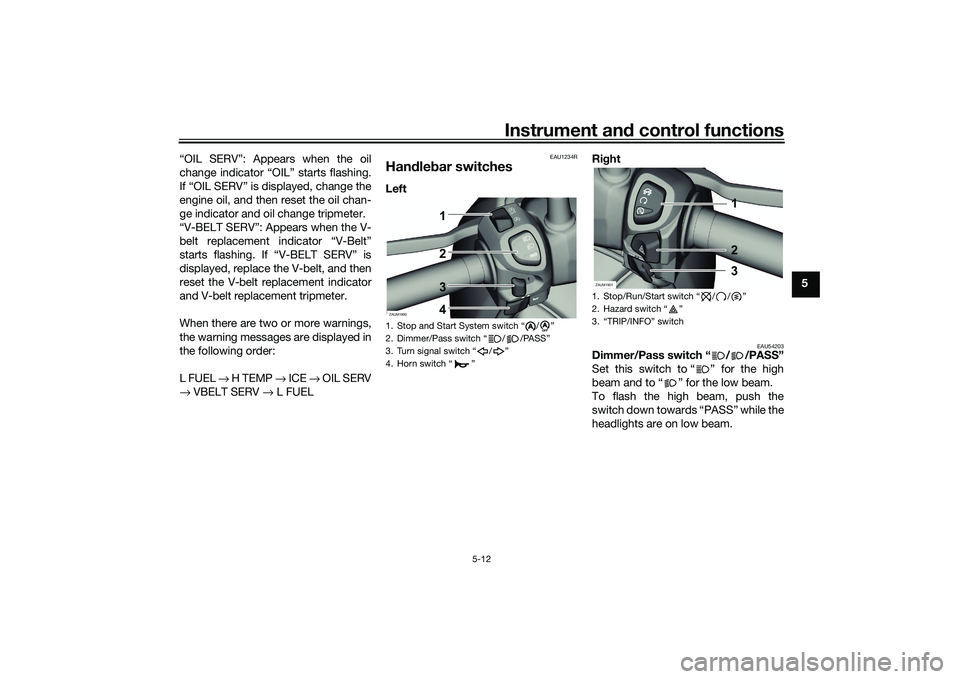

Han dle bar switchesLeft Ri
ght
EAU54203
Dimmer/Pass switch “ / /PASS”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
To flash the high beam, push the
switch down towards “PASS” while the
headlights are on low beam.
1. Stop and Start System switch “ / ”
2. Dimmer/Pass switch “ / /PASS”
3. Turn signal switch “ / ”
4. Horn switch “ ”ZAUM1900
1
3
4 2
A
A
1. Stop/Run/Start switch “ / / ”
2. Hazard switch “ ”
3. “TRIP/INFO” switchZAUM1901
1
2
3
UB9YE0E0.book Page 12 Wednesday, January 6, 2021 3:03 PM

Instrument and control functions
5-13
5

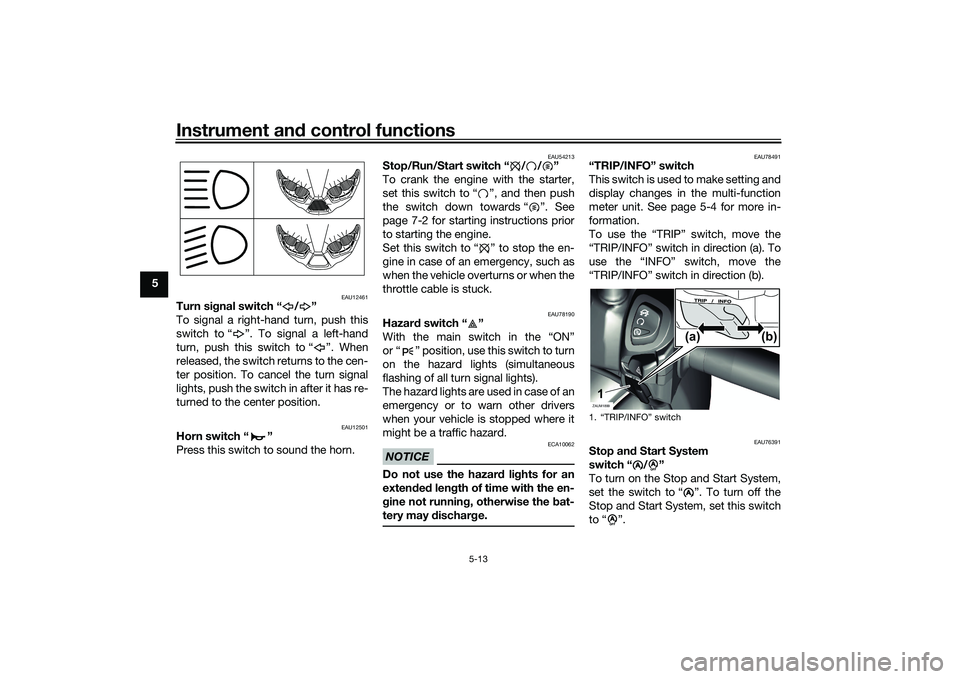

EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU54213
Stop/Run/Start switch “ / / ”
To crank the engine with the starter,
set this switch to “ ”, and then push
the switch down towards “ ”. See
page 7-2 for starting instructions prior
to starting the engine.
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the vehicle overturns or when the
throttle cable is stuck.
EAU78190
Hazar d switch “ ”
With the main switch in the “ON”
or “ ” position, use this switch to turn
on the hazard lights (simultaneous
flashing of all turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10062
Do not use the hazard lights for an
exten ded len gth of time with the en-
g ine not runnin g, otherwise the bat-
tery may dischar ge.
EAU78491
“TRIP/INFO” switch
This switch is used to make setting and
display changes in the multi-function
meter unit. See page 5-4 for more in-
formation.
To use the “TRIP” switch, move the
“TRIP/INFO” switch in direction (a). To
use the “INFO” switch, move the
“TRIP/INFO” switch in direction (b).
EAU76391
Stop an d Start System
switch “ / ”
To turn on the Stop and Start System,
set the switch to “ ”. To turn off the
Stop and Start System, set this switch
to “ ”. 1. “TRIP/INFO” switchZAUM1899
(b)
(a)
1
A
A
A
A
UB9YE0E0.book Page 13 Wednesday, January 6, 2021 3:03 PM

Instrument and control functions
5-18
5
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leakin g fuel is a fire hazar d.

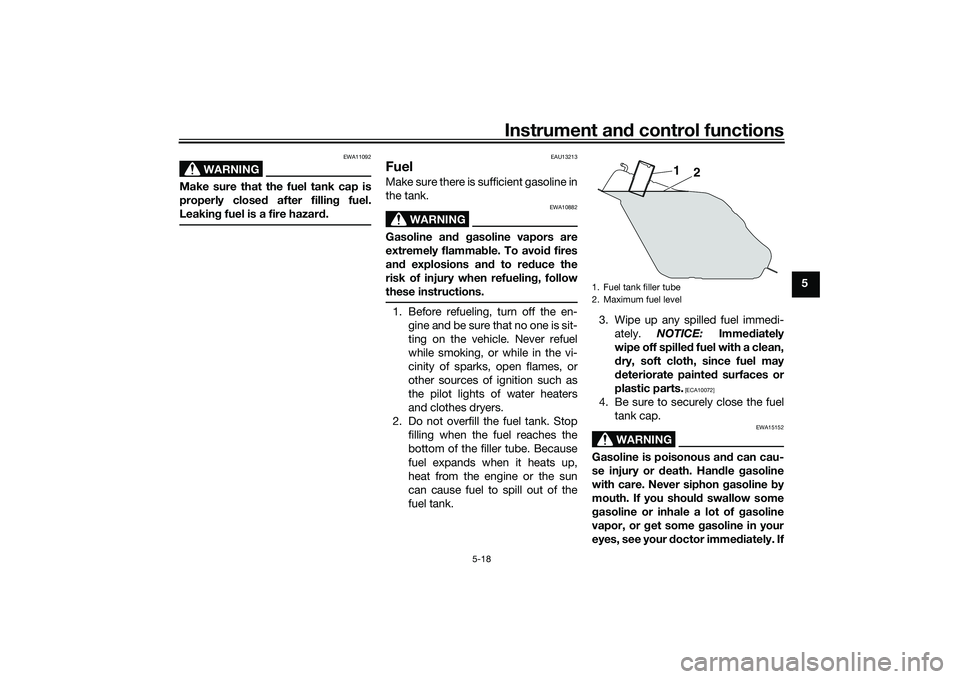

EAU13213
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d gasoline vapors are
extremely flammab le. To avoid fires
an d explosions an d to re duce the
risk of injury when refueling , follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can cau-
se injury or death. Han dle gasoline
with care. Never siphon gasoline by
mouth. If you shoul d swallow some
g asoline or inhale a lot of gasoline
vapor, or g et some gasoline in your
eyes, see your d octor immediately. If1. Fuel tank filler tube
2. Maximum fuel level
1
2
UB9YE0E0.book Page 18 Wednesday, January 6, 2021 3:03 PM
