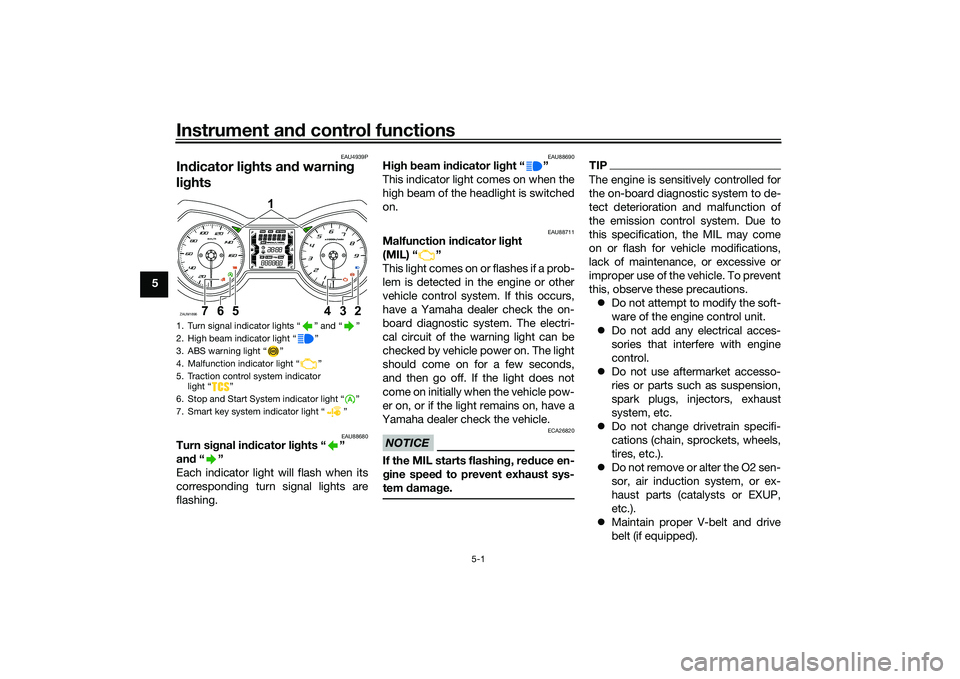

Instrument and control functions
5-1
5
EAU4939P
In dicator li ghts an d warnin g
li g hts
EAU88680
Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU88690
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88711
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by vehicle power on. The light
should come on for a few seconds,
and then go off. If the light does not
come on initially when the vehicle pow-
er on, or if the light remains on, have a
Yamaha dealer check the vehicle.NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine spee d to prevent exhaust sys-
tem damag e.
TIPThe engine is sensitively controlled for
the on-board diagnostic system to de-
tect deterioration and malfunction of
the emission control system. Due to
this specification, the MIL may come
on or flash for vehicle modifications,
lack of maintenance, or excessive or
improper use of the vehicle. To prevent
this, observe these precautions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change drivetrain specifi-
cations (chain, sprockets, wheels,
tires, etc.).
 Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain proper V-belt and drive
belt (if equipped).
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. ABS warning light “ ”
4. Malfunction indicator light “ ”
5. Traction control system indicator
light “ ”
6. Stop and Start System indicator light “ ”
7. Smart key system indicator light “ ”ZAUM1896
1
234
567
