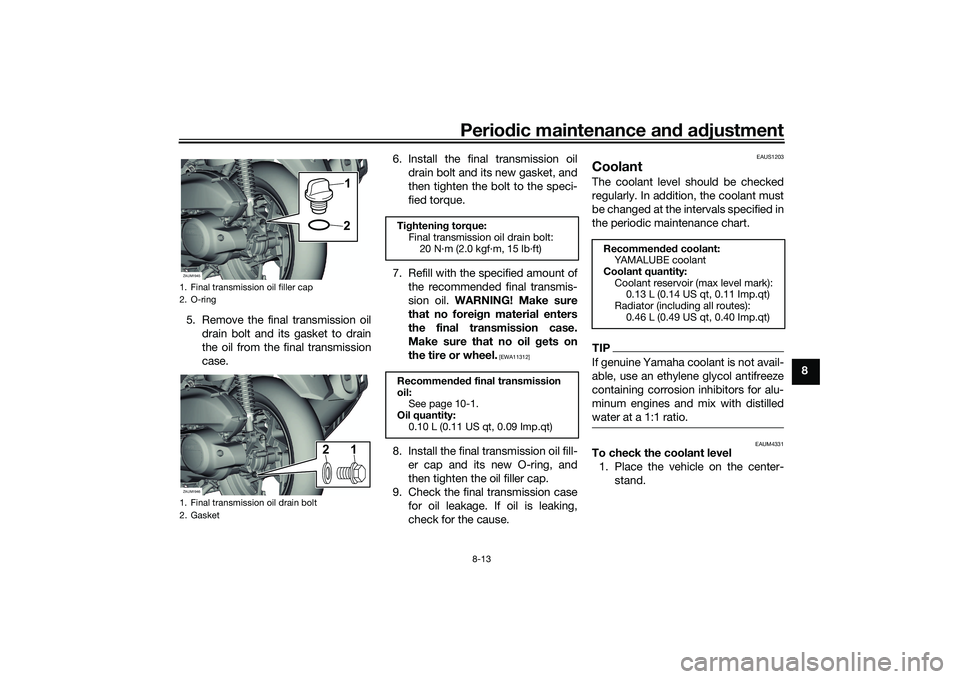

Periodic maintenance an d a djustment
8-13
8
5. Remove the final transmission oil
drain bolt and its gasket to drain
the oil from the final transmission
case. 6. Install the final transmission oil
drain bolt and its new gasket, and
then tighten the bolt to the speci-
fied torque.
7. Refill with the specified amount of the recommended final transmis-
sion oil. WARNING! Make sure
that no forei gn material enters
the final transmission case.
Make sure that no oil gets on
the tire or wheel.
[EWA11312]
8. Install the final transmission oil fill- er cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case for oil leakage. If oil is leaking,
check for the cause.
EAUS1203
CoolantThe coolant level should be checked
regularly. In addition, the coolant must
be changed at the intervals specified in
the periodic maintenance chart.TIPIf genuine Yamaha coolant is not avail-
able, use an ethylene glycol antifreeze
containing corrosion inhibitors for alu-
minum engines and mix with distilled
water at a 1:1 ratio.
EAUM4331
To check the coolant level1. Place the vehicle on the center- stand.
1. Final transmission oil filler cap
2. O-ring
1. Final transmission oil drain bolt
2. GasketZAUM1945
1
2
ZAUM1946
12
Ti ghtenin g torque:
Final transmission oil drain bolt: 20 N·m (2.0 kgf·m, 15 lb·ft)
Recommen ded final transmission
oil: See page 10-1.
Oil quantity: 0.10 L (0.11 US qt, 0.09 Imp.qt)
Recommen ded coolant:
YAMALUBE coolant
Coolant quantity: Coolant reservoir (max level mark): 0.13 L (0.14 US qt, 0.11 Imp.qt)
Radiator (including all routes): 0.46 L (0.49 US qt, 0.40 Imp.qt)
