EAU12171

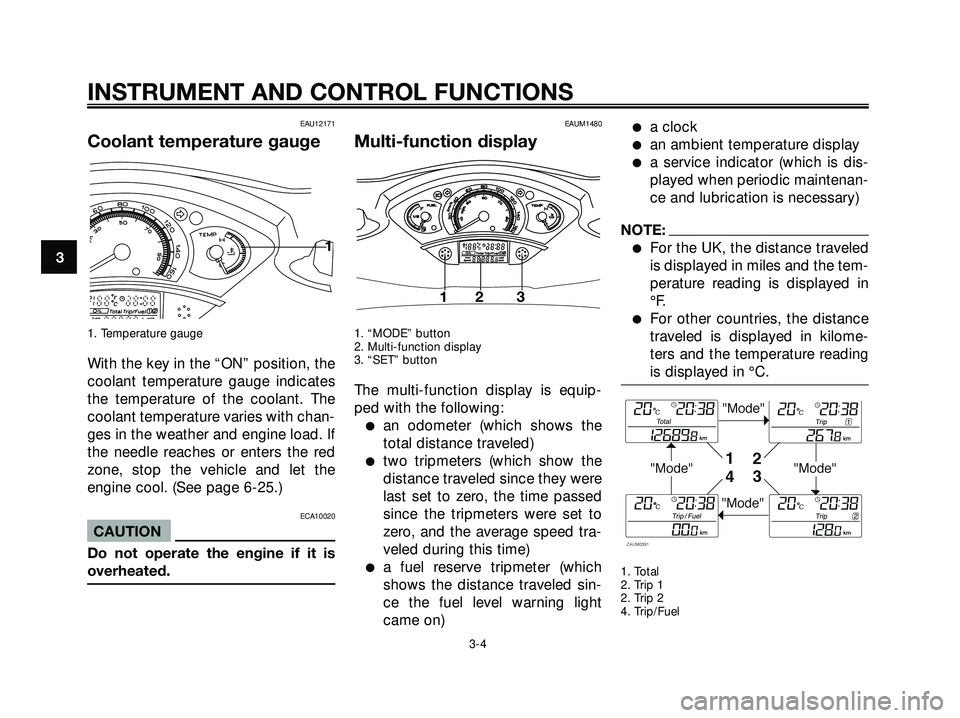

Coolant temperature gauge
1. Temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-25.)
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
EAUM1480
Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
an odometer (which shows the
total distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
a clock
an ambient temperature display
a service indicator (which is dis-
played when periodic maintenan-
ce and lubrication is necessary)
NOTE:
For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
°F.
For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in °C.
1. Total
2. Trip 1
2. Trip 2
4. Trip/Fuel
123
13
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-4

4
PRE-OPERATION CHECKS
4-2
EAU15603

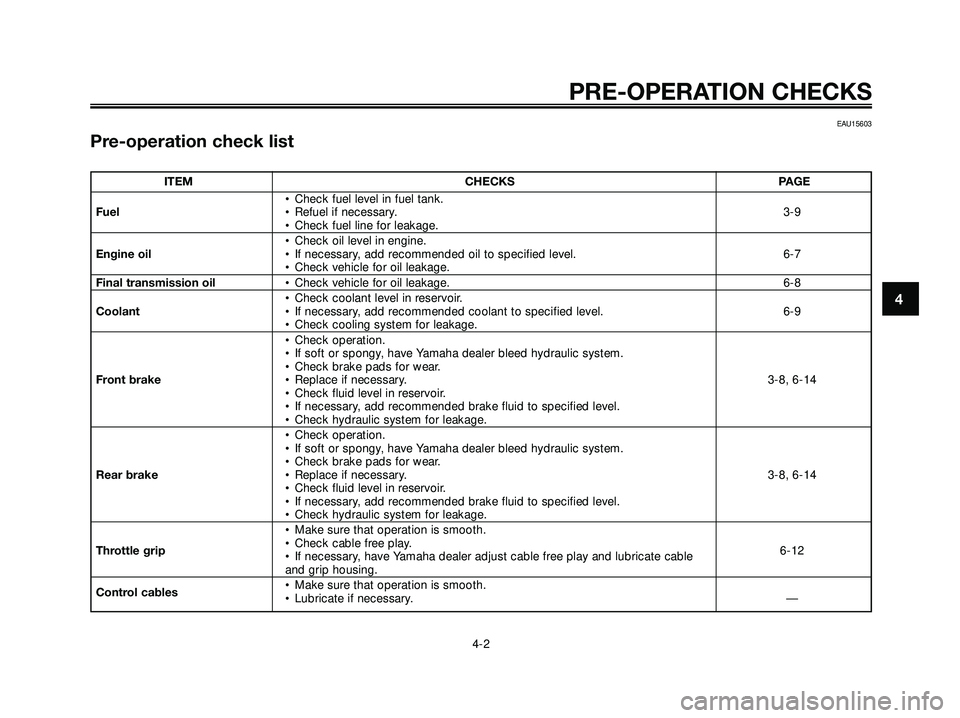

Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-9
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-7
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-8
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-9
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-8, 6-14
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-8, 6-14
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
6-12
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.
Control cables• Make sure that operation is smooth.
• Lubricate if necessary. —
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 29

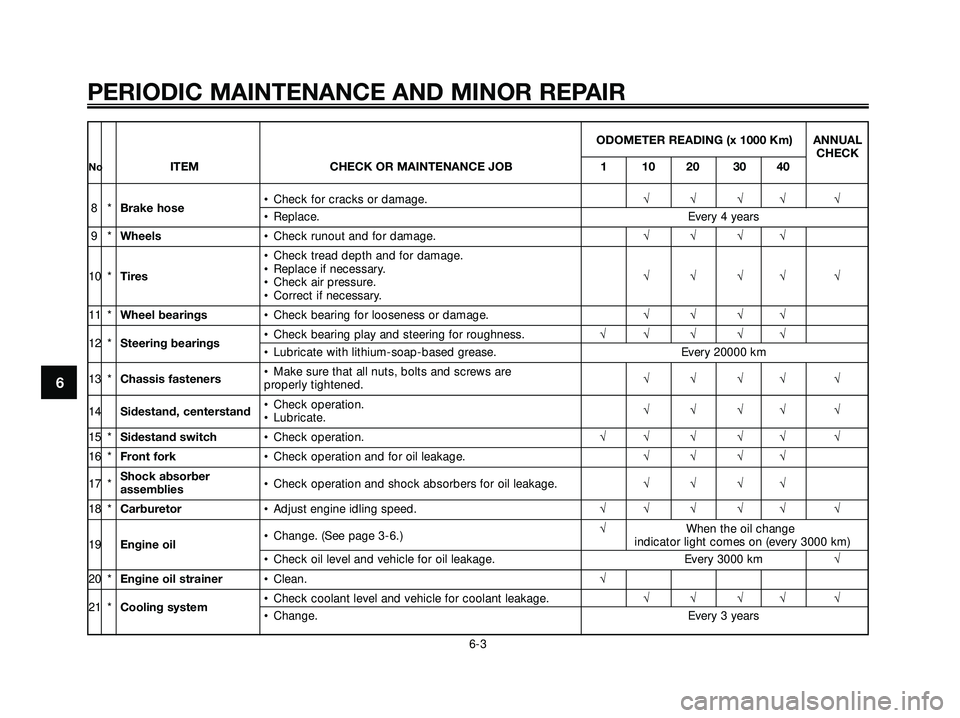

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
8*Brake hose• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Carburetor• Adjust engine idling speed.√√ √ √√ √
• Change. (See page 3-6.)√When the oil change
19Engine oilindicator light comes on (every 3000 km)• Check oil level and vehicle for oil leakage. Every 3000 km√
20 *Engine oil strainer• Clean.√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 36

6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.
EWA11310
s s
WARNING
Make sure that no foreign
material enters the final trans-
mission case.
Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070

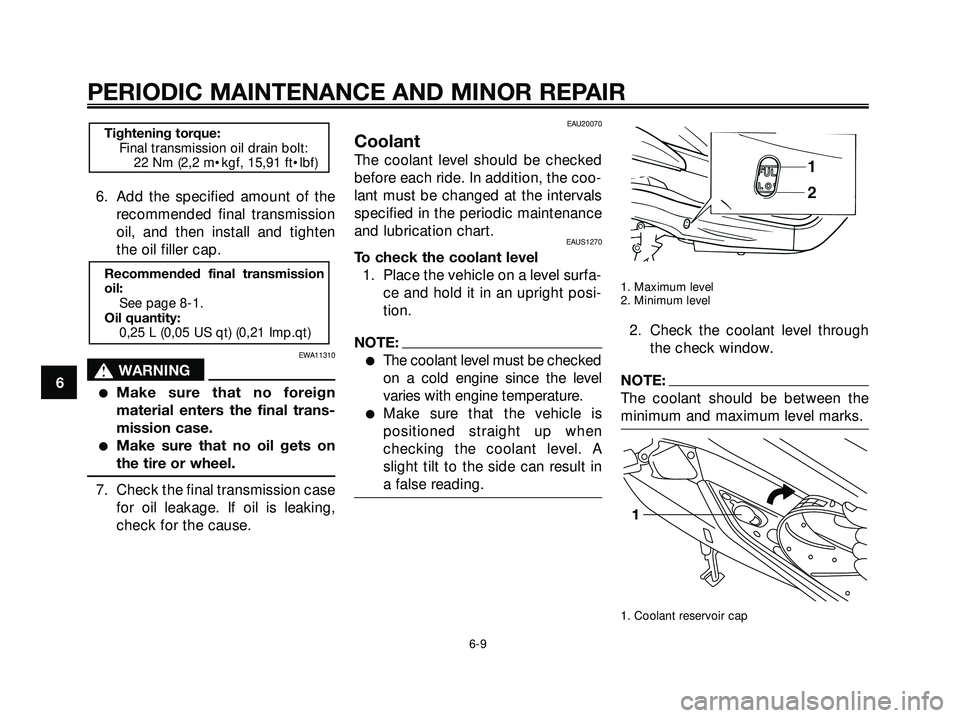

Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1270
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
1. Maximum level
2. Minimum level
2. Check the coolant level through
the check window.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir cap
1
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0,25 L (0,05 US qt) (0,21 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2,2 m•kgf, 15,91 ft•lbf)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 42

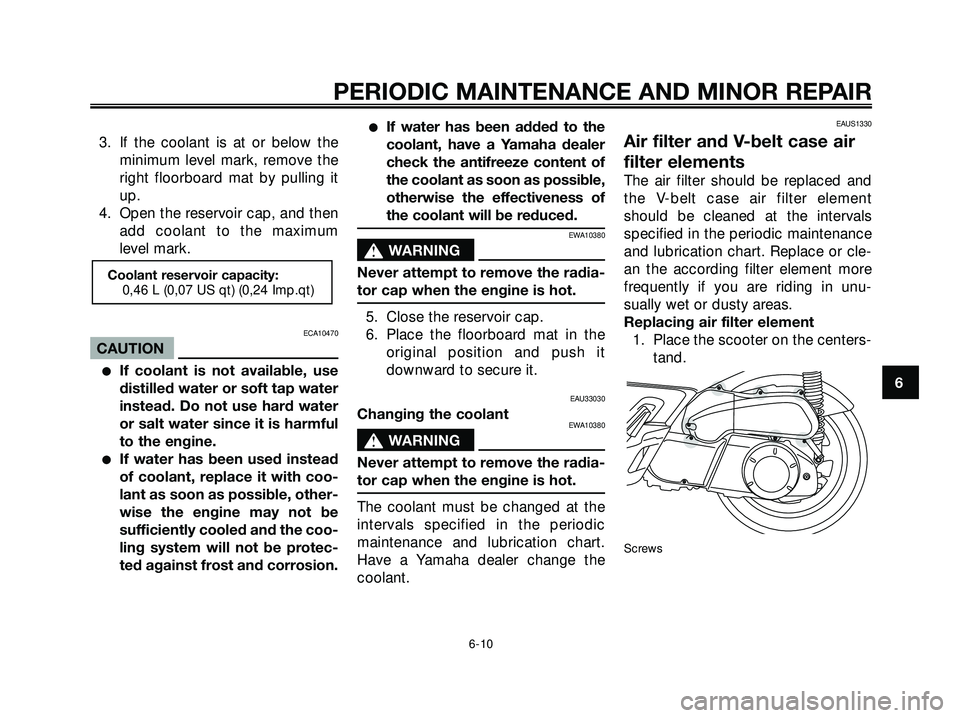

3. If the coolant is at or below theminimum level mark, remove the
right floorboard mat by pulling it
up.
4. Open the reservoir cap, and then add coolant to the maximum
level mark.
ECA10470
CAUTION
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with coo-
lant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the coo-
ling system will not be protec-
ted against frost and corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
EWA10380
s s WARNING
Never attempt to remove the radia-
tor cap when the engine is hot.
5. Close the reservoir cap.
6. Place the floorboard mat in the original position and push it
downward to secure it.
EAU33030
Changing the coolantEWA10380
s s WARNING
Never attempt to remove the radia-
tor cap when the engine is hot.
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.
EAUS1330
Air filter and V-belt case air
filter elements
The air filter should be replaced and
the V-belt case air filter element
should be cleaned at the intervals
specified in the periodic maintenance
and lubrication chart. Replace or cle-
an the according filter element more
frequently if you are riding in unu-
sually wet or dusty areas.
Replacing air filter element 1. Place the scooter on the centers- tand.
Screws
Coolant reservoir capacity:0,46 L (0,07 US qt) (0,24 Imp.qt)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 43

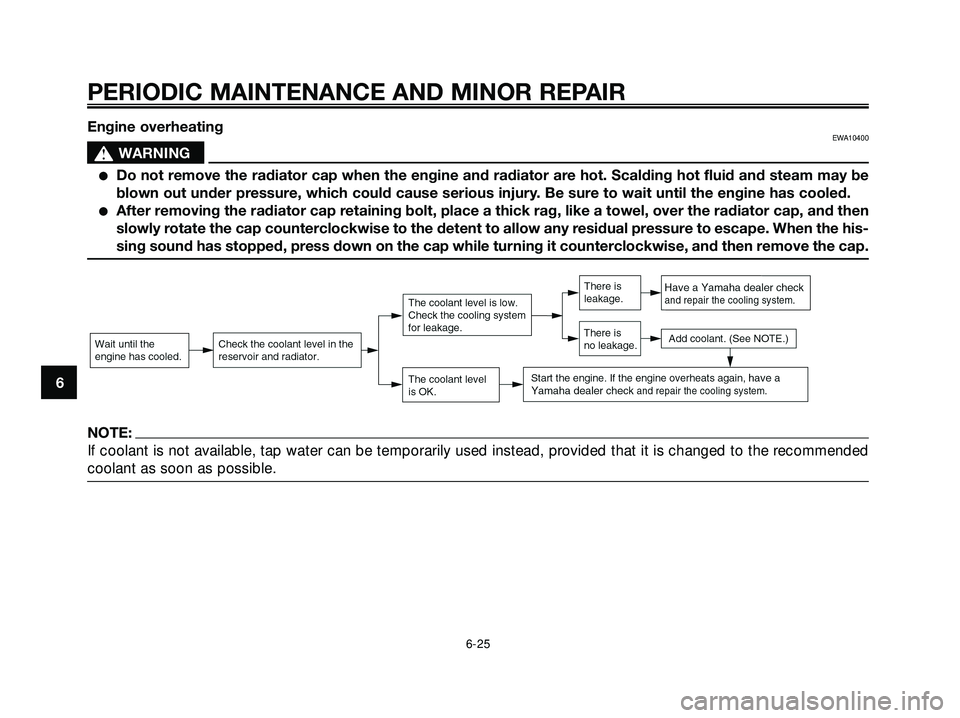

Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 58

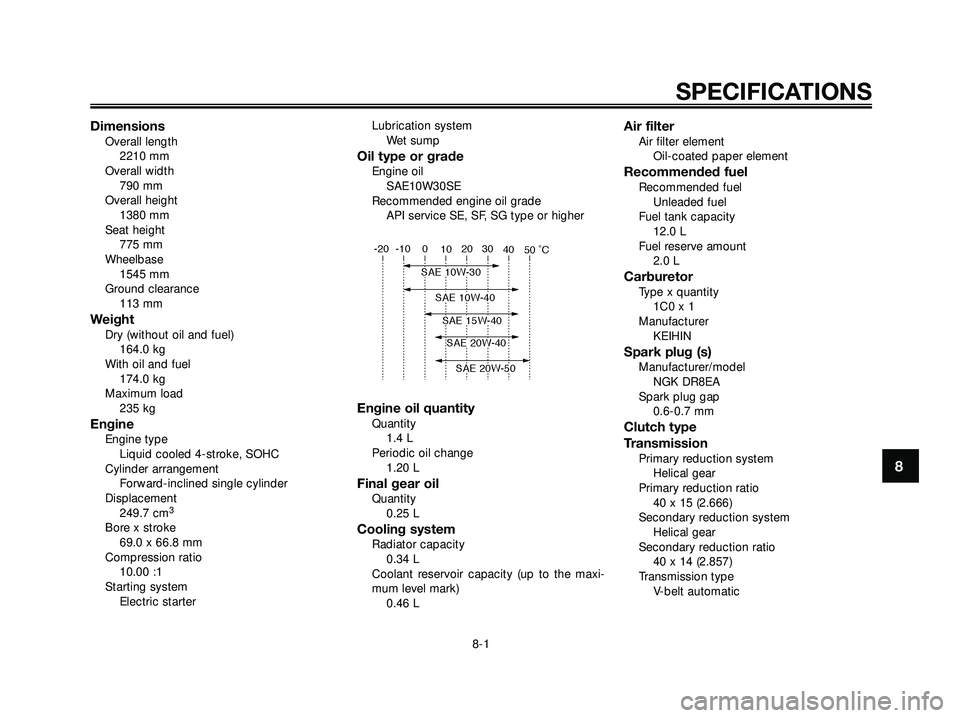

DimensionsOverall length
2210 mm
Overall width
790 mm
Overall height
1380 mm
Seat height
775 mm
Wheelbase
1545 mm
Ground clearance
113 mm
WeightDry (without oil and fuel)
164.0 kg
With oil and fuel
174.0 kg
Maximum load
235 kg
EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
249.7 cm
3
Bore x stroke
69.0 x 66.8 mm
Compression ratio
10.00 :1
Starting system
Electric starterLubrication system
Wet sump
Oil type or gradeEngine oil
SAE10W30SE
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantityQuantity
1.4 L
Periodic oil change
1.20 L
Final gear oilQuantity
0.25 L
Cooling systemRadiator capacity
0.34 L
Coolant reservoir capacity (up to the maxi-
mum level mark)
0.46 L
Air filterAir filter element
Oil-coated paper element
Recommended fuelRecommended fuel
Unleaded fuel
Fuel tank capacity
12.0 L
Fuel reserve amount
2.0 L
CarburetorType x quantity
1C0 x 1
Manufacturer
KEIHIN
Spark plug (s)Manufacturer/model
NGK DR8EA
Spark plug gap
0.6-0.7 mm
Clutch type
Transmission
Primary reduction system
Helical gear
Primary reduction ratio
40 x 15 (2.666)
Secondary reduction system
Helical gear
Secondary reduction ratio
40 x 14 (2.857)
Transmission type
V-belt automatic8
SPECIFICATIONS
8-1
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 8-1

AAcceleration and deceleration ...................5-2
Adjusting the carburetor ..........................6-11
Adjusting the shock absorber
assemblies .............................................3-11
Adjusting the throttle cable free play .......6-12
Air filter V-Belt case air filter elements.....6-10
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-18
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-14
Catalytic converter ...................................3-10
Changing the brake fluid..........................6-16
Checking and lubricating the
centerstand and sidestand ....................6-16
Checking and lubricating the
throttle grip cable ..................................6-16
Checking the brake fluid level .................6-15
Checking the front and rear brake pads.....6-14
Checking the front fork ............................6-17
Checking the spark plug ............................6-5
Checking the wheel bearings ..................6-18
Cheking the steering ................................6-17
Controls and instruments ..........................2-3
Coolant.......................................................6-9
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-7
FFinal transmission oil .................................6-8Front and rear brake lever free play.........6-14
Front brake lever ........................................3-8
Front storage compartment .....................3-11
Fuel ............................................................3-9
Fuel gauge .................................................3-3
Fuel tank cap .............................................3-8
HHandlebar switches ...................................3-7
IImmobilizer system ....................................3-1
Indicators, indicator lights and warning
light ..........................................................3-2
KKey identification number ..........................9-1
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-16
MMain switch/steering lock ..........................3-1
Model label ................................................9-1
Multi-function display ................................3-4
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever .........................................3-8
Removing and installing cowlings and
panels ......................................................6-5
Replacing a front turn signal light bulb....6-21Replacing a headlight bulb ......................6-20
Replacing the auxiliary light bulb .............6-22
Replacing the fuses .................................6-19
Replacing the license plate light bulb......6-22
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-21
Right view ..................................................2-2
SSeat ..........................................................3-10
Sidestand .................................................3-12
Speedometer .............................................3-3
Starting a cold engine ................................5-1
Starting off .................................................5-1
Storage compartment ..............................3-11
Storage compartment ................................7-3
TTips for reducing fuel consumption ...........5-2
Tires .........................................................6-12
Troubleshooting .......................................6-22
Troubleshooting charts ............................6-24
VValve clearance ........................................6-12
Vehicle identification number .....................9-1
INDEX
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 67
