EAU10420

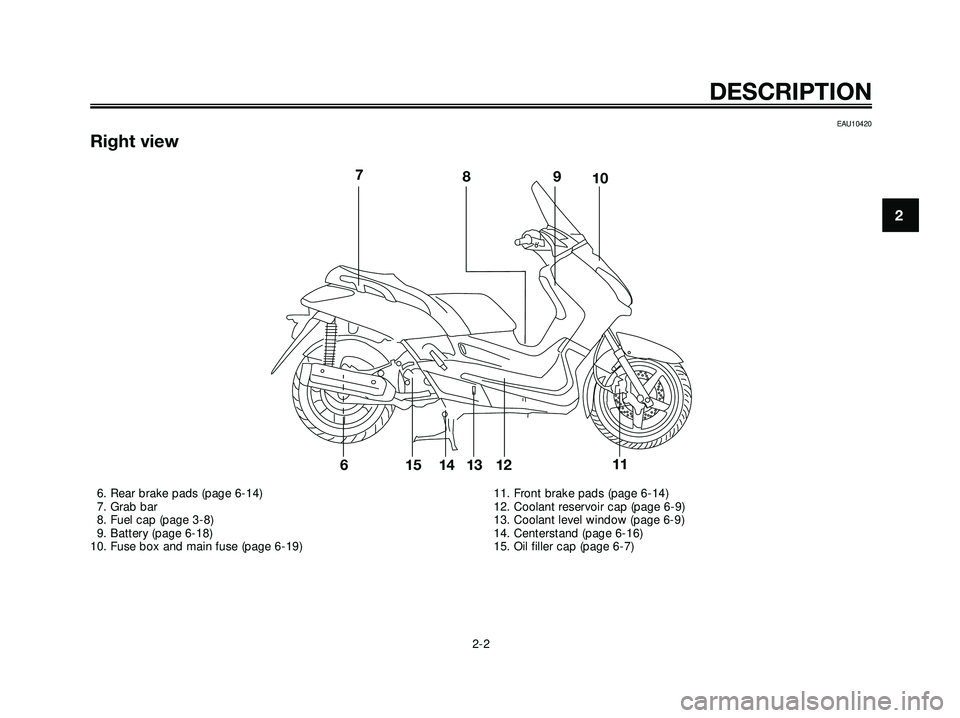

Right view
DESCRIPTION
2-2
2
78910
61514 13 1211
6. Rear brake pads (page 6-14)
7. Grab bar
8. Fuel cap (page 3-8)
9. Battery (page 6-18)
10. Fuse box and main fuse (page 6-19)11. Front brake pads (page 6-14)
12. Coolant reservoir cap (page 6-9)
13. Coolant level window (page 6-9)
14. Centerstand (page 6-16)
15. Oil filler cap (page 6-7)
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 13

3. Fully charge the battery beforeinstallation.
4. After installation, make sure that the battery leads are properly
connected to the battery termi-
nals.
ECA10630
CAUTION
Always keep the battery char-
ged. Storing a discharged bat-
tery can cause permanent bat-
tery damage.
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.
EAU23610
Replacing the fuses
The main fuse and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located behind
cowling B. (See page 6-5.)
If a fuse is blown, replace it as
follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage.
ECA10640
CAUTION
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
Specified fuses: Main fuse30.0 A
Headlight fuse 15.0 A
Signaling system fuse 15.0 A
Ignition fuse 5.0 A
Radiator fan fuse 10 A
ECU fuse 5.0 A
Backup fuse 5.0 A
Reserve fuse 5.0 A
10 A
15.0 A
30.0 A
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
