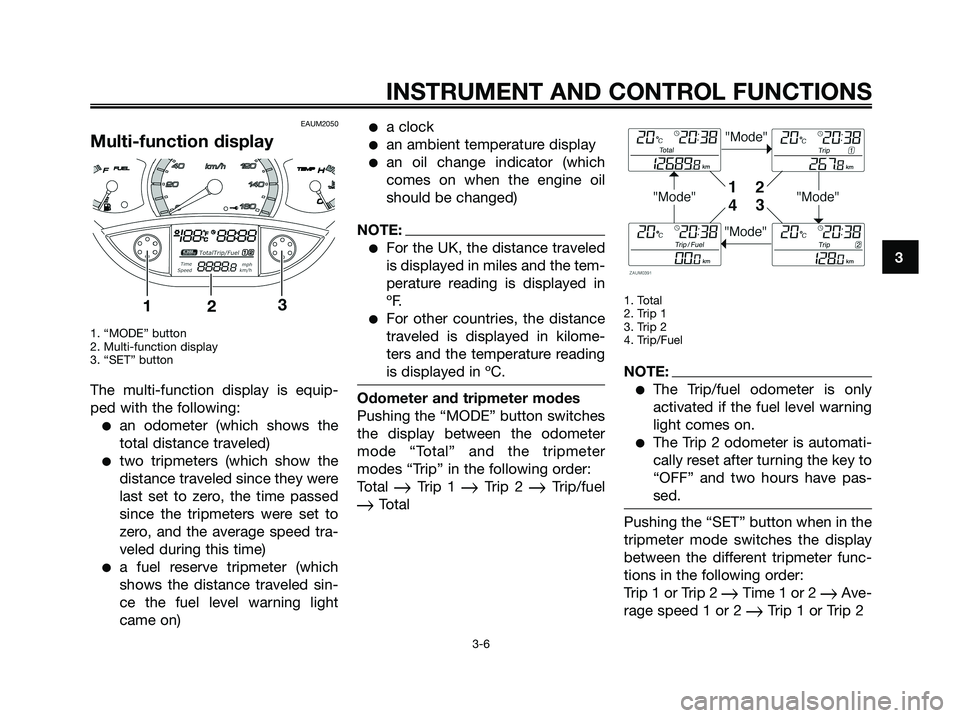

Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
●an odometer (which shows the
total distance traveled)
●two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
●a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
●a clock
●an ambient temperature display
●an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:
●For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
ºF.
●For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in ºC.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2  Trip/fuel
Total
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
NOTE:
●The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
●The Trip 2 odometer is automati-
cally reset after turning the key to
“OFF” and two hours have pas-
sed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2
Time 1 or 2 Ave-
rage speed 1 or 2
Trip 1 or Trip 2
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 21

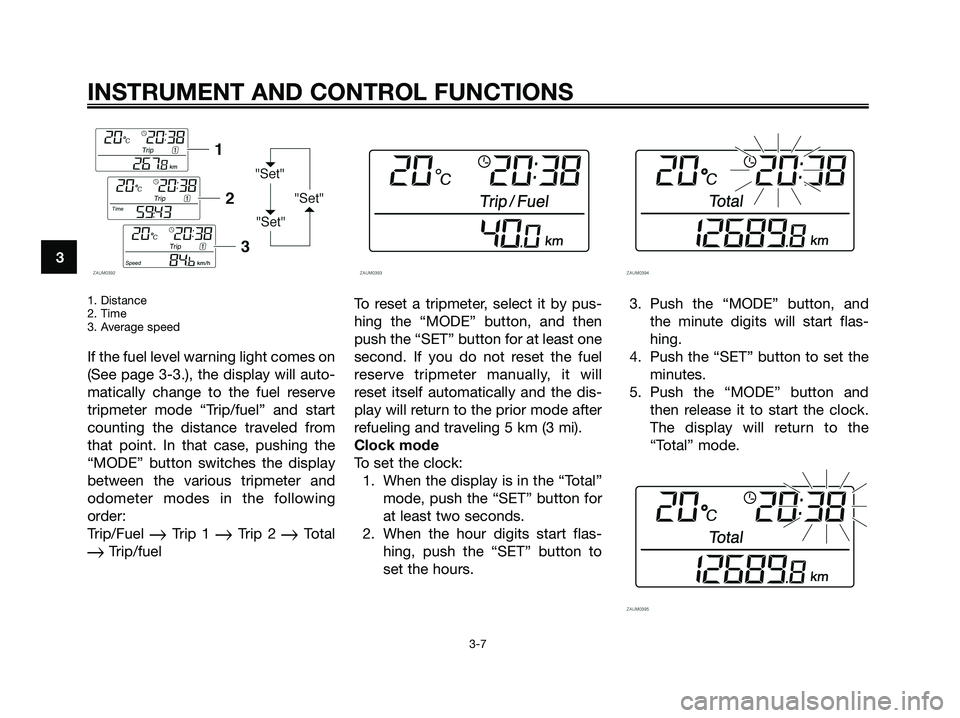

1. Distance
2. Time
3. Average speed
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuelTo reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 22

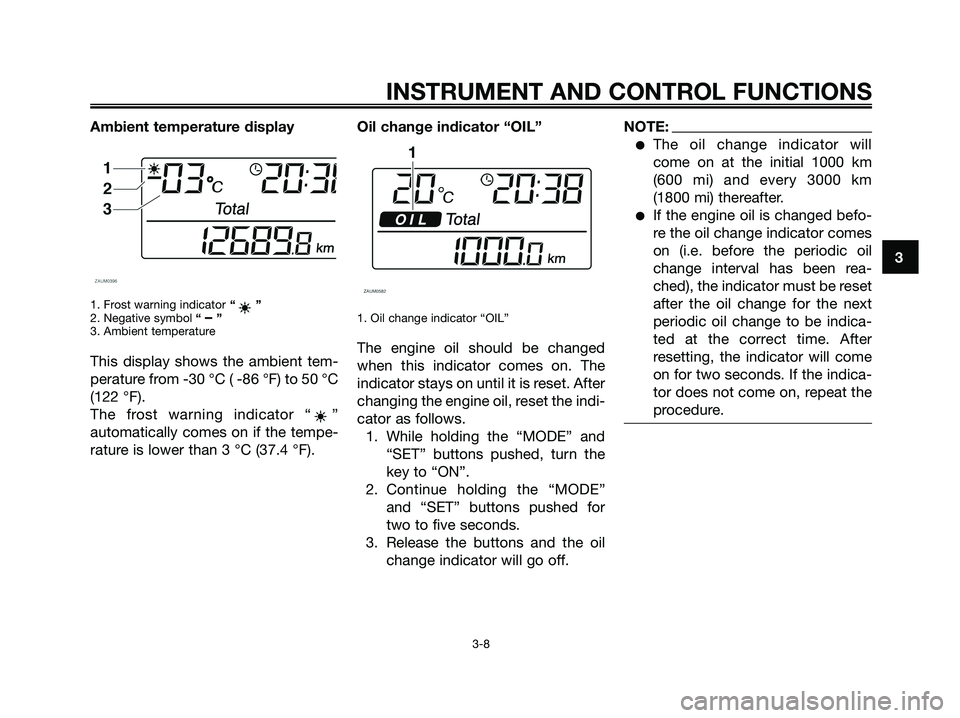

Ambient temperature display
1. Frost warning indicator“”
2. Negative symbol “ – ”
3. Ambient temperature
This display shows the ambient tem-
perature from -30 °C ( -86 °F) to 50 °C
(122 °F).
The frost warning indicator “ ”
automatically comes on if the tempe-
rature is lower than 3 °C (37.4 °F).Oil change indicator “OIL”
1. Oil change indicator “OIL”
The engine oil should be changed
when this indicator comes on. The
indicator stays on until it is reset. After
changing the engine oil, reset the indi-
cator as follows.
1. While holding the “MODE” and
“SET” buttons pushed, turn the
key to “ON”.
2. Continue holding the “MODE”
and “SET” buttons pushed for
two to five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE:
●The oil change indicator will
come on at the initial 1000 km
(600 mi) and every 3000 km
(1800 mi) thereafter.
●If the engine oil is changed befo-
re the oil change indicator comes
on (i.e. before the periodic oil
change interval has been rea-
ched), the indicator must be reset
after the oil change for the next
periodic oil change to be indica-
ted at the correct time. After
resetting, the indicator will come
on for two seconds. If the indica-
tor does not come on, repeat the
procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 23

EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347

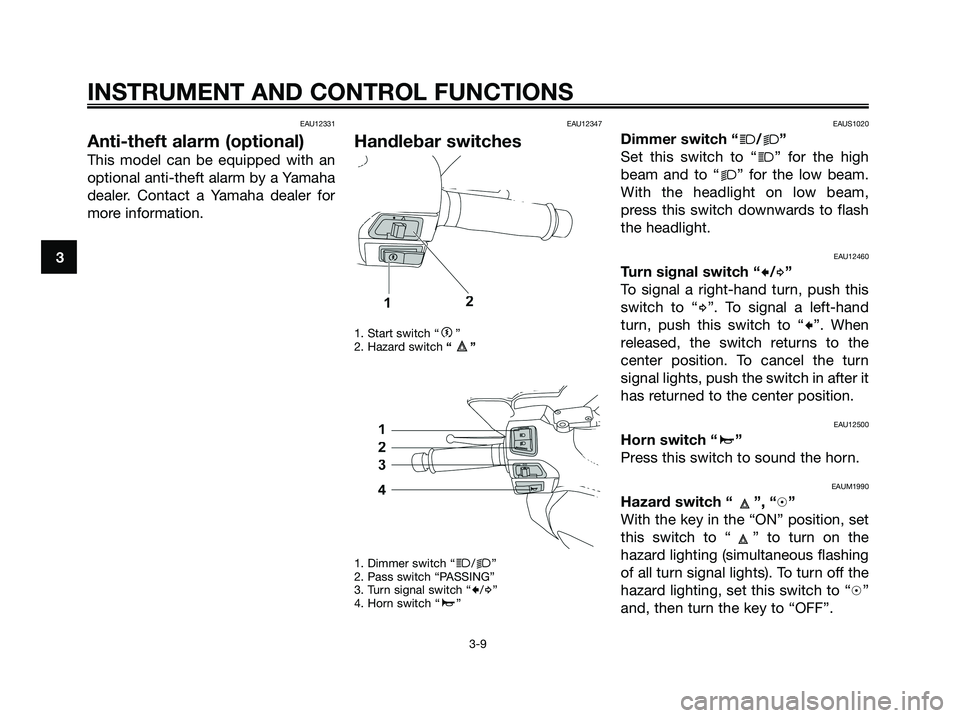

Handlebar switches
1. Start switch “g”
2. Hazard switch“”
1. Dimmer switch “
j/k”
2. Pass switch “PASSING”
3. Turn signal switch “
c/d”
4. Horn switch “a”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAUM1990
Hazard switch “ ”, “h”
With the key in the “ON” position, set
this switch to “ ” to turn on the
hazard lighting (simultaneous flashing
of all turn signal lights). To turn off the
hazard lighting, set this switch to “h”
and, then turn the key to “OFF”.
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 24

NOTE:
Even if the key is turned from “ON” to
“OFF” with the hazard lighting on, the
hazard lighting will continue to flash
regardless of the hazard switch posi-
tion. To cancel the hazard lighting, the
key must be turned to “ON” and the
hazard switch must be set to the “h”
position.
The hazard lighting is used in case of
an emergency or to warn other drivers
when your scooter is stopped where
it might be a traffic hazard.
ECA10060
CAUTION:
Do not use the hazard light for an
extended length of time, otherwise
the battery may discharge.
EAU12720
Start switch “g”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
ECA10050
CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12900

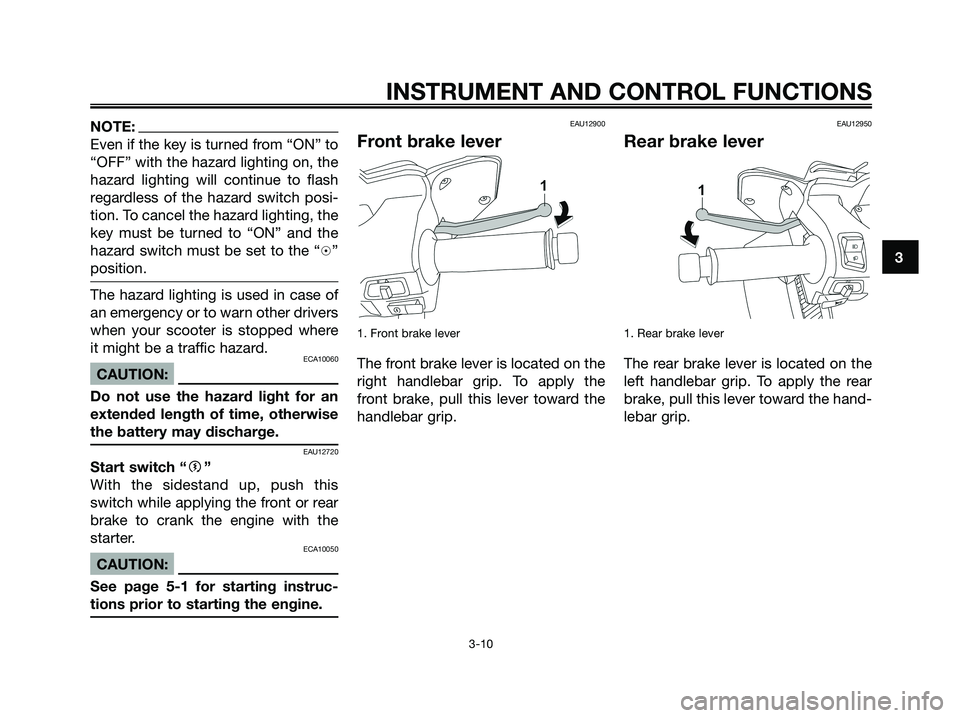

Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 25

EAUT1382

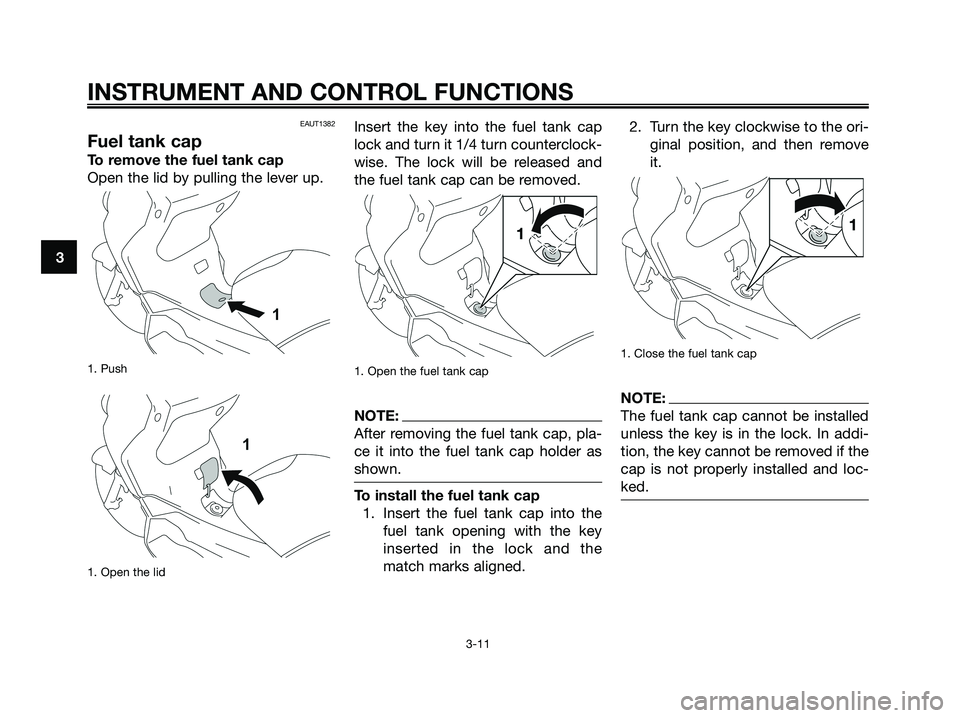

Fuel tank cap
To remove the fuel tank cap
Open the lid by pulling the lever up.
1. Push
1. Open the lid
Insert the key into the fuel tank cap
lock and turn it 1/4 turn counterclock-
wise. The lock will be released and
the fuel tank cap can be removed.
1. Open the fuel tank cap
NOTE:
After removing the fuel tank cap, pla-
ce it into the fuel tank cap holder as
shown.
To install the fuel tank cap
1. Insert the fuel tank cap into the
fuel tank opening with the key
inserted in the lock and the
match marks aligned.2. Turn the key clockwise to the ori-
ginal position, and then remove
it.
1. Close the fuel tank cap
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and loc-
ked.
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 26

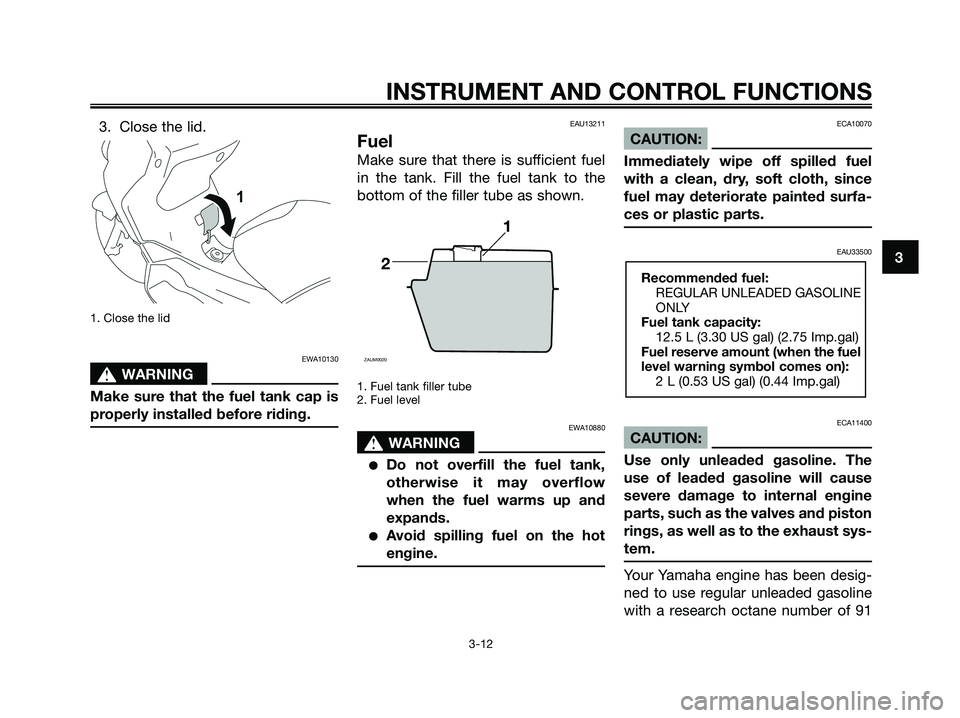

3. Close the lid.
1. Close the lid
EWA10130
s s
WARNING
Make sure that the fuel tank cap is
properly installed before riding.
EAU13211
Fuel
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
1. Fuel tank filler tube
2. Fuel level
EWA10880
s s
WARNING
●Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
●Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU33500
ECA11400
CAUTION:
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
12.5 L (3.30 US gal) (2.75 Imp.gal)
Fuel reserve amount (when the fuel
level warning symbol comes on):
2 L (0.53 US gal) (0.44 Imp.gal)
1
2
ZAUM0020
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 27

or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.EAU13442

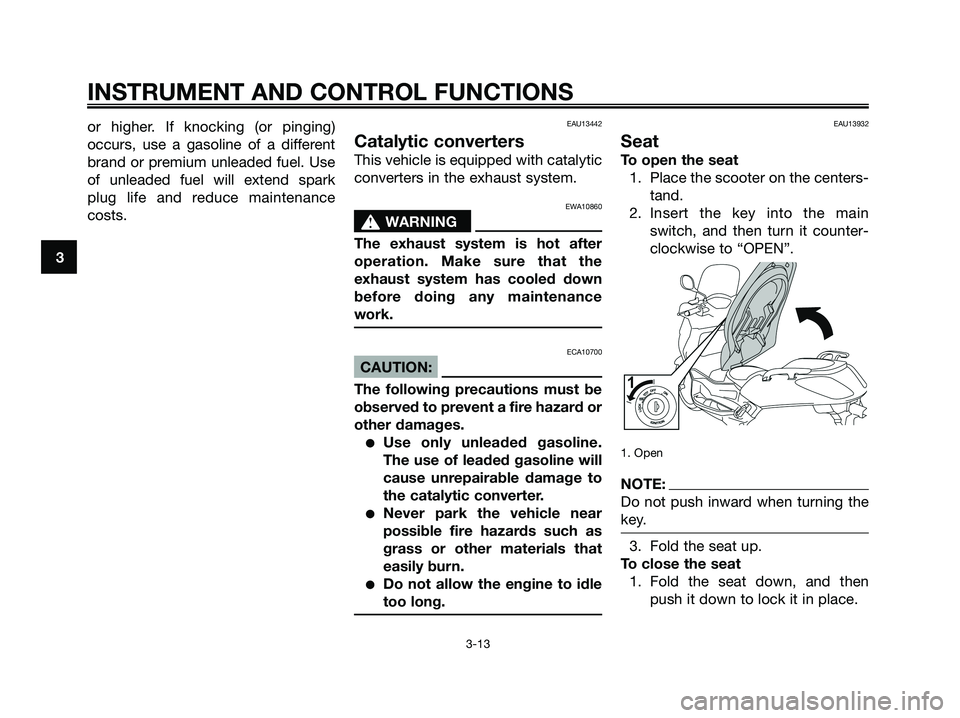

Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
●Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
●Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Do not allow the engine to idle
too long.
EAU13932
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise to “OPEN”.
1. Open
NOTE:
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 28

2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
EAUT1711

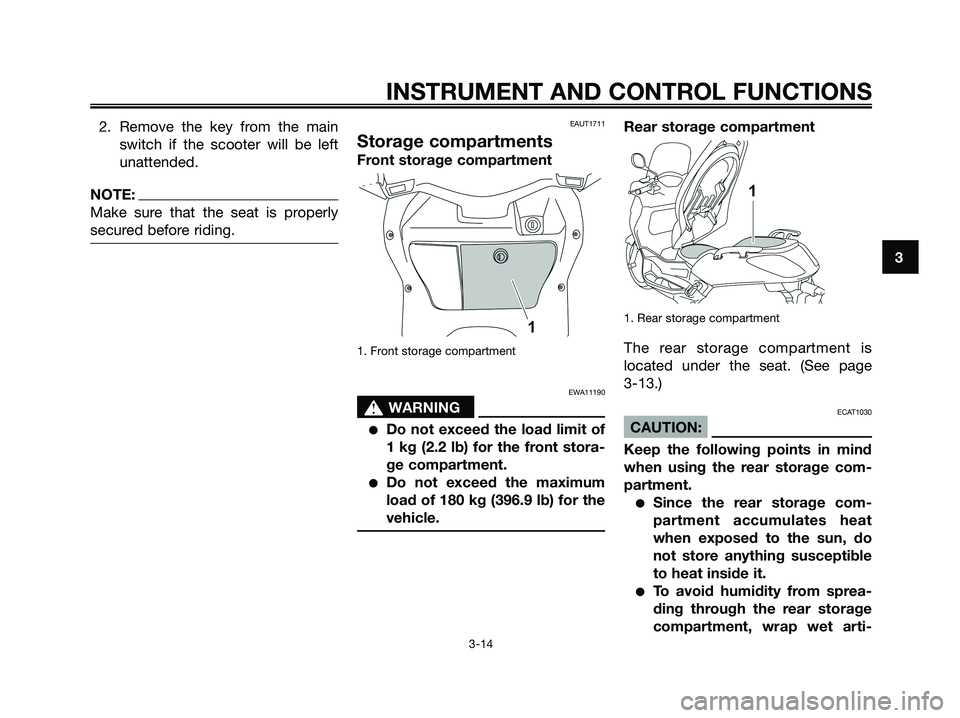

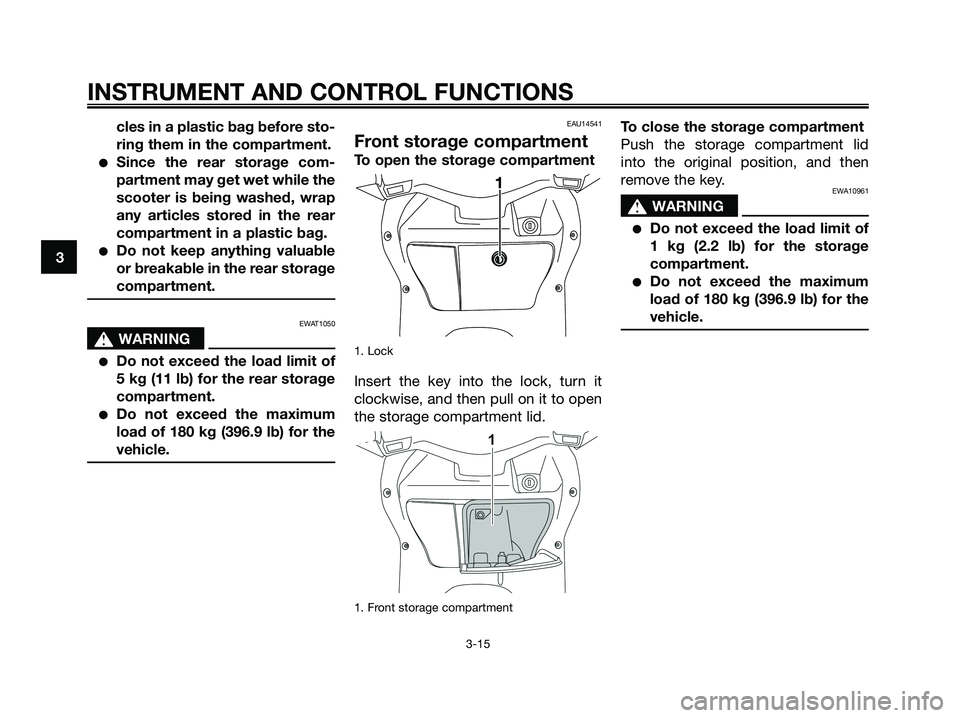

Storage compartments
Front storage compartment
1. Front storage compartment
EWA11190
s s
WARNING
●Do not exceed the load limit of
1 kg (2.2 lb) for the front stora-
ge compartment.
●Do not exceed the maximum
load of 180 kg (396.9 lb) for the
vehicle.
Rear storage compartment
1. Rear storage compartment
The rear storage compartment is
located under the seat. (See page
3-13.)
ECAT1030
CAUTION:
Keep the following points in mind
when using the rear storage com-
partment.
●Since the rear storage com-
partment accumulates heat
when exposed to the sun, do
not store anything susceptible
to heat inside it.
●To avoid humidity from sprea-
ding through the rear storage
compartment, wrap wet arti-
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 29

cles in a plastic bag before sto-
ring them in the compartment.
●Since the rear storage com-
partment may get wet while the
scooter is being washed, wrap
any articles stored in the rear
compartment in a plastic bag.
●Do not keep anything valuable
or breakable in the rear storage
compartment.
EWAT1050
s s
WARNING
●Do not exceed the load limit of
5 kg (11 lb) for the rear storage
compartment.
●Do not exceed the maximum
load of 180 kg (396.9 lb) for the
vehicle.
EAU14541
Front storage compartment
To open the storage compartment
1. Lock
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
1. Front storage compartment
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
EWA10961
s s
WARNING
●Do not exceed the load limit of
1 kg (2.2 lb) for the storage
compartment.
●Do not exceed the maximum
load of 180 kg (396.9 lb) for the
vehicle.
1
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 30
