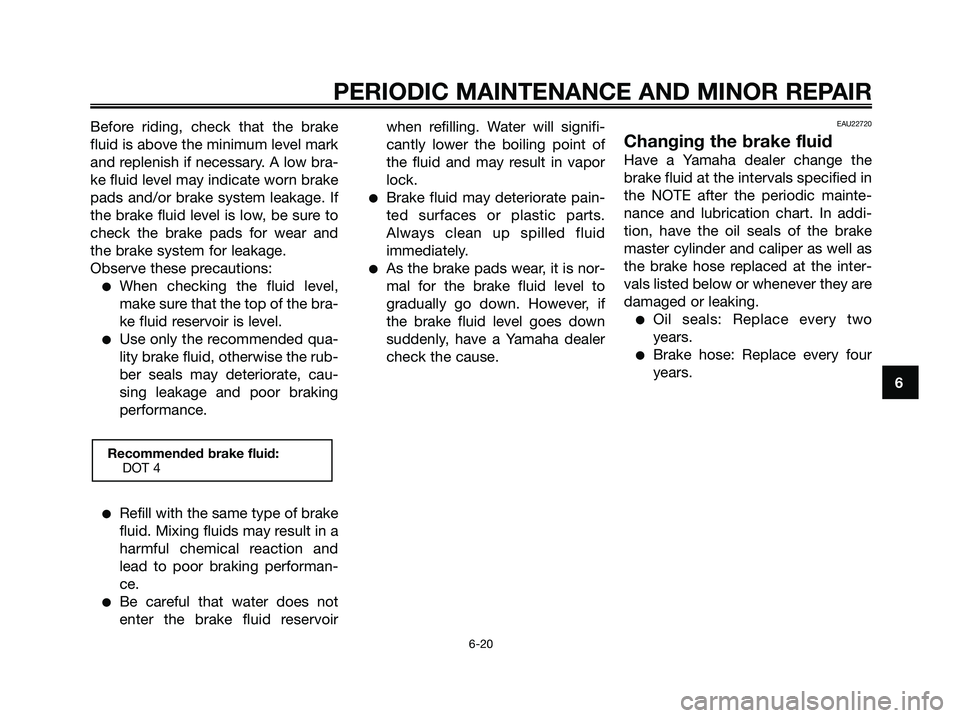

Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
●When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
●Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
●Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
●Be careful that water does not
enter the brake fluid reservoirwhen refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
●Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
●As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22720
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addi-
tion, have the oil seals of the brake
master cylinder and caliper as well as
the brake hose replaced at the inter-
vals listed below or whenever they are
damaged or leaking.
●Oil seals: Replace every two
years.
●Brake hose: Replace every four
years.
Recommended brake fluid:
DOT 4
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 61

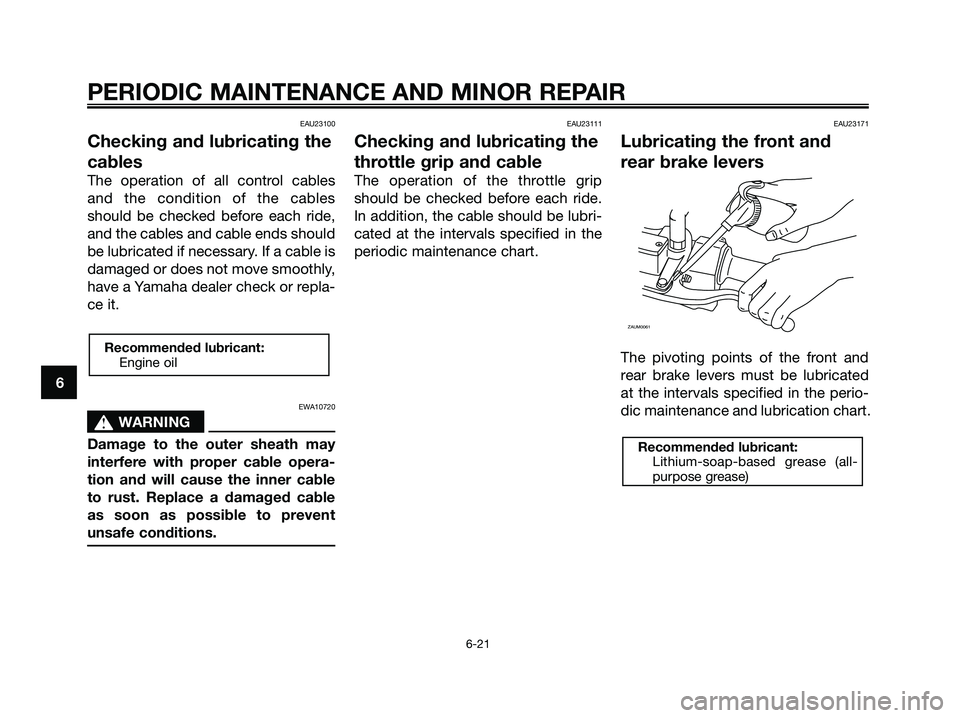

EAU23100
Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it.
EWA10720
s s
WARNING
Damage to the outer sheath may
interfere with proper cable opera-
tion and will cause the inner cable
to rust. Replace a damaged cable
as soon as possible to prevent
unsafe conditions.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
EAU23171
Lubricating the front and
rear brake levers
The pivoting points of the front and
rear brake levers must be lubricated
at the intervals specified in the perio-
dic maintenance and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
ZAUM0061
Recommended lubricant:
Engine oil
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 62

EAU23212

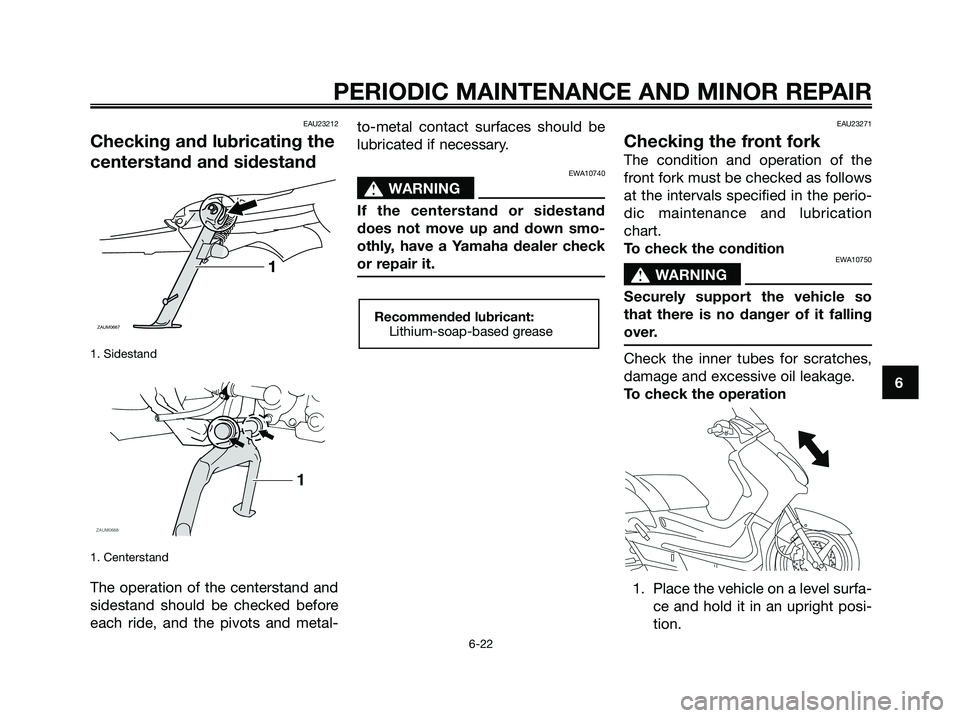

Checking and lubricating the
centerstand and sidestand
1. Sidestand
1. Centerstand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-metal contact surfaces should be
lubricated if necessary.
EWA10740
s s
WARNING
If the centerstand or sidestand
does not move up and down smo-
othly, have a Yamaha dealer check
or repair it.
EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
EWA10750
s s
WARNING
Securely support the vehicle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
Recommended lubricant:
Lithium-soap-based greaseZAUM0667
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 63

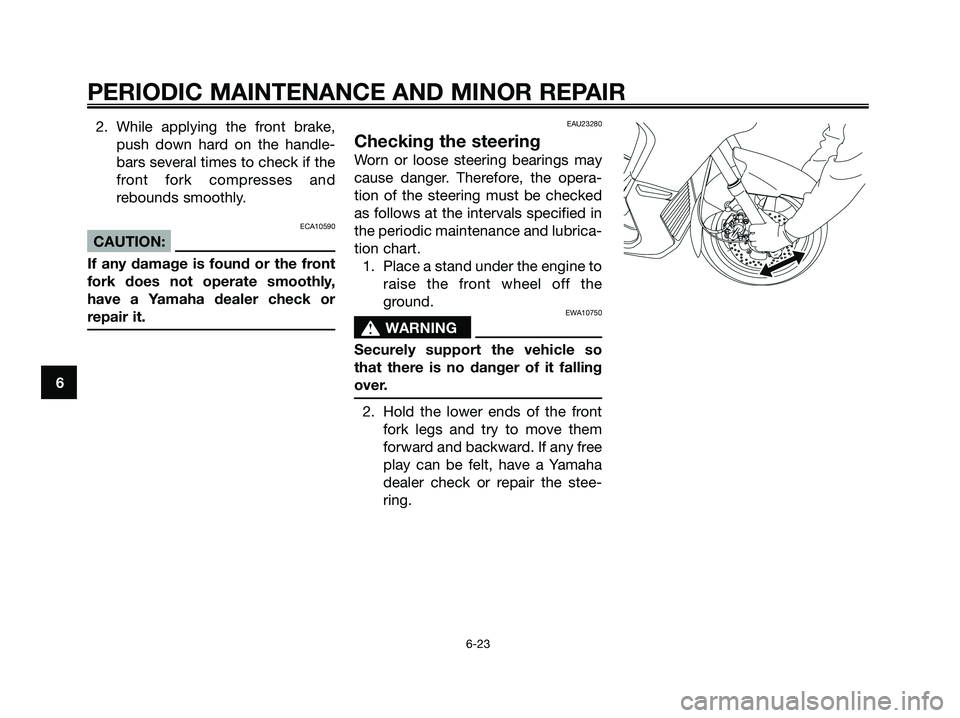

2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EWA10750
s s
WARNING
Securely support the vehicle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the stee-
ring.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 64

EAU23290

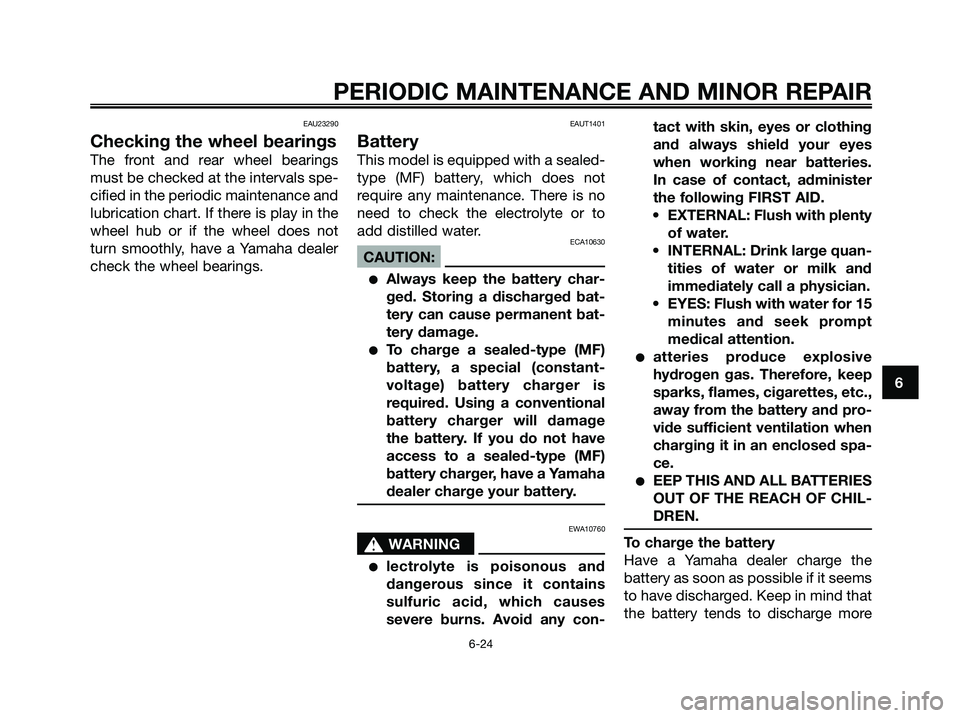

Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAUT1401
Battery
This model is equipped with a sealed-
type (MF) battery, which does not
require any maintenance. There is no
need to check the electrolyte or to
add distilled water.
ECA10630
CAUTION:
●Always keep the battery char-
ged. Storing a discharged bat-
tery can cause permanent bat-
tery damage.
●To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.
EWA10760
s s
WARNING
●lectrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●atteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed spa-
ce.
●EEP THIS AND ALL BATTERIES
OUT OF THE REACH OF CHIL-
DREN.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 65

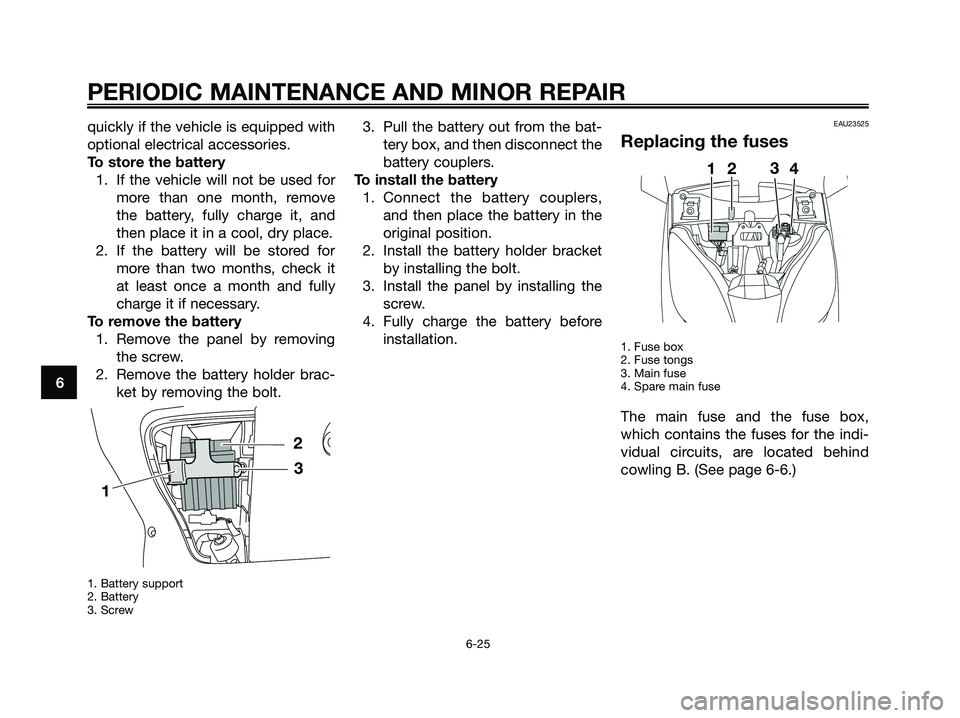

quickly if the vehicle is equipped with
optional electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
To remove the battery
1. Remove the panel by removing
the screw.
2. Remove the battery holder brac-
ket by removing the bolt.
1. Battery support
2. Battery
3. Screw
3. Pull the battery out from the bat-
tery box, and then disconnect the
battery couplers.
To install the battery
1. Connect the battery couplers,
and then place the battery in the
original position.
2. Install the battery holder bracket
by installing the bolt.
3. Install the panel by installing the
screw.
4. Fully charge the battery before
installation.EAU23525
Replacing the fuses
1. Fuse box
2. Fuse tongs
3. Main fuse
4. Spare main fuse
The main fuse and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located behind
cowling B. (See page 6-6.)
12
3
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 66

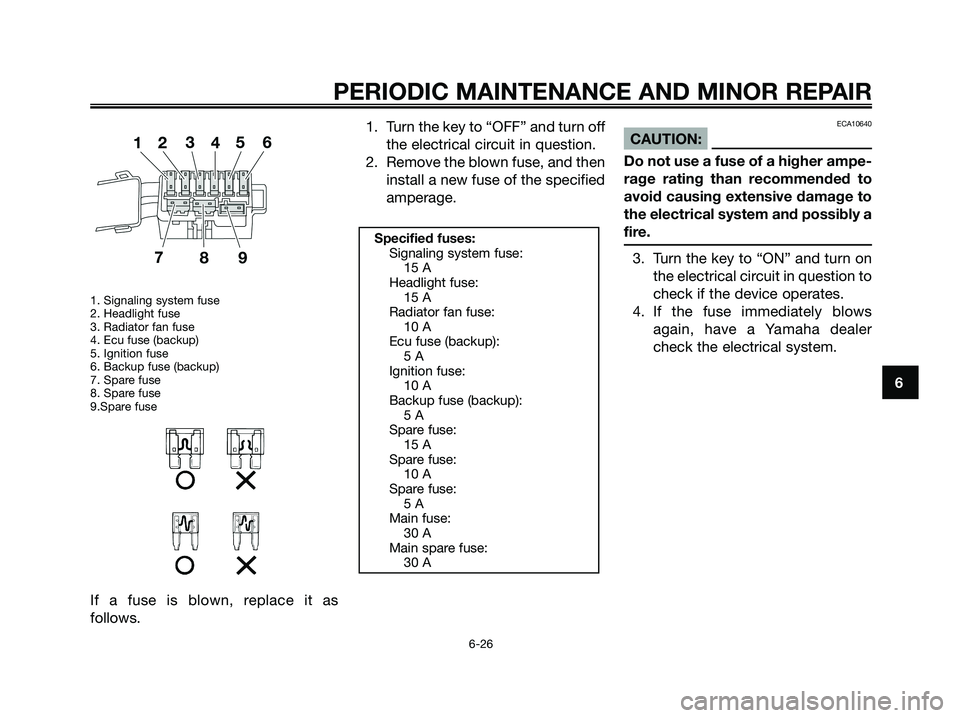

1. Signaling system fuse
2. Headlight fuse
3. Radiator fan fuse
4. Ecu fuse (backup)
5. Ignition fuse
6. Backup fuse (backup)
7. Spare fuse
8. Spare fuse
9.Spare fuse
If a fuse is blown, replace it as
follows.1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
ECA10640
CAUTION:
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
Specified fuses:
Signaling system fuse:
15 A
Headlight fuse:
15 A
Radiator fan fuse:
10 A
Ecu fuse (backup):
5 A
Ignition fuse:
10 A
Backup fuse (backup):
5 A
Spare fuse:
15 A
Spare fuse:
10 A
Spare fuse:
5 A
Main fuse:
30 A
Main spare fuse:
30 A
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 67

EAU23730

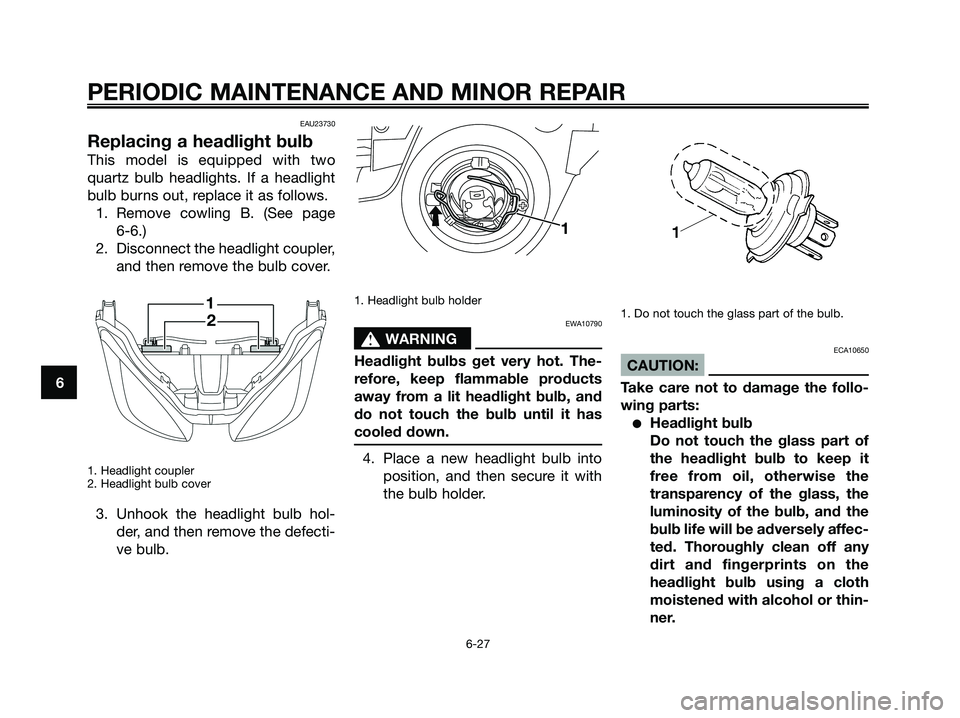

Replacing a headlight bulb
This model is equipped with two
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.
1. Remove cowling B. (See page
6-6.)
2. Disconnect the headlight coupler,
and then remove the bulb cover.
1. Headlight coupler
2. Headlight bulb cover
3. Unhook the headlight bulb hol-
der, and then remove the defecti-
ve bulb.
1. Headlight bulb holder
EWA10790
s s
WARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Do not touch the glass part of the bulb.
ECA10650
CAUTION:
Take care not to damage the follo-
wing parts:
●Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise the
transparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 68

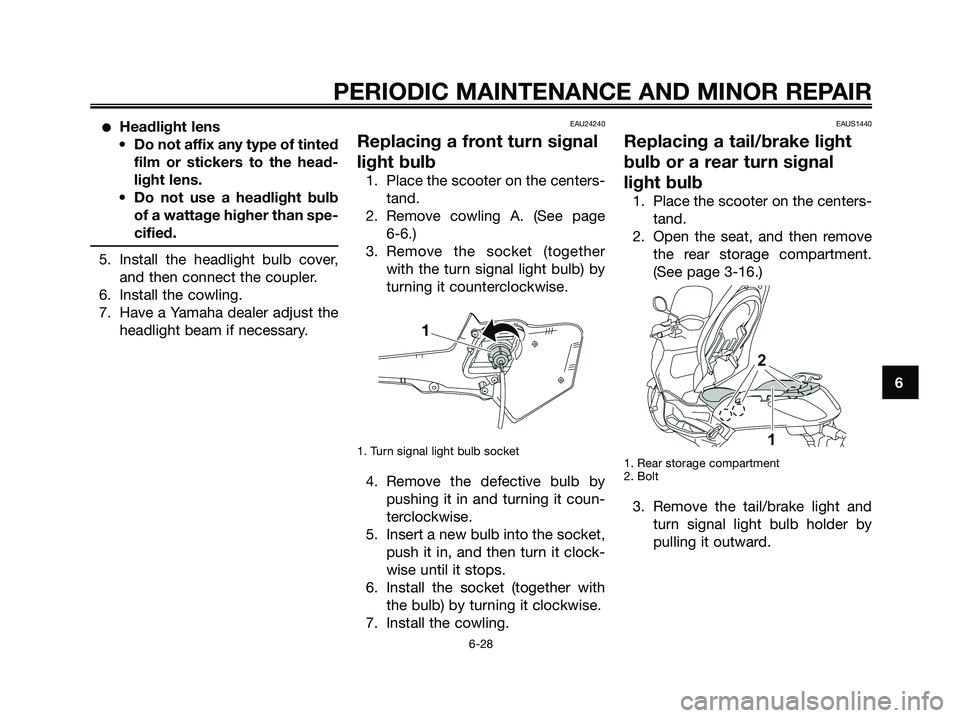

●Headlight lens
• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb
of a wattage higher than spe-
cified.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24240
Replacing a front turn signal
light bulb
1. Place the scooter on the centers-
tand.
2. Remove cowling A. (See page
6-6.)
3. Remove the socket (together
with the turn signal light bulb) by
turning it counterclockwise.
1. Turn signal light bulb socket
4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the cowling.
EAUS1440
Replacing a tail/brake light
bulb or a rear turn signal
light bulb
1. Place the scooter on the centers-
tand.
2. Open the seat, and then remove
the rear storage compartment.
(See page 3-16.)
1. Rear storage compartment
2. Bolt
3. Remove the tail/brake light and
turn signal light bulb holder by
pulling it outward.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 69

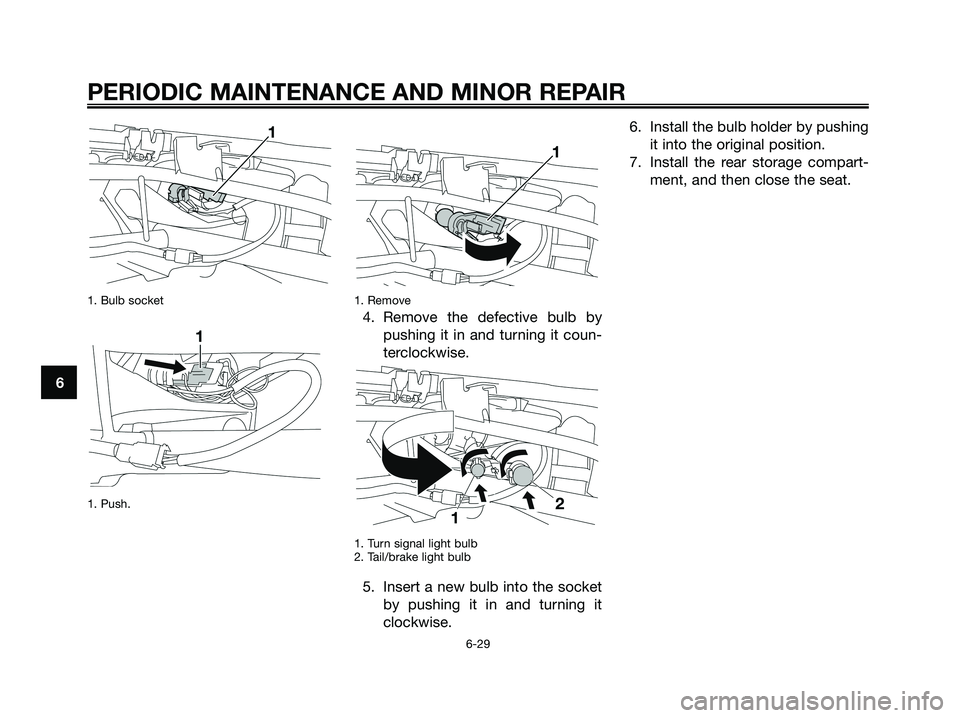

1. Bulb socket
1. Push.1. Remove
4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
1. Turn signal light bulb
2. Tail/brake light bulb
5. Insert a new bulb into the socket
by pushing it in and turning it
clockwise.6. Install the bulb holder by pushing
it into the original position.
7. Install the rear storage compart-
ment, and then close the seat.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 70
