DESCRIPTION
2-2
2
EAU10420
Right view
2
1
43
85
6
7
9
14 11 13 12 10

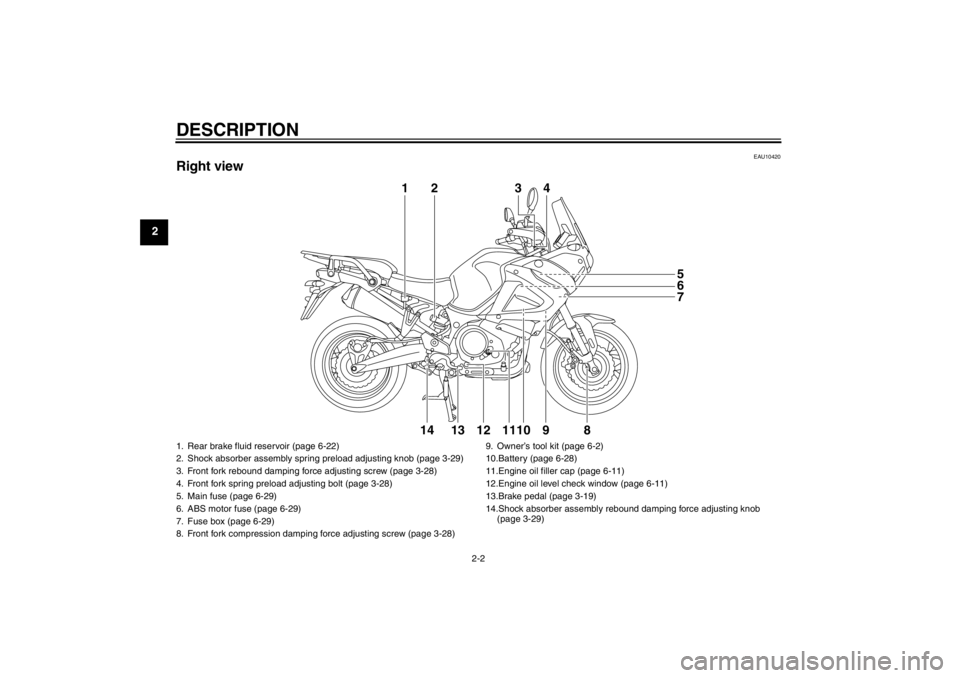

1. Rear brake fluid reservoir (page 6-22)
2. Shock absorber assembly spring preload adjusting knob (page 3-29)
3. Front fork rebound damping force adjusting screw (page 3-28)
4. Front fork spring preload adjusting bolt (page 3-28)
5. Main fuse (page 6-29)
6. ABS motor fuse (page 6-29)
7. Fuse box (page 6-29)
8. Front fork compression damping force adjusting screw (page 3-28) 9. Owner
’s tool kit (page 6-2)
10.Battery (page 6-28)
11.Engine oil filler cap (page 6-11)
12.Engine oil level check window (page 6-11)
13.Brake pedal (page 3-19)
14.Shock absorber assembly rebound damping force adjusting knob (page 3-29)U23PE1E0.book Page 2 Tuesday, August 10, 2010 8:39 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
is turned to “
OFF”, then con-
nect the positive lead before
connecting the negative lead.
[ECA16840]
4. After installation, make sure that the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU49581

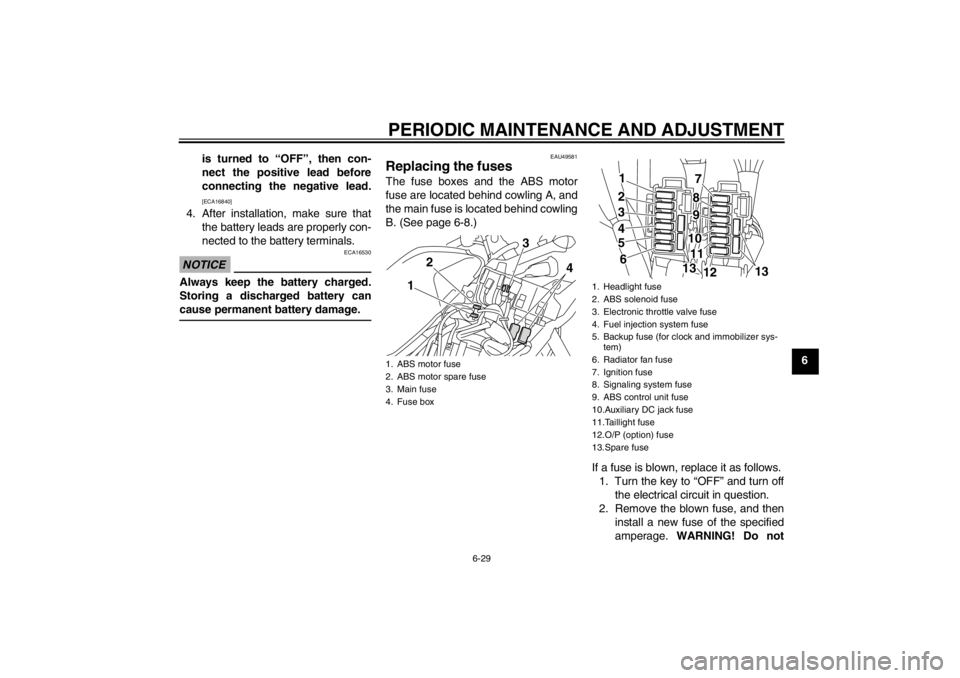

Replacing the fuses The fuse boxes and the ABS motor
fuse are located behind cowling A, and
the main fuse is located behind cowling
B. (See page 6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “ OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not1. ABS motor fuse
2. ABS motor spare fuse
3. Main fuse
4. Fuse box
12
3
4
1. Headlight fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-tem)
6. Radiator fan fuse
7. Ignition fuse
8. Signaling system fuse
9. ABS control unit fuse
10.Auxiliary DC jack fuse
11.Taillight fuse
12.O/P (option) fuse
13.Spare fuse
78912
13
13
1110
124563
