Operation and important rid ing points
5-3
5
EAU16674
Shiftin g
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.
TIP
To shift the transmission into the neu-
tral position ( ), press the shift pedal
down repeatedly until it reaches the
end of its travel, and then slightly raise
it.
NOTICE
ECA10261
Even with the transmission in
the neutral position, d o not
coast for lon g period s of time
with the en gine off, an d d o not
tow the motorcycle for lon g d is-
tances. The transmission is
properly lu bricated only when
the en gine is runnin g. Ina de-
quate lu brication may damag e
the transmission.
 Always use the clutch while
chan gin g g ears to avoi d d am-
a g in g the en gine, transmission, an
d d rive train, which are not
d esi gne d to withstan d the
shock of force d shifting .
EAU85370To start out an d accelerate
1. Pull the clutch lever to disengage the clutch.
2. Shift the transmission into first gear. The neutral indicator light
should go out.
3. Open the throttle gradually, and at the same time, release the clutch
lever slowly.
4. After starting out, close the throt- tle, and at the same time, quickly
pull the clutch lever in.
5. Shift the transmission into second gear. (Make sure not to shift the
transmission into the neutral posi-
tion.)
6. Open the throttle part way and gradually release the clutch lever.
7. Follow the same procedure when shifting to the next higher gear.
EAU85380To decelerate
1. Release the throttle and apply both the front and the rear brakes
smoothly to slow the motorcycle.
2. As the vehicle decelerates, shift to a lower gear.
3. When the engine is about to stall or runs roughly, pull the clutch le-
ver in, use the brakes to slow the
motorcycle, and continue to
downshift as necessary.
4. Once the motorcycle has stopped, the transmission can be
shifted into the neutral position.
1. Gear positions
2. Shift pedal
2
1
1
N 2 3 4
5
6
UBP8E1E0.book Page 3 Friday, September 14, 2018 11:35 AM

Periodic maintenance an d a djustment
6-11
6 through the engine oil level check
window located at the bottom-
right side of the crankcase.
TIP
The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, remove the
oil filler cap and add oil.
5. Check the engine oil filler cap O- ring. Replace if damaged.
6. Install the engine oil filler cap. To chan
ge the en gine oil (an d filter)
1. Start the engine and allow it to idle for a few minutes to warm up the
oil, and then stop the engine.
2. Place an oil pan under the oil tank to collect the used oil.
3. Remove the engine oil filler cap, the drain bolt and its gasket to
drain the oil from the oil tank.
4. Place an oil pan under the engine to collect the used oil.
5. Remove the engine oil drain bolt and its gasket to drain the oil from
the crankcase.
TIP
Skip steps 6–10 if the oil filter cartridge
is not being replaced.

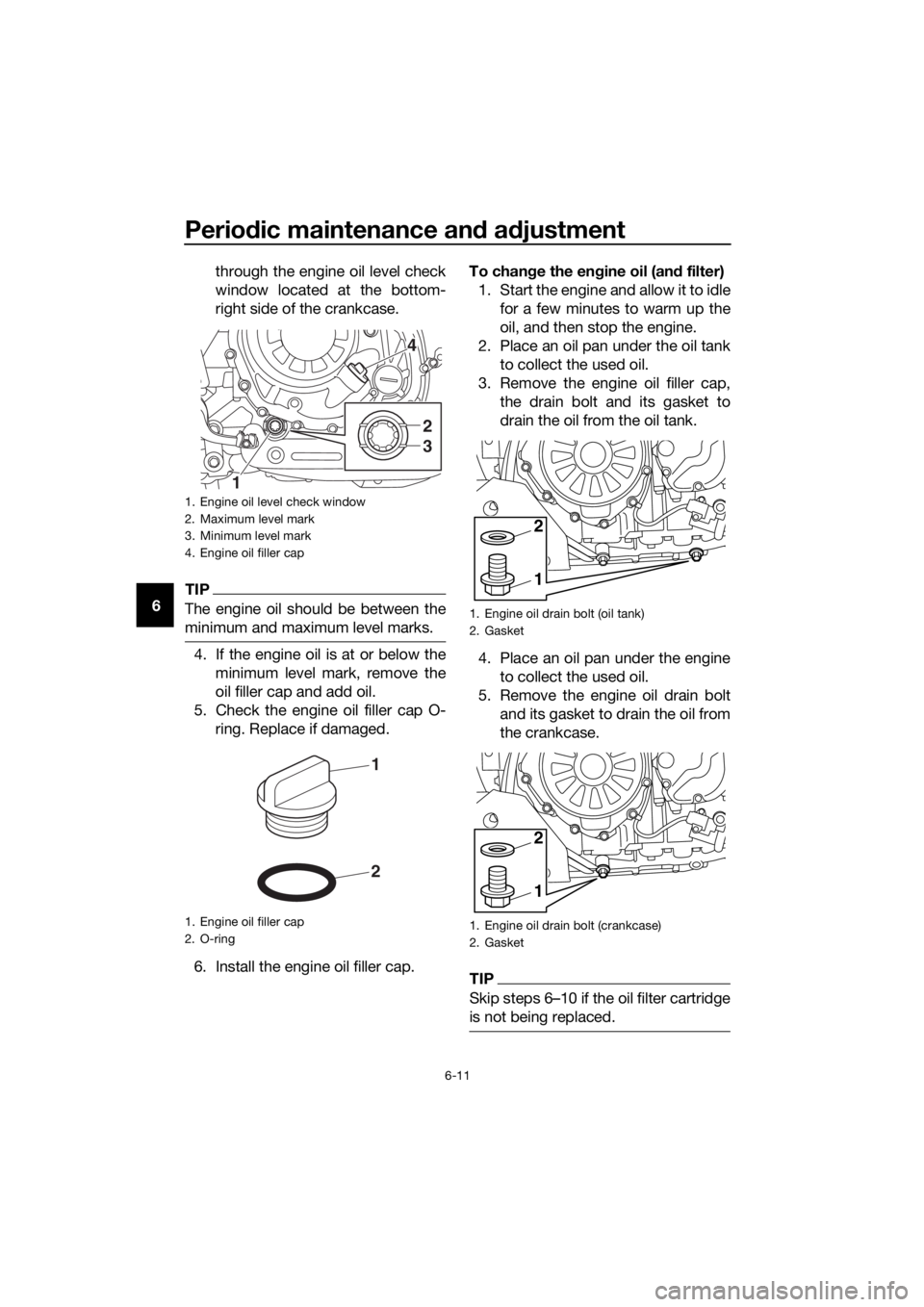

1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
1. Engine oil filler cap
2. O-ring
4
2
3
1
2
1
1. Engine oil drain bolt (oil tank)
2. Gasket
1. Engine oil drain bolt (crankcase)
2. Gasket
1
2
1
2
UBP8E1E0.book Page 11 Friday, September 14, 2018 11:35 AM

Periodic maintenance an d a djustment
6-41
6 En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot.
Scal din g hot flui d an d steam may b e blown out un der pressure, which
coul d cause serious injury. Be sure to wait until the eng ine has cooled.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly ro-
tate the cap counterclockwise to the detent to allow any resi dual pres-
sure to escape. When the hissin g soun d has stopped , press down on the
cap while turnin g it counterclockwise, an d then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided
that it is changed to the recommended coolant as soon as possible.
Wait until the engine
has cooled.
Check the coolant
level in the reservoir
and radiator.Add coolant.
(See TIP.)
The coolant level is
OK.
There is no leakage.
There is leakage.
The coolant level is
low.
Check the cooling
system for leakage.
Have a Yamaha
dealer check and
repair the cooling
system.
Start the engine. If the engine overheats again,
have a Yamaha dealer check and repair the cooling
system.
UBP8E1E0.book Page 41 Friday, September 14, 2018 11:35 AM

10-1
10
Index
A
ABS ...................................................... 3-24
ABS warning light ................................... 3-4
Air filter element ................................... 6-17
Auxiliary DC jack .................................. 3-39
Auxiliary light bulb, replacing ............... 6-35
B
Battery .................................................. 6-30
Brake and clutch fluids, changing ........ 6-26
Brake and clutch levers, checking and
lubricating .......................................... 6-27
Brake and shift pedals, checking and
lubricating .......................................... 6-27
Brake fluid level, checking ................... 6-25
Brake lever ........................................... 3-23
Brake lever free play, checking ............ 6-23
Brake light switches ............................. 6-23
Brake pedal .......................................... 3-24
C
Canister ................................................ 6-10
Care ........................................................ 7-1
Carriers ................................................. 3-37
Catalytic converter ............................... 3-30
Clutch lever ................................. 3-22, 6-22
Coolant ................................................. 6-16
Cowlings, removing and installing ......... 6-7
Cruise control indicator lights ................ 3-4
Cruise control switches ........................ 3-21
Cruise control system ............................ 3-6
D
Data recording, vehicle .......................... 9-3
Diagnostic connector ............................. 9-2
Dimmer/Pass switch ............................ 3-20
D-mode (drive mode) ........................... 3-19
E
Engine break-in ...................................... 5-5
Engine idling speed, checking ............. 6-18
Engine oil .............................................. 6-10
Engine serial number.............................. 9-1
Engine trouble warning light................... 3-4
F
Final gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-24
Front fork, adjusting ............................. 3-34
Front fork, checking ............................. 6-29
Fuel....................................................... 3-28
Fuel consumption, tips for reducing ...... 5-4
Fuel tank cap........................................ 3-27
Fuel tank overflow hose ....................... 3-29
Fuses, replacing ................................... 6-32
H
Handlebar switches .............................. 3-20
Hazard switch ....................................... 3-20
Headlight bulb, replacing ...................... 6-33
High beam indicator light........................ 3-3
Horn switch........................................... 3-20
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-40
Immobilizer system ................................. 3-1
Immobilizer system indicator light .......... 3-5
Indicator lights and warning lights .......... 3-3
L
License plate light bulb, replacing ........ 6-38
Luggage strap holders .......................... 3-38
M
Main switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system .................................................. 6-3
Matte color, caution ................................ 7-1
Menu switch ......................................... 3-21
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light.............................. 3-3
O
Oil level warning light .............................. 3-4
P
Parking .................................................... 5-6
Part locations .......................................... 2-1
R
Rider seat.............................................. 3-30
Rider seat height, adjusting .................. 3-31
S
Safety information................................... 1-1
Select switch ........................................ 3-21
Shifting .................................................... 5-3
Shift pedal............................................. 3-22
Shock absorber assembly, adjusting ... 3-36
Sidestand .............................................. 3-40
Sidestand, checking and lubricating .... 6-28
Spark plugs, checking ............................ 6-9
Specifications ......................................... 8-1
Starting the engine.................................. 5-2
Steering, checking ................................ 6-29
Stop/Run/Start switch .......................... 3-20
Storage ................................................... 7-4
Supporting the motorcycle ................... 6-39
Swingarm pivots, lubricating ................ 6-28
