YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-27
3
4. Have a Yamaha dealer check the
vehicle and turn off the engine
trouble warning light.
EAU13076
Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap

Page 42 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-28
3
EAU13222
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flamma ble. To avoi d fires
an d

Page 43 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-29
3TIP
 This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Check that gasoline nozzle has
the same ide

Page 44 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-30
3
EAU13434
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
erati

Page 45 of 118

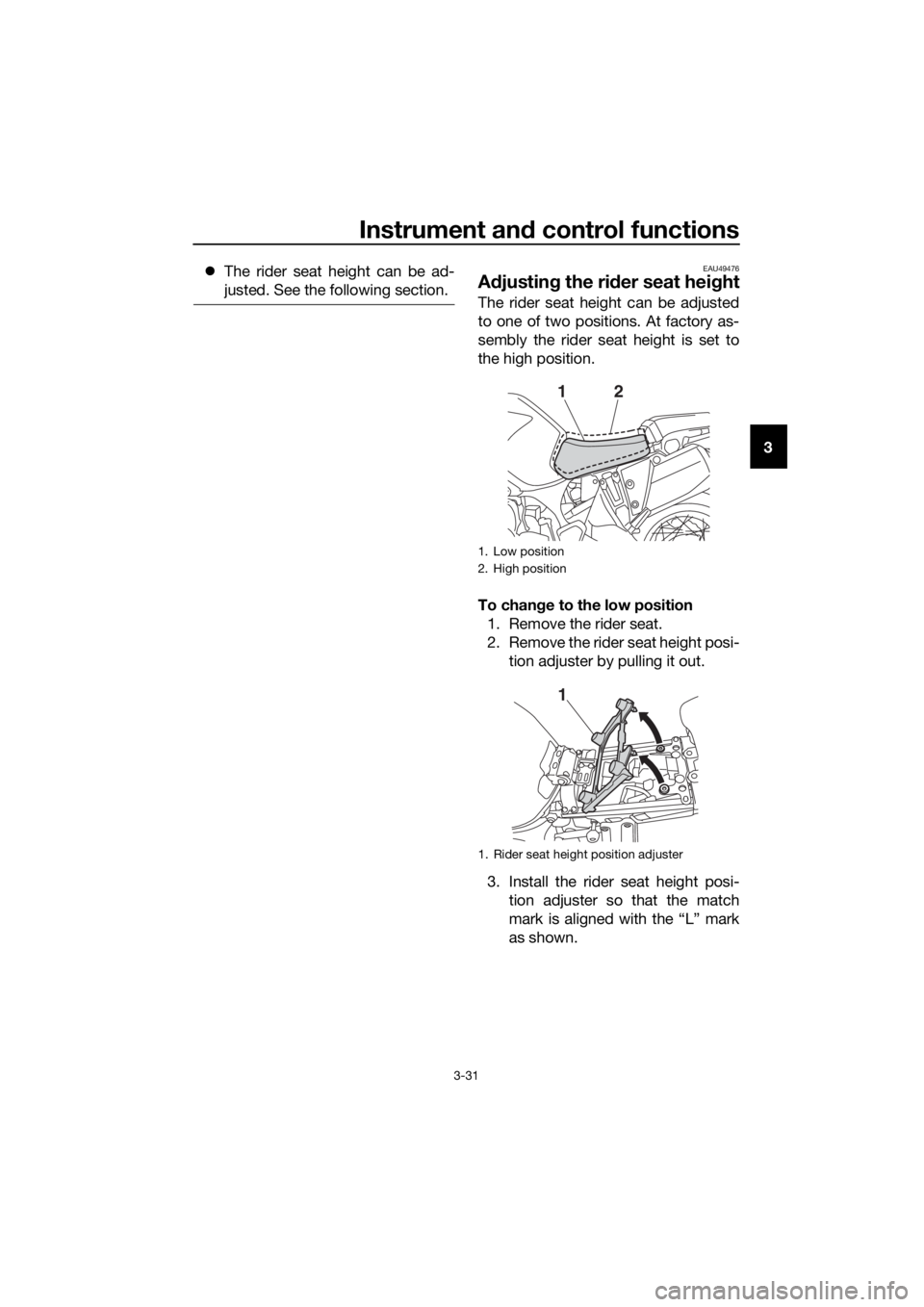

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-31
3

The rider seat height can be ad-
justed. See the following section.
EAU49476
Adjustin g the ri der seat hei ght
The rider seat height can be adjusted
to one

Page 46 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-32
3
4. Insert the projection on the rear ofthe rider seat into seat holder A as
shown.
To chan ge to the hi gh position
1. Remove the rider seat.
2. Remove the ride

Page 47 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-33
3
EAU58982
Win dshiel d
To suit the rider’s preference, the wind-
shield can be changed to one of four
positions.
To adjust the win dshiel d hei ght
1. Loosen t

Page 48 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-34
3
EAU59141
A djustin g the front fork
WARNING
EWA10181
Always a djust  both fork le gs equally,
otherwise poor han dlin g an d loss of
sta bility may result.
This

Page 49 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-35
3
TIP
When adjusting the damping force set-
tings, turn the adjuster in direction (a)
until it stops, and then count the clicks
in direction (b).
Compression  dam

Page 50 of 118

YAMAHA XT1200Z 2019 Service Manual Instrument and control functions
3-36
3
EAU49693
A djustin g the shock a bsorb er
assem bly
This shock absorber assembly is
equipped with a spring preload adjust-
ing knob and a rebound damping force
