YAMAHA XT1200ZE 2019 Owners Manual
Manufacturer: YAMAHA, Model Year: 2019, Model line: XT1200ZE, Model: YAMAHA XT1200ZE 2019Pages: 122, PDF Size: 3.88 MB
Page 111 of 122

Motorcycle care and stora ge
7-4
7
EAU83472
Stora ge
Always store the vehicle in a cool, dry
place. If necessary, protect it against
dust with a porous cover. Be sure the
engine and the exhaust system are
cool before covering the vehicle. If the
vehicle often sits for weeks at a time
between uses, the use of a quality fuel
stabilizer is recommended after each
fill-up.
NOTICE
ECA21170
Storin g the vehicle in a poorly
ventilate d room or coverin g it
with a tarp, while it is still wet,
will allow water an d humi dity to
seep in an d cause rust.
To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are store d.
Lon g term stora ge
Before storing the vehicle long term (60
days or more): 1. Make all necessary repairs and perform any outstanding mainte-
nance.
2. Follow all instructions in the Care section of this chapter.
3. Fill up the fuel tank, adding fuel stabilizer according to product in-
structions. Run the engine for 5
minutes to distribute treated fuel
through the fuel system.
4. For vehicles equipped with a fuel cock: Turn the fuel cock lever to
the off position. 5. For vehicles with a carburetor: To
prevent fuel deposits from build-
ing up, drain the fuel in the carbu-
retor float chamber into a clean
container. Retighten the drain bolt
and pour the fuel back into the fuel
tank.
6. Use a quality engine fogging oil according to product instructions
to protect internal engine compo-
nents from corrosion. If engine
fogging oil is not available, per-
form the following steps for each
cylinder:a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent d am-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
7. Lubricate all control cables, piv- ots, levers and pedals, as well as
the sidestand and centerstand (if
equipped).
UBP9E1E0.book Page 4 Friday, September 7, 2018 10:01 AM
Page 112 of 122

Motorcycle care and stora ge
7-5
7 8. Check and correct the tire air
pressure, and then lift the vehicle
so that all wheels are off the
ground. Otherwise, turn the
wheels a little once a month in or-
der to prevent the tires from be-
coming degraded in one spot.
9. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
10. Remove the battery and fully char- ge it, or attach a maintenance
charger to keep the battery opti-
mally charged. NOTICE: Confirm
that the b attery and its char ger
are compati ble. Do not char ge a
VRLA battery with a convention-
al char ger.
[ECA26330]
TIP
If the battery will be removed,
charge it once a month and store
it in a temperate location between
0-30 °C (32-90 °F).
See page 6-30 for more informa-
tion on charging and storing the
battery.
UBP9E1E0.book Page 5 Friday, September 7, 2018 10:01 AM
Page 113 of 122

Specifications
8-1
8
Dimensions:
Overall length:2250 mm (88.6 in)
Overall width:
980 mm (38.6 in)
Overall height: 1410/1470 mm (55.5/57.9 in)
Seat height: 845/870 mm (33.3/34.3 in)
Wheelbase:
1540 mm (60.6 in)
Ground clearance: 190 mm (7.48 in)
Minimum turning radius: 2.7 m (8.86 ft)
Wei ght:
Curb weight:
266 kg (586 lb)
Engine:
Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
2-cylinder
Displacement: 1199 cm³
Bore × stroke:
98.0 × 79.5 mm (3.86 × 3.13 in)
Starting system:
Electric starter
Engine oil:
Recommended brand:
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Oil change: 3.10 L (3.28 US qt, 2.73 Imp.qt) With oil filter removal:
3.40 L (3.59 US qt, 2.99 Imp.qt)
Final gear oil:
Type:
Yamaha genuine shaft drive gear oil SAE 80W-90 API GL-5 or SAE 80 API GL-4
Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark):
0.26 L (0.27 US qt, 0.23 Imp.qt)
Radiator (including all routes):
1.83 L (1.93 US qt, 1.61 Imp.qt)
Fuel:
Recommended fuel:Premium unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 23 L (6.1 US gal, 5.1 Imp.gal)
Fuel reserve amount:
3.9 L (1.03 US gal, 0.86 Imp.gal)
Fuel injection:
Throttle body:ID mark:BP81 00
Drivetrain:
Gear ratio:
1st: 2.769 (36/13)
2nd:
2.063 (33/16)
3rd: 1.571 (33/21)
4th: 1.250 (30/24)
5th:
1.042 (25/24)
6th: 0.929 (26/28)
Front tire:
Type:
Tubeless
Size: 110/80R19M/C 59V
Manufacturer/model: BRIDGESTONE/BW501
UBP9E1E0.book Page 1 Friday, September 7, 2018 10:01 AM
Page 114 of 122

Specifications
8-2
8
Rear tire:
Type:Tubeless
Size:
150/70R17M/C 69V
Manufacturer/model: BRIDGESTONE/BW502
Loa din g:
Maximum load:
204 kg (450 lb)
(Total weight of rider, passenger, cargo
and accessories)
Unifie d b rake system:
Operation:
Activated by front brake
Front brake:
Type:
Hydraulic dual disc brake
Rear brake:
Type:
Hydraulic single disc brake
Front suspension:
Type:Telescopic fork
Rear suspension:
Type:Swingarm (link suspension)
Electrical system:
System voltage:
12 V
Battery:
Model:YTZ12S
Voltage, capacity:
12 V, 11.0 Ah (10 HR)
Hea dlig ht:
Bulb type:
Halogen bulb
Bul b watta ge:
Headlight:
H7, 55.0 W
Brake/tail light: LED
Front turn signal light:
LED
Rear turn signal light: LED
Auxiliary light: 5.0 W License plate light:
5.0 W
UBP9E1E0.book Page 2 Friday, September 7, 2018 10:01 AM
Page 115 of 122

Consumer information
9-1
9
EAU53562

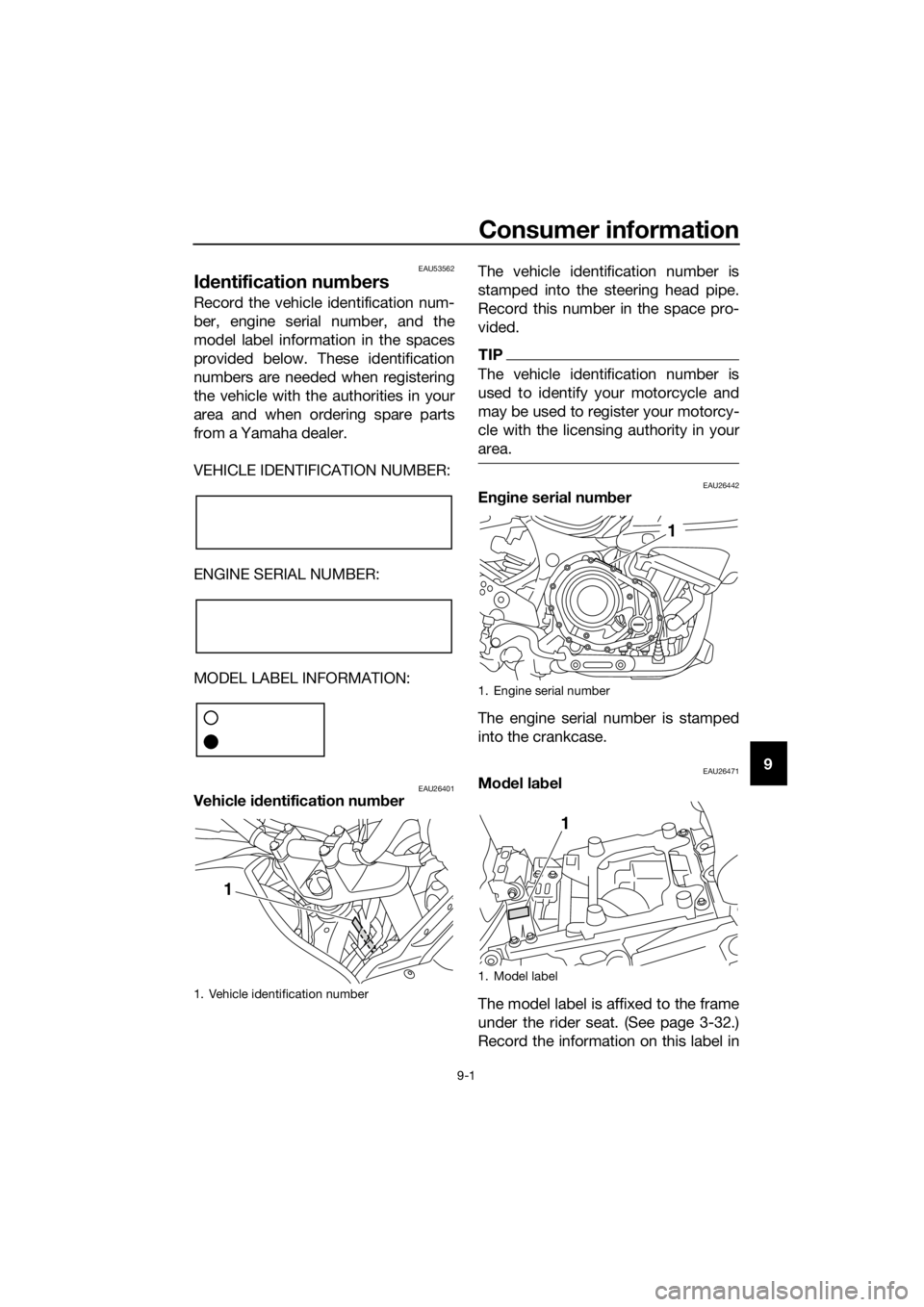

Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle i dentification num ber The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26471Mo del la bel
The model label is affixed to the frame
under the rider seat. (See page 3-32.)
Record the information on this label in
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UBP9E1E0.book Page 1 Friday, September 7, 2018 10:01 AM
Page 116 of 122

Consumer information
9-2
9the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
EAU69910
Dia
gnostic connector
The diagnostic connector is located as
shown.
1. Diagnostic connector
1
UBP9E1E0.book Page 2 Friday, September 7, 2018 10:01 AM
Page 117 of 122

Consumer information
9-3
9
EAU85300
Vehicle data record ing
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data
Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the follow-
ing Privacy Policy.
Privacy Policy
Yamaha will not disclose this data to a third party except in the following cas-
es. In addition, Yamaha may provide
vehicle data to a contractor in order to
outsource services related to the han-
dling of vehicle data. Even in this case,
Yamaha will require the contractor to properly handle the vehicle data we
provided and Yamaha will appropriate-
ly manage the data. With the consent of the vehicle
owner
Where obligated by law
For use by Yamaha in litigation
When the data is not related to an
individual vehicle nor owner
https://www.yamaha-motor.eu/eu/
privacy/privacy-policy.aspx
UBP9E1E0.book Page 3 Friday, September 7, 2018 10:01 AM
Page 118 of 122

10-1
10
Index
A
ABS ....................................................... 3-26
ABS warning light ................................... 3-4
Air filter element .................................... 6-17
Auxiliary DC jack ................................... 3-41
Auxiliary light bulb, replacing ................ 6-35
B
Battery .................................................. 6-30
Brake and clutch fluids, changing ........ 6-26
Brake and clutch levers, checking
and lubricating .................................... 6-27
Brake and shift pedals, checking and
lubricating ........................................... 6-27
Brake fluid level, checking .................... 6-25
Brake lever ............................................ 3-24
Brake lever free play, checking............. 6-23
Brake light switches.............................. 6-23
Brake pedal........................................... 3-25
C
Canister................................................. 6-10
Care ........................................................ 7-1
Carriers ................................................. 3-40
Catalytic converter ................................ 3-31
Centerstand and sidestand, checking and lubricating .................................... 6-28
Clutch lever ................................. 3-23, 6-22
Coolant ................................................. 6-16
Cowlings, removing and installing .......... 6-7
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................. 3-6
D
Data recording, vehicle ........................... 9-3
Diagnostic connector.............................. 9-2
Dimmer/Pass switch ............................. 3-22
D-mode (drive mode) ............................ 3-21
E
Engine break-in....................................... 5-5
Engine idling speed, checking .............. 6-18
Engine oil .............................................. 6-10
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4
F
Final gear oil.......................................... 6-14
Front and rear brake pads, checking.... 6-24
Front fork, checking .............................. 6-29
Fuel ....................................................... 3-29
Fuel consumption, tips for reducing ....... 5-4
Fuel tank cap ........................................ 3-29
Fuel tank overflow hose ........................ 3-31 Fuses, replacing ................................... 6-32
H
Handlebar switches .............................. 3-22
Hazard switch....................................... 3-22
Headlight bulb, replacing ..................... 6-33
High beam indicator light ....................... 3-3
Horn switch .......................................... 3-22
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-43
Immobilizer system ................................ 3-1
Immobilizer system indicator light.......... 3-5
Indicator lights and warning lights ......... 3-3
L
License plate light bulb, replacing........ 6-38
Luggage strap holders ......................... 3-41
M
Main switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Menu switch ......................................... 3-23
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light ............................. 3-3
O
Oil level warning light ............................. 3-4
P
Parking ................................................... 5-6
Part locations ......................................... 2-1
R
Rider seat ............................................. 3-32
Rider seat height, adjusting.................. 3-33
S
Safety information .................................. 1-1
Select switch ........................................ 3-23
Shifting ................................................... 5-3
Shift pedal ............................................ 3-24
Sidestand ............................................. 3-42
Spark plugs, checking ............................ 6-9
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Steering, checking................................ 6-29
Stop/Run/Start switch .......................... 3-22
Storage ................................................... 7-4
Suspension, adjusting the front and rear ..................................................... 3-35
Suspension system warning light........... 3-5
UBP9E1E0.book Page 1 Friday, September 7, 2018 10:01 AM
Page 119 of 122

Index
10-2
10
Swingarm pivots, lubricating ................ 6-28
T
Throttle grip and cable, checking and
lubricating .......................................... 6-26
Throttle grip free play, checking........... 6-18
Tires...................................................... 6-19
Tool kit.................................................... 6-2
Traction control system........................ 3-27
Traction control system indicator light ... 3-5
Troubleshooting ................................... 6-39
Troubleshooting charts ........................ 6-40
Turn signal indicator lights ..................... 3-3
Turn signal light and brake/tail light ..... 6-37
Turn signal switch ................................ 3-22
V
Valve clearance .................................... 6-19
Vehicle identification number ................. 9-1
W
Wheel bearings, checking .................... 6-30
Wheels.................................................. 6-22
Windshield............................................ 3-34
Y
Yamalube ............................................. 6-13
UBP9E1E0.book Page 2 Friday, September 7, 2018 10:01 AM
Page 120 of 122

A5-tate_Blank.fm Page 1 Thursday, November 24, 2011 4:30 PM
