EAU32220
Left view
XT660Z
DESCRIPTION
2-1
2

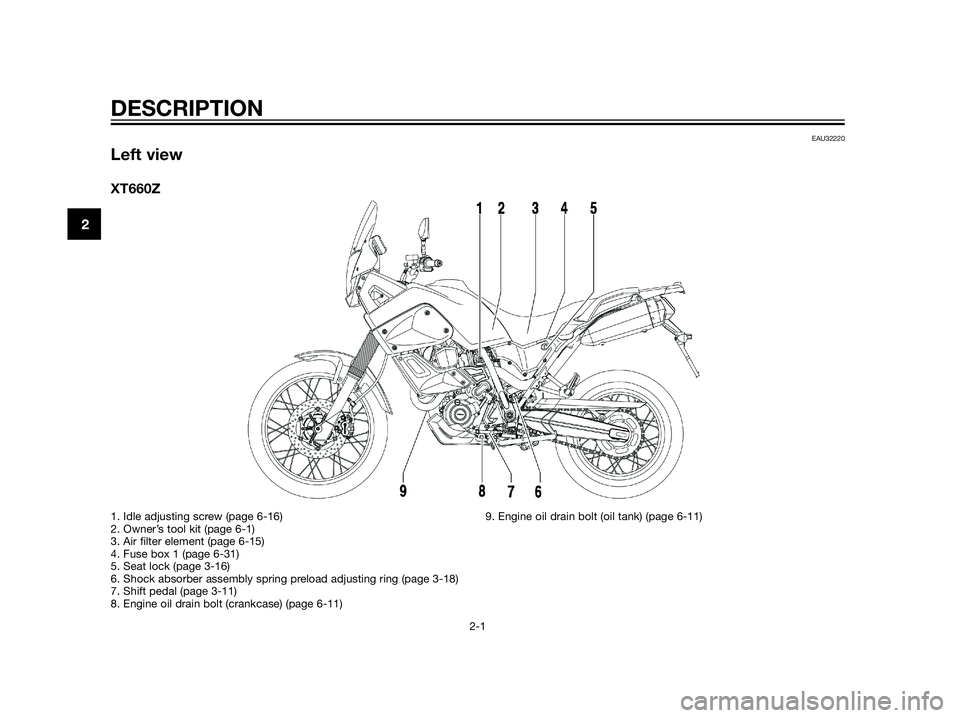

1. Idle adjusting screw (page 6-16)
2. Owner’s tool kit (page 6-1)
3. Air filter element (page 6-15)
4. Fuse box 1 (page 6-31)
5. Seat lock (page 3-16)
6. Shock absorber assembly spring preload adjusting ring (page 3-18)
7. Shift pedal (page 3-11)
8. Engine oil drain bolt (crankcase) (page 6-11)9. Engine oil drain bolt (oil tank) (page 6-11)

XT660ZA
DESCRIPTION
2-2
2

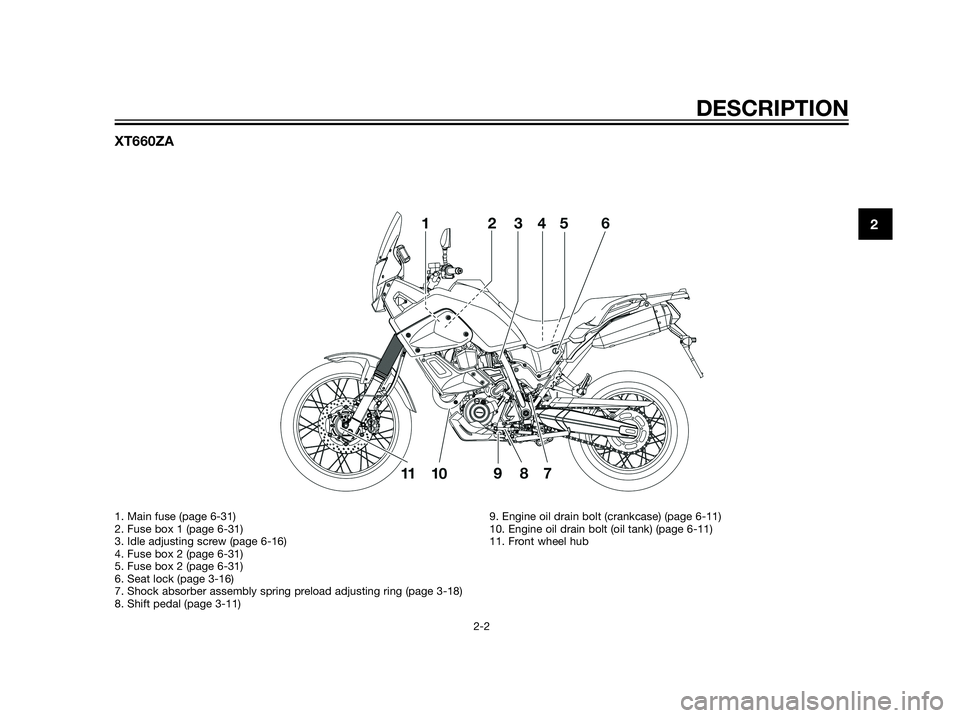

1. Main fuse (page 6-31)
2. Fuse box 1 (page 6-31)
3. Idle adjusting screw (page 6-16)
4. Fuse box 2 (page 6-31)
5. Fuse box 2 (page 6-31)
6. Seat lock (page 3-16)
7. Shock absorber assembly spring preload adjusting ring (page 3-18)
8. Shift pedal (page 3-11)9. Engine oil drain bolt (crankcase) (page 6-11)
10. Engine oil drain bolt (oil tank) (page 6-11)
11. Front wheel hub

XT660ZA
DESCRIPTION
2-4
2

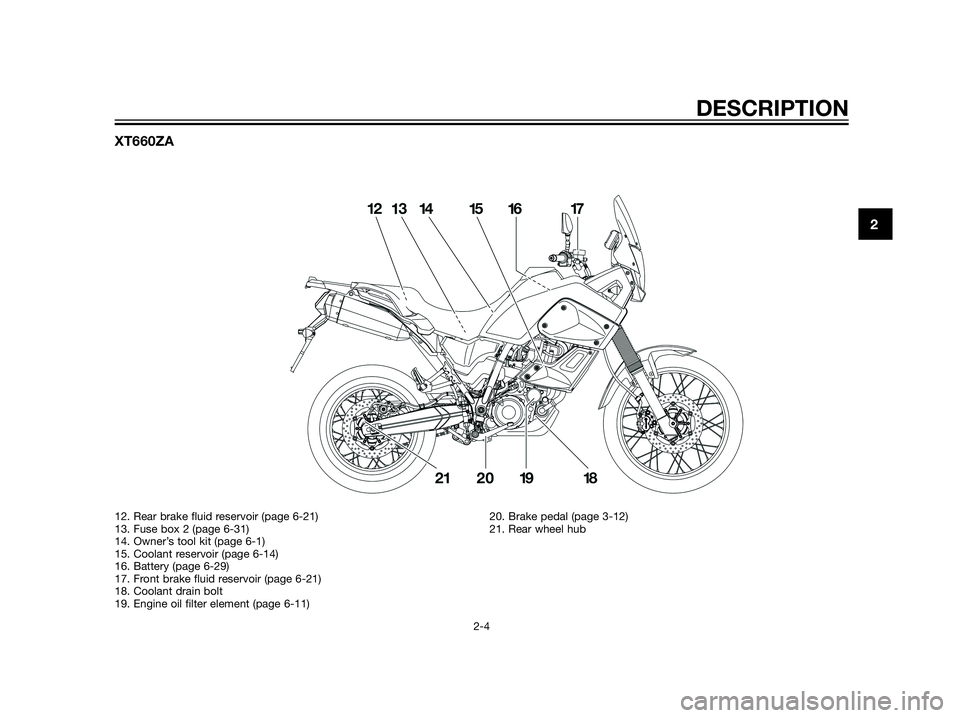

12. Rear brake fluid reservoir (page 6-21)
13. Fuse box 2 (page 6-31)
14. Owner’s tool kit (page 6-1)
15. Coolant reservoir (page 6-14)
16. Battery (page 6-29)
17. Front brake fluid reservoir (page 6-21)
18. Coolant drain bolt
19. Engine oil filter element (page 6-11)20. Brake pedal (page 3-12)
21. Rear wheel hub

EAUS1930

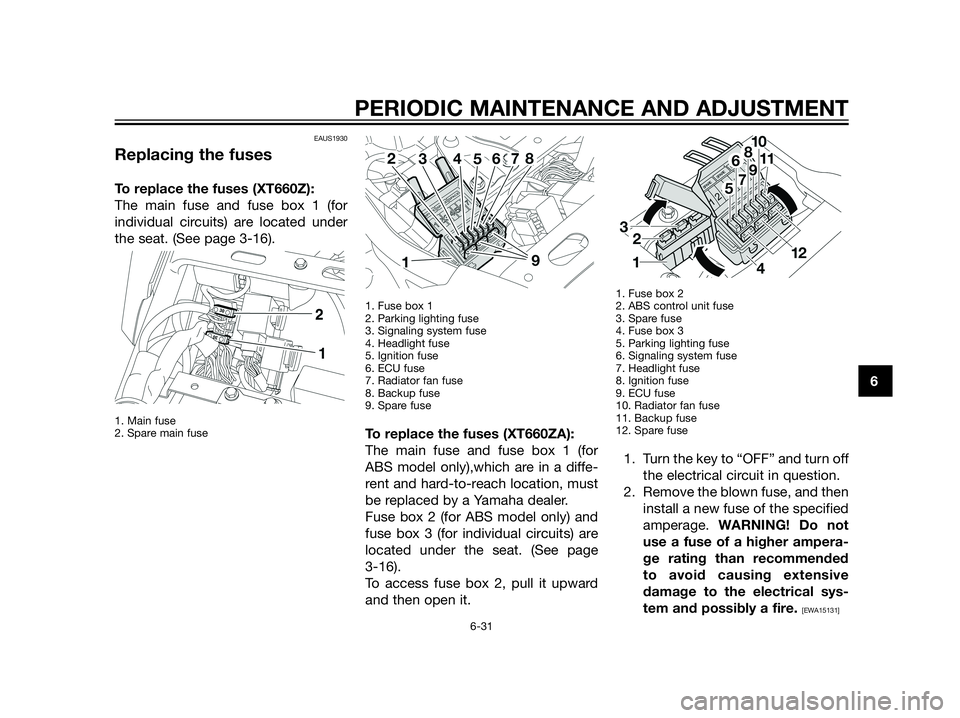

Replacing the fuses
To replace the fuses (XT660Z):
The main fuse and fuse box 1 (for
individual circuits) are located under
the seat. (See page 3-16).
1. Main fuse
2. Spare main fuse1. Fuse box 1
2. Parking lighting fuse
3. Signaling system fuse
4. Headlight fuse
5. Ignition fuse
6. ECU fuse
7. Radiator fan fuse
8. Backup fuse
9. Spare fuseTo replace the fuses (XT660ZA):
The main fuse and fuse box 1 (for
ABS model only),which are in a diffe-
rent and hard-to-reach location, must
be replaced by a Yamaha dealer.
Fuse box 2 (for ABS model only) and
fuse box 3 (for individual circuits) are
located under the seat. (See page
3-16).
To access fuse box 2, pull it upward
and then open it.
1. Fuse box 2
2. ABS control unit fuse
3. Spare fuse
4. Fuse box 3
5. Parking lighting fuse
6. Signaling system fuse
7. Headlight fuse
8. Ignition fuse
9. ECU fuse
10. Radiator fan fuse
11. Backup fuse
12. Spare fuse
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher ampera-
ge rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a fire.
[EWA15131]
