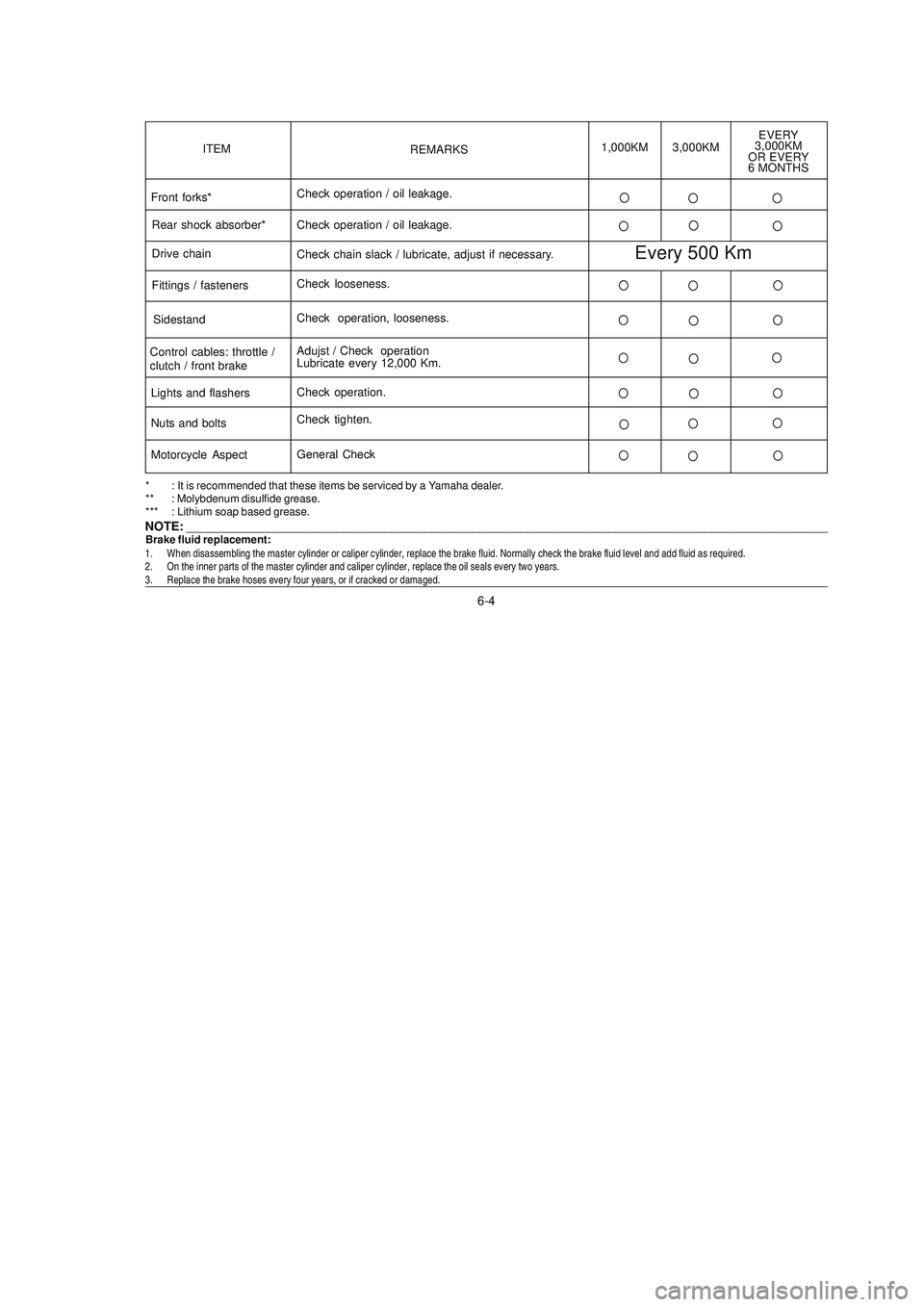

6-4
6-4
* : It is recommended that these items be serviced by a Yamaha dealer.
** : Molybdenum disulfide grease.
*** : Lithium soap based grease.
NOTE: ______________________________________________________________________________________________Brake fluid replacement:
_______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
1. When disassembling the master cylinder or caliper cylinder, replace the brake fluid. Normally check the brake fluid level and add fluid as required.
2. On the inner parts of the master cylinder and caliper cylinder, replace the oil seals every two years.
3. Replace the brake hoses every four years, or if cracked or damaged.
ITEM
Front forks*
Sidestand
Control cables: throttle /
clutch / front brakeRear shock absorber*
Drive chain
Fittings / fastenersCheck operation / oil leakage.
Check operation, looseness.
Adujst / Check operation
Lubricate every 12,000 Km. Check chain slack / lubricate, adjust if necessary.
Check looseness.REMARKS1,000KM
Lights and flashers
Nuts and bolts
Motorcycle AspectCheck operation.
Check tighten.
General Check
EVERY
3,000KM
OR EVERY
6 MONTHS3,000KM
Check operation / oil leakage.
Every 500 Km
* : It is recommended that these items be serviced by a Yamaha dealer.
** : Molybdenum disulfide grease.
*** : Lithium soap based grease.
NOTE: ______________________________________________________________________________________________Brake fluid replacement:
_______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
1. When disassembling the master cylinder or caliper cylinder, replace the brake fluid. Normally check the brake fluid level and add fluid as required.
2. On the inner parts of the master cylinder and caliper cylinder, replace the oil seals every two years.
3. Replace the brake hoses every four years, or if cracked or damaged.
ITEM
Front forks*
Sidestand
Control cables: throttle /
clutch / front brakeRear shock absorber*
Drive chain
Fittings / fastenersCheck operation / oil leakage.
Check operation, looseness.
Adujst / Check operation
Lubricate every 12,000 Km. Check chain slack / lubricate, adjust if necessary.
Check looseness.REMARKS1,000KM
Lights and flashers
Nuts and bolts
Motorcycle AspectCheck operation.
Check tighten.
General Check
EVERY
3,000KM
OR EVERY
6 MONTHS3,000KM
Check operation / oil leakage.
Every 500 Km

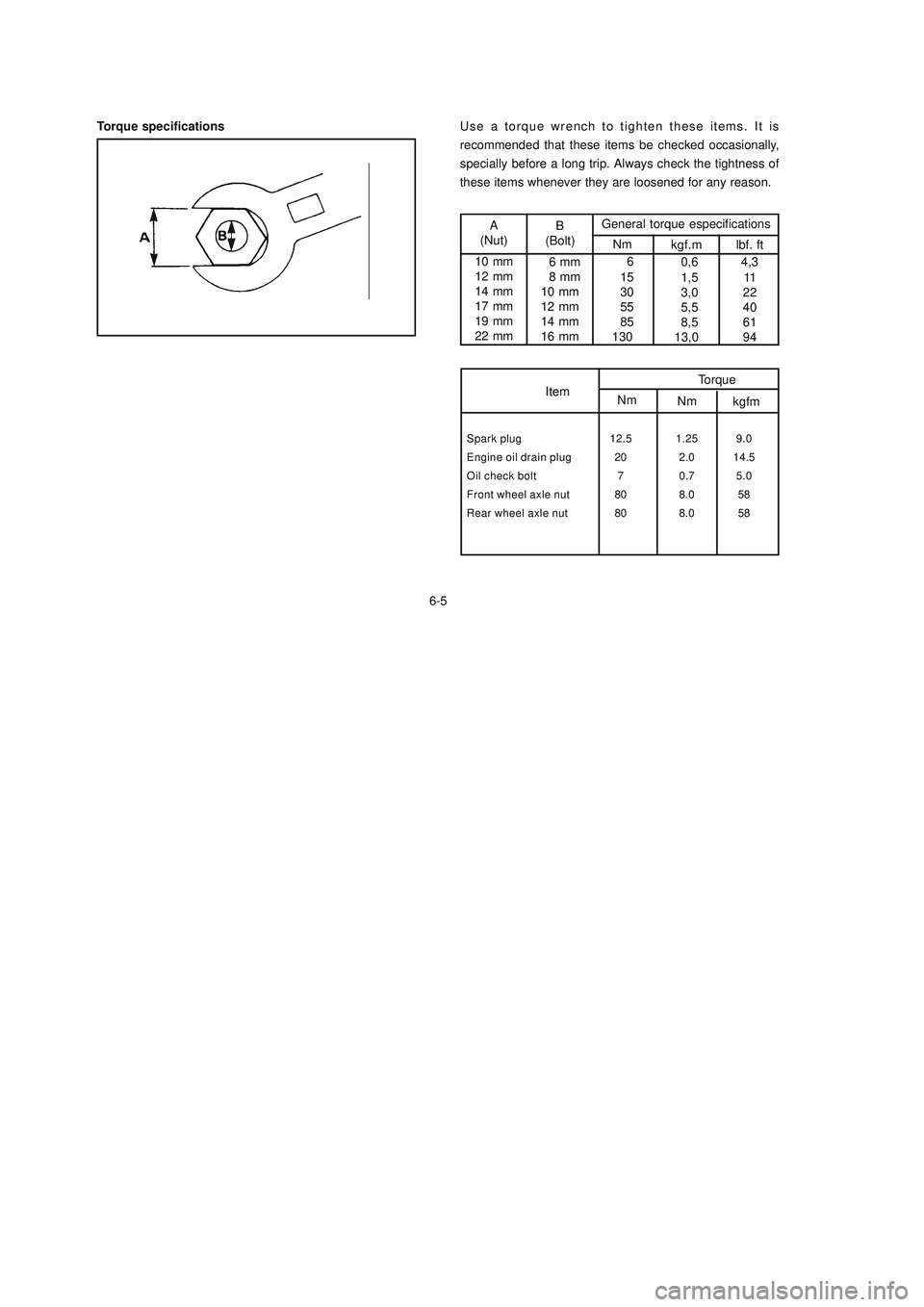

6-5
6-5
Spark plug12.5 1.25 9.0
Engine oil drain plug20 2.0 14.5
Oil check bolt 7 0.7 5.0
Front wheel axle nut 80 8.0 58
Rear wheel axle nut 80 8.0 58
Use a torque wrench to tighten these items. It is
recommended that these items be checked occasionally,
specially before a long trip. Always check the tightness of
these items whenever they are loosened for any reason.
A
(Nut)
10 mm
12 mm
14 mm
17 mm
19 mm
22 mmB
(Bolt)
6 mm
8 mm
10 mm
12 mm
14 mm
16 mmGeneral torque especifications
Nm
6
15
30
55
85
130kgf.m
0,6
1,5
3,0
5,5
8,5
13,0lbf. ft
4,3
11
22
40
61
94 Torque specifications
Torque
Nm
kgfm Item
Nm
Spark plug12.5 1.25 9.0
Engine oil drain plug20 2.0 14.5
Oil check bolt 7 0.7 5.0
Front wheel axle nut 80 8.0 58
Rear wheel axle nut 80 8.0 58
Use a torque wrench to tighten these items. It is
recommended that these items be checked occasionally,
specially before a long trip. Always check the tightness of
these items whenever they are loosened for any reason.
A
(Nut)
10 mm
12 mm
14 mm
17 mm
19 mm
22 mmB
(Bolt)
6 mm
8 mm
10 mm
12 mm
14 mm
16 mmGeneral torque especifications
Nm
6
15
30
55
85
130kgf.m
0,6
1,5
3,0
5,5
8,5
13,0lbf. ft
4,3
11
22
40
61
94 Torque specifications
Torque
Nm
kgfm Item
Nm

6-8
6-8 e.Fill engine with oil. Install the oil filter cap and tighten.
NOTE:
Recommended engine oil classification; API Service “SH”
type or equivalent
Recommended oil:
YAMALUBE 4
Oil quantity:
Total amount:
1.2 L ( 0.264 Imp gal, 0.317 US gal)
Periodic oil change:
1.0 L ( 0.220 Imp gal, 0.264 US gal)
f. Start the engine and warm up for a few minutes. While
warming up, check for oil leakage. If oil leakage is found,
stop the engine immediately, and check for the cause.
g. Stop the engine and check the oil level.
CAUTION:
Be sure no foreign material enters the crankcase.
CAUTION:
Do not put in any chemical additives. Engine oil also
lubricates the clutch and additives could cause clutch
slippage.
After replacing the engine oil, be sure to check the oil
pressure.
CAUTION:
e.Fill engine with oil. Install the oil filter cap and tighten.
NOTE:
Recommended engine oil classification; API Service “SH”
type or equivalent
Recommended oil:
YAMALUBE 4
Oil quantity:
Total amount:
1.2 L ( 0.264 Imp gal, 0.317 US gal)
Periodic oil change:
1.0 L ( 0.220 Imp gal, 0.264 US gal)
f. Start the engine and warm up for a few minutes. While
warming up, check for oil leakage. If oil leakage is found,
stop the engine immediately, and check for the cause.
g. Stop the engine and check the oil level.
CAUTION:
Be sure no foreign material enters the crankcase.
CAUTION:
Do not put in any chemical additives. Engine oil also
lubricates the clutch and additives could cause clutch
slippage.
After replacing the engine oil, be sure to check the oil
pressure.
CAUTION:

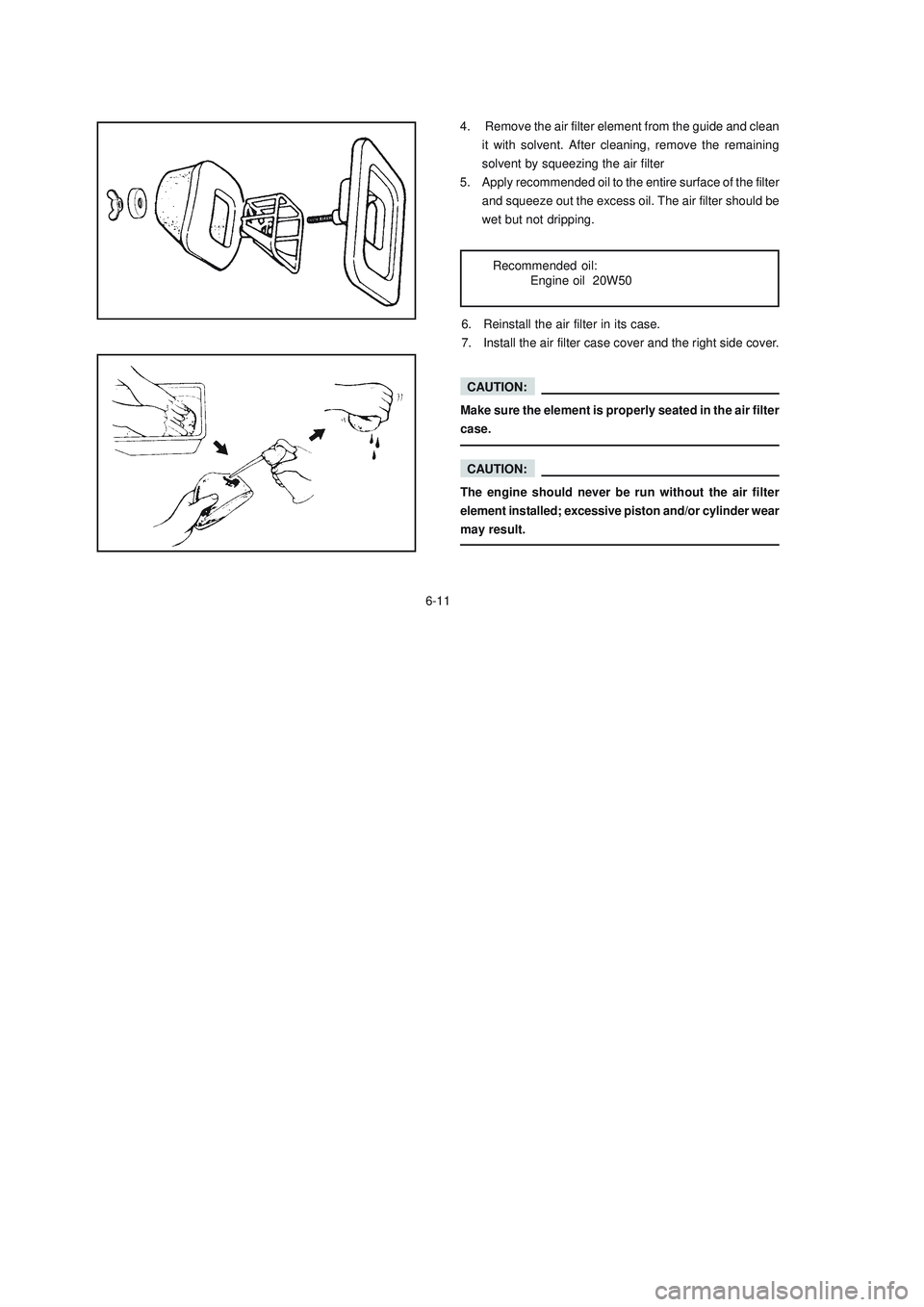

6-11
6-11
CAUTION:
Make sure the element is properly seated in the air filter
case.
CAUTION:
The engine should never be run without the air filter
element installed; excessive piston and/or cylinder wear
may result.
Recommended oil:
Engine oil 20W50 4. Remove the air filter element from the guide and clean
it with solvent. After cleaning, remove the remaining
solvent by squeezing the air filter
5. Apply recommended oil to the entire surface of the filter
and squeeze out the excess oil. The air filter should be
wet but not dripping.
6. Reinstall the air filter in its case.
7. Install the air filter case cover and the right side cover.
CAUTION:
Make sure the element is properly seated in the air filter
case.
CAUTION:
The engine should never be run without the air filter
element installed; excessive piston and/or cylinder wear
may result.
Recommended oil:
Engine oil 20W50 4. Remove the air filter element from the guide and clean
it with solvent. After cleaning, remove the remaining
solvent by squeezing the air filter
5. Apply recommended oil to the entire surface of the filter
and squeeze out the excess oil. The air filter should be
wet but not dripping.
6. Reinstall the air filter in its case.
7. Install the air filter case cover and the right side cover.

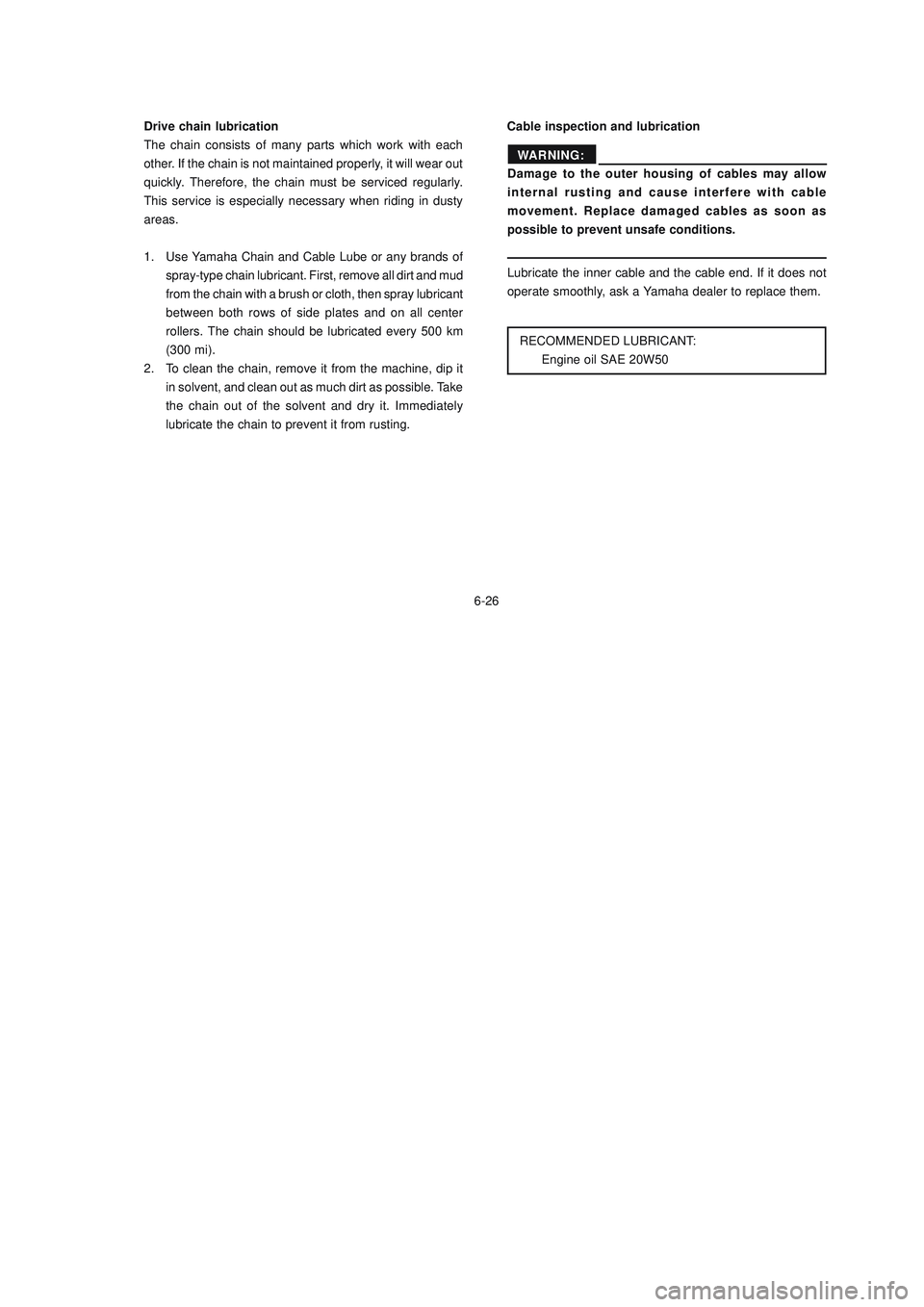

6-26
6-26Cable inspection and lubrication Drive chain lubrication
The chain consists of many parts which work with each
other. If the chain is not maintained properly, it will wear out
quickly. Therefore, the chain must be serviced regularly.
This service is especially necessary when riding in dusty
areas.
1. Use Yamaha Chain and Cable Lube or any brands of
spray-type chain lubricant. First, remove all dirt and mud
from the chain with a brush or cloth, then spray lubricant
between both rows of side plates and on all center
rollers. The chain should be lubricated every 500 km
(300 mi).
2. To clean the chain, remove it from the machine, dip it
in solvent, and clean out as much dirt as possible. Take
the chain out of the solvent and dry it. Immediately
lubricate the chain to prevent it from rusting.Damage to the outer housing of cables may allow
internal rusting and cause interfere with cable
movement. Replace damaged cables as soon as
possible to prevent unsafe conditions.
Lubricate the inner cable and the cable end. If it does not
operate smoothly, ask a Yamaha dealer to replace them.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
WARNING:
Cable inspection and lubrication Drive chain lubrication
The chain consists of many parts which work with each
other. If the chain is not maintained properly, it will wear out
quickly. Therefore, the chain must be serviced regularly.
This service is especially necessary when riding in dusty
areas.
1. Use Yamaha Chain and Cable Lube or any brands of
spray-type chain lubricant. First, remove all dirt and mud
from the chain with a brush or cloth, then spray lubricant
between both rows of side plates and on all center
rollers. The chain should be lubricated every 500 km
(300 mi).
2. To clean the chain, remove it from the machine, dip it
in solvent, and clean out as much dirt as possible. Take
the chain out of the solvent and dry it. Immediately
lubricate the chain to prevent it from rusting.Damage to the outer housing of cables may allow
internal rusting and cause interfere with cable
movement. Replace damaged cables as soon as
possible to prevent unsafe conditions.
Lubricate the inner cable and the cable end. If it does not
operate smoothly, ask a Yamaha dealer to replace them.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
WARNING:

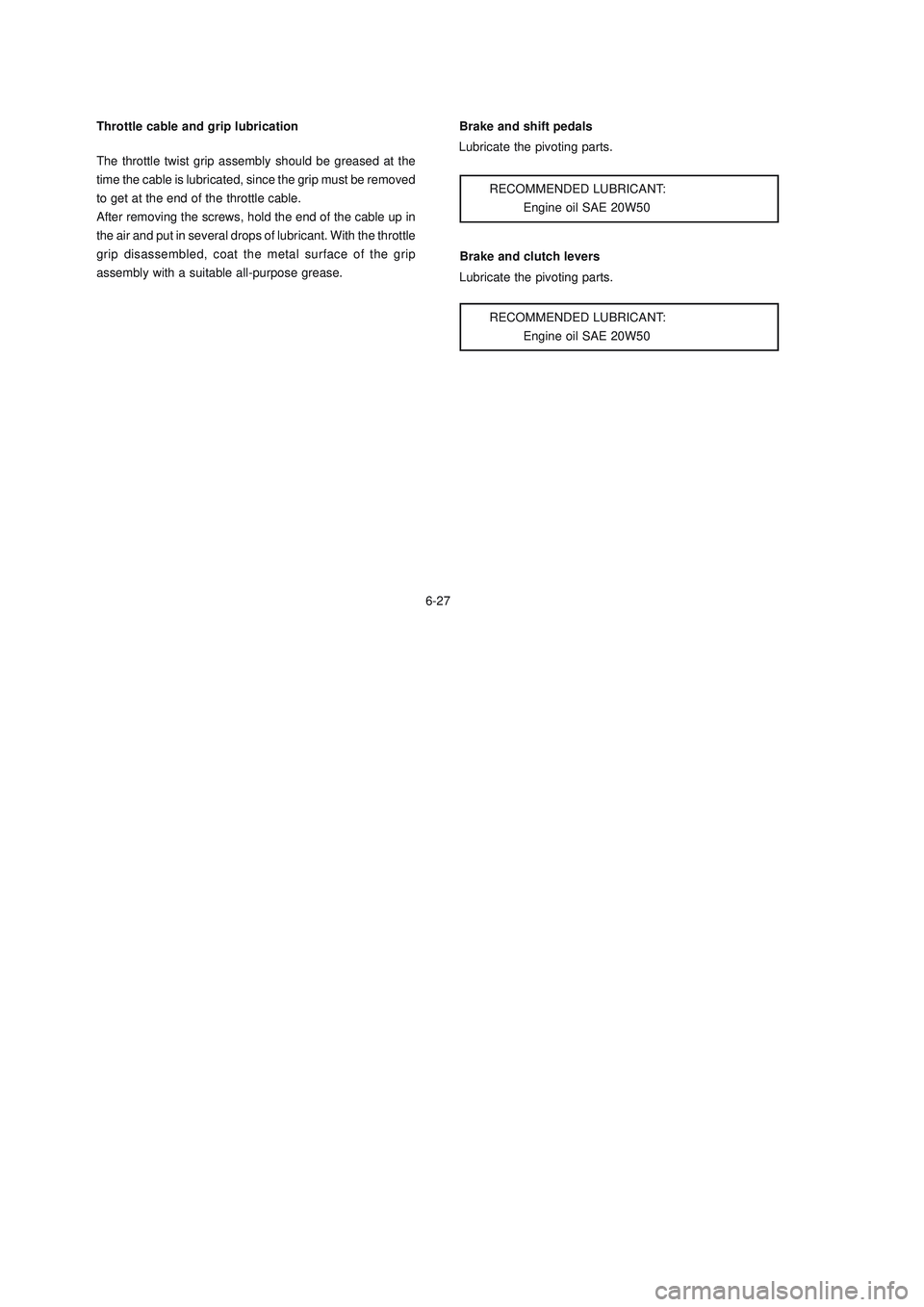

6-27
6-27Brake and clutch levers
Lubricate the pivoting parts.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50 Throttle cable and grip lubrication
The throttle twist grip assembly should be greased at the
time the cable is lubricated, since the grip must be removed
to get at the end of the throttle cable.
After removing the screws, hold the end of the cable up in
the air and put in several drops of lubricant. With the throttle
grip disassembled, coat the metal surface of the grip
assembly with a suitable all-purpose grease.Brake and shift pedals
Lubricate the pivoting parts.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
Brake and clutch levers
Lubricate the pivoting parts.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50 Throttle cable and grip lubrication
The throttle twist grip assembly should be greased at the
time the cable is lubricated, since the grip must be removed
to get at the end of the throttle cable.
After removing the screws, hold the end of the cable up in
the air and put in several drops of lubricant. With the throttle
grip disassembled, coat the metal surface of the grip
assembly with a suitable all-purpose grease.Brake and shift pedals
Lubricate the pivoting parts.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50

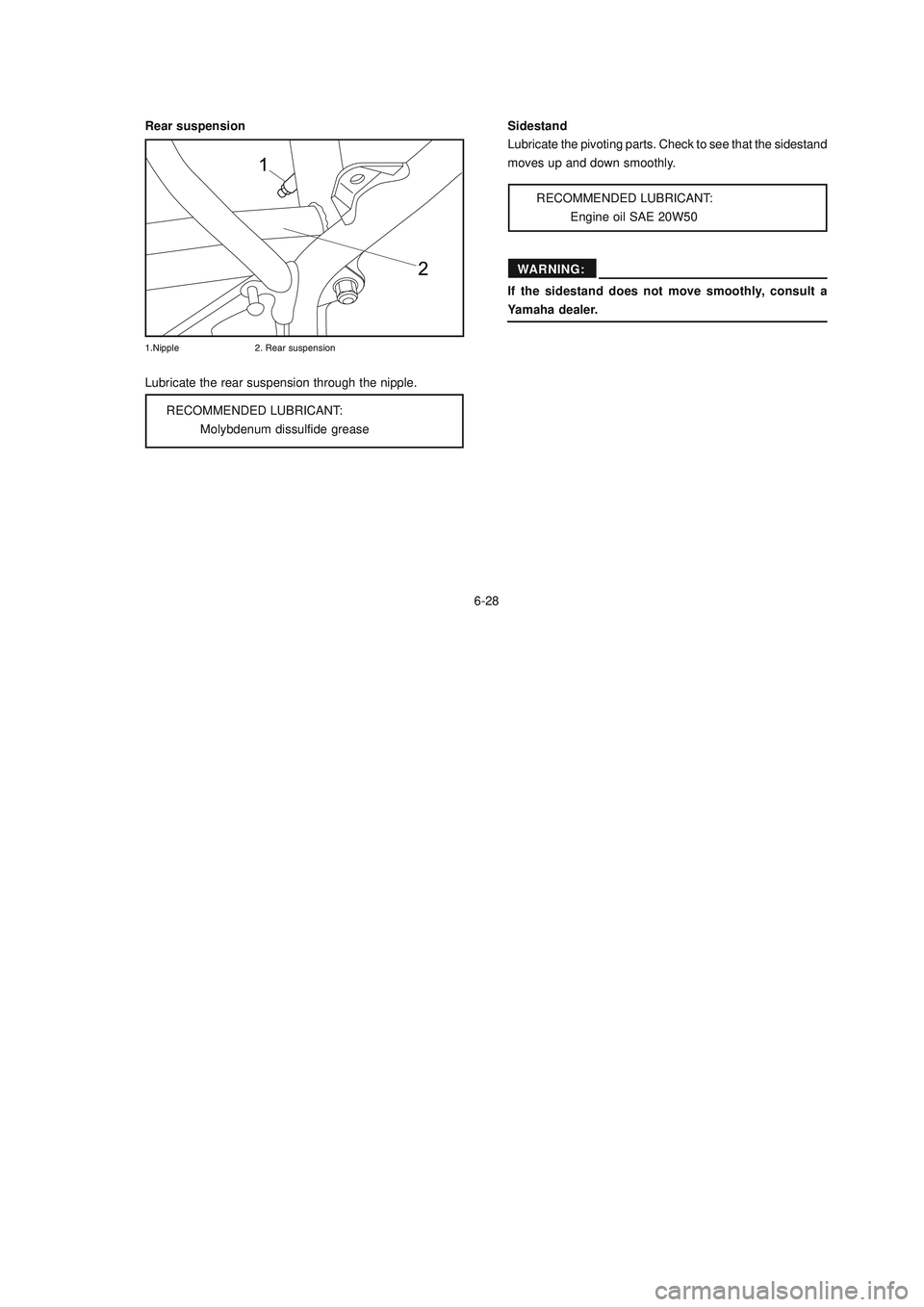

6-28
6-28
Rear suspensionSidestand
Lubricate the pivoting parts. Check to see that the sidestand
moves up and down smoothly.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
If the sidestand does not move smoothly, consult a
Yamaha dealer.
Lubricate the rear suspension through the nipple.
RECOMMENDED LUBRICANT:
Molybdenum dissulfide grease

0
1


WARNING:
Rear suspensionSidestand
Lubricate the pivoting parts. Check to see that the sidestand
moves up and down smoothly.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
If the sidestand does not move smoothly, consult a
Yamaha dealer.
Lubricate the rear suspension through the nipple.
RECOMMENDED LUBRICANT:
Molybdenum dissulfide grease

0
1
